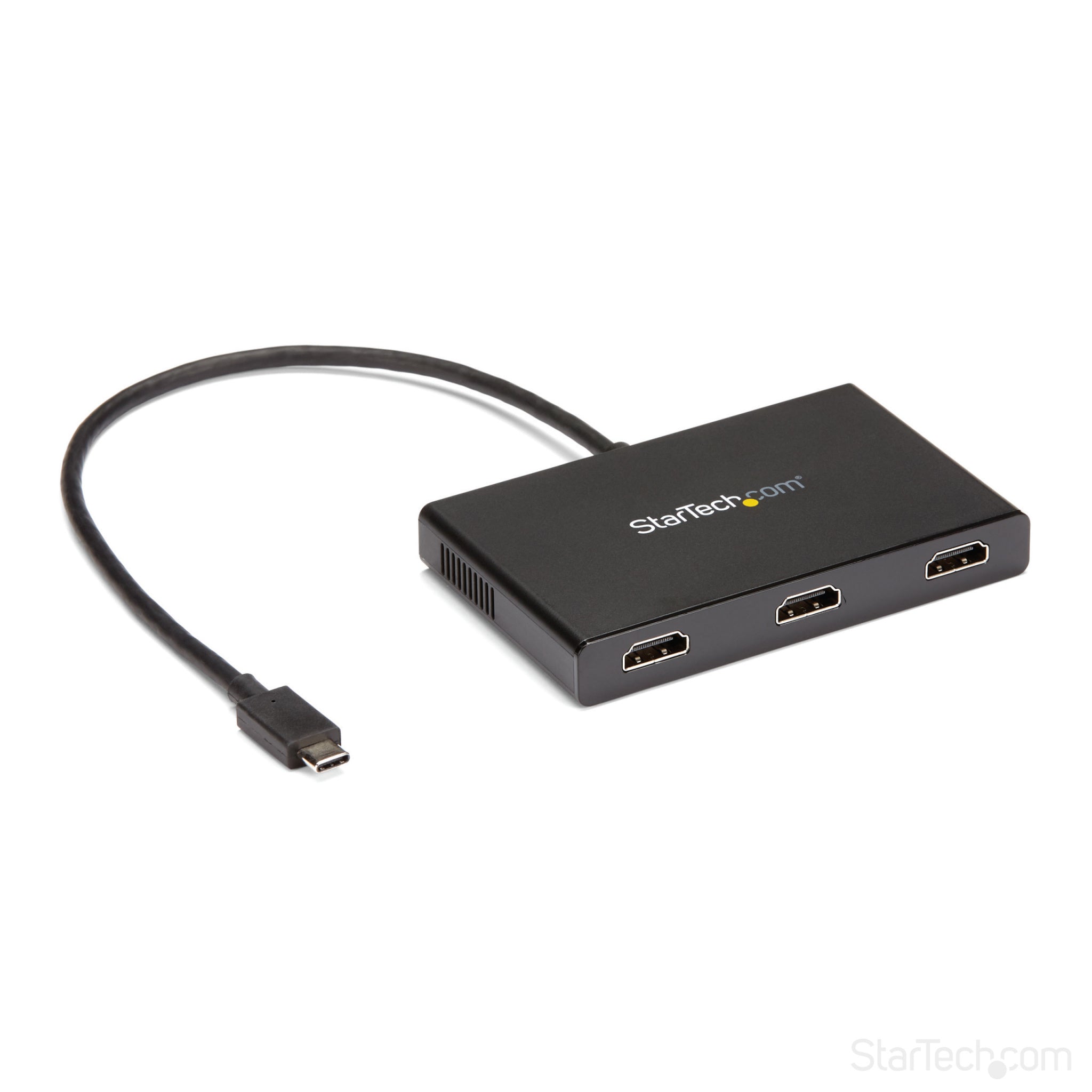

StarTech.com 3-Port Multi Monitor Adapter - USB-C to 3x HDMI Video Splitter - USB Type-C to HDMI MST Hub - Dual 4K 30Hz or Triple 1080p - Thunderbolt 3 Compatible - Windows Only

SKU: MSTCDP123HD
£58.84 inc. VAT
  • MULTI-MONITOR CONFIGURATION: USB Type-C to Triple HDMI adapter/splitter hub drives up to three 1080p 60Hz or two 4K 30Hz monitors using a USB C DP Alt-Mode port on Windows laptops; TB3/TB4/USB4 Compatible; Not compatible with macOS
  • NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
  • HARDWARE COMPATIBILITY: Host system must support DP Alt Mode 1.2 / HBR2 / MST; Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays

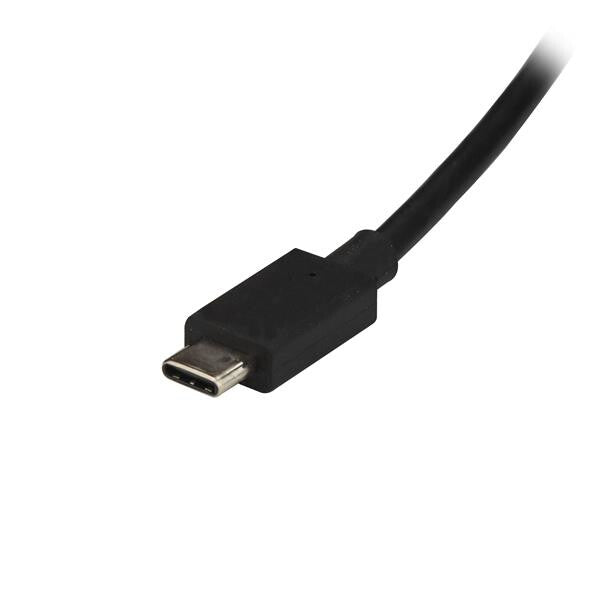

  • Extra-Long CABLE: 1ft (30 cm) built-in cable for extended reach reduces USB-C port/connector strain on 2-in-1 devices like Surface Pro 7/8/9, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
  • OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Triple HDMI Adapter

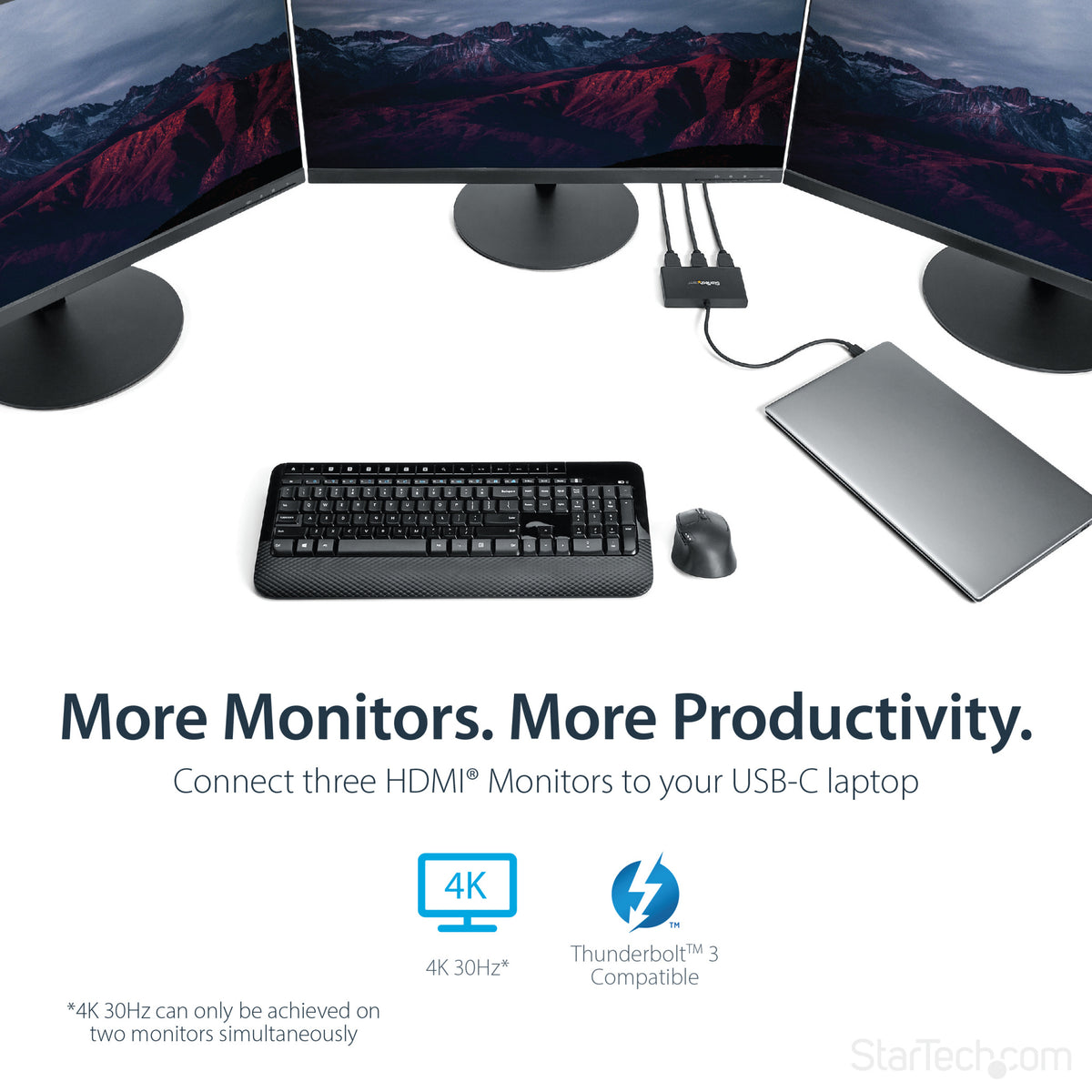

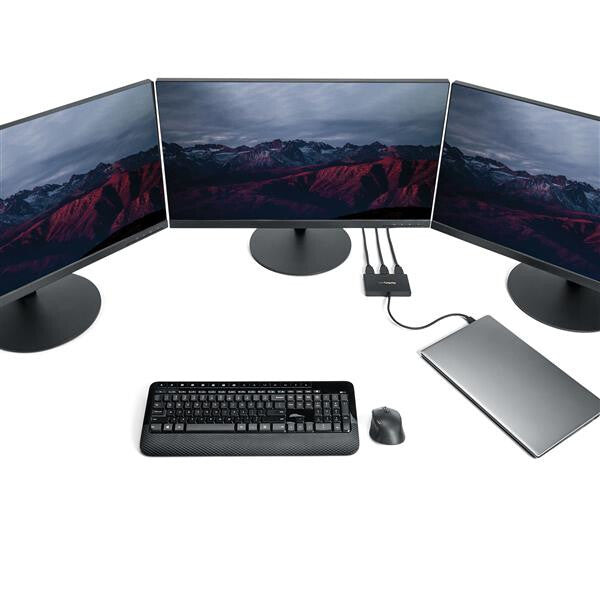

Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent HDMI® monitors

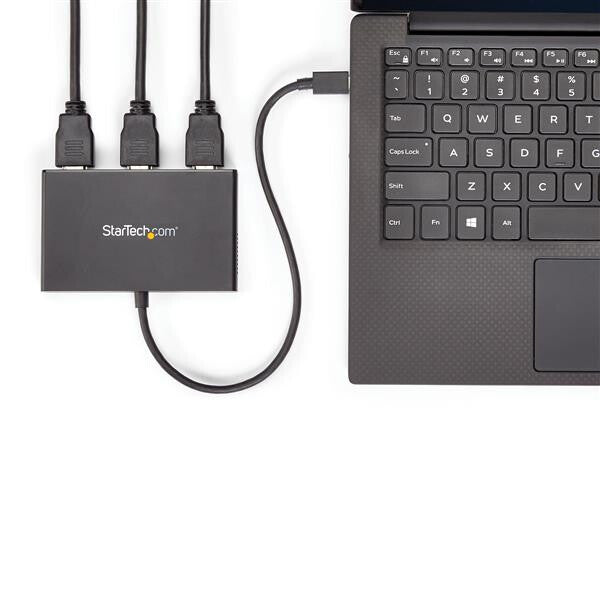

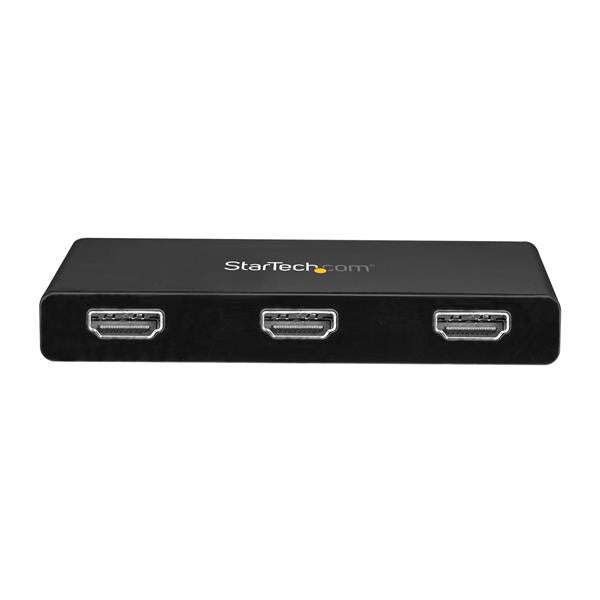

This 3-port USB-C to HDMI MST hub lets you connect three HDMI monitors to your USB Type-C Windows device, conveniently helping you to increase and maximize your productivity.

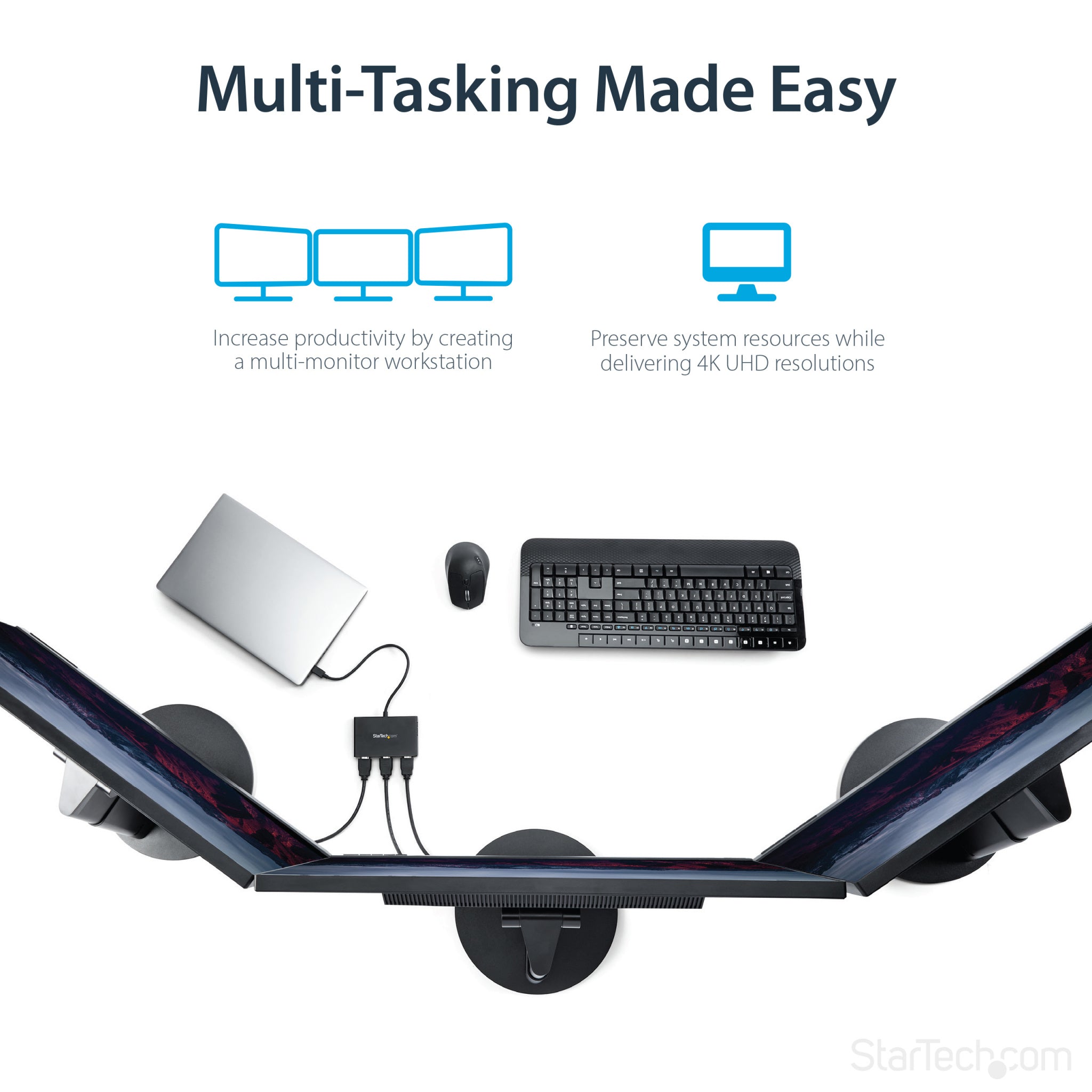

Multi-tasking Made Easy

With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect three displays to your USB-C computer, making multi-tasking much easier.

Using this USB-C to HDMI video splitter, you can mirror your display onto additional monitors or stream independent content to each display which makes it the ideal accessory for travel or hot-desking.

Astonishing Picture Quality

MST technology uses your existing video card to minimize the use of system resources while delivering UHD 4K resolutions for up to two monitors simultaneously. Plus, because the USB-C hub can output HD 1080p on three independent displays, it’s perfect for all high-resolution applications such as graphic design and medical imaging.

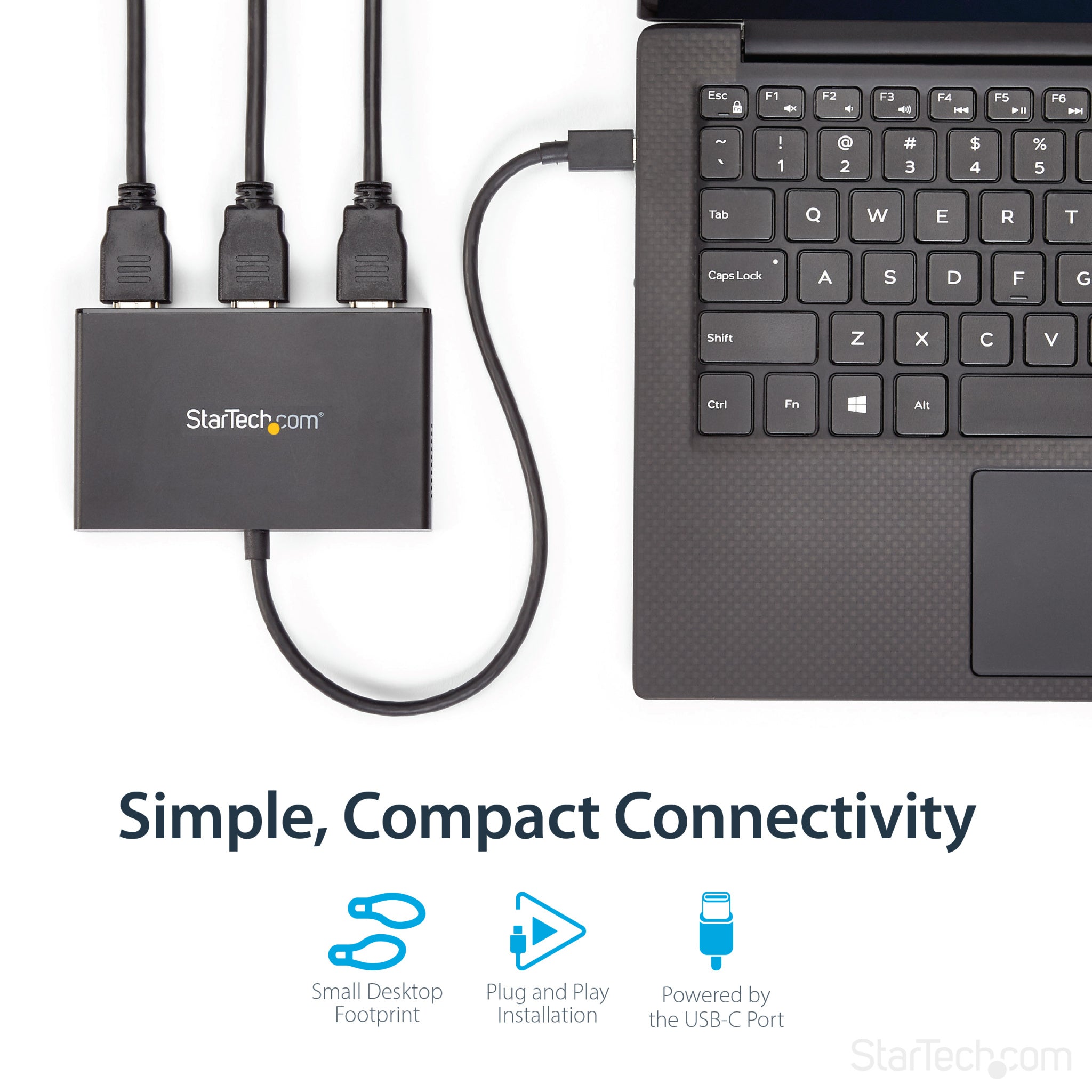

Hassle-Free Setup

Multi-stream transport offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C to HDMI adapter is Thunderbolt 3 compatible and offers for plug-and-play installation with no drivers or software required. Additionally, this triple monitor adapter is powered by the USB-C port, meaning no external power cords are necessary.

MSTCDP123HD is backed by a StarTech.com 3-year warranty, and free lifetime technical support.

The StarTech.com Advantage

Performance
Certification CE, FCC, REACH
Chipset MegaChips - STDP4320,
Supported graphics resolutions 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160
Refresh rate at maximum resolution 30 Hz
Maximum resolution 3840 x 2160 pixels
HDMI version 1.4
Number of displays supported 3
DisplayPort output No
HDMI output Yes
DVI output No
USB connector gender Male
USB connector type USB Type-C
Design
Integrated USB cable Yes
Product colour Black
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 x64
Weight & dimensions
USB cable length 0.3 m
Weight 118 g
Height 15 mm
Depth 105 mm
Width 65 mm
Operational conditions
Operating relative humidity (H-H) 50 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Packaging data
Package weight 300 g
Package height 62 mm
Package depth 245 mm
Package width 154 mm
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84733020
Master (outer) case height 220 mm
Master (outer) case length 500 mm
Master (outer) case width 330 mm
Products per master (outer) case 10 pc(s)
