Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort™-equipped devices, with reduced clutter

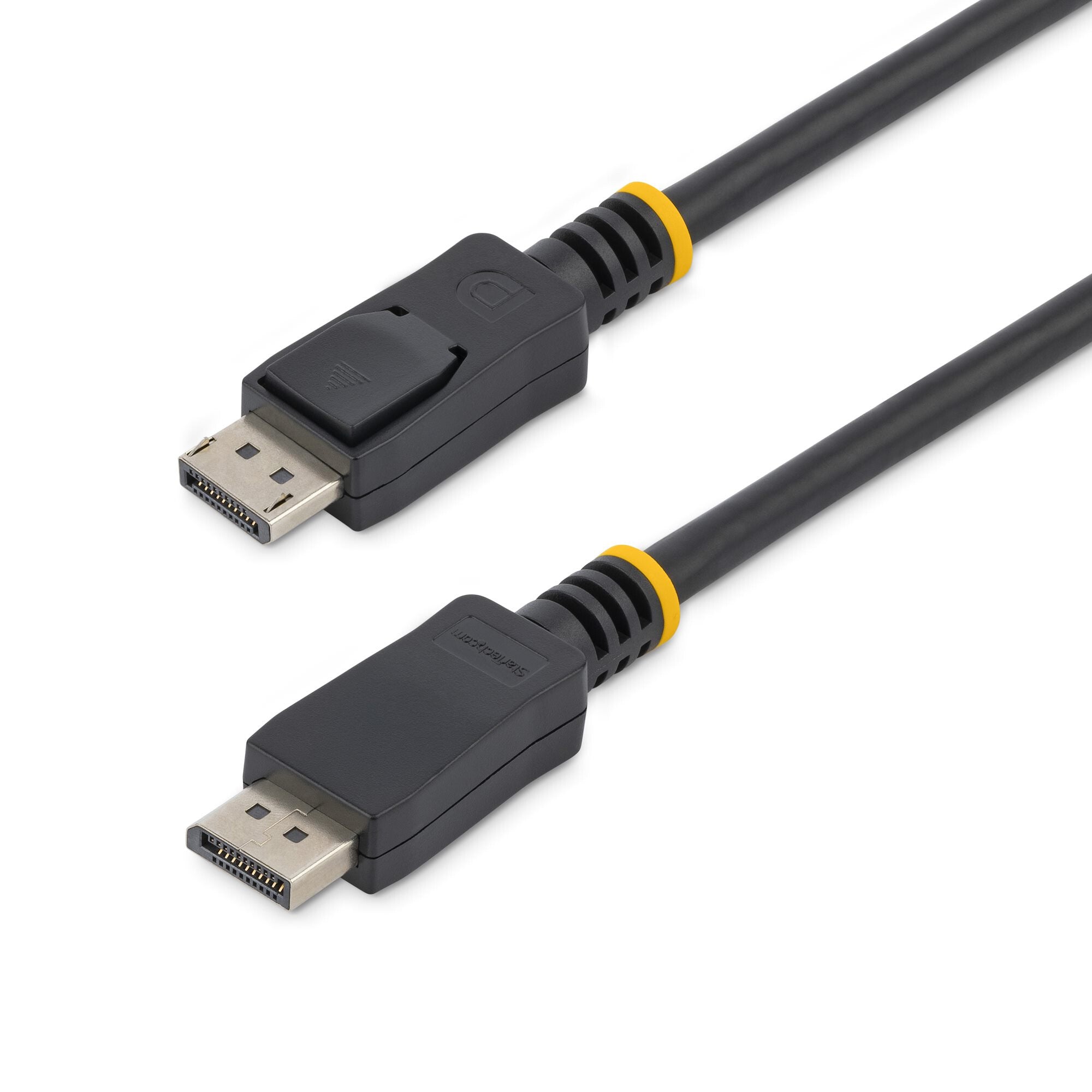

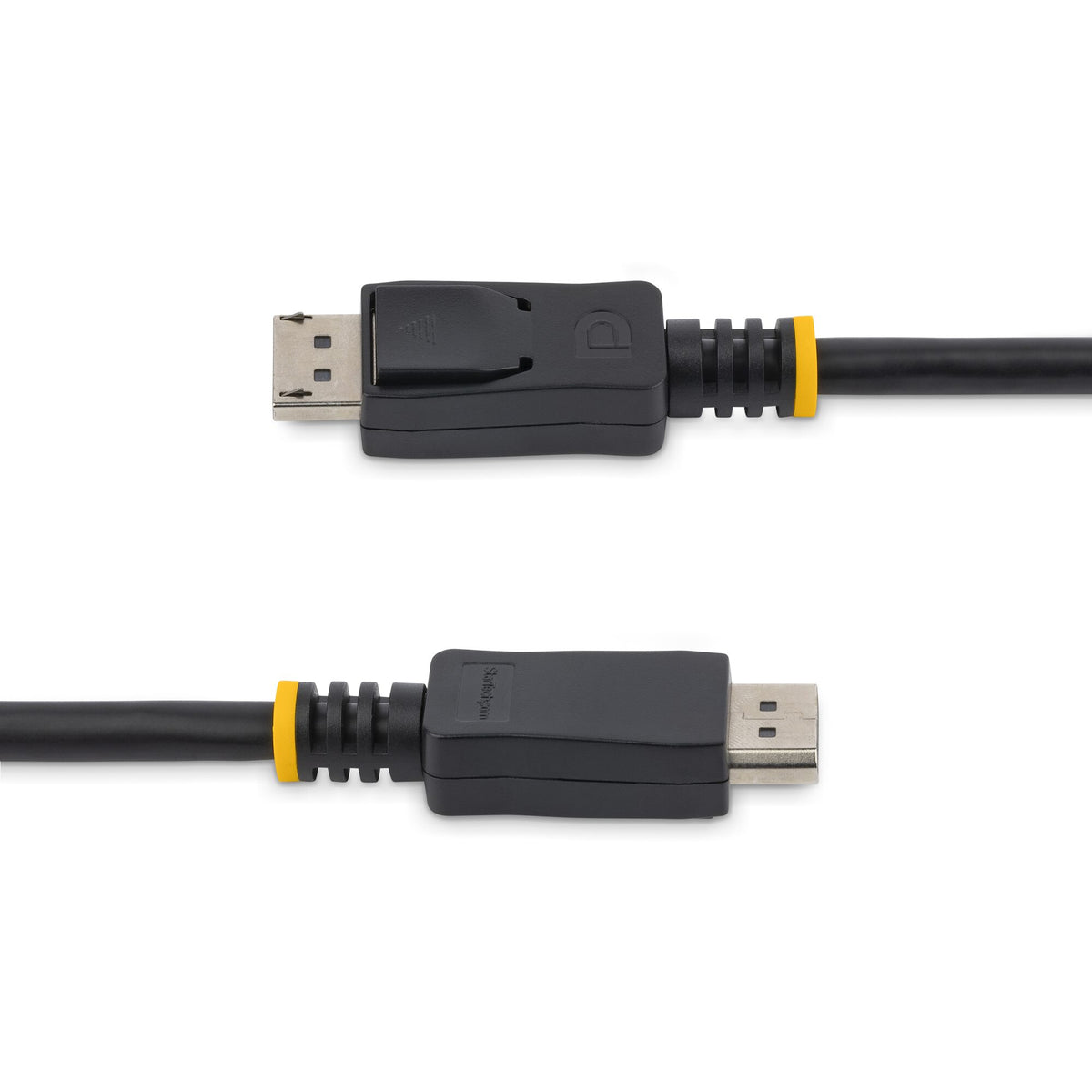

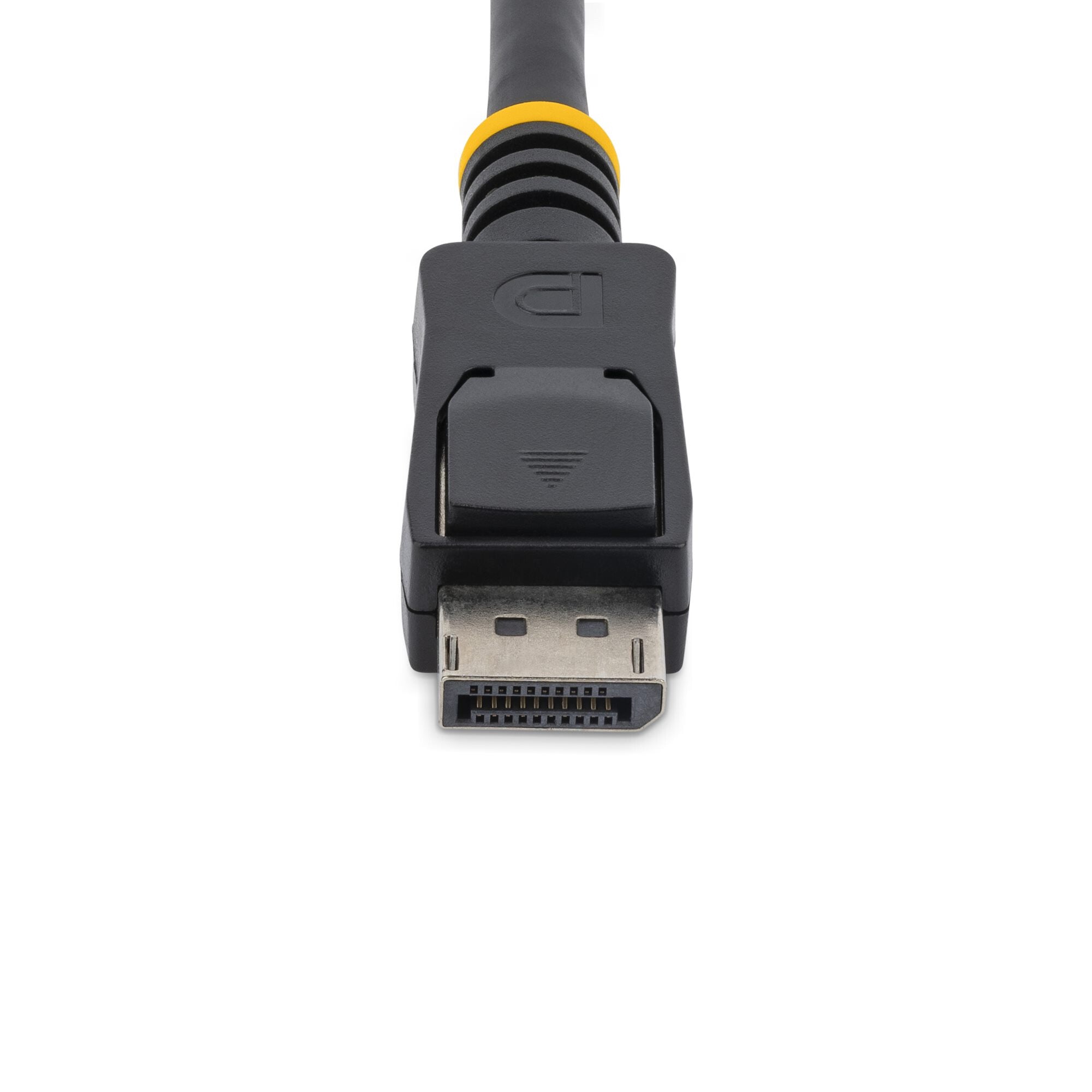

The DISPL50CM 0.5m/50cm DisplayPort 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI® or dual link DVI.
The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The short 50cm DisplayPort cable is perfect for mobile applications, such as connecting your laptop to a monitor and it provides a portable solution that makes it perfect for carrying as a laptop accessory.
The DISPL50CM is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
The StarTech.com Advantage
| Features |
|---|
| Number of conductors |
19 |
| Multi-Stream Transport (MST) |
Yes |
| Plug and Play |
Yes |
| Bandwidth |
21600 MB/s |
| AWG wire size |
28 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable shielding |
Aluminum mylar foil |
| Cable rating |
CMG (CM) |
| Product colour |
Black |
| Latching connectors |
Yes |
| DisplayPort Content Protection (DPCP) |
Yes |
| HDCP |
Yes |
| Maximum refresh rate |
60 Hz |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA) |
| Maximum resolution |
3840 x 2400 pixels |
| DisplayPort version |
1.2 |
| Connector contacts plating |
Nickel |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
DisplayPort |
| Connector 1 |
DisplayPort |
| Cable length |
0.5 m |
| Certificates |
|---|
| Compliance certificates |
RoHS, CE |
| Weight & dimensions |
|---|
| Weight |
40 g |
| Cable diameter |
7.3 mm |
| Packaging data |
|---|
| Package weight |
59 g |
| Package height |
21 mm |
| Package depth |
220 mm |
| Package width |
200 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
150 pc(s) |
| Master (outer) case height |
250 mm |
| Master (outer) case length |
500 mm |
| Master (outer) case width |
330 mm |
| Harmonized System (HS) code |
84733080 |
