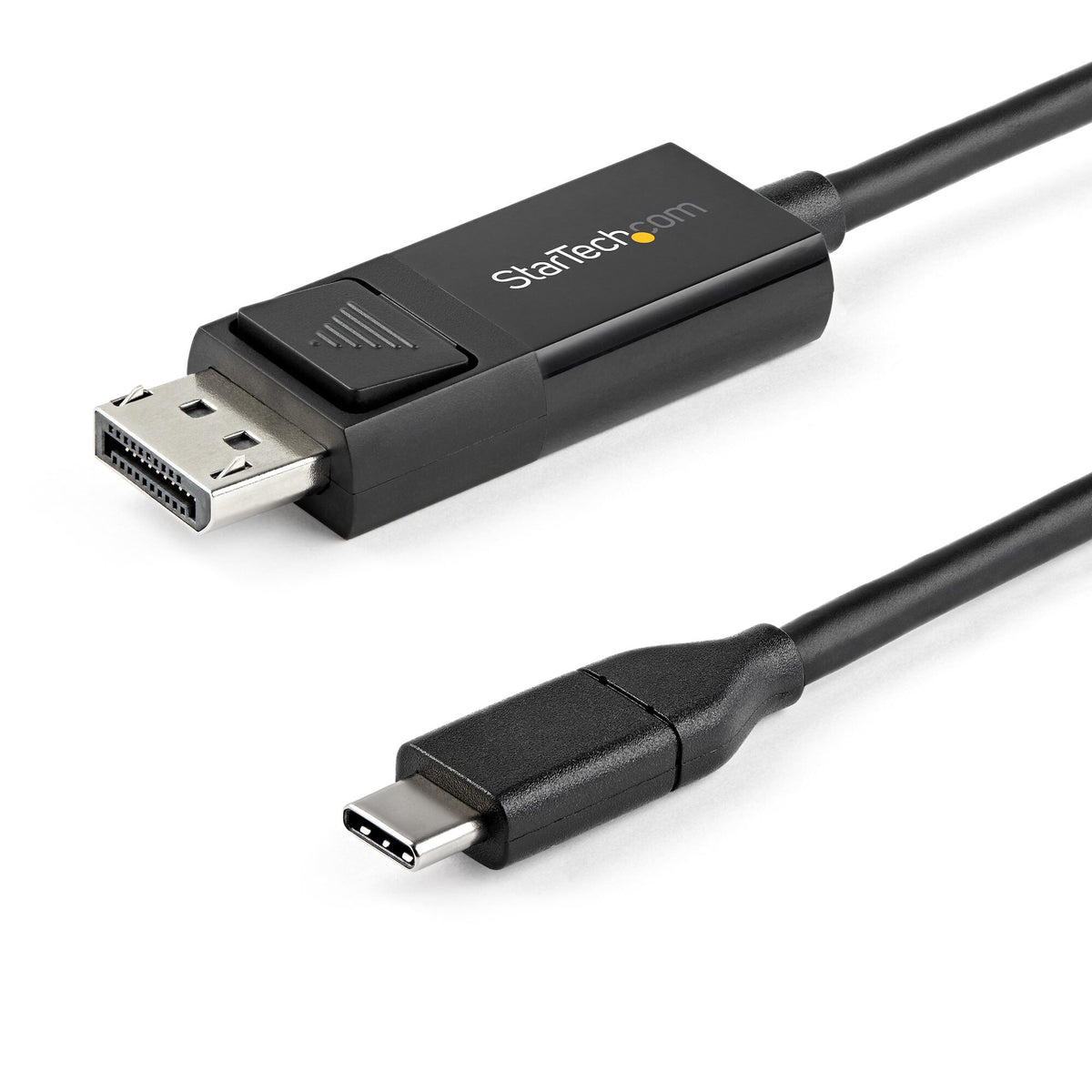

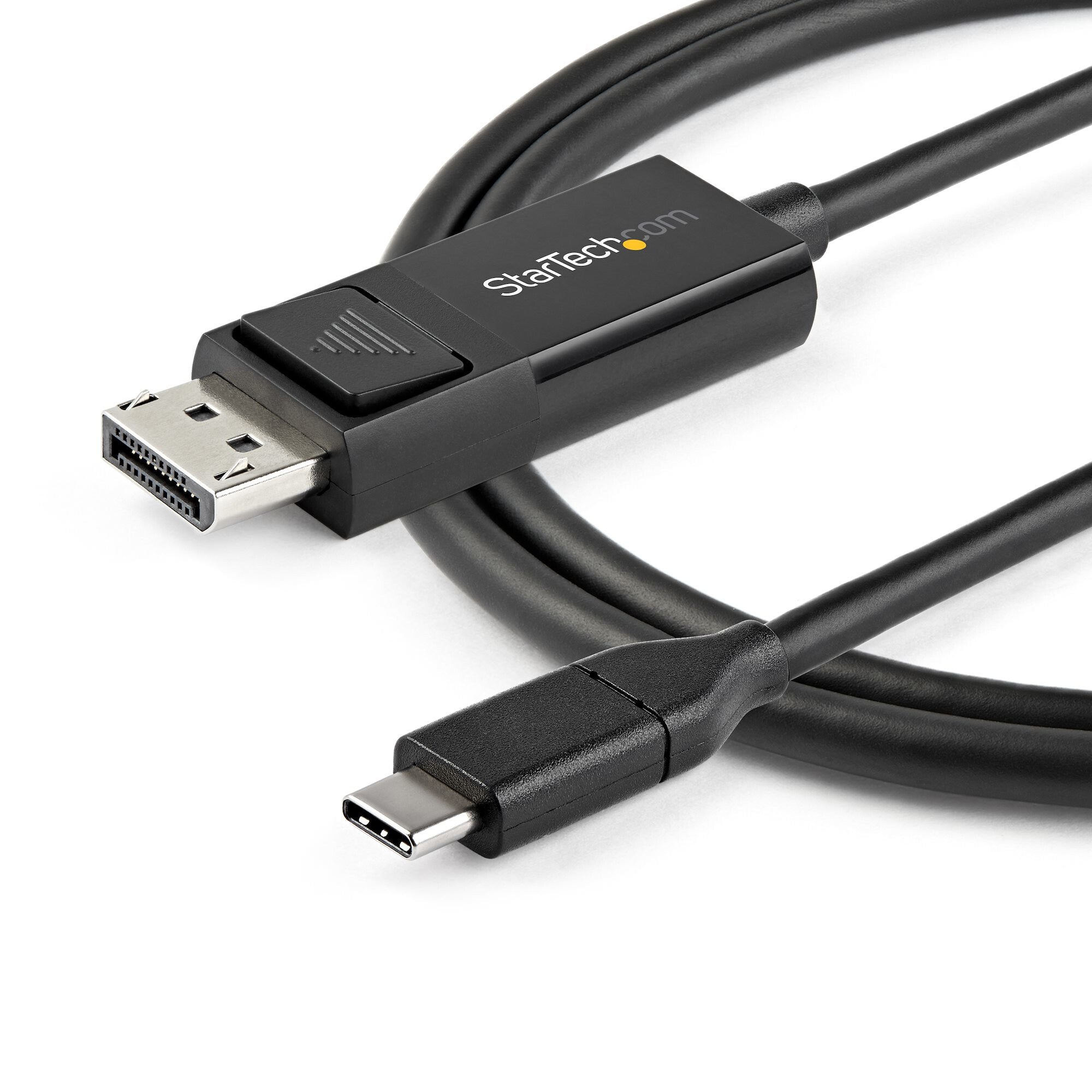

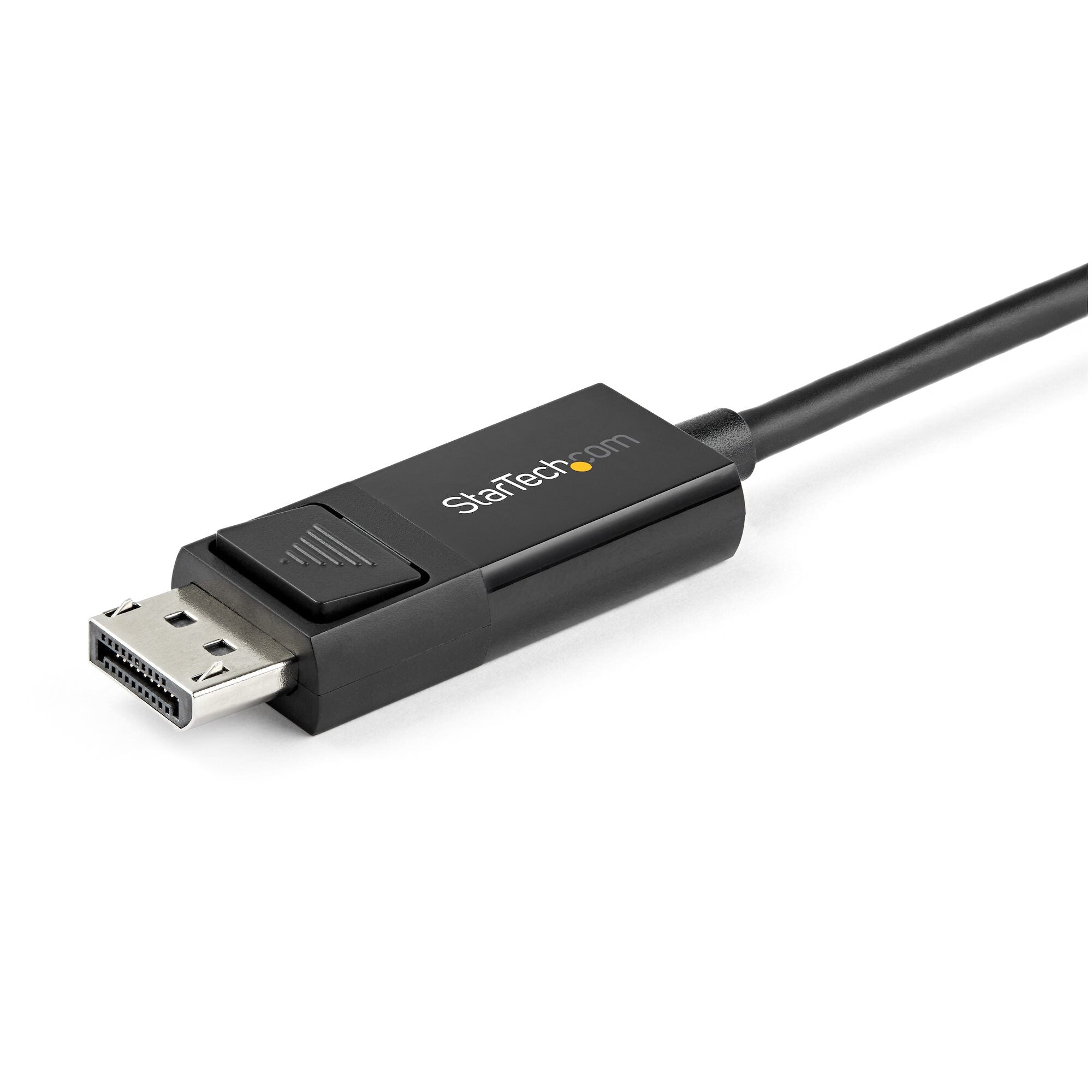

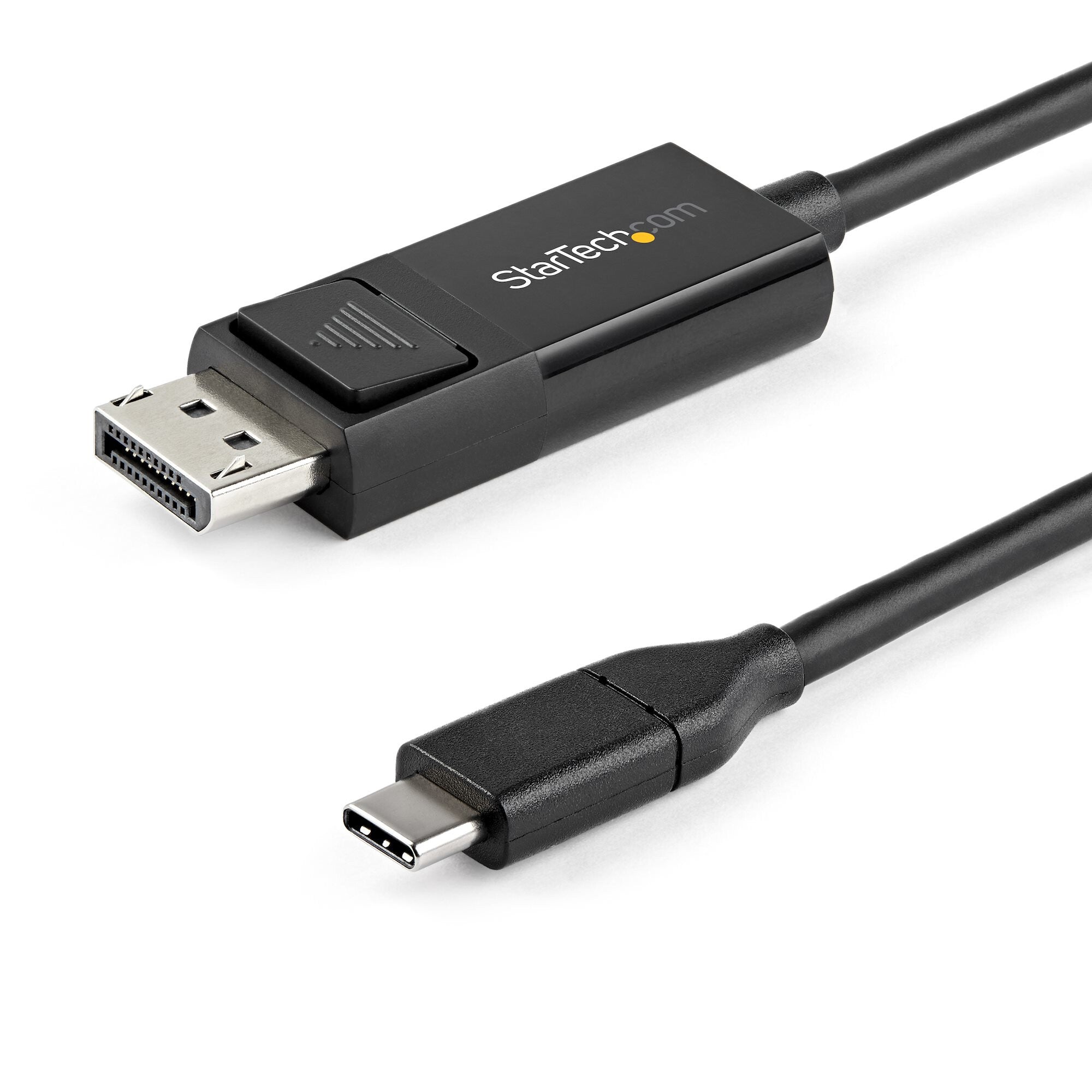

USB Type-C™ Adapter Cable | 4K 60Hz | Thunderbolt 3™
This USB-C™ to DisplayPort™ 1.2 cable lets you connect your USB Type-C™ (or Thunderbolt 3™) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.
Easy & Clutter-Free Installation
At 6.6 ft. (2 m) in length, this bidirectional adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.
As well, the cable works with both Mac and Windows devices and allows for plug-and-play installation, removing the need for any additional software or drivers.
Convenient, Bi-Directional Support
Use this USB-C to DisplayPort adapter cable to output 4K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input.
Ultra HD 4K Resolution at 60Hz
This USB-C to DP 1.2 adapter cable lets you harness the video capabilities that are built into your computer's USB Type-C (or DisplayPort) connection, to deliver the astonishing quality of UHD to your 4K display. For even higher resolution and bandwidth support, we offer a USB-C to DP 1.4 cable, which is the perfect accessory for early adopters of 8K.
CDP2DP2MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: Your USB 3.1 Type-C device must support DP Alt Mode to work with this cable.
The StarTech.com Advantage
| Features |
|---|
| Converter type |
Active video converter |
| Plug and Play |
Yes |
| Supported audio channels |
7.1 |
| Chipset |
Chrontel - CH7213C-BF, VIA Labs - VL170 |
| Product colour |
Black |
| HBR2 support |
Yes |
| Maximum refresh rate |
60 Hz |
| Bandwidth |
21600 MB/s |
| Maximum resolution |
3840 x 2160 pixels |
| High Dynamic Range (HDR) supported |
Yes |
| DisplayPort version |
1.2 |
| HDCP version |
1.4/2.2 |
| HDCP |
Yes |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
DisplayPort |
| Connector 1 |
USB Type-C |
| Cable length |
2 m |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Height |
12 mm |
| Depth |
2038 mm |
| Width |
220 mm |
| Weight |
77 g |
| Packaging data |
|---|
| Package weight |
84 g |
| Package height |
12 mm |
| Package depth |
124 mm |
| Package width |
226 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
80 pc(s) |
| Master (outer) case height |
212 mm |
| Master (outer) case length |
497 mm |
| Master (outer) case width |
327 mm |
| Harmonized System (HS) code |
84733080 |
