USB Type-C™ Video Adapter Cable | Thunderbolt™ 3 Compatible

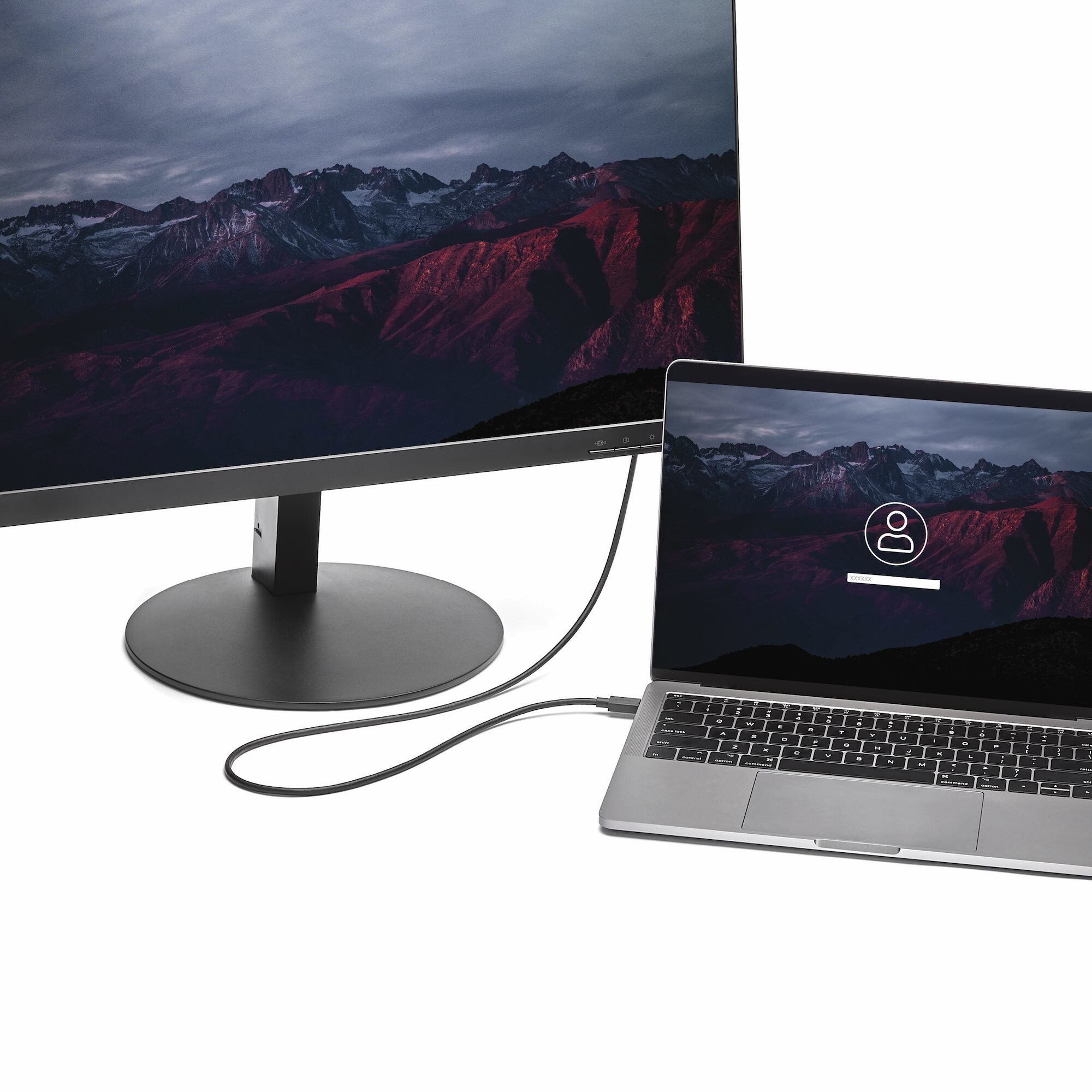

This USB-C to DisplayPort cable lets you connect your Thunderbolt 3 or USB Type-C enabled device to a 4K DisplayPort monitor with just one cable, providing you with a convenient, clutter-free solution.
Astonishing Picture Quality
The USB C to DisplayPort adapter cable lets you harness the video capabilities that are built into your USB-C connection, to deliver the astonishing quality of Ultra HD to your 4K display and supporting resolutions up to 3840 x 2160.
Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other work environments.
Clutter-Free Installation

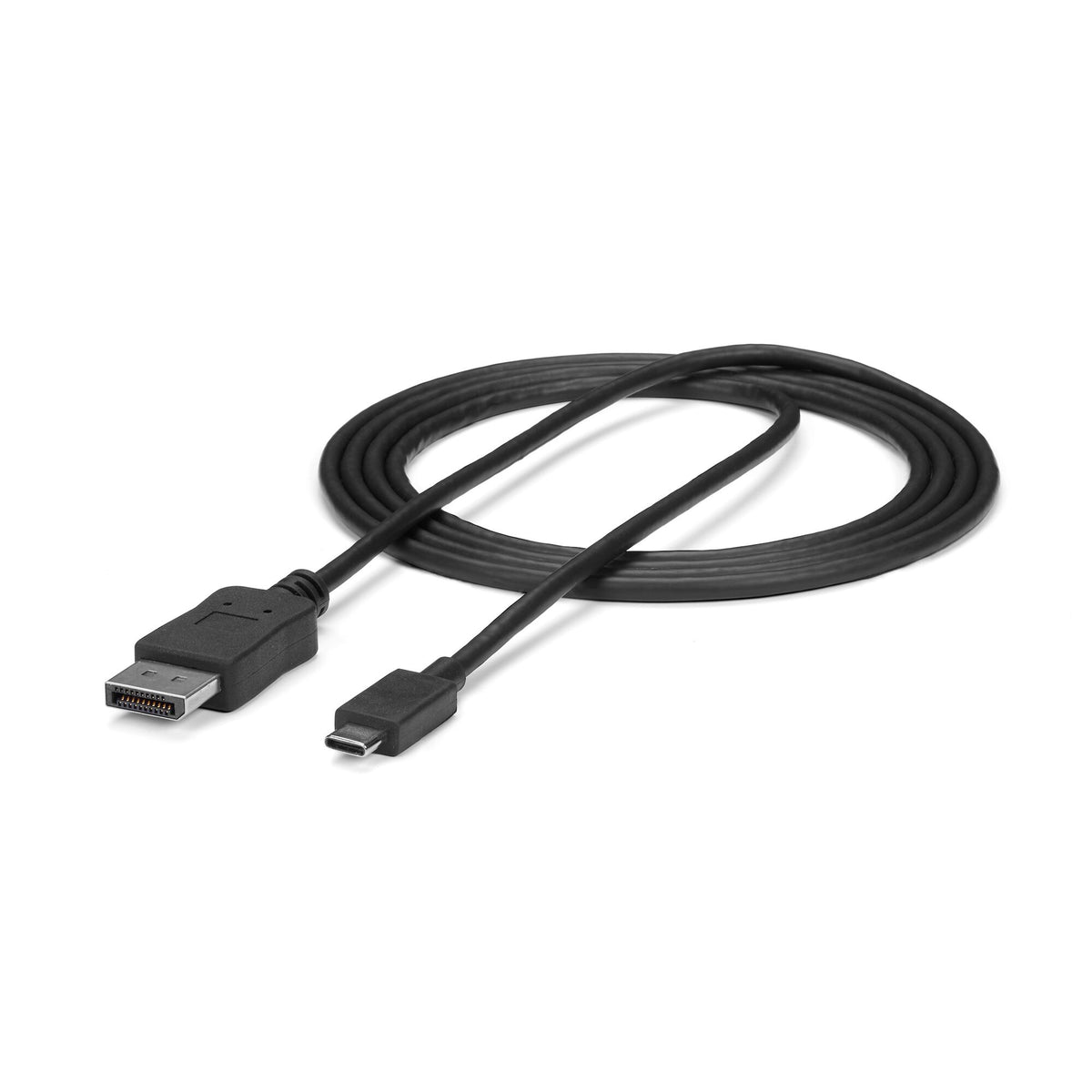

At 6 ft. (1.8 m) in length, this monitor cable eliminates the need for excess adapters and cabling, ensuring a tidy, professional installation. For installations requiring shorter or longer connections we also offer a 9.8 ft. (3 m) (CDP2DPMM3MB, CDP2DPMM3MW) and a 3.3 ft. (1 m) (CDP2DPMM1MB, CDP2DPMM1MW) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.
Hassle-Free Setup
To ensure easy operation and installation, this USB C to DisplayPort cable works with both Windows and Mac computers and allows for plug-and-play installation, removing the need for any additional software or drivers.
CDP2DPMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note: Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
The StarTech.com Advantage
| Features |
|---|
| Plug and Play |
Yes |
| Supported audio channels |
7.1 |
| Chipset |
STMicroelectronics - STM32F072CBU6 |
| Product colour |
Black |
| HBR2 support |
Yes |
| Maximum refresh rate |
60 Hz |
| Bandwidth |
21600 MB/s |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| Supported video modes |
720p, 1080p, 2160p |
| Maximum resolution |
3840 x 2160 pixels |
| DisplayPort version |
1.2 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| HDCP version |
1.4/2.2 |
| HDCP |
Yes |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
USB Type-C |
| Connector 1 |
DisplayPort |
| Cable length |
1.8 m |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 70% |
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Height |
10 mm |
| Depth |
1800 mm |
| Width |
20 mm |
| Weight |
49 g |
| Packaging data |
|---|
| Package weight |
58 g |
| Package height |
19 mm |
| Package depth |
220 mm |
| Package width |
200 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
60 pc(s) |
| Master (outer) case height |
225 mm |
| Master (outer) case length |
500 mm |
| Master (outer) case width |
340 mm |
| Harmonized System (HS) code |
84733080 |
