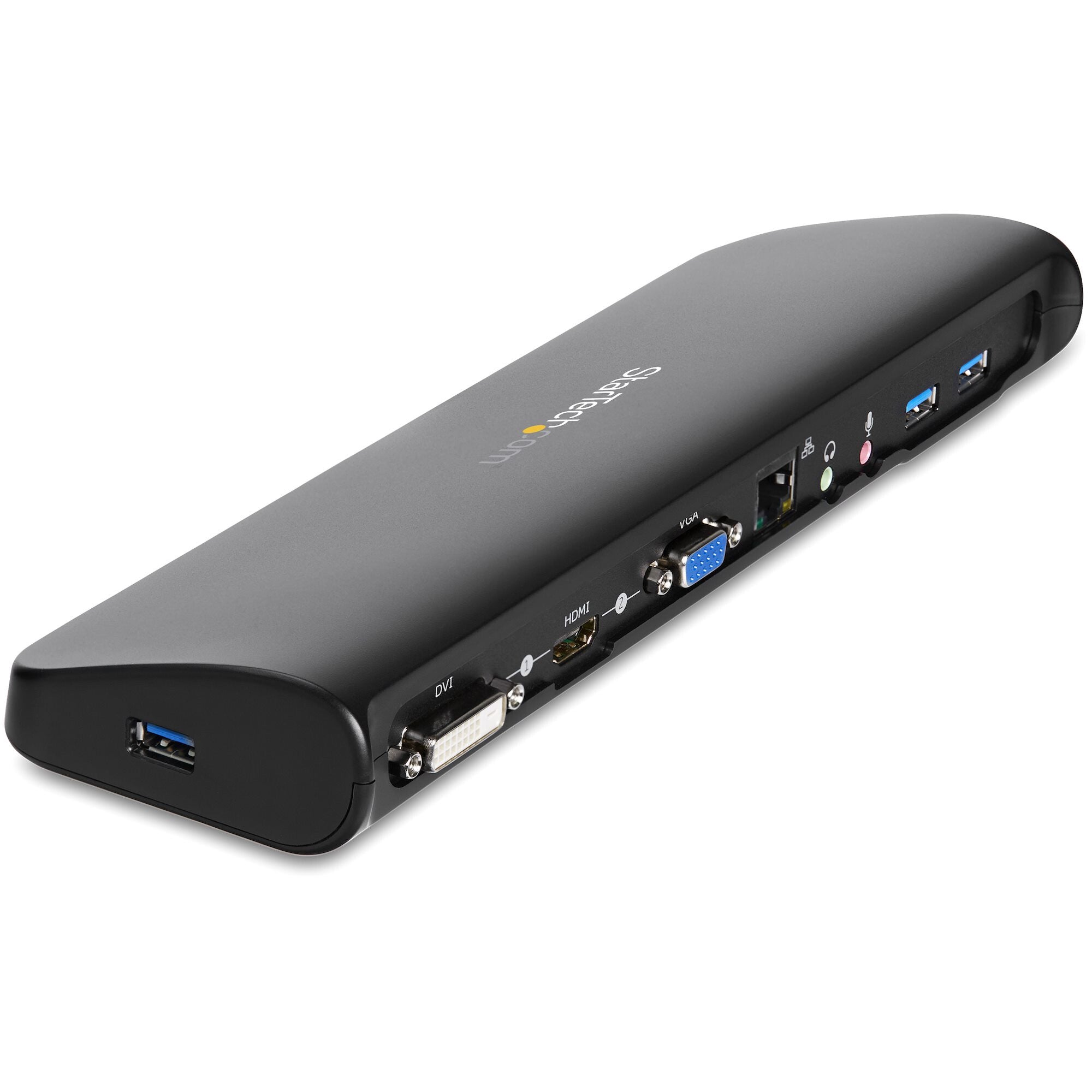

StarTech.com Dual-Monitor USB 3.0 Docking Station with HDMI & DVI/VGA~Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/VGA, 3x USB-A Hub, GbE, Audio, Universal Type-A Dock for Windows/macOS/ChromeOS - TAA Compliant

SKU: USB3SDOCKHDV
£84.36 inc. VAT
  • UNIVERSAL DUAL MONITOR DOCKING STATION: USB 3.0 docking station features HDMI, VGA, and DVI outputs for broad display compatibility; Supports up to 1920x1080 (HDMI), 1920x1200 (DVI-D), and 2048x1152 (VGA); This dual monitor dock is TAA compliant
  • INCREASED PRODUCTIVITY: This dual monitor docking station combines 3x USB 3.2 Gen 1 (5Gbps) ports, headphone & mic audio jack, and a Gigabit Ethernet RJ45 port into a single IT-grade dock; Connect directly to older VGA and DVI monitors without adapters
  • VERSATILE DESIGN: The high performance dock features a sleek design that is the ideal addition to any home or office workstation; This dock enhances your laptop's capabilities while taking up little desk space; Includes 3ft (0.9m) USB 3.2 Gen 1 host cable
  • UNIVERSAL COMPATIBILITY: Compatible with Windows, macOS, & ChromeOS, enabling extended dual displays on laptops, Chromebooks and MacBooks that feature a USB-A host connection such as X1 Carbon, ThinkPad, Latitude, Precision, XPS 15, Spectre, and ZBook
  • CONNECTIVITY TOOLS: Optimize the performance and security of this docking station, using the included MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities (available for download)

Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio

This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.

Display Adaptability

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.

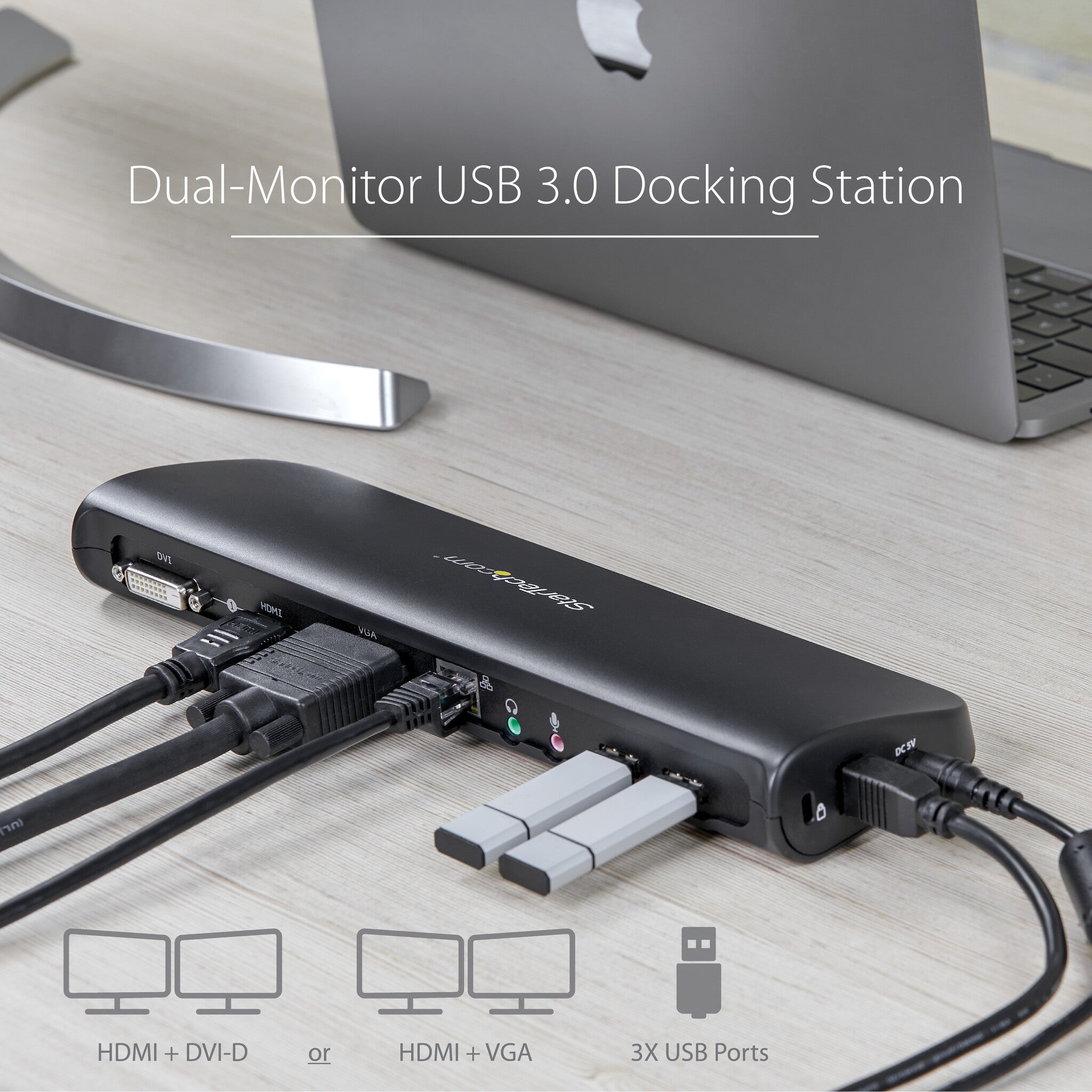

Available display combinations:

• HDMI + VGA
• HDMI + DVI

Integrated USB Hub

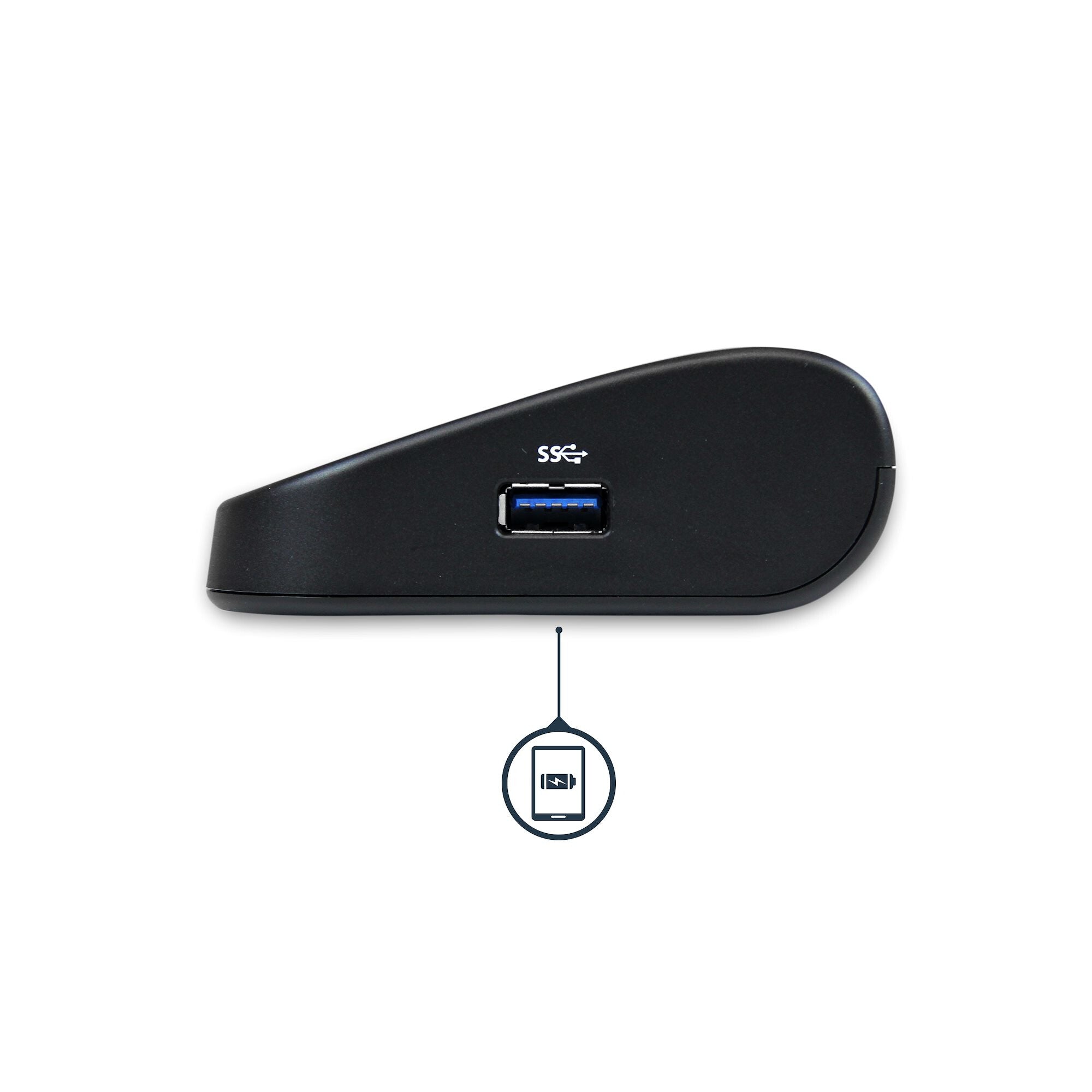

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.

The StarTech.com Advantage

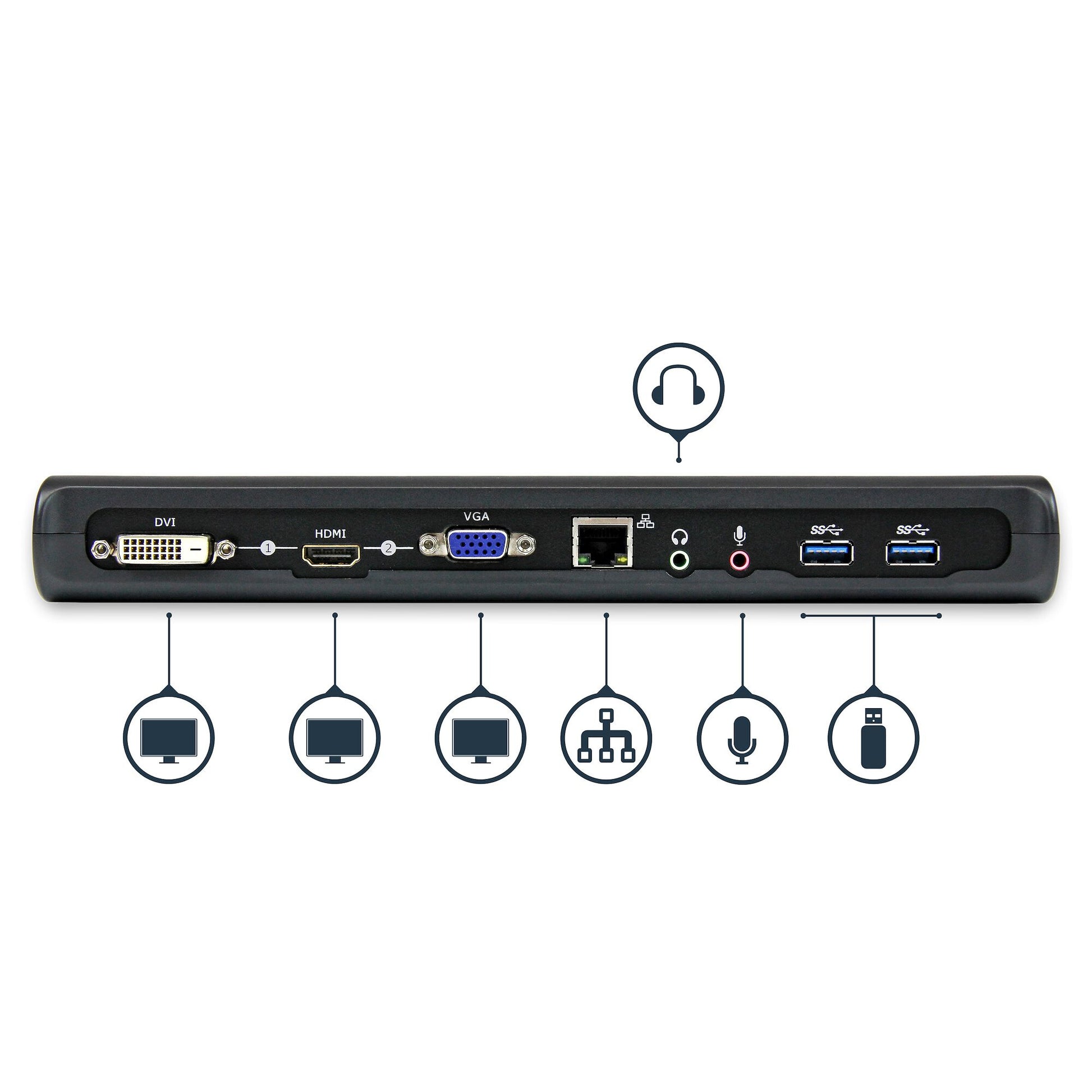

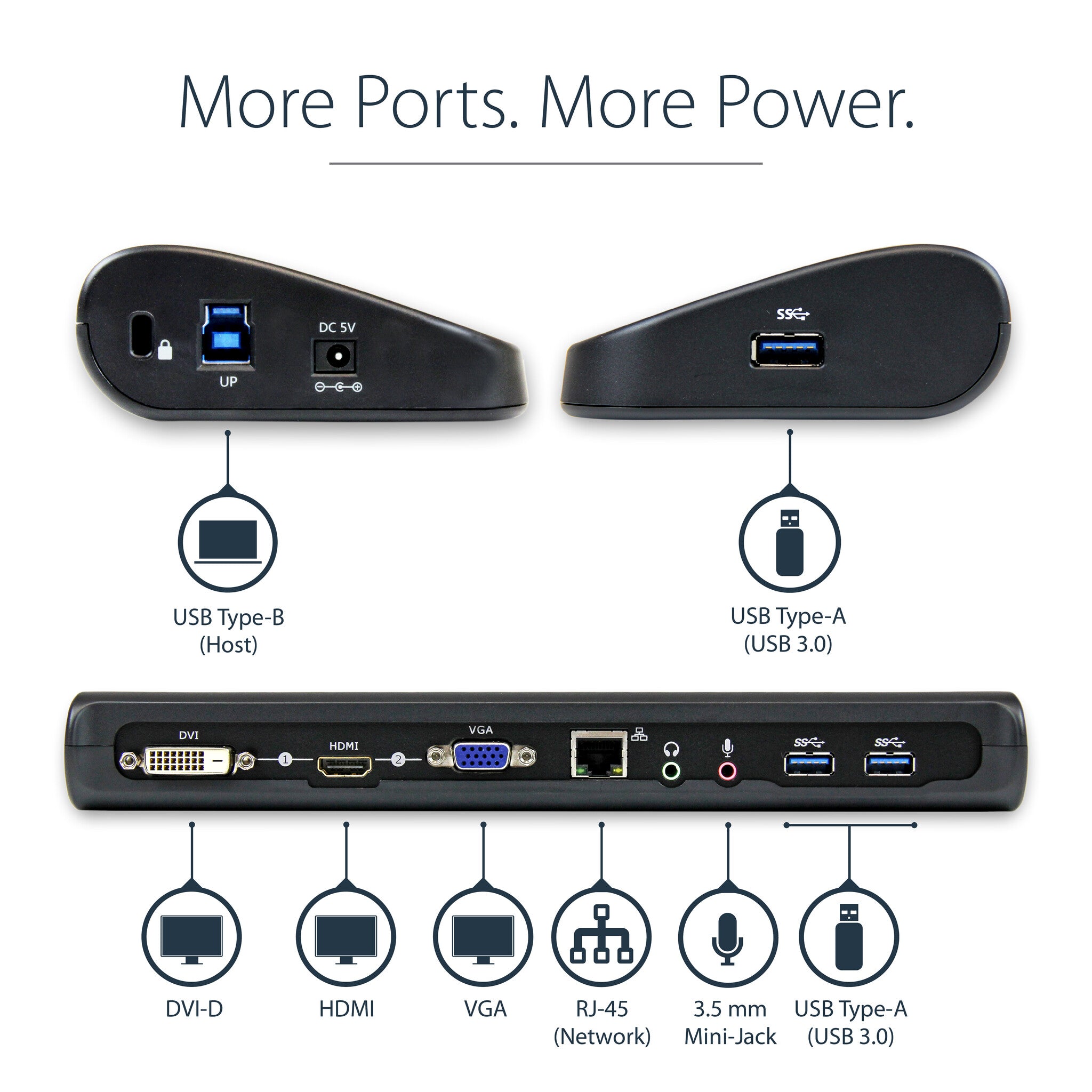

Ports & interfaces
DC-in jack Yes
Headphone outputs 1
Microphone in Yes
DVI-D ports quantity 1
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Connectivity technology Wired
Network
Auto MDI/MDI-X Yes
Full duplex Yes
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Copper ethernet cabling technology 1000BASE-T, 100BASE-TX, 10BASE-T
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports 1
Ethernet LAN Yes
Performance
Certification FCC, CE, TAA, REACH
Housing material Plastic
Cable lock slot type Kensington
Cable lock slot Yes
Maximum analog resolution 2048 x 1152 pixels
Maximum digital resolution 1920 x 1200 pixels
Data transfer rate 5 Gbit/s
Card reader integrated No
Product colour Black
Power
Compatible power plug types AU, EU, UK, US
Power plug type Type B
Power consumption (typical) 20 W
Output voltage 5 V
Output current 4 A
Input current 0.9 A
AC input voltage 100-240 V
Software
Other operating systems supported ChromeOS
Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Mac compatibility Yes
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Operational conditions
Operating relative humidity (H-H) 0 - 90%
Storage temperature (T-T) -10 - 60 °C
Operating temperature (T-T) 0 - 40 °C

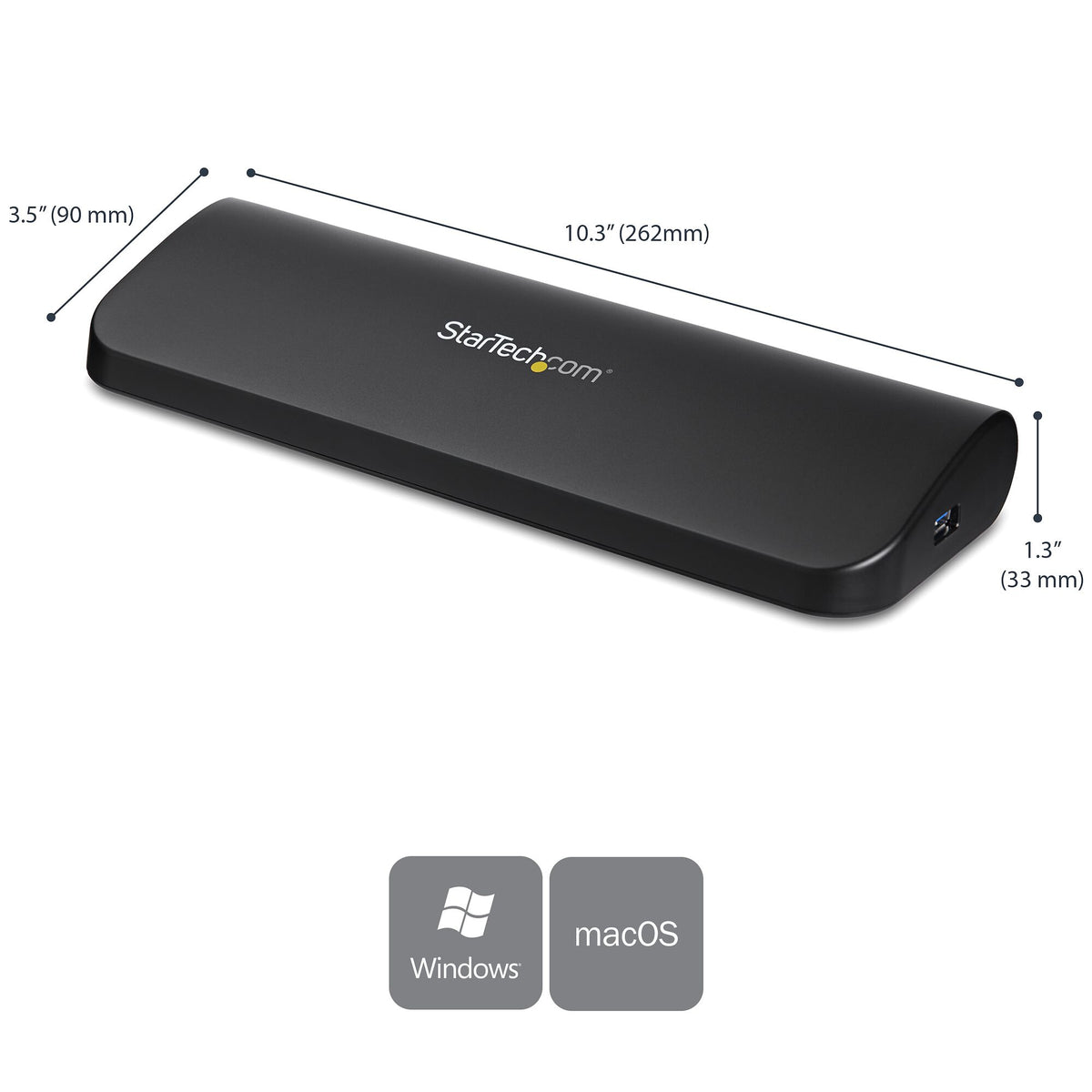

Weight & dimensions
Weight 295 g
Height 44 mm
Depth 304 mm
Width 178 mm
Packaging data
Package weight 878 g
Package height 66 mm
Package depth 296 mm
Package width 195 mm

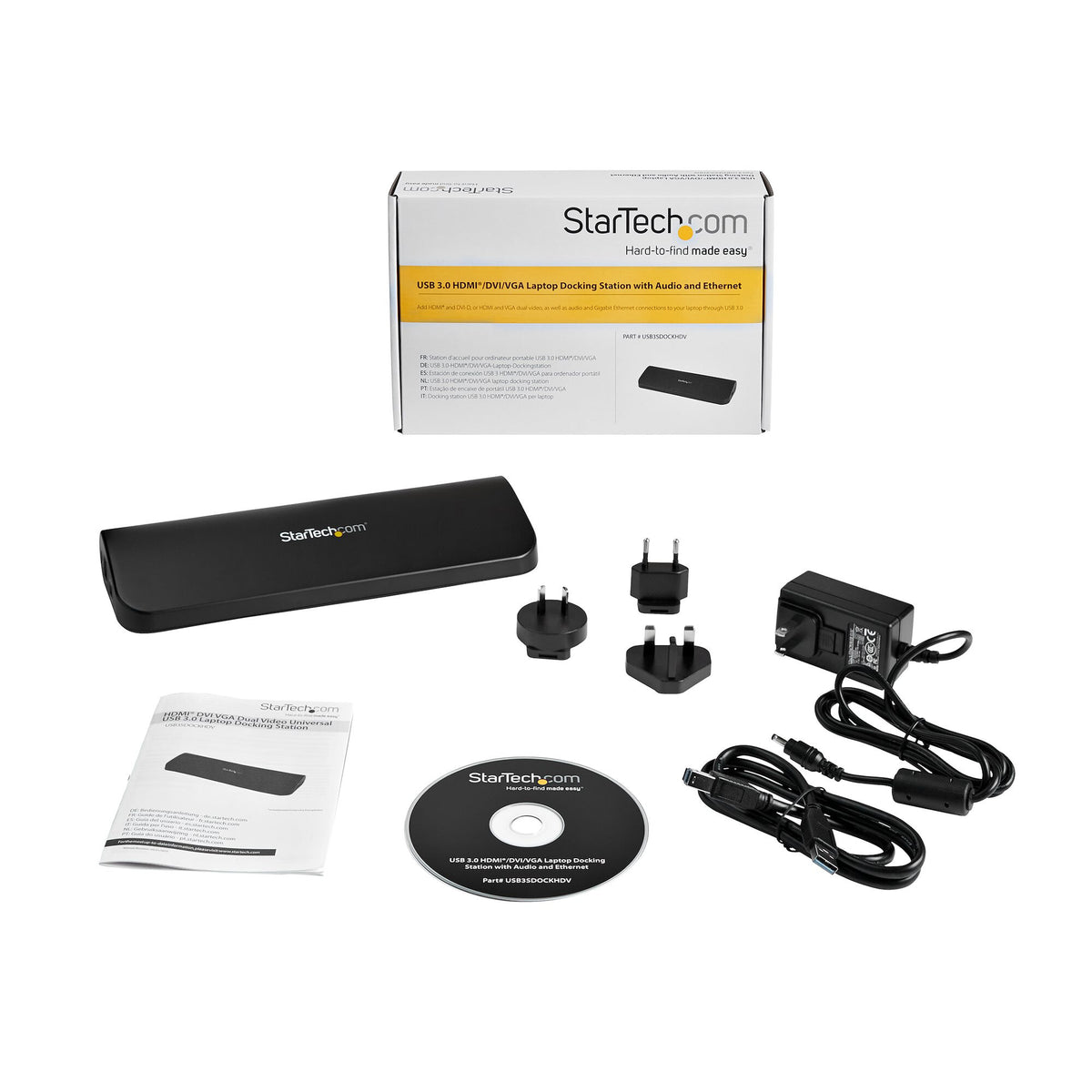

Packaging content
Cables included USB
AC adapter included Yes
Manual Yes
Drivers included Yes
Technical details
Compliance certificates RoHS
Logistics data
Products per master (outer) case 6 pc(s)
Master (outer) case width 215 mm
Master (outer) case length 435 mm
Master (outer) case height 345 mm
Harmonized System (HS) code 84733020
Other features
USB data transfer rates 12,480,5000 Mbit/s
Chipset DisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E
