Portable Docking Station | USB 3.0 | Mac & Windows® | TAA Compliant
This USB to Dual DisplayPort Mini Dock provides your USB 3.0 laptop with connectivity for dual 4K 60 Hz monitors and Gigabit LAN - enabling you to quickly harness dual-display productivity and network connectivity.

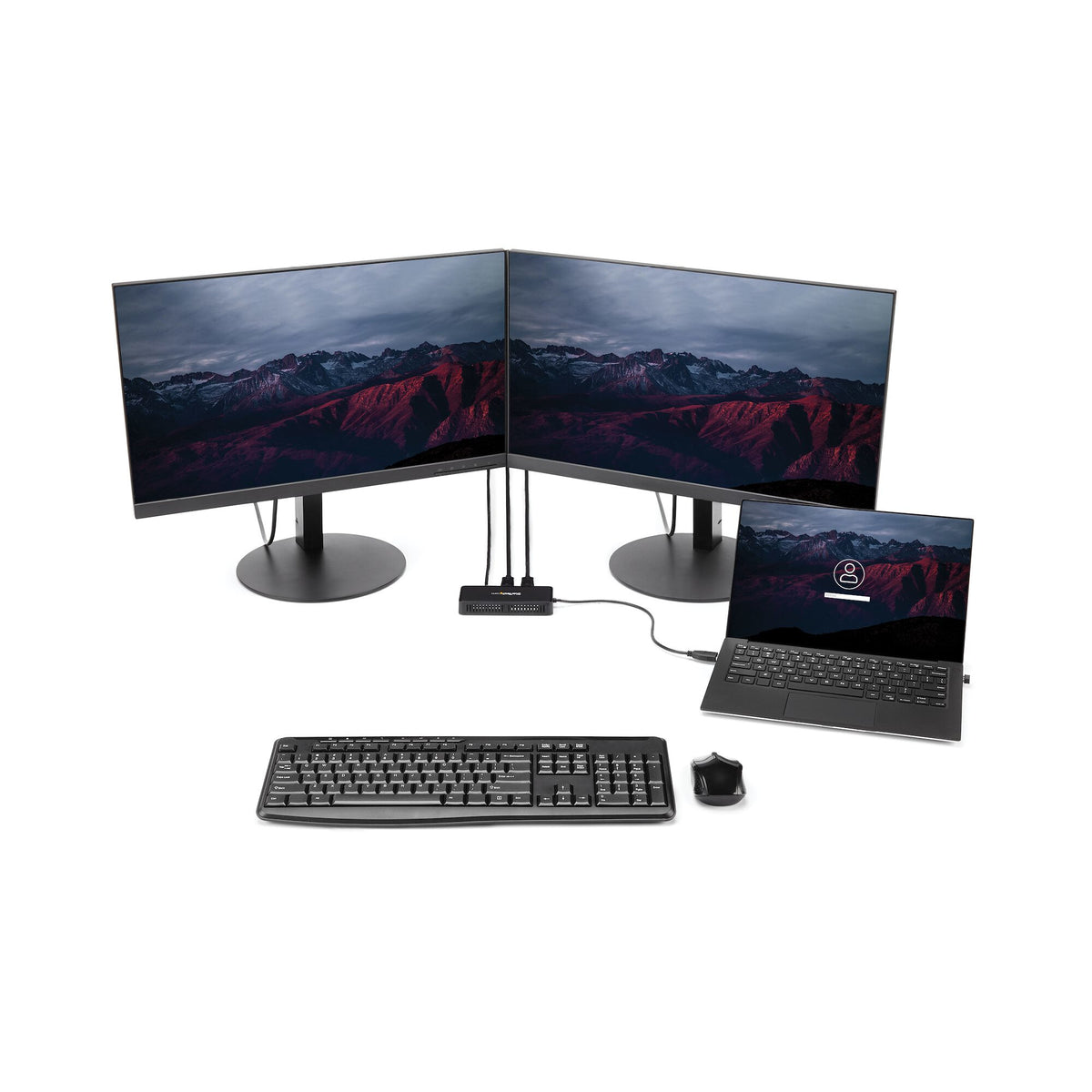

Increase Your Productivity with Two 4K Monitors
The dual DisplayPort adapter adds two DP video outputs to your USB laptop, with resolution support up to 4K. Working on two monitors increases your productivity by giving you more screen space. You can simultaneously access multiple applications and reference material on one display while composing on the other.
Access Hardwired Networks with a GbE Port
Ethernet ports on modern laptops are uncommon, and wireless networks are less secure and less reliable than a hardwired connection. With the GbE port on this portable docking station that features an Ethernet adapter you can access wired LANs even if your USB 3.0 laptop doesn’t have an Ethernet port.
Maximize Portability with a Miniature Docking Station
The dock features a compact design that's perfect for business professionals who need portable office desk accessories for traveling between multiple office locations, or shared workspaces.
The USBA2DPGB is TAA compliant and backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces |
|---|
| Microphone in |
No |
| DisplayPorts quantity |
2 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Connectivity technology |
Wired |
| Network |
|---|
| Auto MDI/MDI-X |
Yes |
| Full duplex |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Wake-on-LAN ready |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Certification |
CE, FCC, TAA |
| Brand compatibility |
Any brand |
| UASP support |
No |
| Number of displays supported |
2 |
| Maximum digital resolution |
4096 x 2160 pixels |
| Data transfer rate |
5 Gbit/s |
| Card reader integrated |
No |
| Product colour |
Black |
| Power |
|---|
| Power source type |
USB |
| Software |
|---|
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
126 g |
| Height |
20 mm |
| Depth |
130 mm |
| Width |
58 mm |
| Packaging data |
|---|
| Package weight |
215 g |
| Package height |
38 mm |
| Package depth |
114 mm |
| Package width |
200 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case width |
220 mm |
| Master (outer) case length |
415 mm |
| Master (outer) case height |
255 mm |
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Cable length |
0.14 m |
| Chipset |
DisplayLink - DL-6950 |
