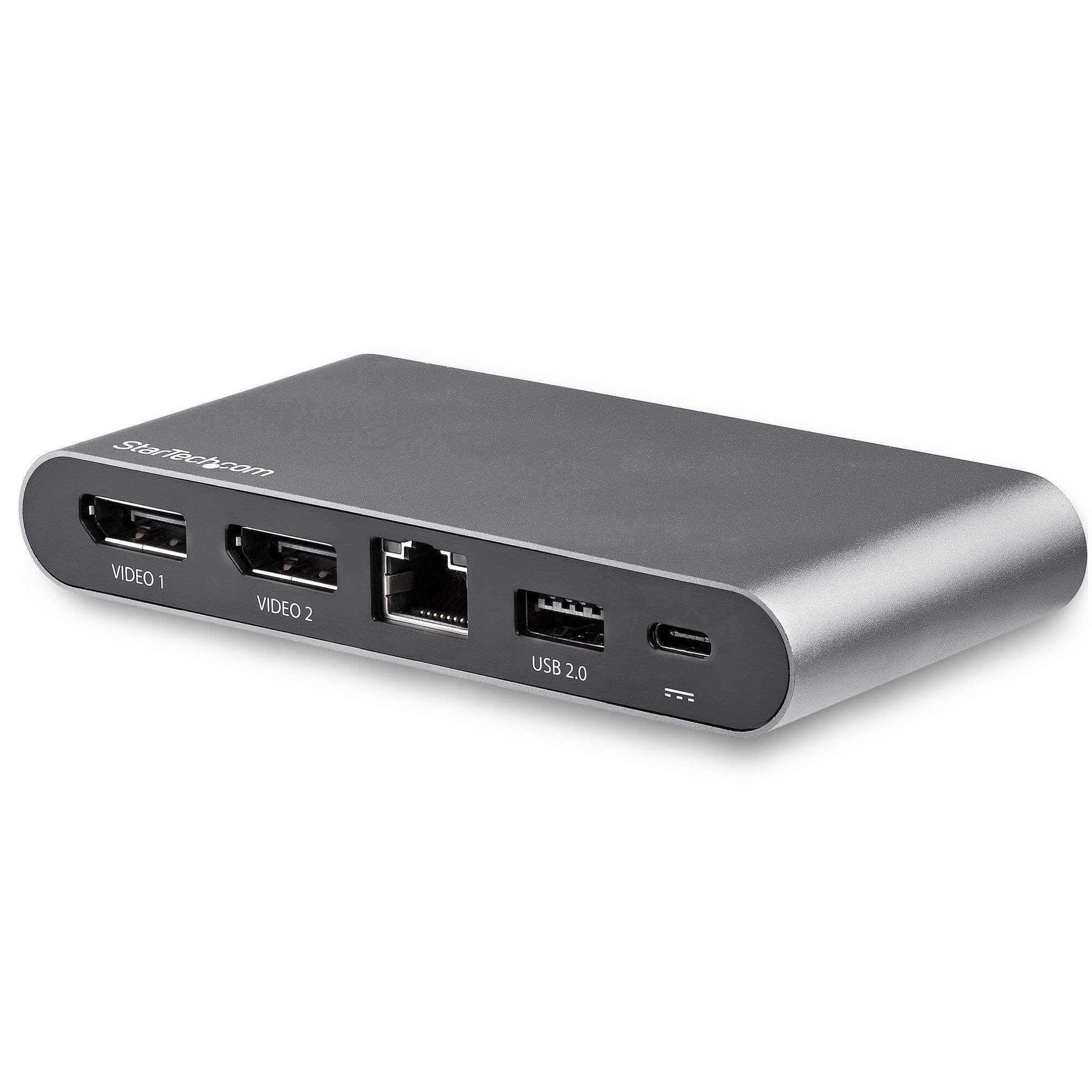

StarTech.com USB C Dock - 4K Dual Monitor DisplayPort - Mini Laptop Docking Station - 100W Power Delivery Passthrough - GbE, 2-Port USB-A Hub - USB Type-C Multiport Adapter - 3.3' Cable

SKU: DK30C2DAGPD
£63.94 inc. VAT
  • USB-C DUAL DISPLAY MULTIPORT ADAPTER: Portable USB C Dock w/ dual 4K 30Hz or single 4K 60Hz DisplayPort, 2-Port USB-A Hub (USB 3.0/3.1 Gen 1 5Gbps), Gigabit Ethernet, 100W Power Delivery passthrough
  • POWERED BY LAPTOP OR EXTERNAL ADAPTER: Mini dock can be USB bus powered or w/ a power adapter; Charge laptop via PD 3.0 Passthrough w/ your USB-C power adapter (15W for dock, the rest for charging)

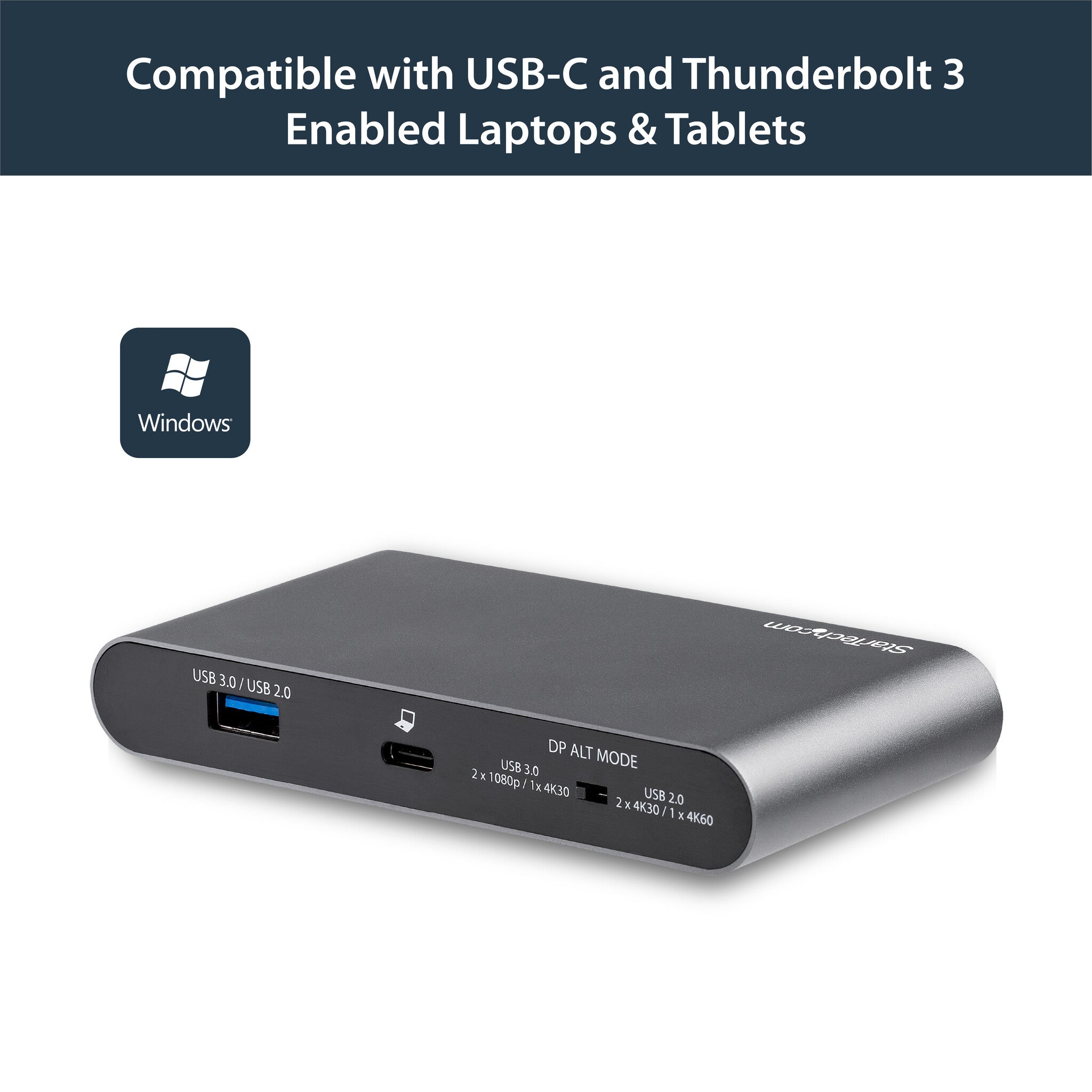

  • COMPATIBILITY: USB-C docking station compatible with brands like HP, Dell, Lenovo, Surface Book/Laptop 3/Pro 7, Chromebooks; Windows, Chrome OS; MacBook compatibility limited to single monitor
  • TWO OPERATION MODES: Physical switch to change between higher resolution dual 4K 30Hz DP monitor output w/ USB 2.0 transfer speeds, or dual DP 1080p video w/ faster USB 3.0 speeds for large data files

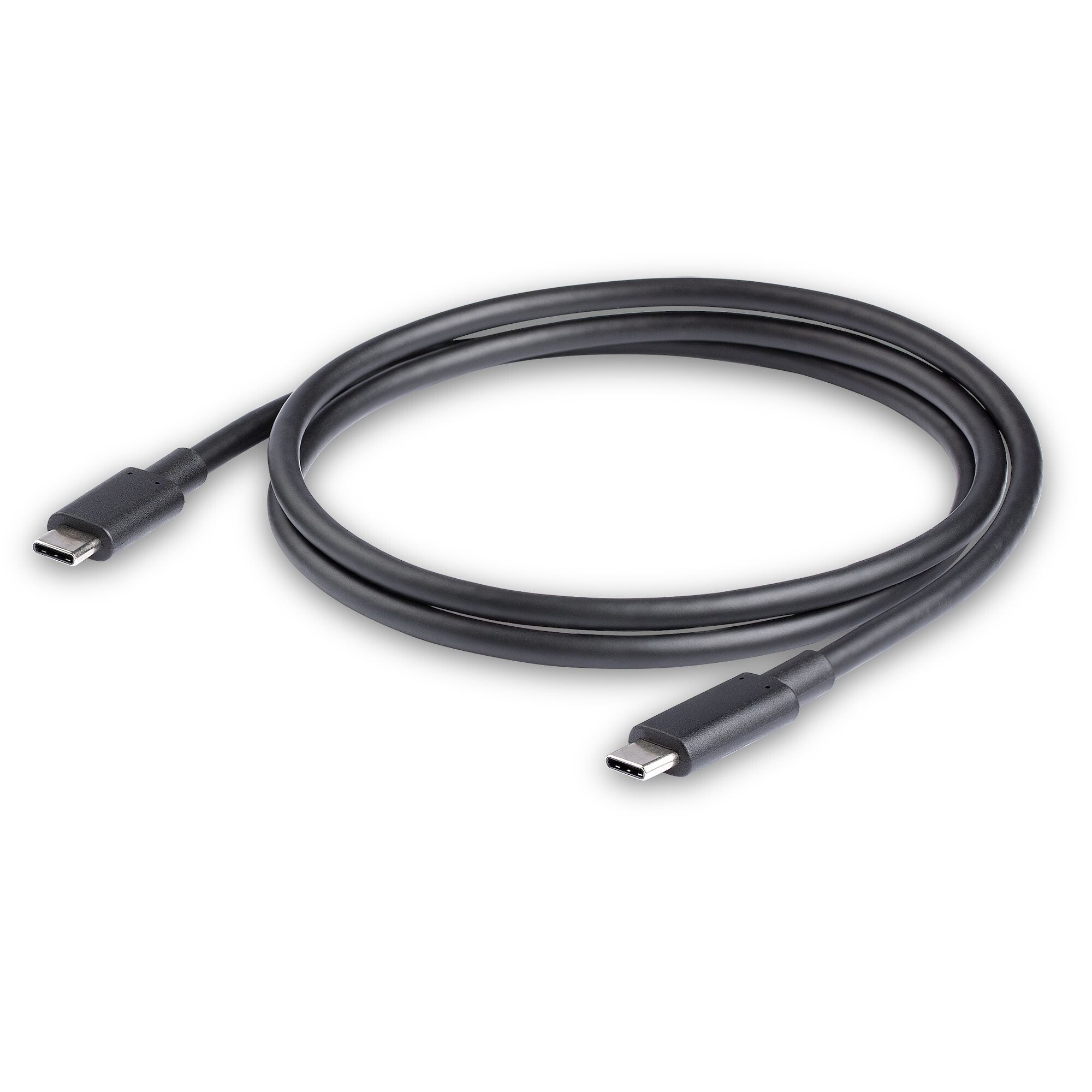

  • EASY INSTALLATION: Includes a 1m (3.3ft) USB Type-C host cable for extended port reach; ideal for working from home, office, boardroom or on the go; Automatic driver setup
  • CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities

USB C Multiport Adapter | 4K 30Hz | 100W PD 3.0 | 2 USB A Ports | GbE | DP Alt-Mode Switch

Transform your Windows laptop into a dual monitor workstation using this USB-C docking station. It offers support for dual DisplayPort monitors, 2 USB-A peripherals, a LAN port for GbE network access and an extended 1-meter host cable.

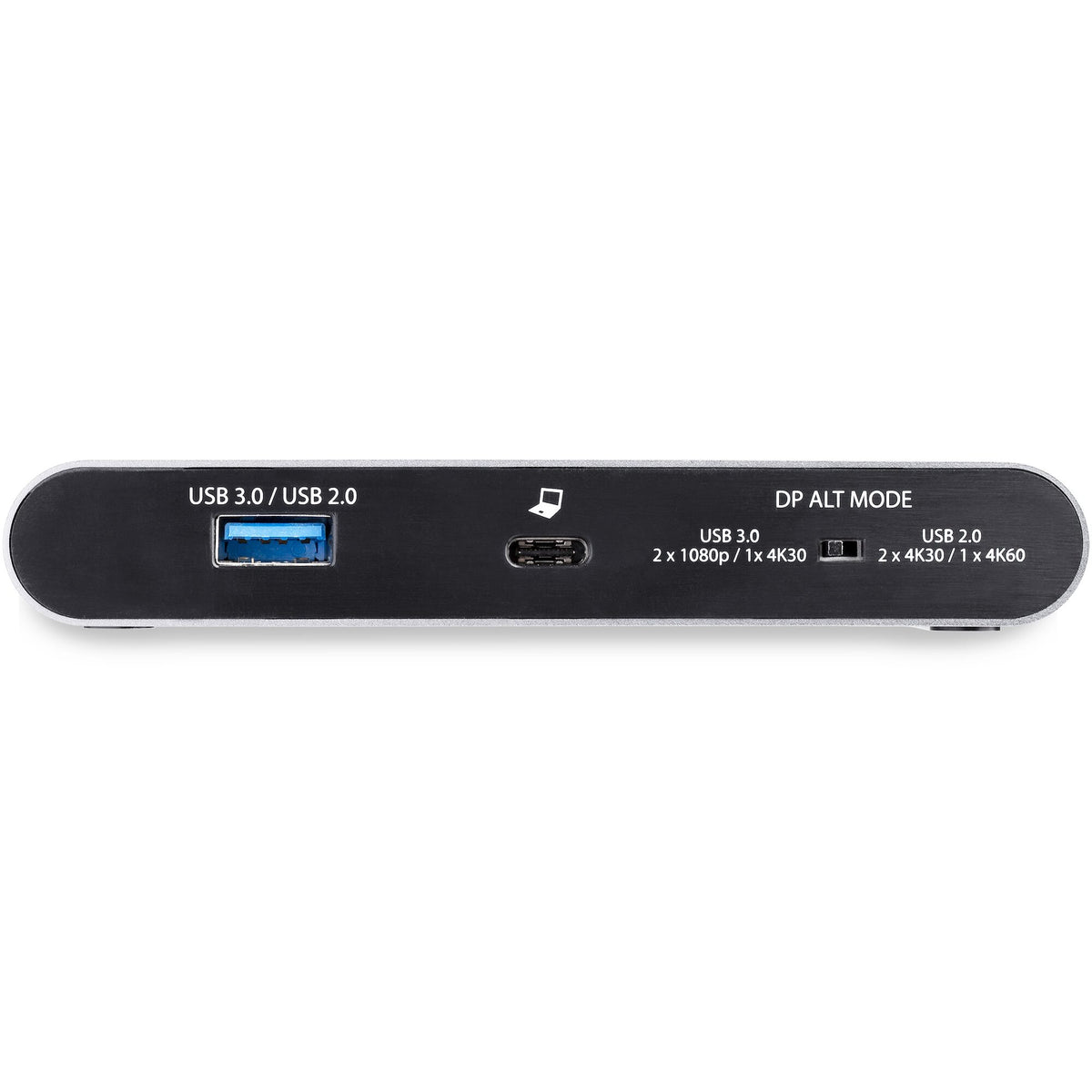

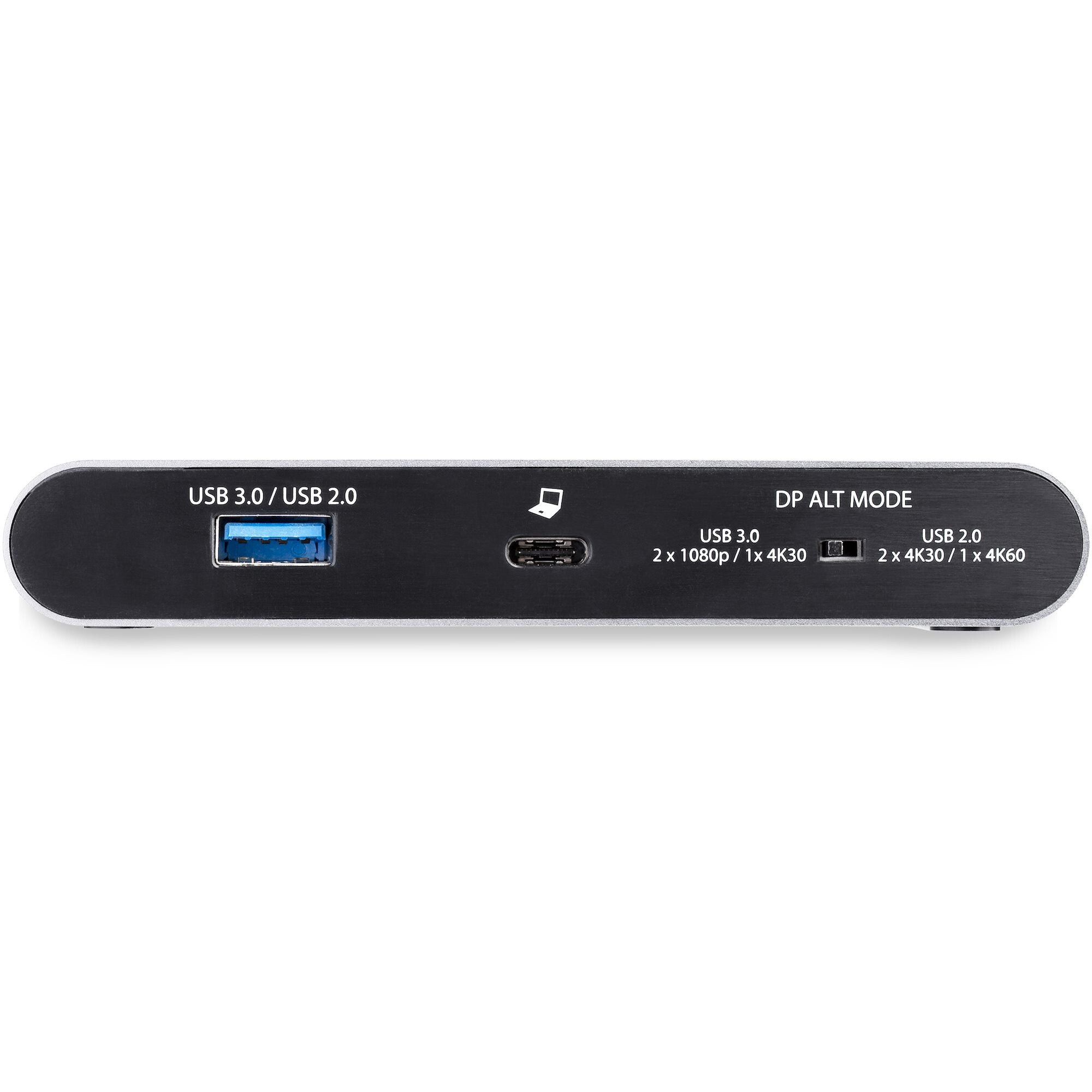

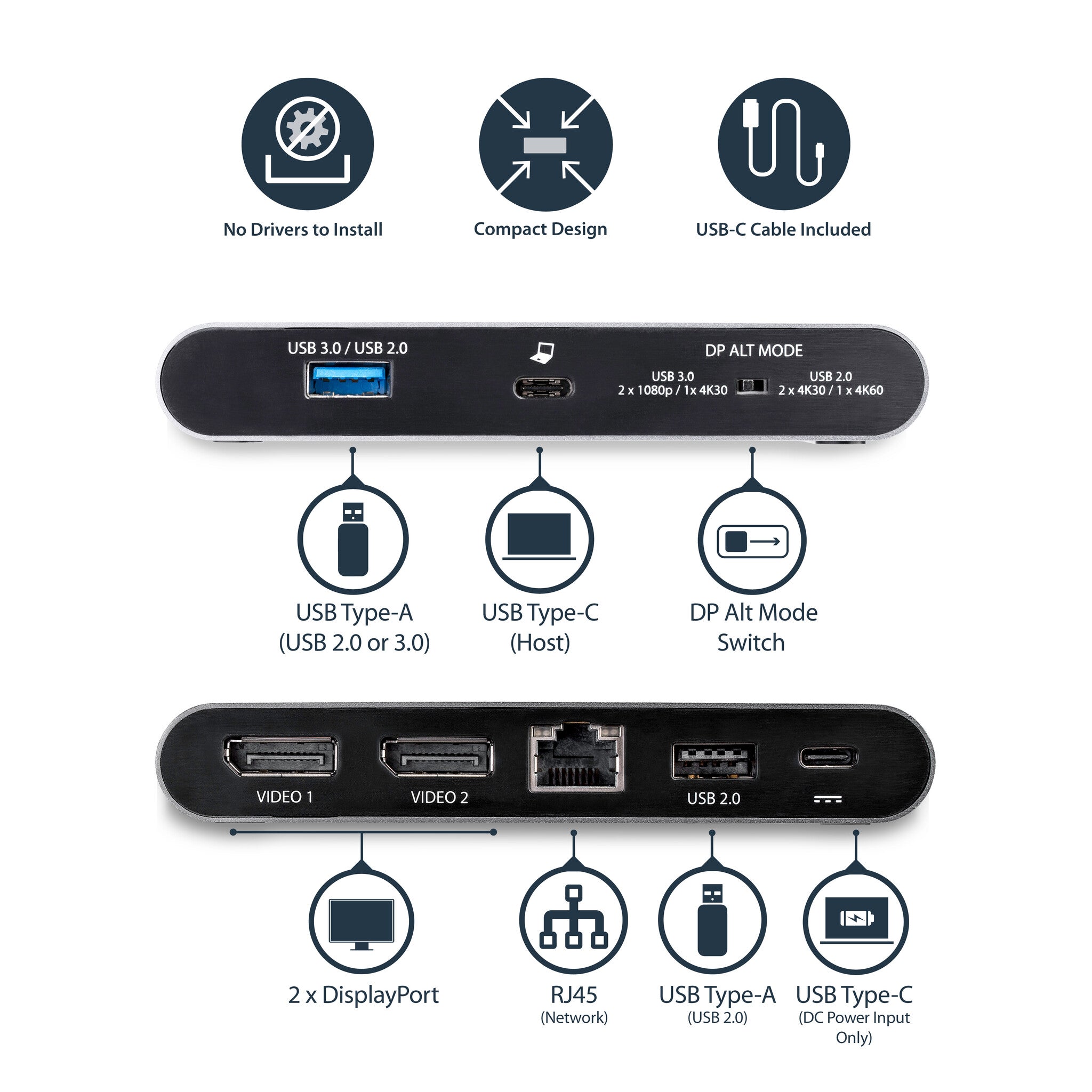

DisplayPort™ Alternate Mode to Choose Your Video Display Output

Achieve dual 1080p up to a single 4K 60Hz display using the DisplayPort™ Alternate Mode (DP Alt-Mode) configuration switch.

Switch Left

Switch Right

2 Lane DP Alt- Mode

4 Lane DP Alt Mode

USB 3.0

(5Gbps)

USB 2.0

(480 Mbps)

Dual 1080p Monitors

or

Single 4K 30Hz Monitor

Dual 4K 30Hz Monitors

or

Single 4K 60Hz Monitor

Reliable 100W Power Delivery Passthrough

The USB-C multiport adapter uses your USB-C laptop’s power adapter and can provide up to 100W Power Delivery (3.0) pass through with up to 85W for your host device for charging. The remaining wattage will power the docking station along with any attached USB-A peripherals such as smartphones and tablets.

Multi-Stream Transport for Driverless Displays

The multi-stream transport technology (MST) in this dock powers two DisplayPort monitors with no driver installation required so you are up and running faster.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

Comprehensive Product Testing & Expert Technical Support

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
This docking station is backed by a StarTech.com 3-Year warranty and free lifetime technical support.

The StarTech.com Advantage

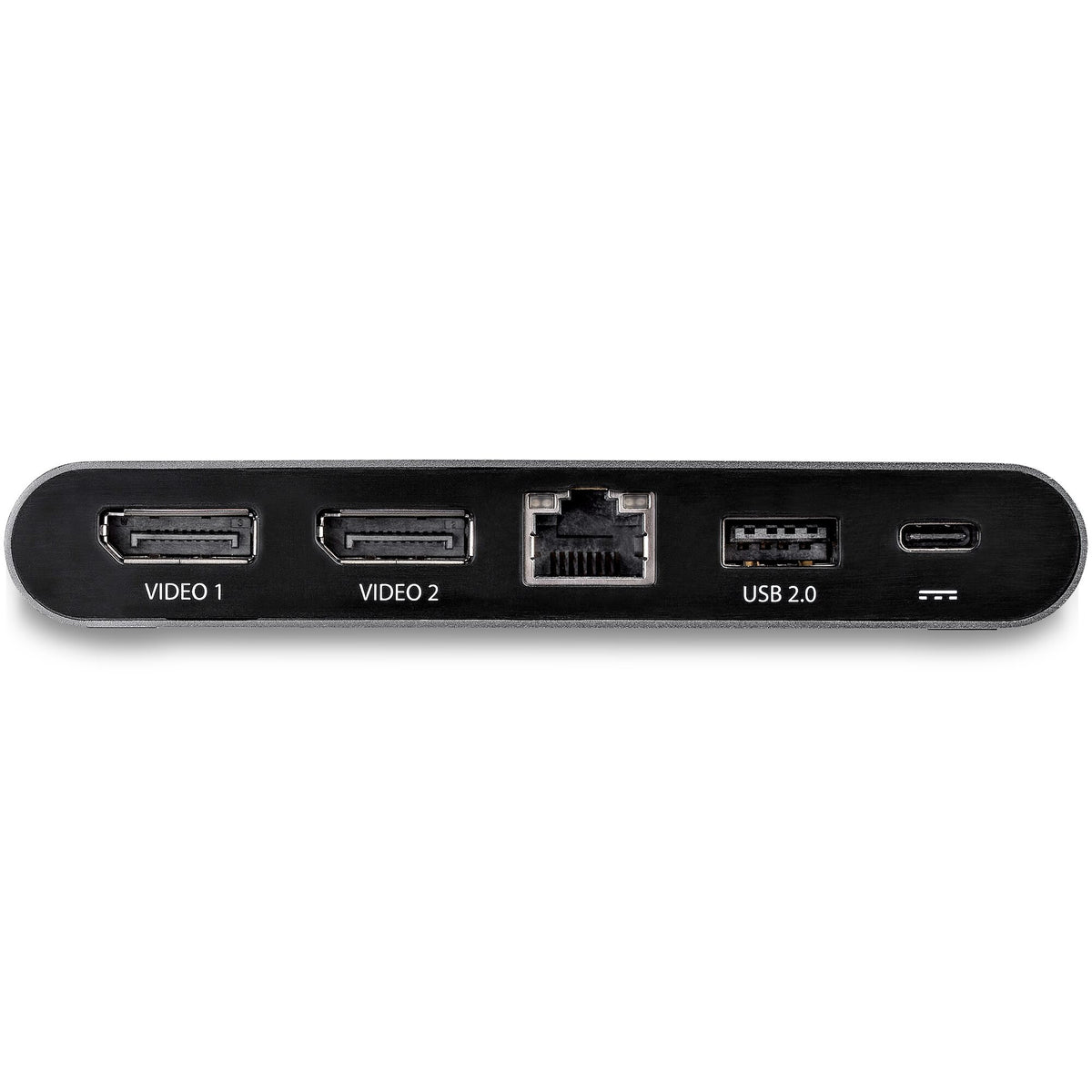

Ports & interfaces
Microphone in No
DisplayPorts quantity 2
USB Power Delivery revision 3.0
USB Power Delivery up to 100 W
USB Power Delivery (USB PD) Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 2.0 ports quantity 1
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Connectivity technology Wired
Network
Auto MDI/MDI-X Yes
Full duplex Yes
10G support No
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports 1
Ethernet LAN Yes
Performance
Certification CE, FCC, REACH
Brand compatibility Any brand
UASP support Yes
Housing material Plastic
Maximum digital resolution 4096 x 2160 pixels
Data transfer rate 5 Gbit/s
Card reader integrated No
Product colour Black
Power
Power consumption (typical) 15 W
Power supply 100 W
Power source type USB
Software
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Operational conditions
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 150 g
Height 18.8 mm
Depth 120 mm
Width 60 mm
Packaging data
Package weight 300 g
Package height 42 mm
Package depth 208 mm
Package width 145 mm

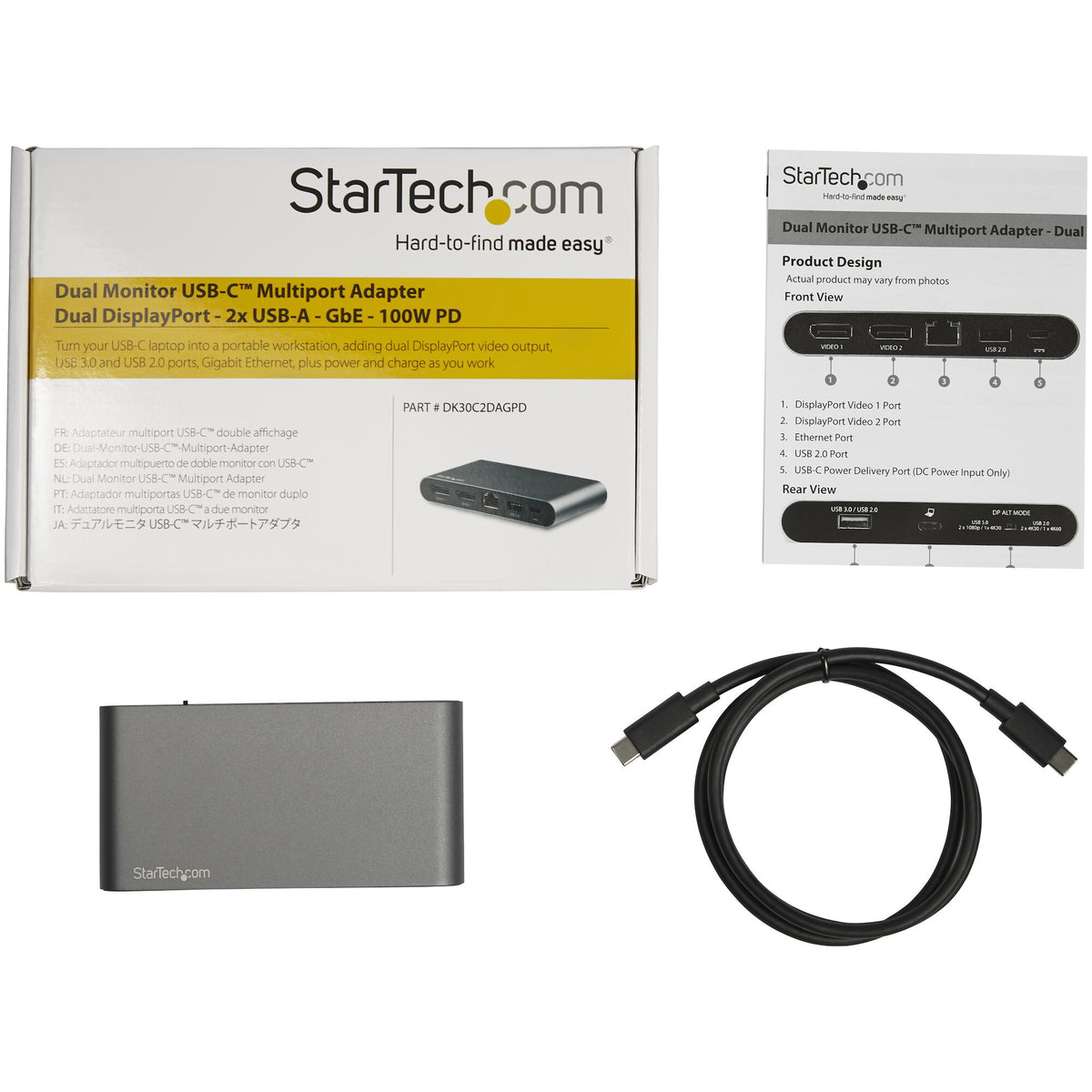

Packaging content
Quick start guide Yes
Cables included USB Type-C
Technical details
Compliance certificates RoHS
Logistics data
Products per master (outer) case 24 pc(s)
Master (outer) case width 310 mm
Master (outer) case length 450 mm
Master (outer) case height 280 mm
Harmonized System (HS) code 84733020
Other features
Chipset VIA/VLI - VL102, VIA/VLI - VL170, VIA/VLI - VL817, MegaChips - STDP4320, RealTek - RTL8153
