Adesso NuScan 5200TU - Antimicrobial & Waterproof 2D Barcode Scanner

SKU: NUSCAN 5200TU
£165.67 inc. VAT
  • Antimicrobial - The antimicrobial material prevents the growth of harmful bacteria and germs and can be cleaned with soap and water or disinfectants.

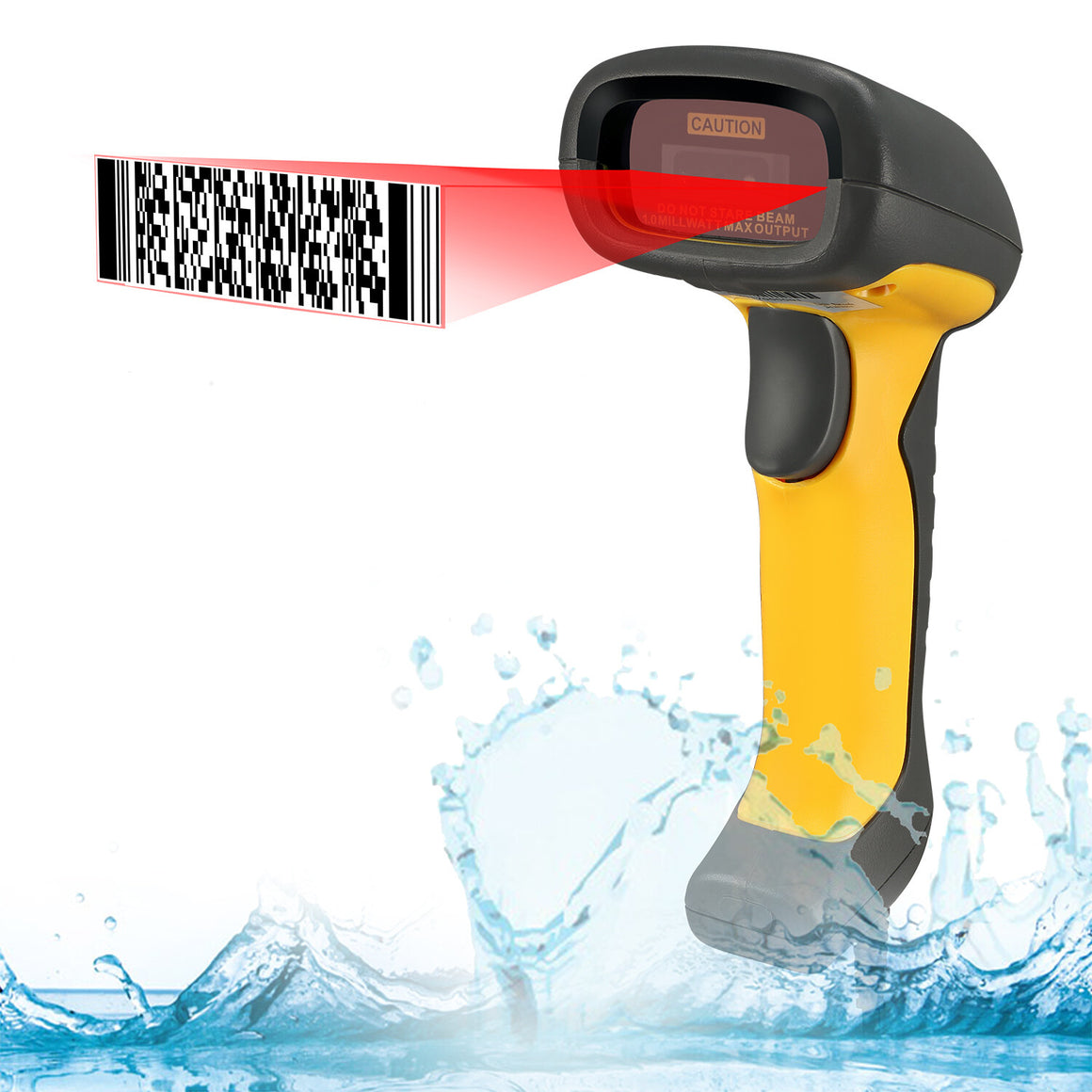

  • Waterproof - IP67 Rated. Sealed with a silicone plastic material, this scanner is 100% waterproof and can be cleaned with soap and water or other liquids cleaners. Ranked as a IP67 Waterproof Standard, this device can withstand being submerged in water for up to 30 min up to a depth of 3 ft.
  • Drop Protection - With its rugged design and durable silicone plastic material, the Nuscan 5200TR is less likely to become damaged due to accidental drops from up to 20 feet.
  • 2.4 GHz Wireless Technology - Connecting the Nuscan 5200TR to your device has never been easier. Simply plug in the usb cable attached to the cradle and your scanner is good to go. The cradle has a built in usb receiver that makes the scanner completely plug-n-play!
  • 2D & 1D Scanning Engine - Easily and instantly read 2-dimensional barcode symbologies such as the most common PDF 417, QR, Data Matrix and micro QR Code. 1D barcode symbologies are supported as well making the Nuscan 5200TR truly reliable.
  • Superior Scanning Performance - The 24 inches per second (IPS) motion tolerance and the innovative high pixels CMOS engine offer fast and accurate scanning results.
  • Long Range Barcode Scanning - The NuScan 5200TR is able to scan barcodes and transmit those barcode data to its charging cradle with built-in receiver from up to 300 feet away.

The Adesso NuScan 5200TU is compatible with a wide range of 1D and 2D barcode symbologies. With CMOS imager the NuScan 5200TU is able to scan major 2D barcodes such as PDF 417, QR Codes, Data Matrix, and micro QR Code. As your daily peripheral companion, your peripheral must be able to provide you with good hygiene and cleanness. Built with waterproof and antimicrobial substances, the NuScan 5200TU can be cleaned periodically. Its 7 meter drop protection also adds to its ruggedness. With all these great features, the NuScan 5200TU is truly your ultimate barcode

Scanning
Motion tolerance (cm/s) 60.96
Yaw reading angle -360 - 360°
Pitch reading angle -45 - 45°
Tilt reading angle -50 - 50°
Wavelength 650 nm
Light levels (direct sunlight) 0 - 100000 lx
Working distance 30 cm
Optical sensor resolution (W x H) 640 x 480 pixels
Sensor type CMOS
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 25 (IR 2 of 5), Code 25 (non-IR 2 of 5), Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), MSI, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported Data Matrix, Micro QR Code, PDF417, QR Code
Scanner type 1D/2D
Type Handheld bar code reader
Ports & interfaces
Cable length 1.83 m
Standard interfaces USB
Connectivity technology Wired
Performance
Certification FCC, CE
Country of origin China
Buzzer Yes
LED indicators Yes
Protection features Shock resistant, Waterproof
International Protection (IP) code IP67
Housing material Plastic, Silicone
Product colour Yellow
Power
Power consumption 220 mA
Input voltage 5 V
Power source type USB
Weight & dimensions
Weight 160 g
Height 175 mm
Depth 100 mm
Width 72 mm
Packaging data
Package weight 453.5 g
Package height 88.9 mm
Package depth 114.3 mm
Package width 215.9 mm
Operational conditions
Operating temperature (T-T) -20 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84716070
Other features
Compatible operating systems Windows 10, Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP, Mac OS X
