ALOGIC USB-C Triple Display DP Alt. Mode Docking Station – MA3 with 100W Power Delivery - 2 x DP and 1 x HDMI with up to 4K 60Hz Support

Triple Display

The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop.

*Refer to the resolution support table for details on different resolutions supported with the dock.

Comprehensive Connectivity

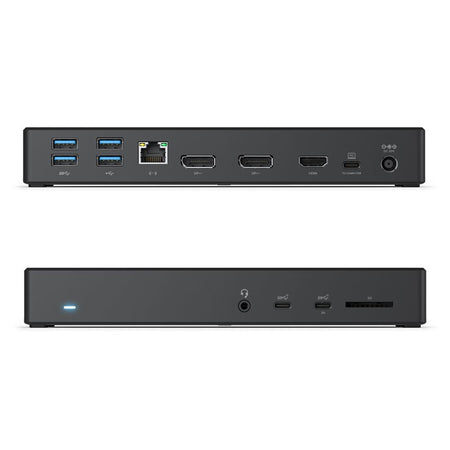

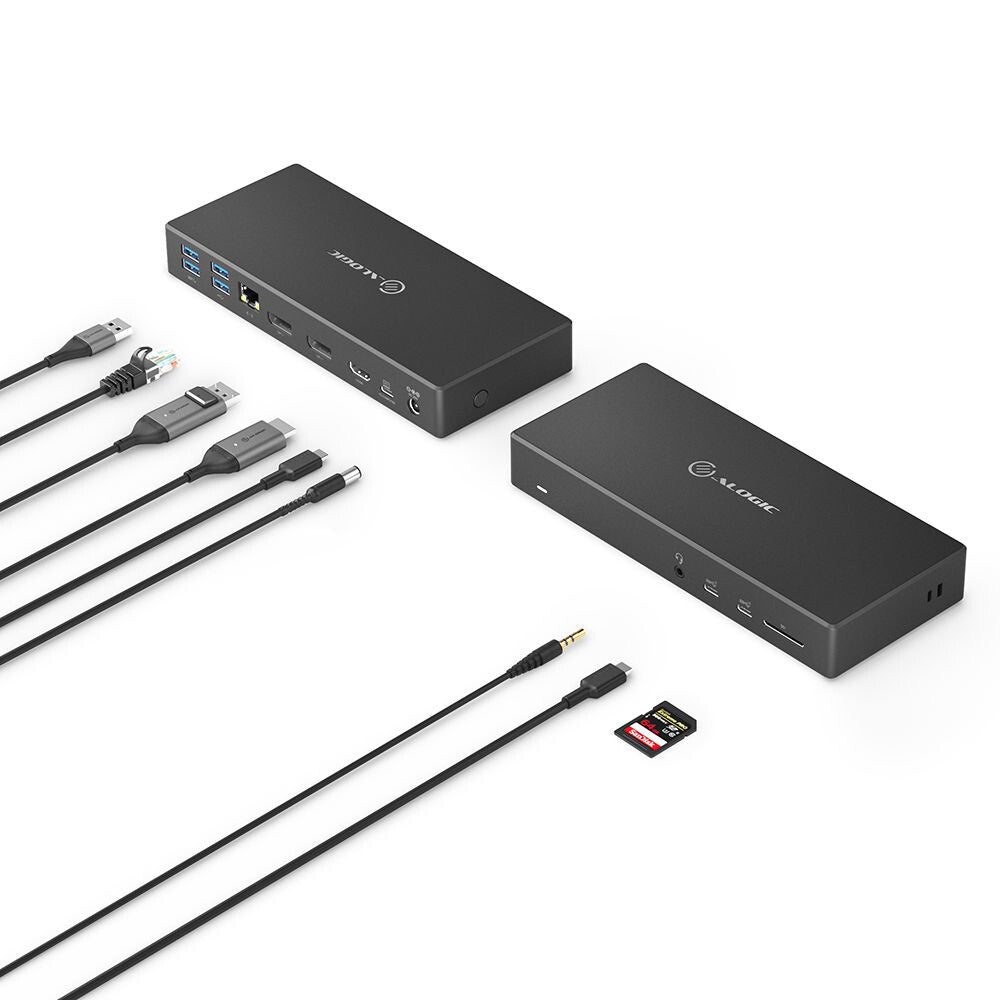

The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card

The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment.

*Refer to the resolution support table for details on different resolutions supported with the dock.

100W Laptop Charging/Power Delivery

The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time.

Plug and Play: Driverless

With a plug-and-play design, the MA3 dock becomes an extension of your laptop without the need for software or drivers.

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB Power Delivery	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	1
DisplayPorts quantity	2
DisplayPort version	1.4
Microphone in	Yes
Combo headphone/mic port	Yes
DC-in jack	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	1000 Mbit/s
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
HD type	4K Ultra HD
Maximum digital resolution	5120 x 2880 pixels
Number of displays supported	3
Cable lock slot	Yes
Product colour	Black
LED indicators	Yes
Certification	FCC, CE
Power source type	DC
Power supply	170 W
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Width	880 mm
Depth	2100 mm
Height	290 mm
Weight	360 g
Quantity per pack	1 pc(s)
Cables included	AC
AC adapter included	Yes
Manual	Yes
Compliance certificates	RoHS
Harmonized System (HS) code	84733020
