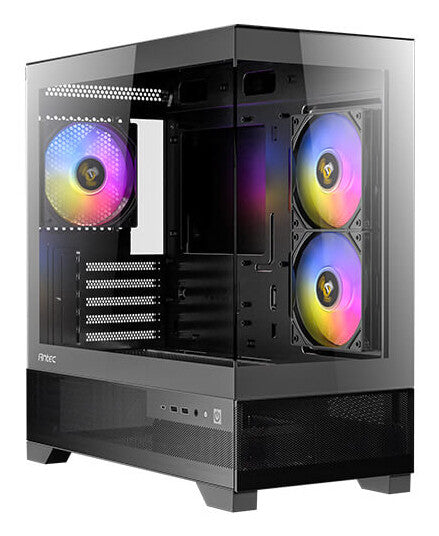

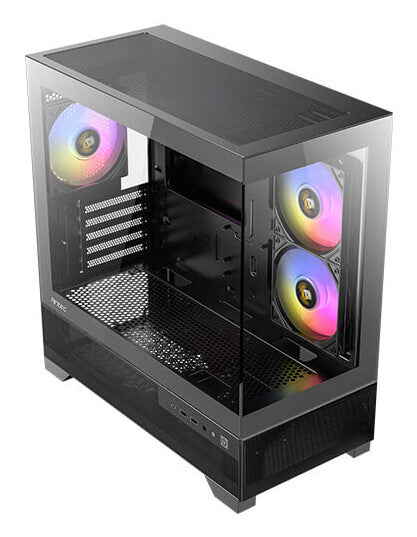

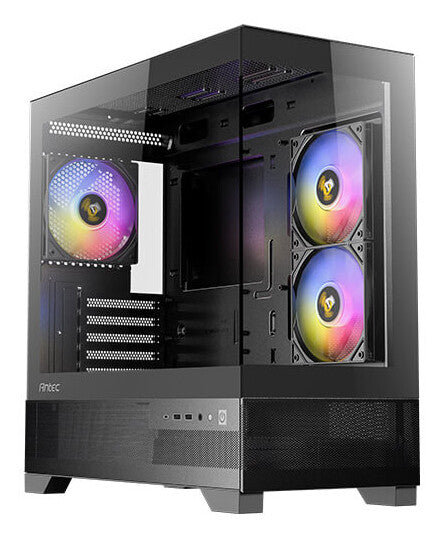

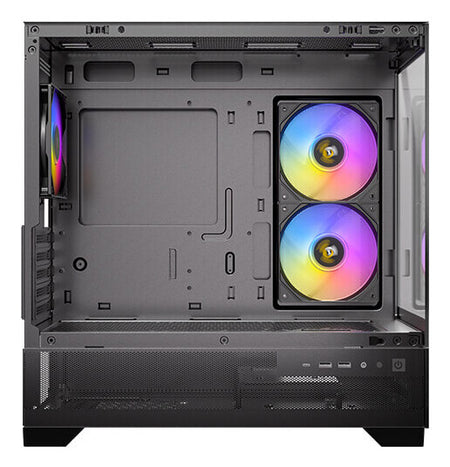

Panoramic 270° View
Standing out with full-view design on the seamless steel-tempered glass, CX500M ARGB's left and front panel offer an unobstructed view of your build, creating a stunning showcase for your components.
Vertical Cooling with Massive Air Intake

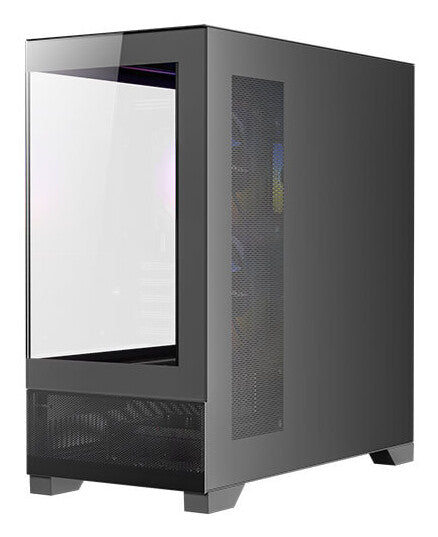

Bottom-up vertical airflow via mesh on lower front, lower left, and right side accelerates the heat dissipation.
Tool-Free Panels
Front and side panel adopt fixing stud design, which makes assembly and disassembly easier and helps avoid possible glass breakage.

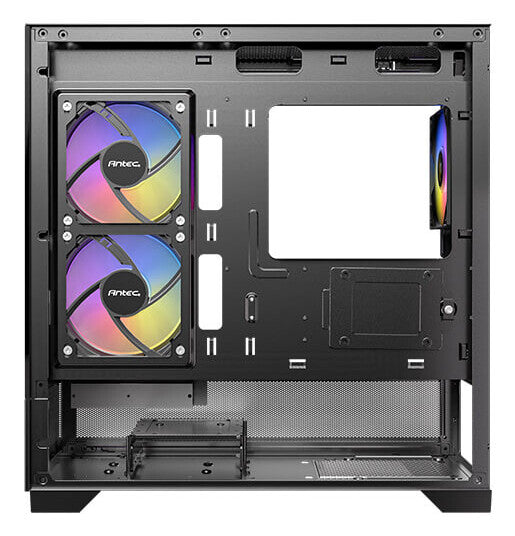

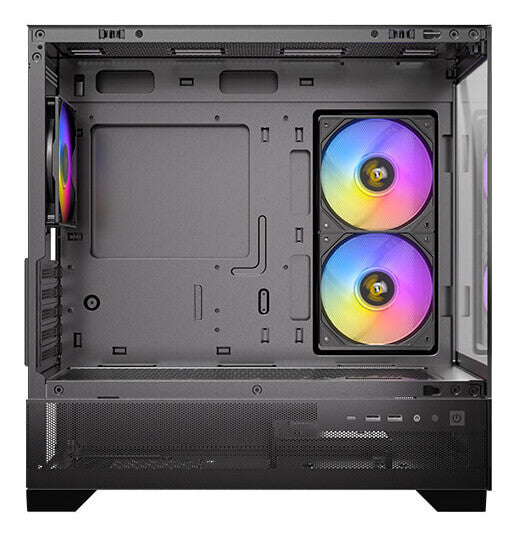

Pre-Installed 3 x 120mm ARGB fans
Use the major case fan to daisy-chain the other two fans for ARGB sync and create your personal style.
EVA PSU Cushion Pads
With EVA anti-vibration foams on the power supply mount position, your lovely PC hardware is well protected against any jar or resonance caused by PSU operation.
| Design |
|---|
| Maximum PSU length |
27 cm |
| Maximum graphics card length |
41.5 cm |
| Maximum CPU cooler height |
16.5 cm |
| On/off button |
Yes |
| RGB control button |
Yes |
| Anti-dust filter |
Yes |
| Tempered glass panel(s) |
Yes |
| Number of 2.5" bays |
1 |
| Number of 3.5" bays |
2 |
| Supported motherboard form factors |
ITX, micro ATX |
| Product colour |
Black |
| Material |
Glass, Steel |
| Type |
PC |
| Form factor |
Mini Tower |
| Power supply |
|---|
| Power supply shroud |
Yes |
| Power supply included |
No |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Cooling |
|---|

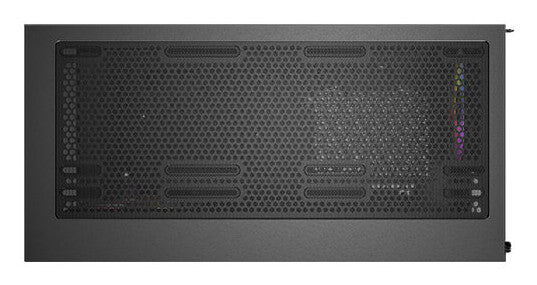

| Top radiator sizes supported |
120,140,240,280,360 mm |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |

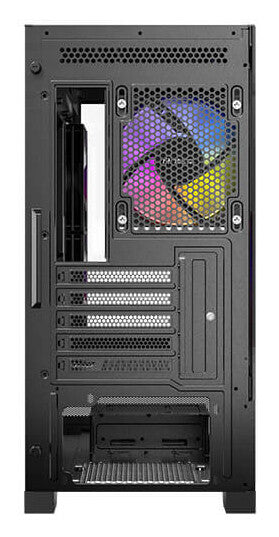

| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 120 mm |
| Side fans diameters supported |
120 mm |
| Number of side fans supported (max) |
2 |
| Side fans installed |
2x 120 mm |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
|---|
| Weight |
6.34 kg |
| Height |
446 mm |
| Depth |
436 mm |
| Width |
210 mm |
| Packaging data |
|---|
| Package weight |
8.2 kg |
