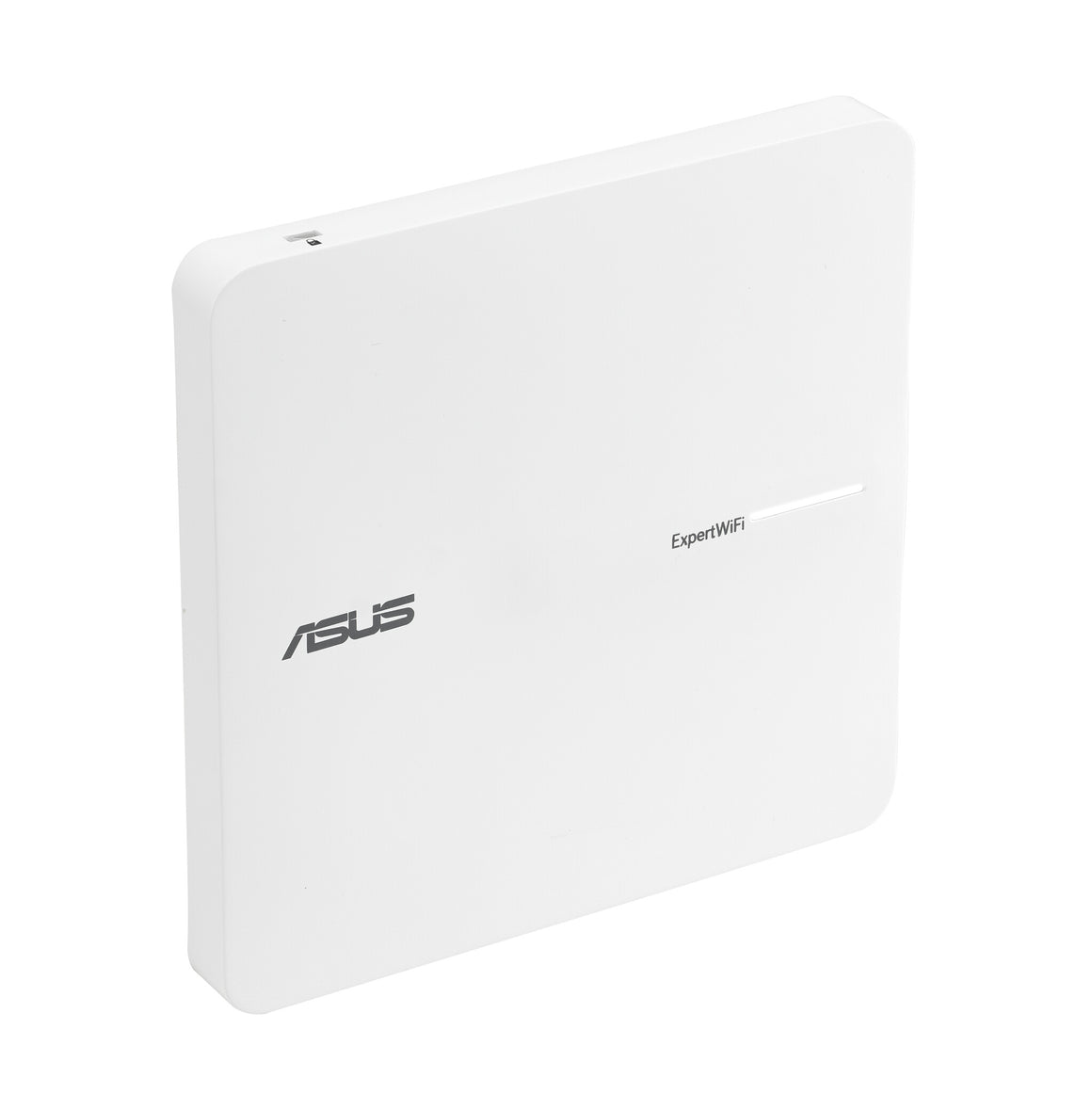

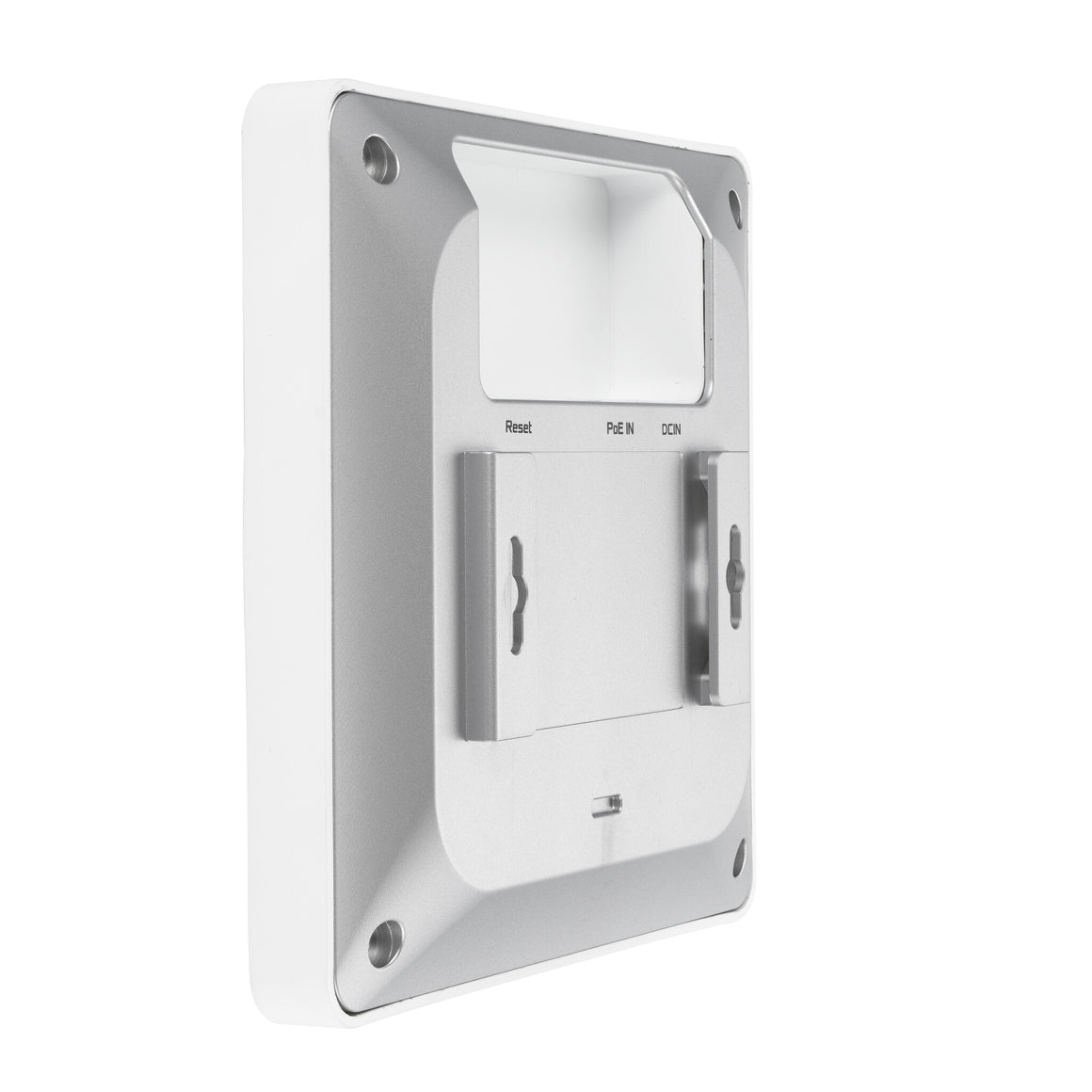

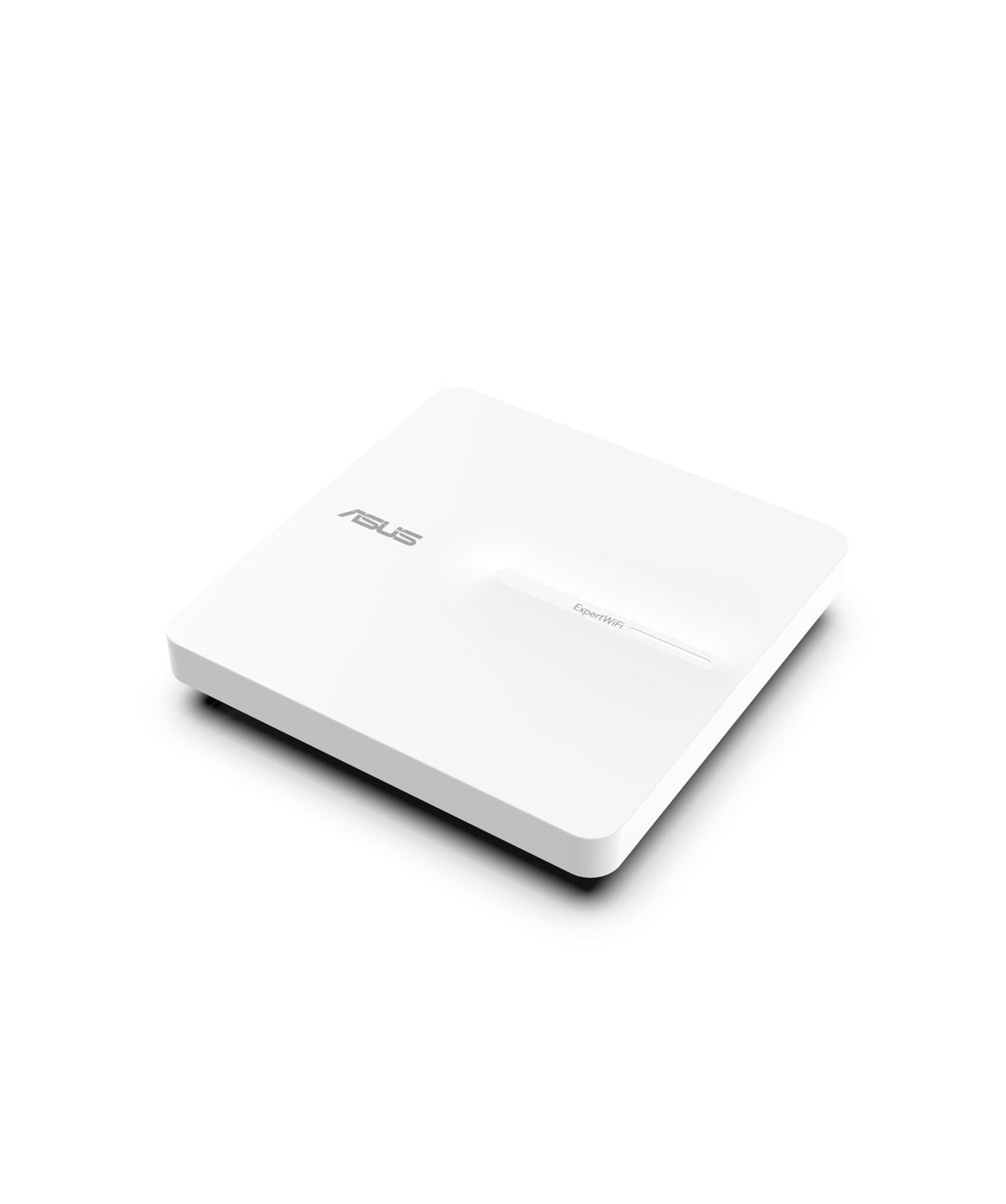

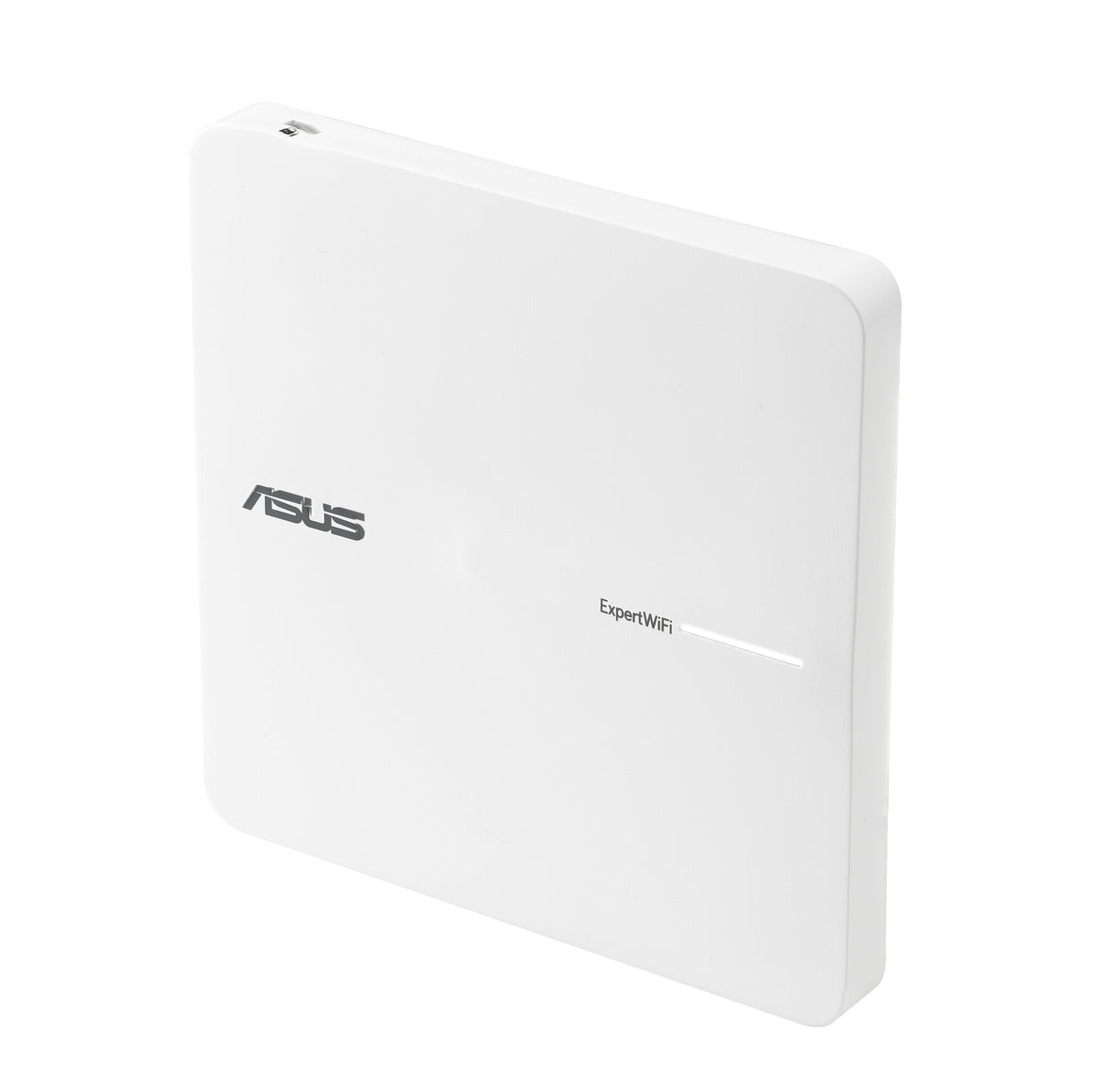

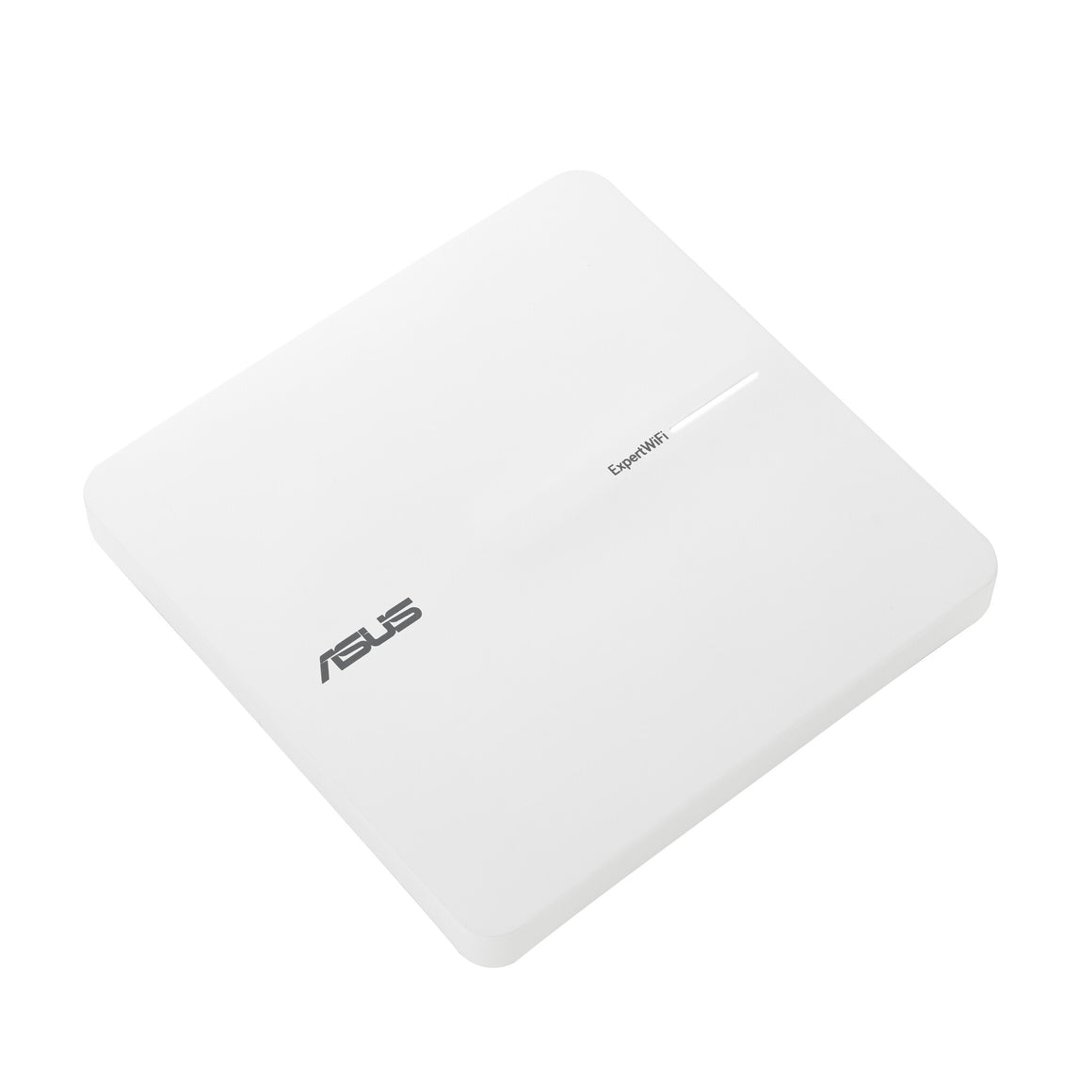

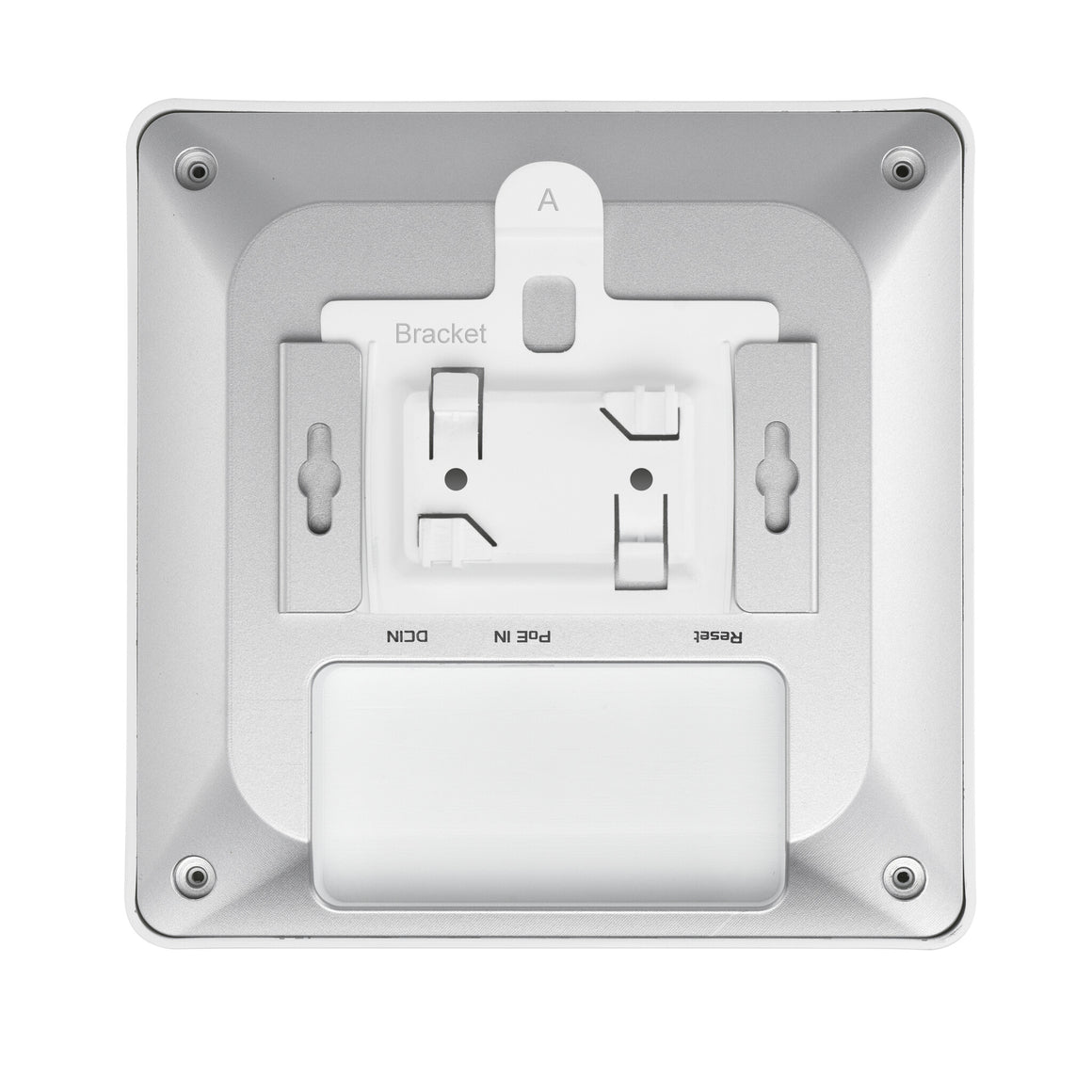

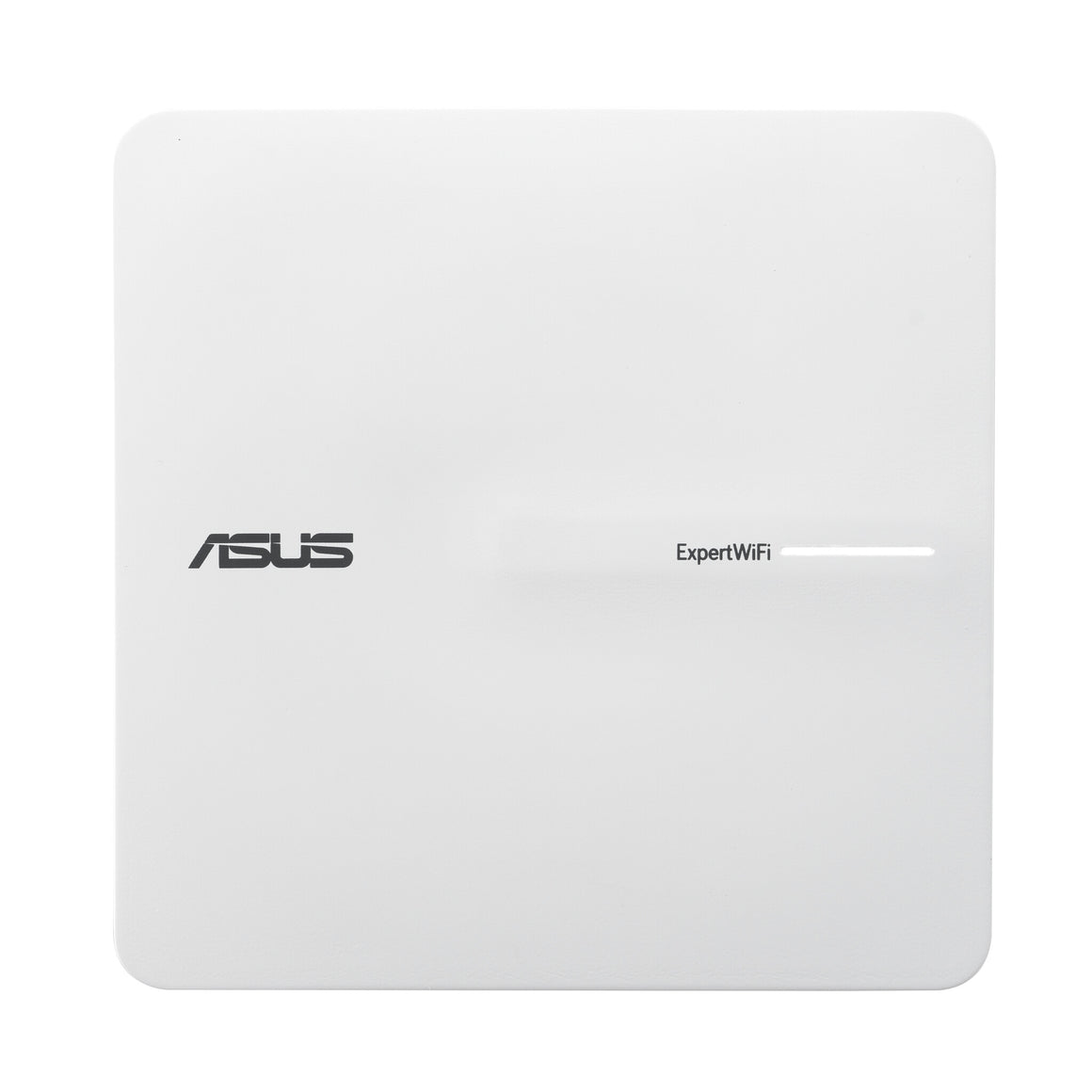

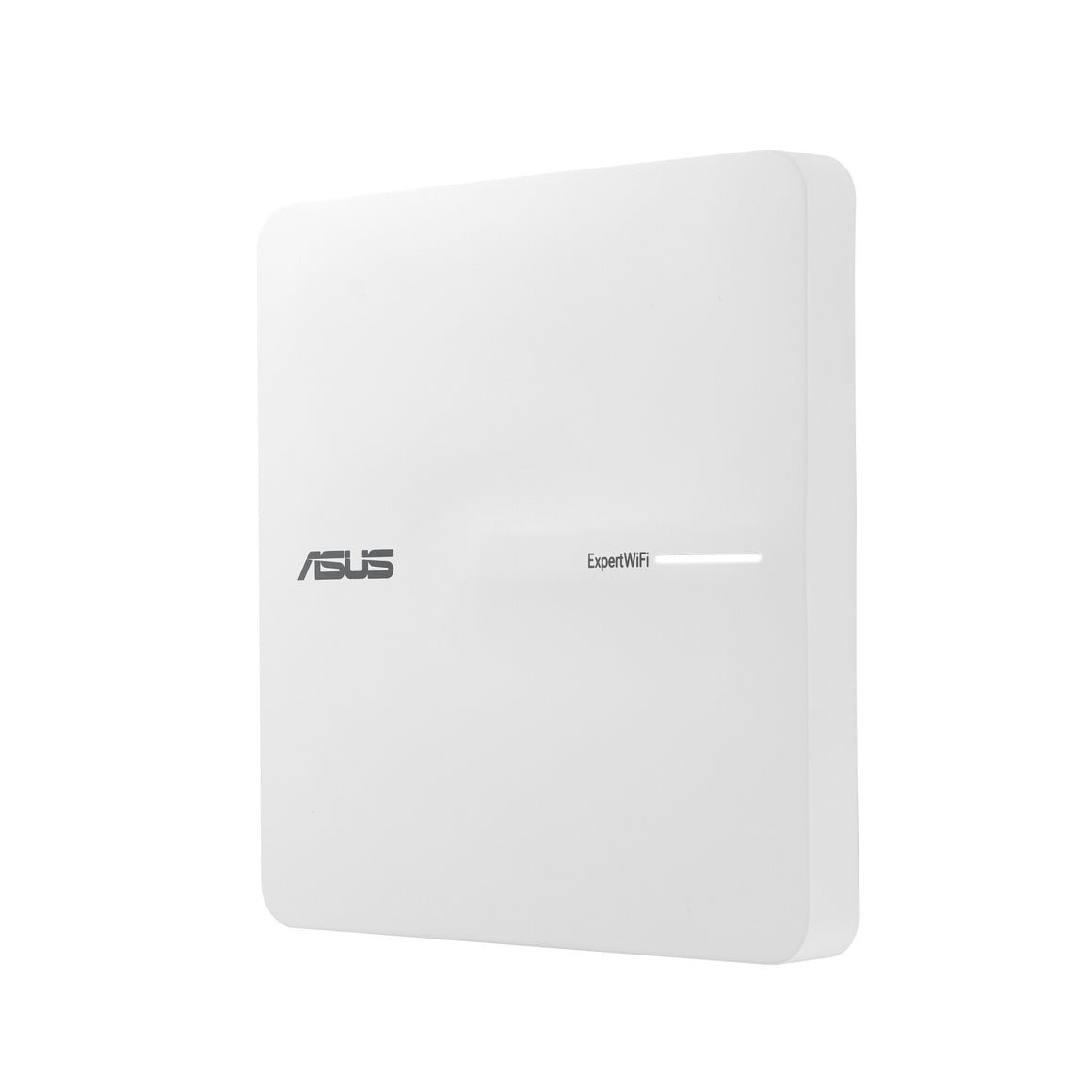

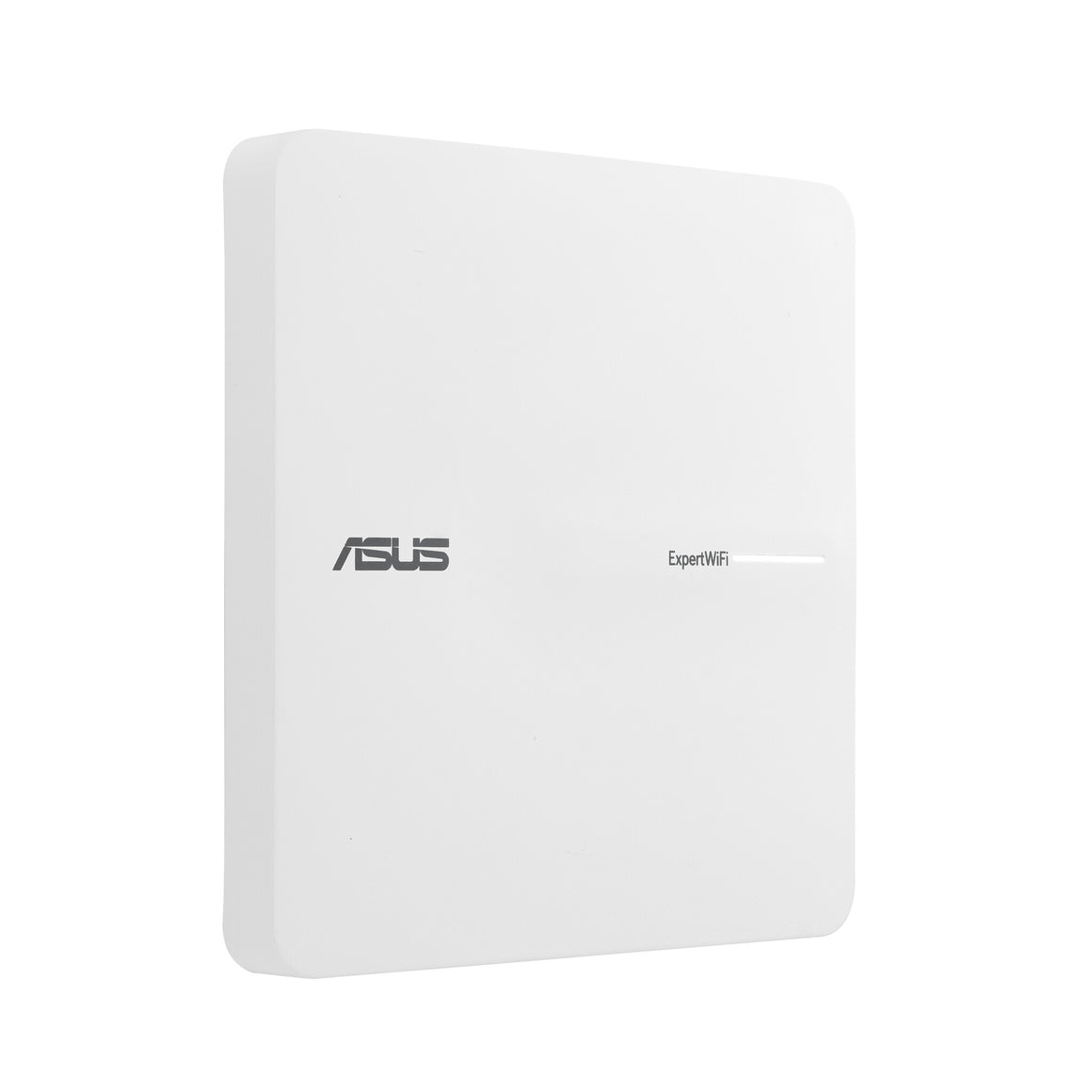

ASUS ExpertWiFi EBA63 PoE Access Point
Your Business WiFi Expert Within Reach
The ASUS ExpertWiFi EBA63 is a Power over Ethernet (PoE) solution that provides fast, seamless and secure networking, with rich features tailored for small-to-midsized businesses. With its easy scalability, it can effortlessly adapt to your business network needs.
Fast, Versatile Connectivity to Accommodate All Business Scenarios
The ASUS ExpertWiFi EBA63 provides seamless connectivity for various business settings, featuring the flexible power options of PoE (Power over Ethernet) and AC adapters. By connecting to a PoE switch or PoE wired router, you can get both power and data transmission over a single Ethernet cable.
Extend Your Business Network with ASUS ExpertWiFi
ASUS ExpertWiFi networking products are designed for easy scalability to fit a variety of SMB scenarios. By integrating ExpertWiFi series products, you can extend your business network coverage and access a complete suite of ExpertWiFi’s software features to boost your business operations. You can also connect the ExpertWiFi products with ASUS AiMesh extendable routers.
*The ASUS ExpertWiFi series is compatible with ASUS AiMesh products; however, the functionality of software features is subject to the capabilities of the primary router. The availability of some ExpertWiFi features may also depend on whether the AiMesh router supports them.
Features |
BeamForming |
Yes |
VLAN support |
Yes |
Spread spectrum method |
OFDMA |
Number of users |
100 user(s) |
Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Frequency band |
2.4 - 5 GHz |
Ethernet LAN data rates |
10,100,1000 Mbit/s |
Maximum data transfer rate (5 GHz) |
2402 Mbit/s |
Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
Maximum data transfer rate |
2402 Mbit/s |
5 GHz |
Yes |
6 GHz |
No |
2.4 GHz |
Yes |
Security |
Number of SSID supported |
5 |
MAC address filtering |
Yes |
Security algorithms |
IPSec, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPS |
Management features |
Firmware upgradeable |
Yes |
Syslog |
Yes |
Ports & interfaces |
Ethernet LAN (RJ-45) ports |
1 |
Power |
Input current |
1.5 A |
DC voltage range |
12 V |
Power over Ethernet (PoE) |
Yes |
Design |
LED indicators |
Power |
Reset button |
Yes |
Product colour |
White |
Placement |
Ceiling, Wall |
Antenna |
Antennas quantity |
4 |
Antenna type |
Internal |
Performance |
Flash memory |
256 MB |
Internal memory |
512 MB |
Processor frequency |
1.7 MHz |
Built-in processor |
Yes |
Weight & dimensions |
Weight |
426 g |
Height |
42 mm |
Depth |
160 mm |
Width |
160 mm |
Packaging data |
Package type |
Box |
Package weight |
750 g |
Package height |
58 mm |
Package depth |
180 mm |
Package width |
262 mm |
Packaging content |
Quick start guide |
Yes |
Mounting kit |
Yes |
Cables included |
LAN (RJ-45) |
AC adapter included |
Yes |
