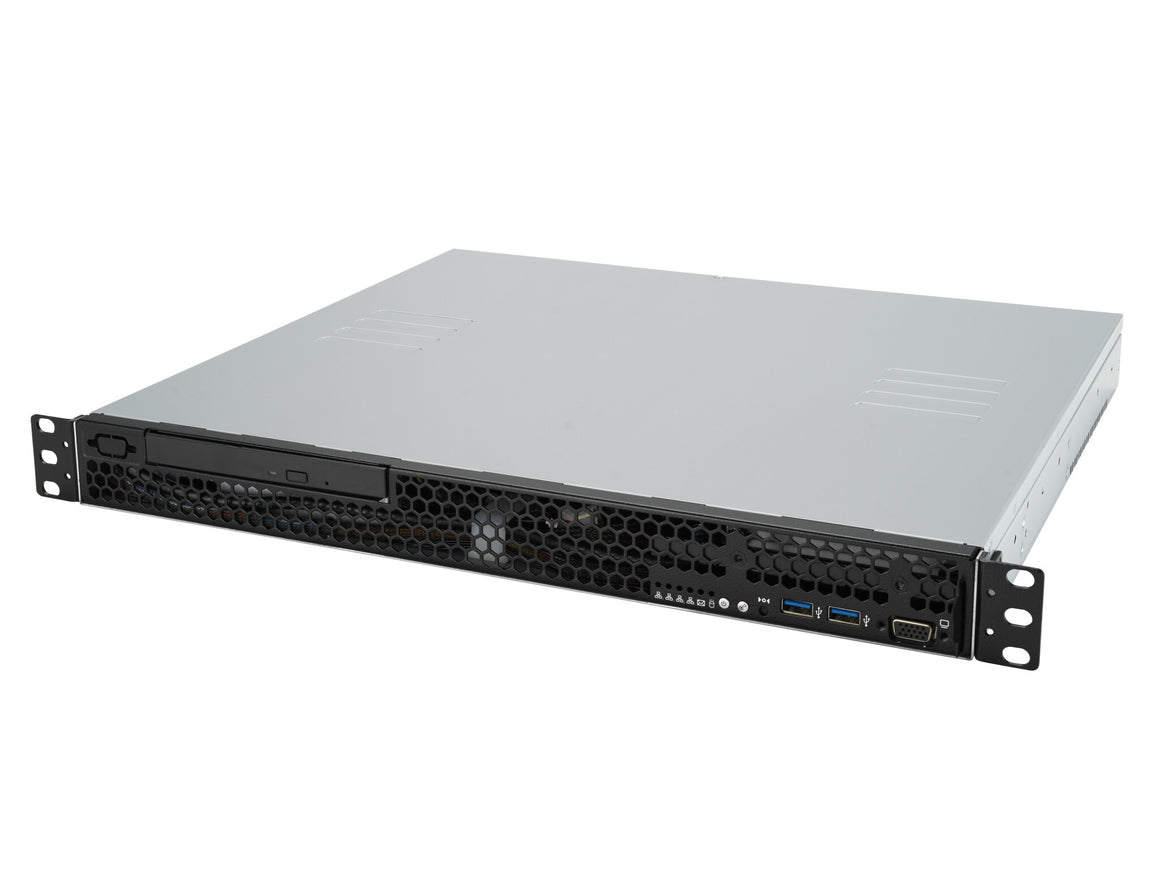

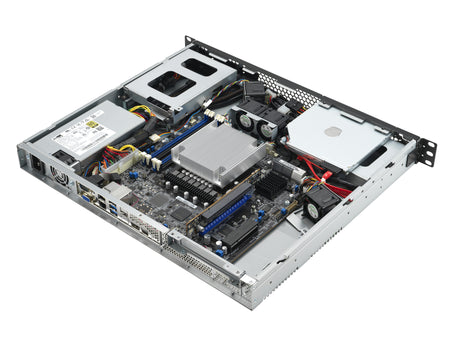

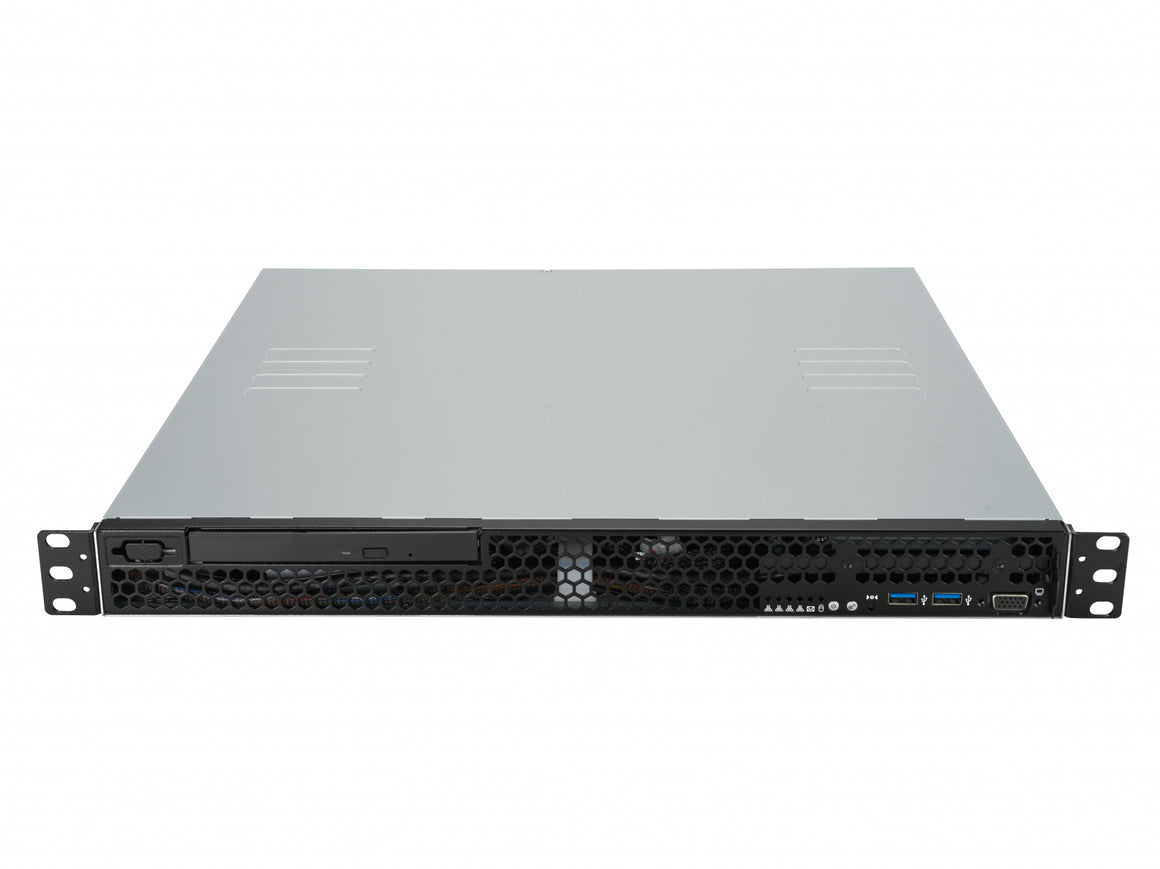

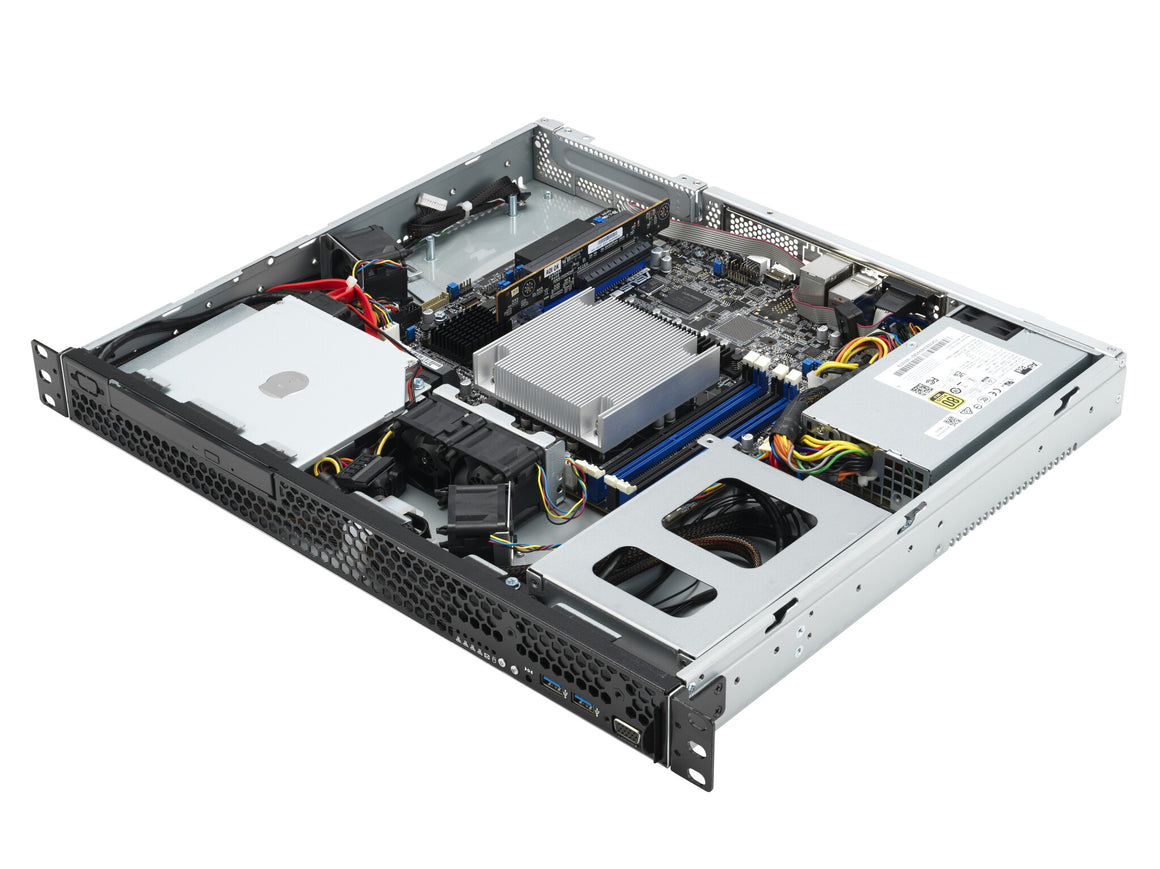

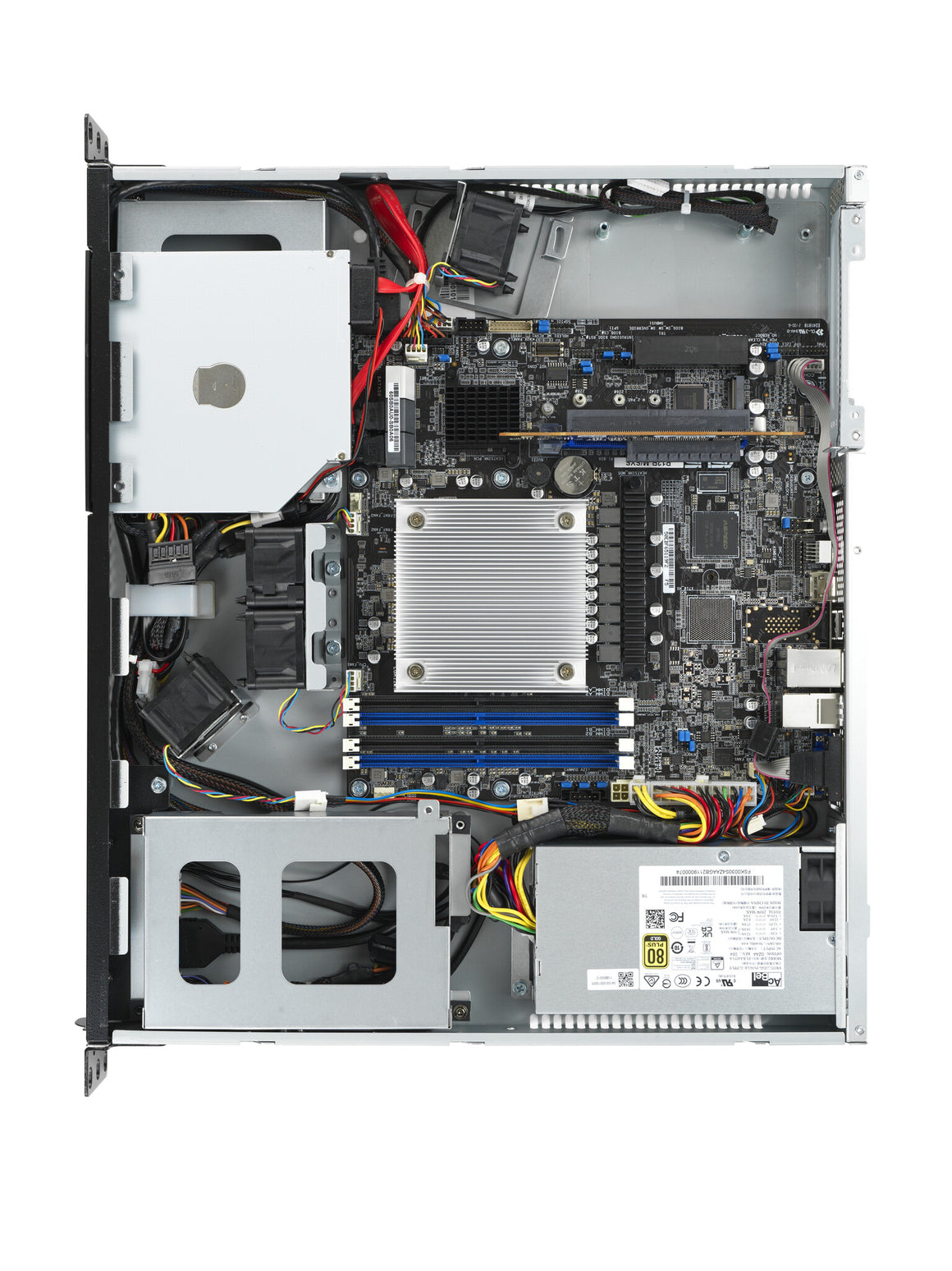

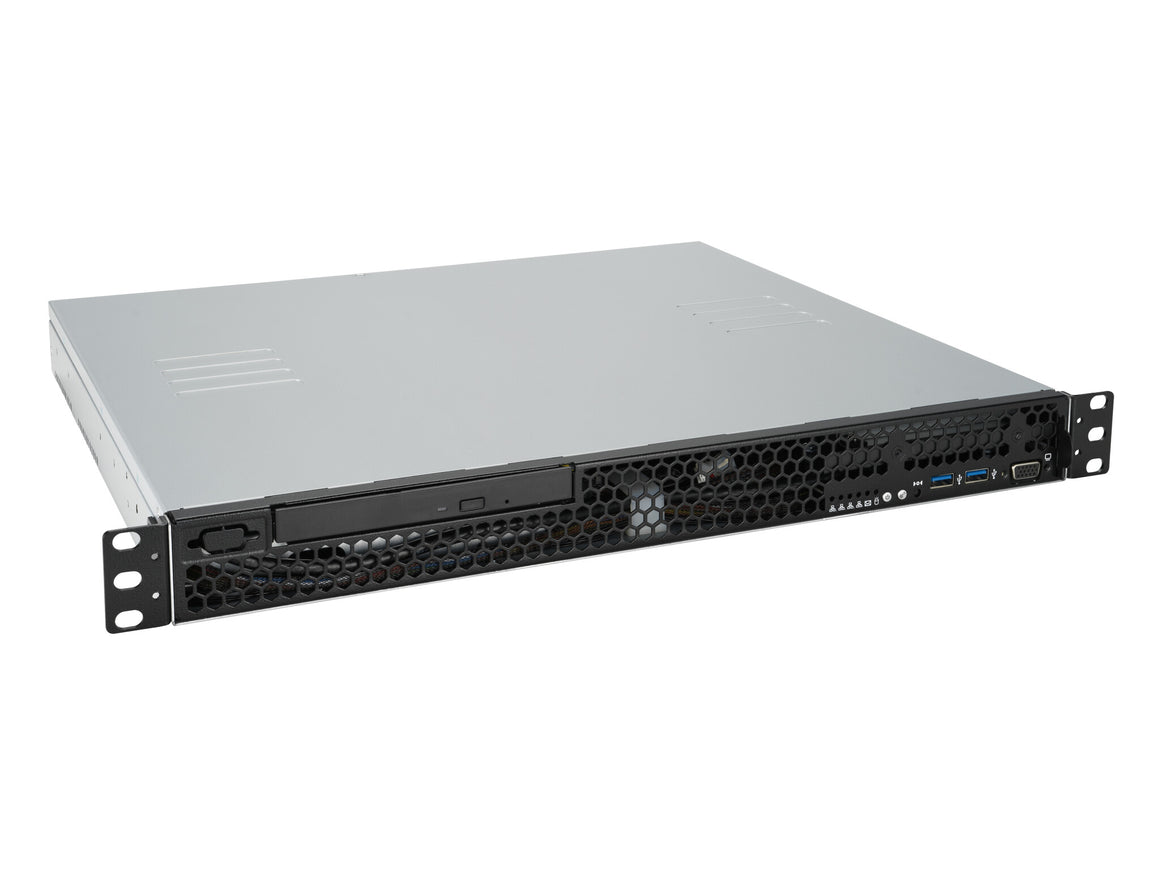

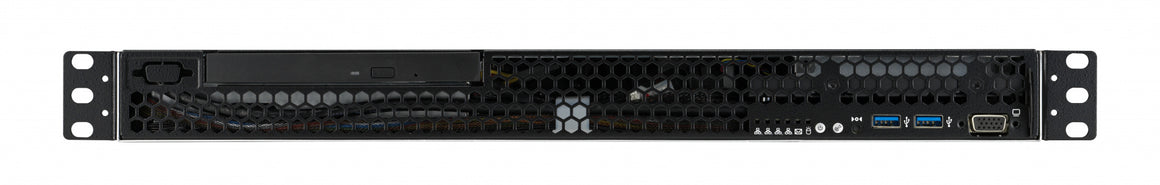

Intel® Xeon® E-2300 1U short-depth server with four DIMM, one M.2, two PCIe 4.0 slots, two NVMe, dual LAN , Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS100-E11-PI2 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
Enhanced security
ASUS RS100-E11-PI2 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition, all RS100-E11-PI2 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
* Platform Firmware Resilience (PFR) module must be specified at time of purchase and is factory-fitted. It is not for sale separately.
High-resolution HDMI monitoring

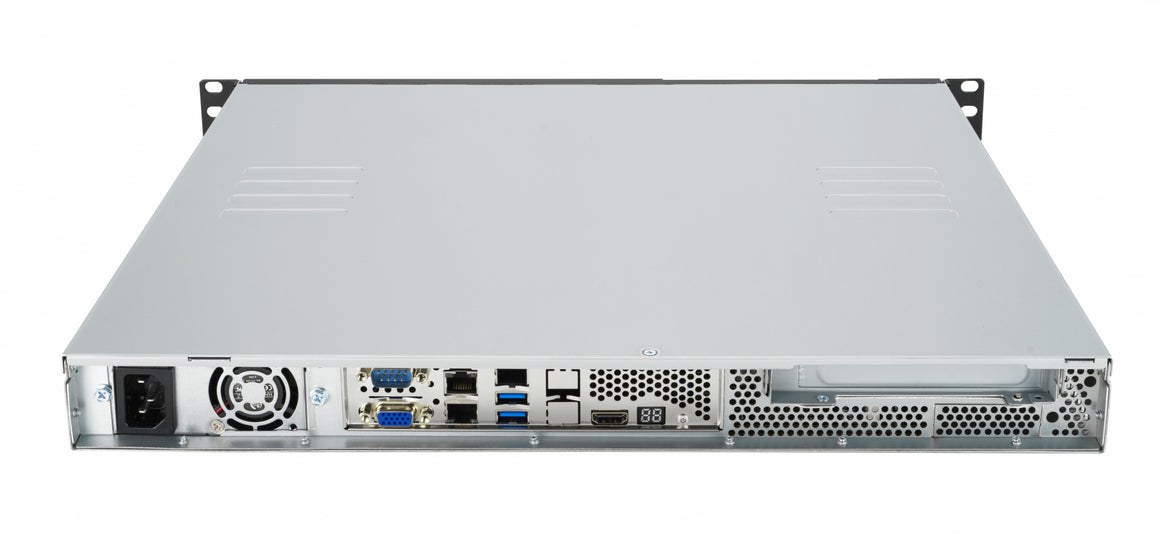

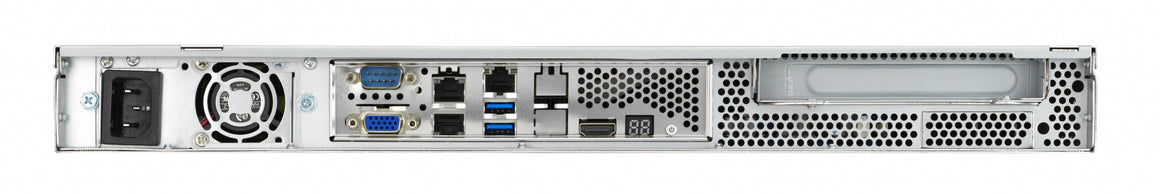

RS100-E11-PI2 server features a HDMI 1.4 port directed from CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.
Dual Ethernet Bandwidth
Featuring dual onboard LAN ported by Intel I210-AT Ethernet Controller, RS100-E11-PI2 server provides server-grade connectivity and supports high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications
Server-management Solution
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
| Processor |
|---|
| Number of processors supported |
1 |
| Processor family |
Intel® Xeon® |
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1200 (Socket H5) |
| Motherboard chipset |
Intel C252 |
| Built-in processor |
No |
| Memory |
|---|
| Memory channels |
Dual-channel |
| Supported UDIMM clock speeds |
2666,3200 MHz |
| Maximum UDIMM memory |
128 GB |
| Supported DIMM module capacities |
4GB, 8GB, 16GB, 32GB |
| Supported memory types |
DDR4-SDRAM |
| Number of DIMM slots |
4 |
| Storage |
|---|
| SSD form factor |
M.2 |
| RAID levels |
0, 1, 5, 10 |
| Supported storage drive types |
HDD & SSD |
| Storage drive sizes supported |
2.5,3.5,M.2 |
| Graphics |
|---|
| On-board graphics card memory |
64 MB |
| On-board graphics card model |
Aspeed AST2600 |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Ports & interfaces |
|---|
| COM ports quantity |
1 |
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
1 |
| PCI Express slots version |
4.0 |
| Design |
|---|
| Certification |
BSMI, CE, FCC(Class A) |
| Reset button |
Yes |
| On/off switch |
Yes |
| LED indicators |
Yes |
| Product colour |
Silver |
| Chassis type |
Rack (1U) |
| Power |
|---|
| 80 PLUS certification |
80 PLUS Gold |
| Power supply |
350 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 35 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
20 - 90% |
| Weight & dimensions |
|---|
| Weight |
7.5 kg |
| Width |
380 mm |
| Depth |
430 mm |
| Height |
44 mm |
| Packaging data |
|---|
| Package weight |
11.7 kg |
