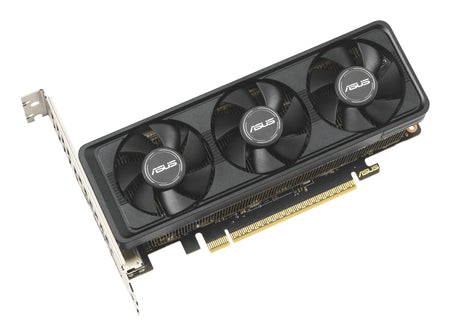

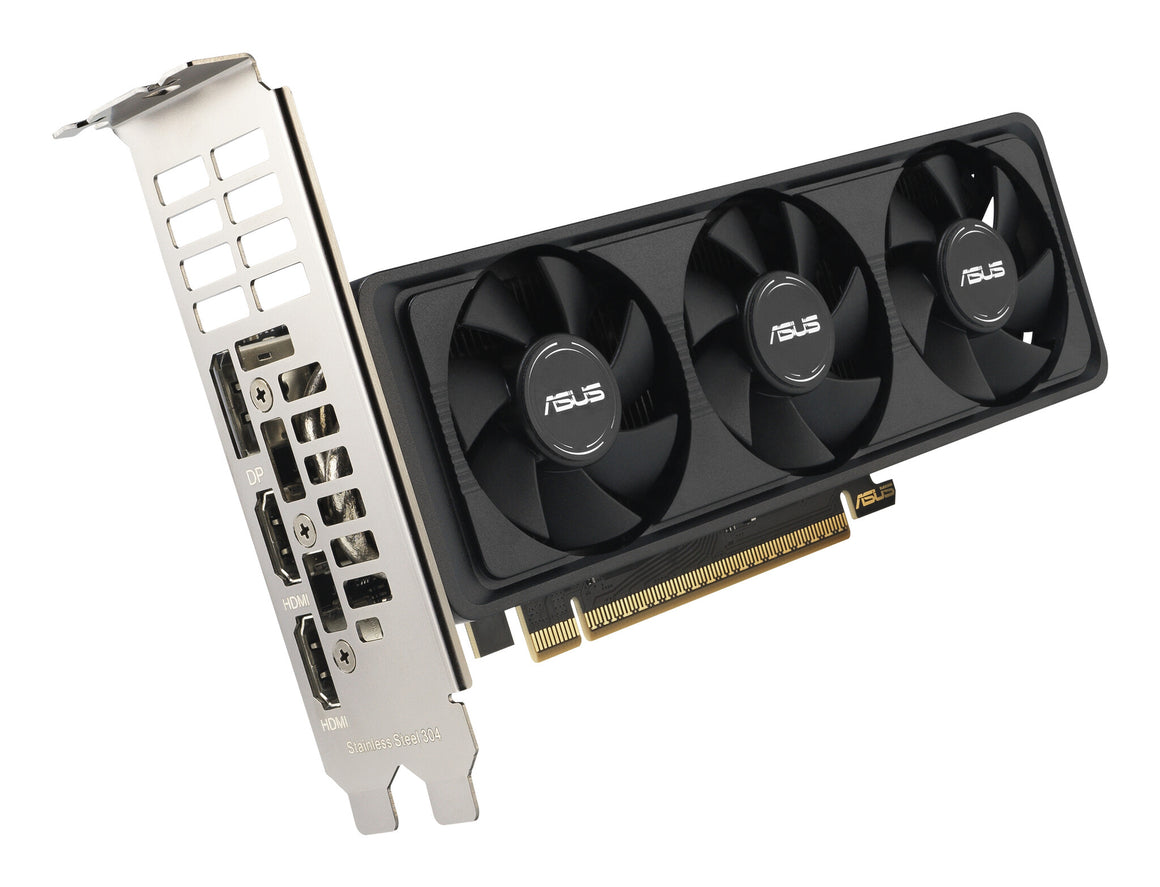

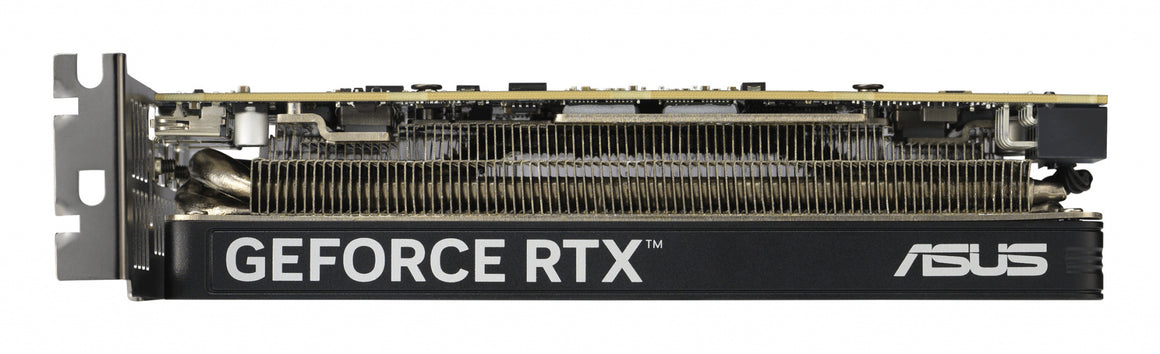

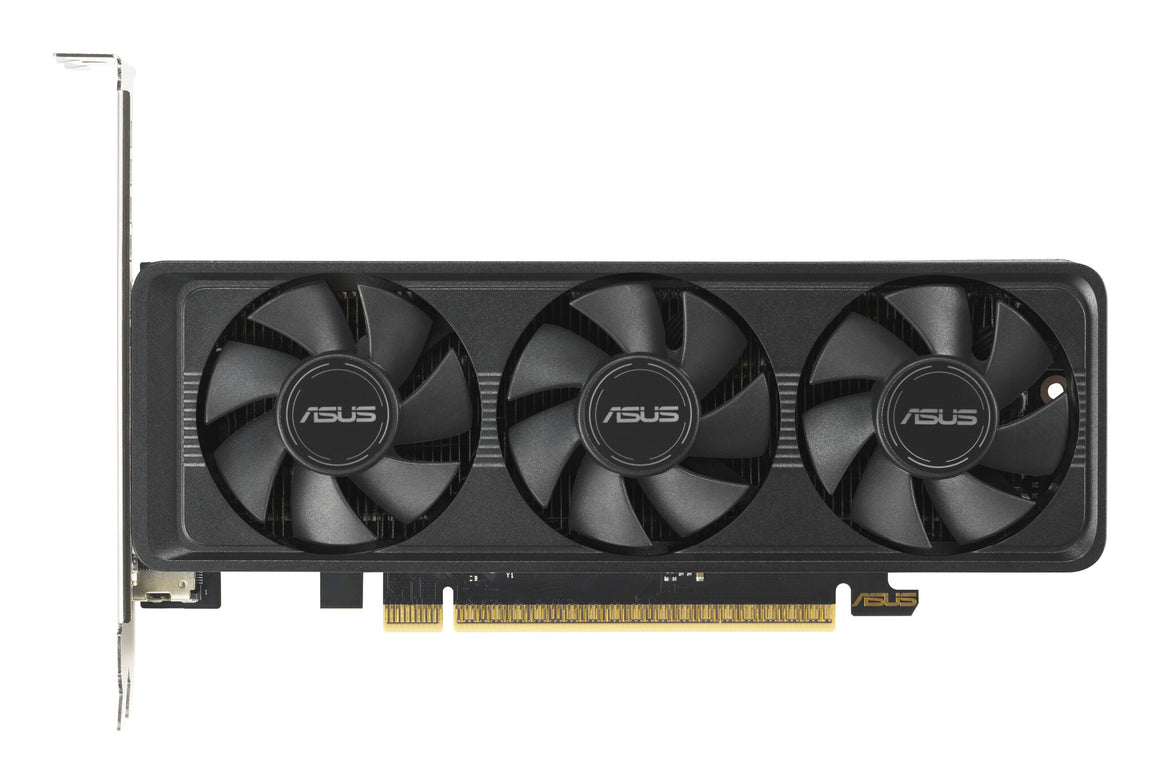

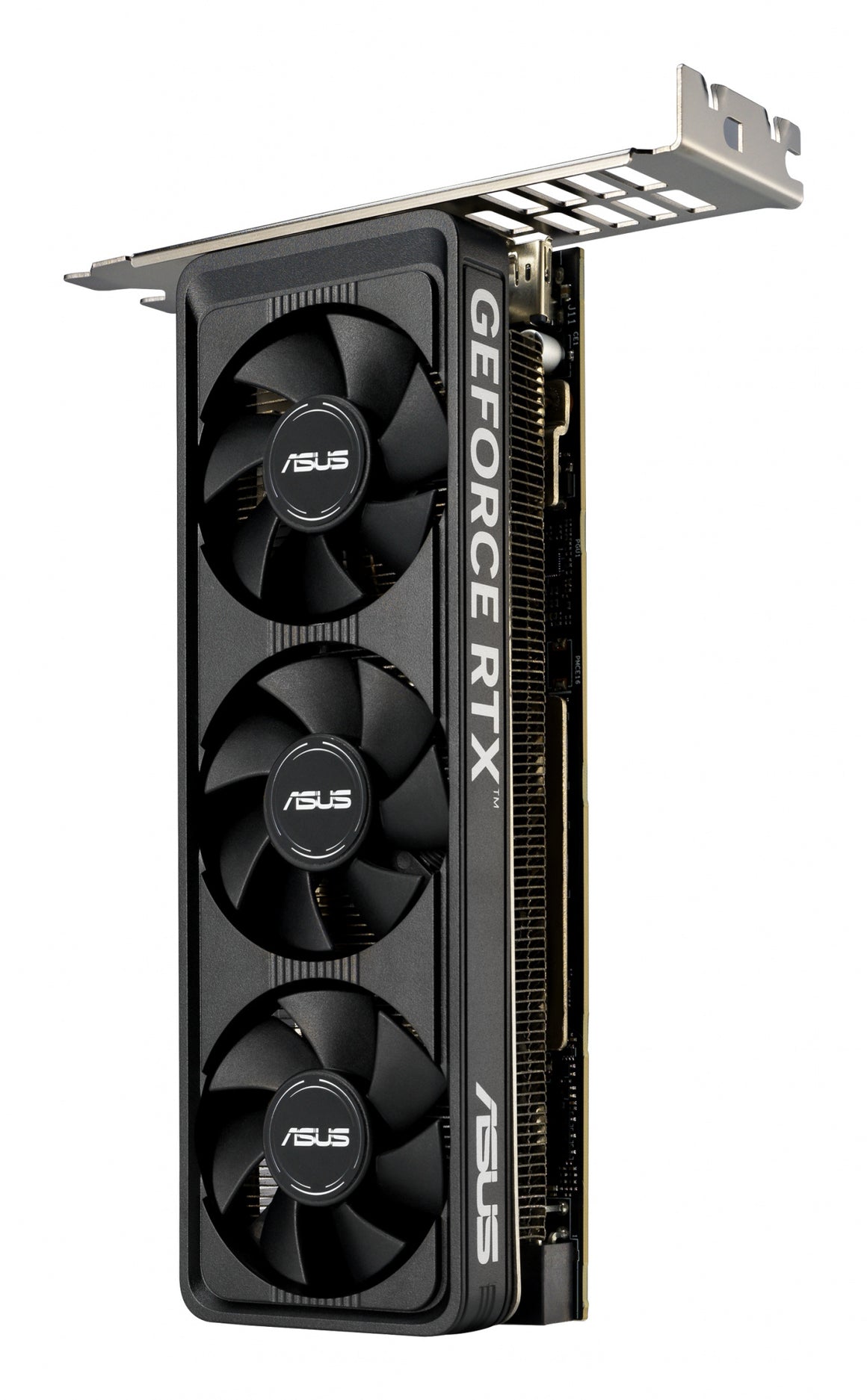

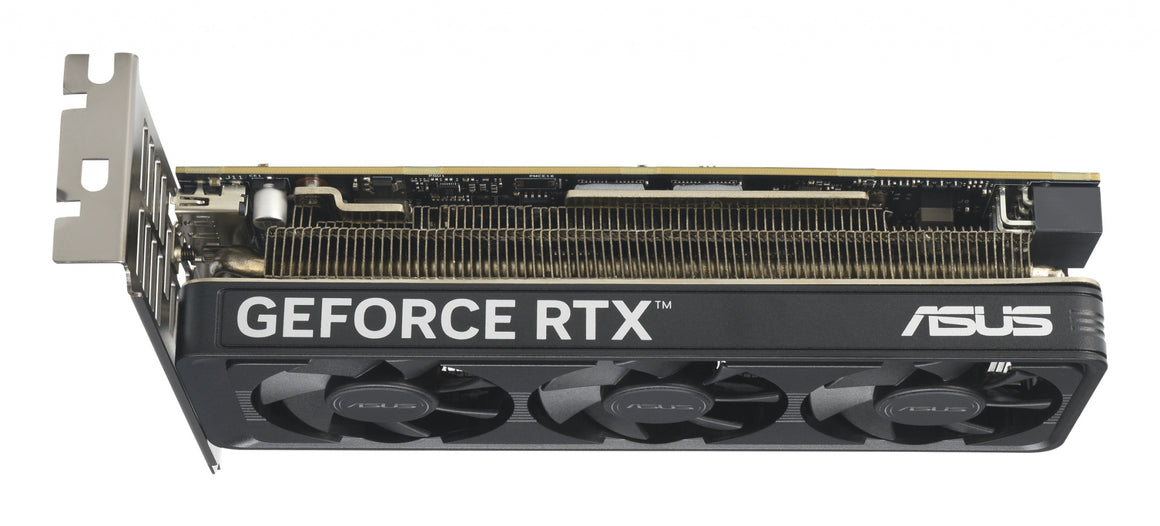

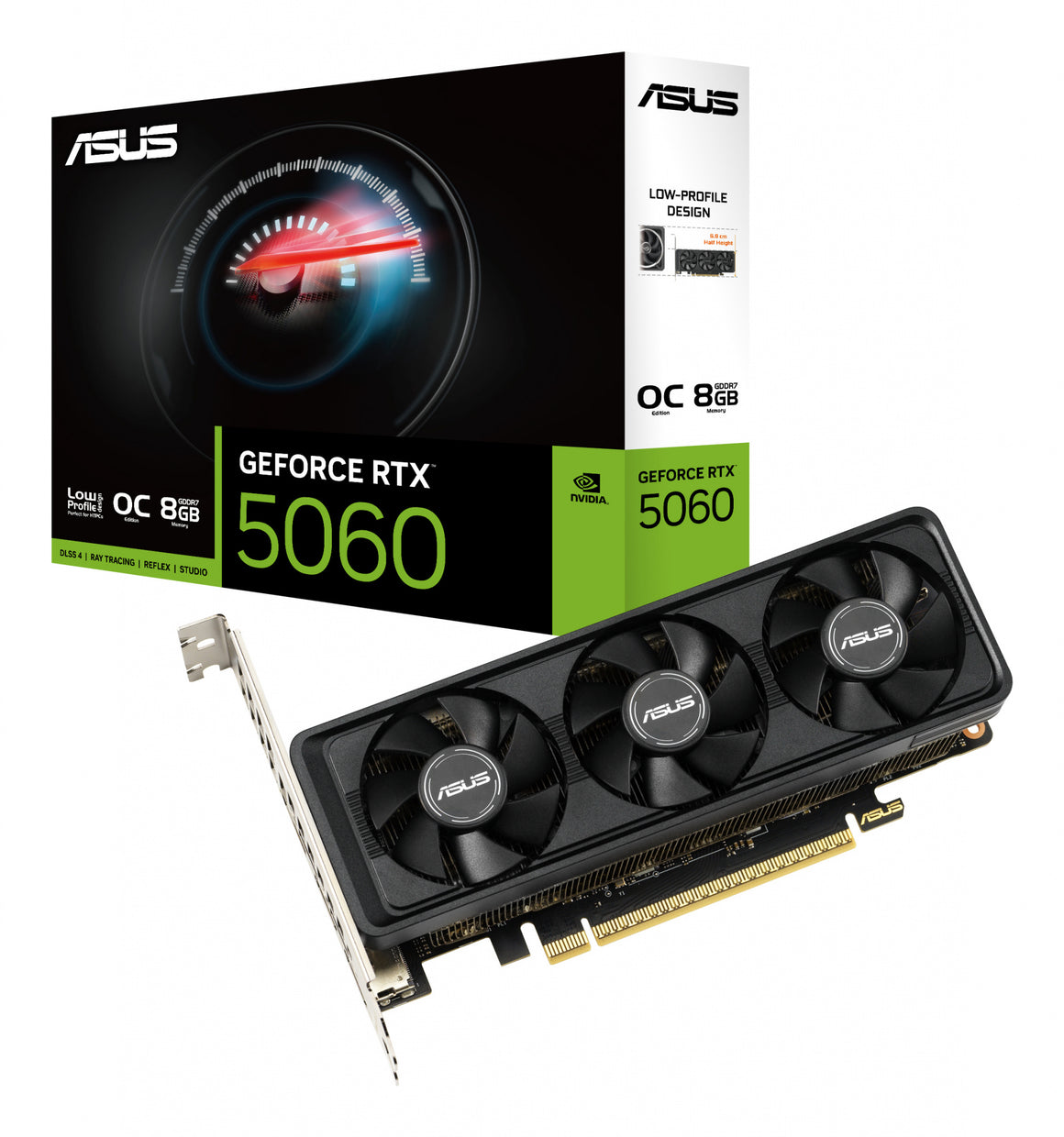

The ASUS GeForce RTX™ 5060 LP BRK 8GB GDDR7 OC Edition is big productivity in a small package
Big Productivity in a Small Package

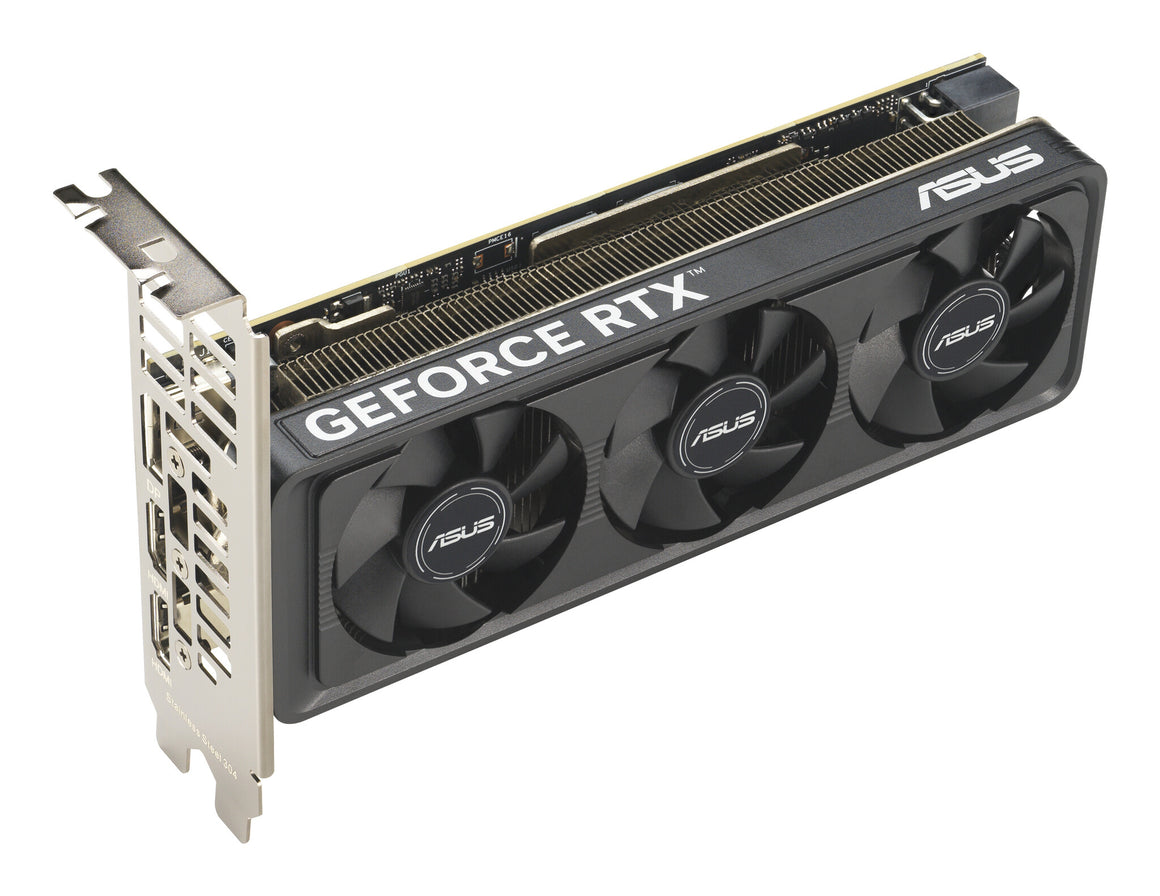

ASUS GeForce RTX™ 5060 LP BRK is a low-profile, compact graphics card that enables multi-monitor productivity.
| Processor |
|---|
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA |
Yes |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Data transfer rate |
28 Gbit/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR7 |
| Discrete graphics card memory |
8 GB |

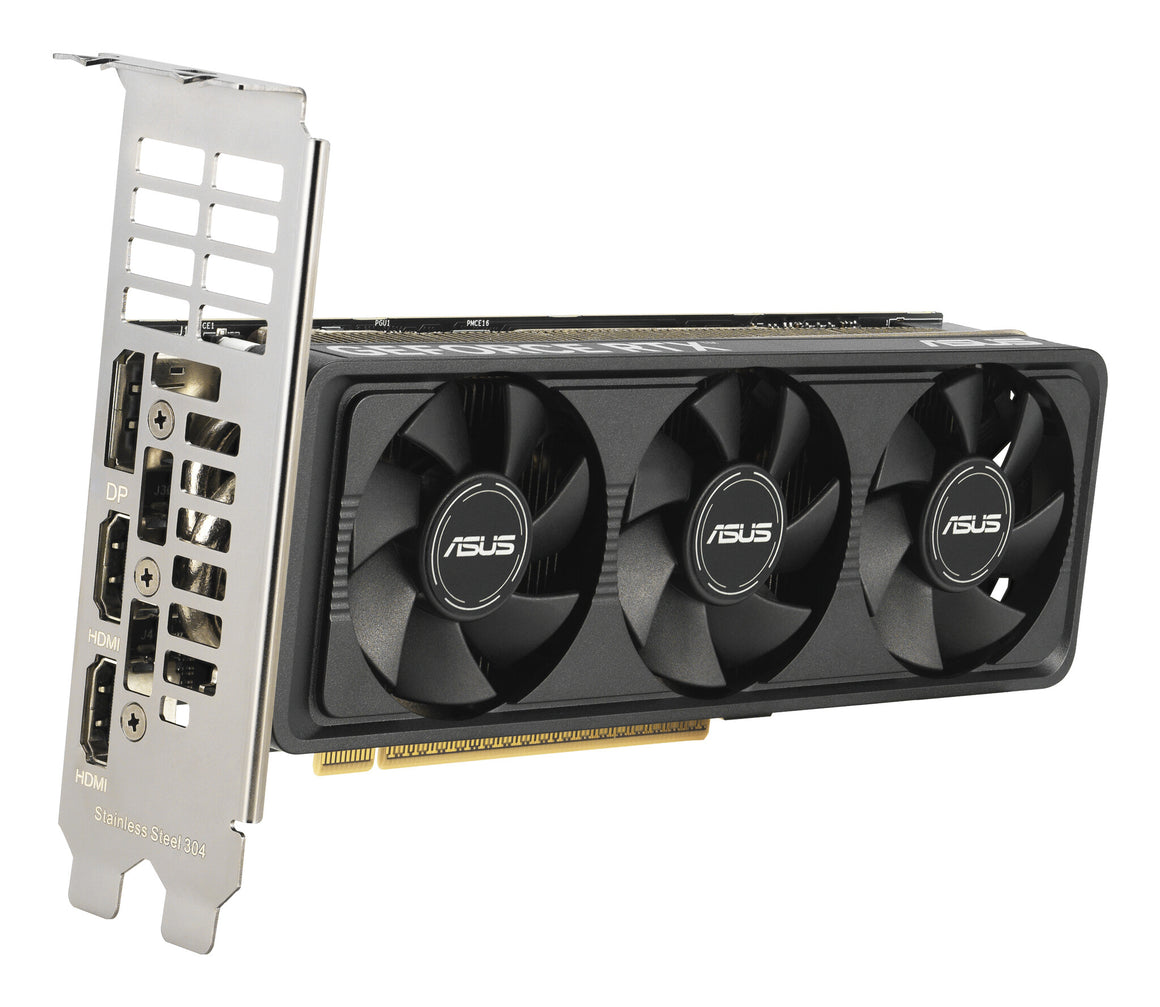

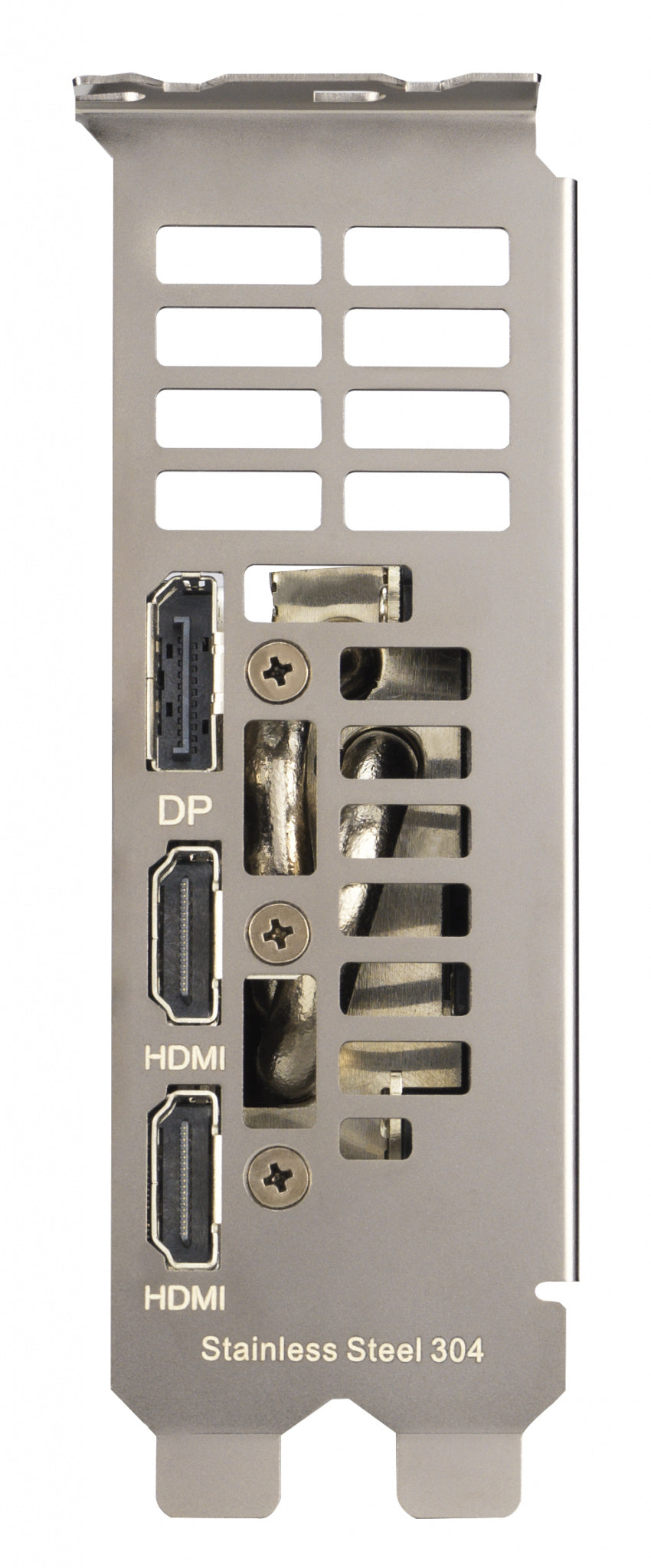

| Ports & interfaces |
|---|
| DisplayPort version |
2.1a |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
2 |
| Interface type |
PCI Express 5.0 |
| Performance |
|---|
| Overclocked (OC) edition |
Yes |
| NPU performance up to |
614 TOPs |
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| HDCP version |
2.3 |
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.6 |
| Design |
|---|
| Product colour |
Multicolour |
| Number of slots |
2 |
| Number of fans |
3 fan(s) |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
550 W |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Height |
69 mm |
| Depth |
38 mm |
| Length |
175.8 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package height |
218 mm |
| Package depth |
55 mm |
| Package width |
300 mm |
