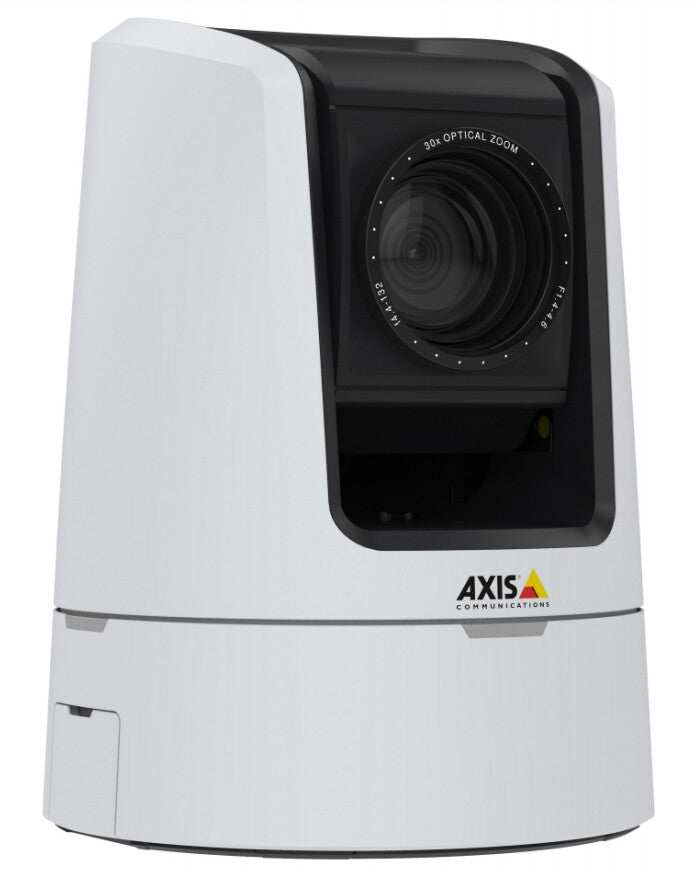

AXIS V5925 combines excellent image quality with smooth PTZ control and broadcast-quality audio for professional webcasting. It’s compatible with VISCA joysticks and VISCA over IP, making it easy to integrate with your existing AV installations. Offering enhanced security features such as signed firmware and secure boot, it ensures the integrity and authenticity of the firmware. Furthermore, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. NDI® compliant (license to be bought separately).
| Performance |
|---|
| Certification |
55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A , KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, KC-Mark, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267 |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Preset points |
Yes |
| Auto-tracking |
Yes |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor |
| Type |
IP security camera |
| Design |
|---|
| Fog proof |
Yes |
| Housing material |
Plastic |
| Product colour |
Black, White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
|---|
| Camera shutter speed |
1/10000 - 1 s |
| Pan speed |
100 °/sec |
| Pan range |
-170 - 170° |
| Tilt speed |
90 °/sec |
| Tilt angle range |
-20 - 90° |
| Lens viewing angle, vertical |
37° |
| Lens viewing angle, horizontal |
62° |
| Minimum illumination |
0.03 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
|---|
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
|---|
| Minimum aperture number |
1.4 |
| Maximum aperture number |
4.6 |
| Auto focus |
Yes |
| Focal length range |
4.4 - 132 mm |
| Digital zoom |
12x |
| Optical zoom |
30x |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Video |
|---|
| Text caption overlay |
Yes |
| Bit rate control |
Variable Bit Rate (VBR) |
| Image quality adjustment |
Brightness, Saturation, Sharpness |
| Video streaming |
Yes |
| Frame rate |
60 fps |
| Supported video modes |
1080p |
| Supported graphics resolutions |
160 x 90, 1920 x 1080 (HD 1080) |
| Video compression formats |
AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Maximum resolution |
1920 x 1080 pixels |
| Storage |
|---|
| Card reader integrated |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Video motion detection |
Yes |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Security algorithms |
802.1x RADIUS |
| Password protection |
Yes |
| Power |
|---|
| Power consumption (max) |
25 W |
| Power source type |
DC |
| Weight & dimensions |
|---|
| Height |
180 mm |
| Packaging content |
|---|
| Number of cameras |
1 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85258900 |
