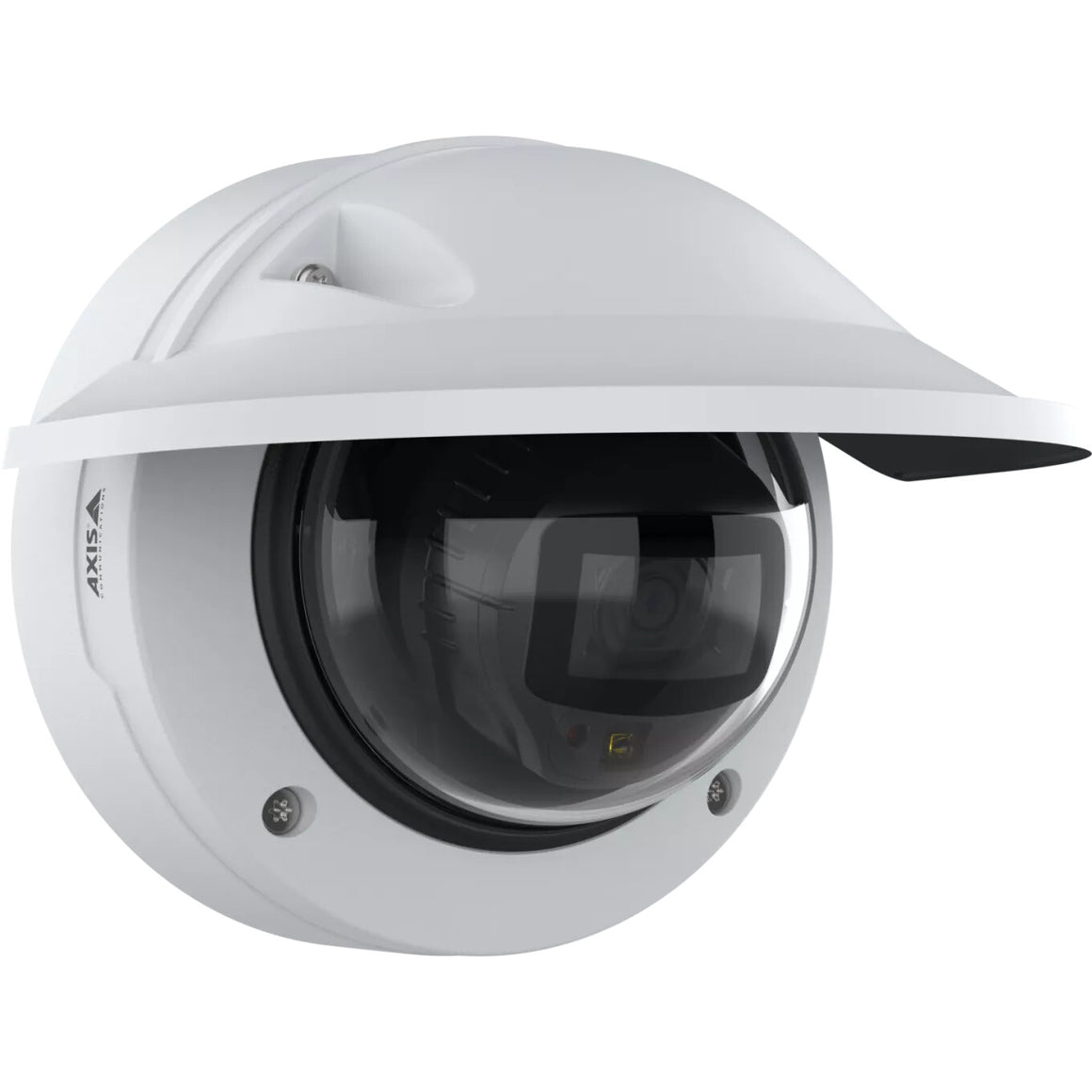

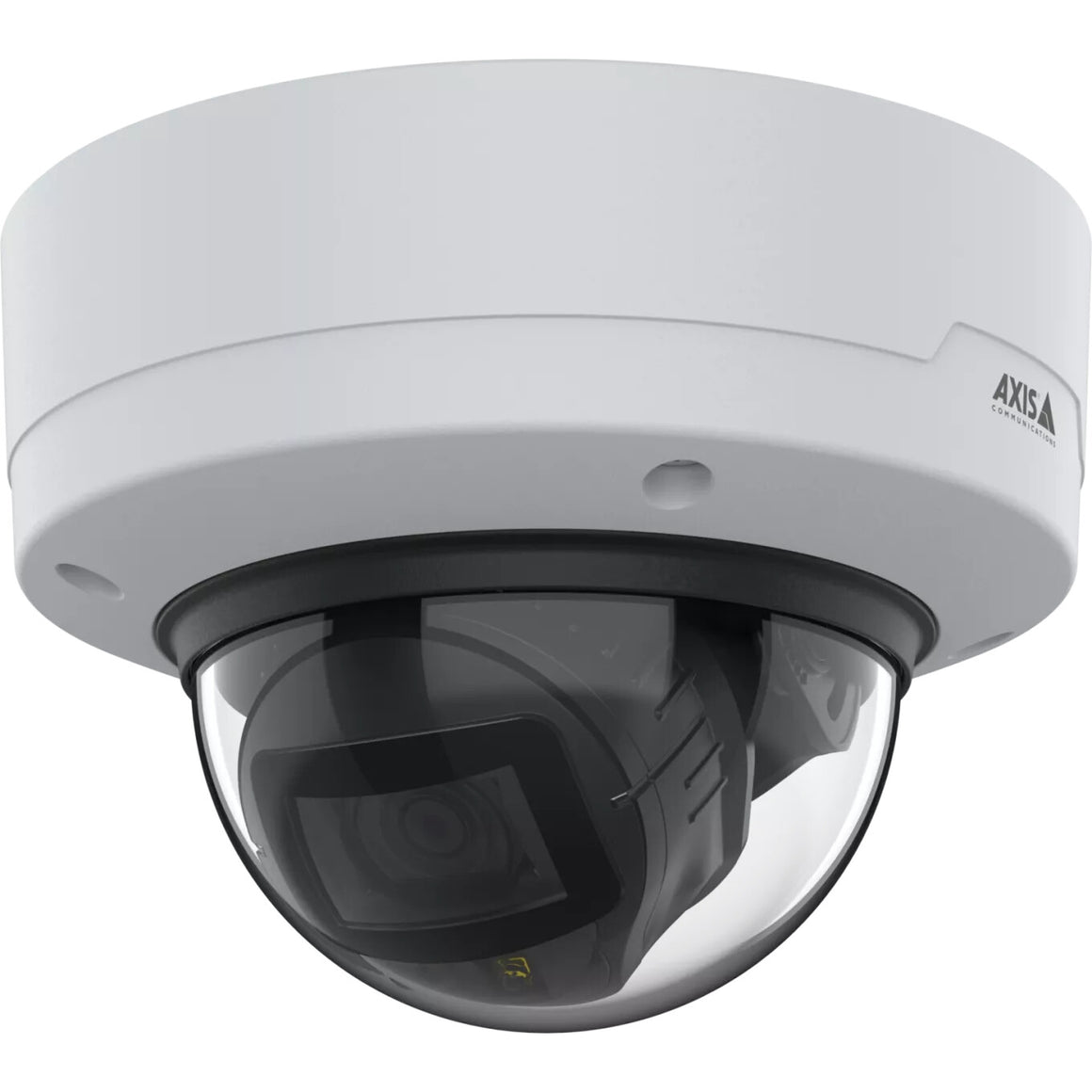

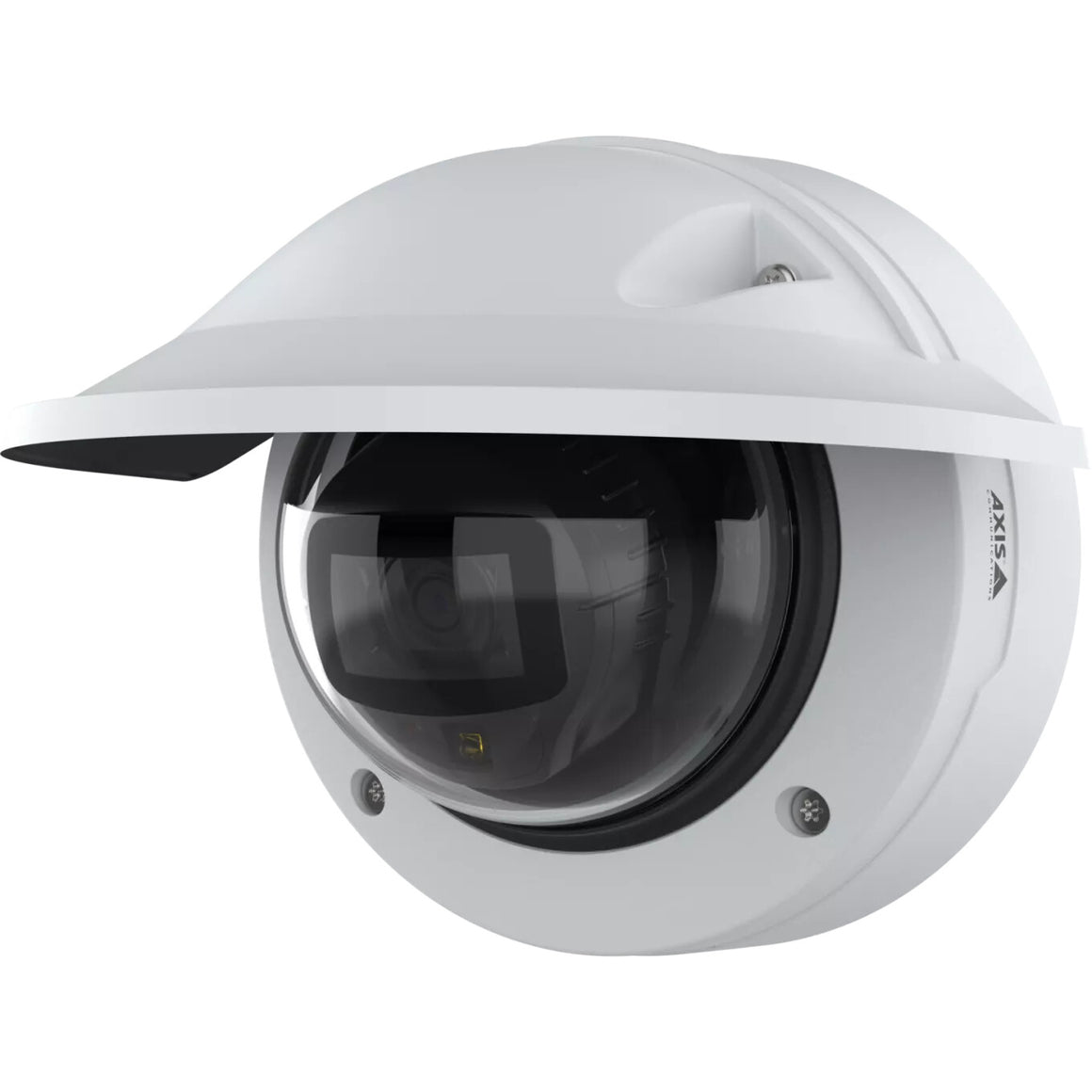

AXIS P3278-LVE Dome Camera
Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 8 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
Excellent image quality
AXIS P3278-LVE offers excellent image quality and forensic details in 8 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera includes a built-in audio jack so it’s possible to connect a microphone for audio support.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.
Robust with strong security
This robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It features a built-in weathershield and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F). And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.
| Performance |
|---|
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| People counting function |
Yes |
| Tour recording |
Yes |
| Auto-tracking |
Yes |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
|---|
| Fog proof |
Yes |
| Weatherproof |
Yes |
| IK code |
IK10 |
| International Protection (IP) code |
IP66 |
| Protection features |
Impact resistant, Vandal proof |
| Housing material |
Plastic, Polycarbonate (PC) |
| LED indicators |
Yes |
| Product colour |
Black, White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
|---|
| Camera shutter speed |
1/66500 - 2 s |
| Pan range |
-190 - 190° |
| Tilt angle range |
-50 - 80° |
| Lens viewing angle, vertical |
56° |
| Lens viewing angle, horizontal |
103° |
| Angle of rotation |
190° |
| Minimum illumination |
0.03 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Panoramic camera |
|---|
| Signal-to-Noise Ratio (SNR) (panoramic camera) |
55 dB |
| Image sensor |
|---|
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
|---|
| Detect distance (wide) |
88 m |
| Detect distance (tele) |
292 m |
| Observe distance (wide) |
35 m |
| Observe distance (tele) |
116 m |
| Recognize distance (wide) |
18 m |
| Recognize distance (tele) |
58 m |
| Identify distance (wide) |
9 m |
| Identify distance (tele) |
29 m |
| Closest focusing distance |
1 m |
| Minimum aperture number |
1.65 |
| Maximum aperture number |
3.65 |
| Auto focus |
Yes |
| Focal length range |
4.4 - 14.6 mm |
| Lens diameter |
1 cm |
| Number of lenses |
1 |
| Night vision |
|---|
| Infra-red wavelength |
850 nm |
| LED type |
IR |
| Night vision distance |
40 m |
| Night vision |
Yes |
| Video |
|---|
| Text caption overlay |
Yes |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Flip & mirror |
Yes |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Gain control type |
Auto |
| Noise reduction technology |
2D noise reduction, 3D noise reduction |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Supported graphics resolutions |
2560 x 1600 (WQXGA), 2592 x 1944, 3840 x 2160 |
| Video formats supported |
AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Total megapixels |
8 MP |
| Maximum resolution |
3840 x 2160 pixels |
| Security |
|---|
| Security algorithms |
256-bit AES-XTS, EAP-TLS, MSCHAPv2, PEAP |
| Privacy protection |
Yes |
| Human and vehicle targets classification |
Yes |
| Power |
|---|
| Power consumption (max) |
12.9 W |
| Power source type |
PoE |
| Weight & dimensions |
|---|
| Height |
107 mm |
| Sustainability |
|---|
| Compliance certificates |
CE, EAC, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ICES, KC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL |
| Packaging content |
|---|
| Number of cameras |
1 |
| Other features |
|---|
| Doesn't contain |
BFR, PVC |
