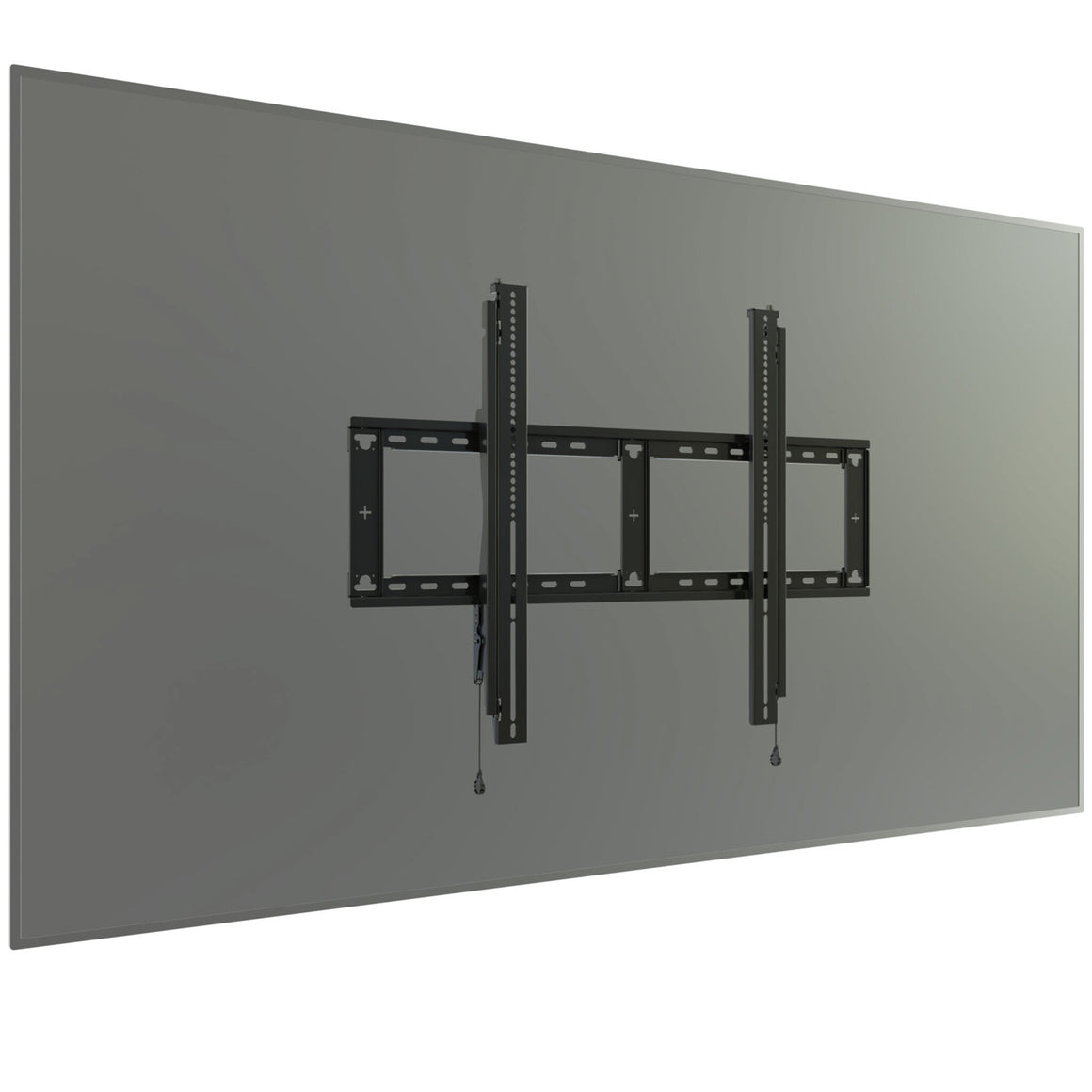

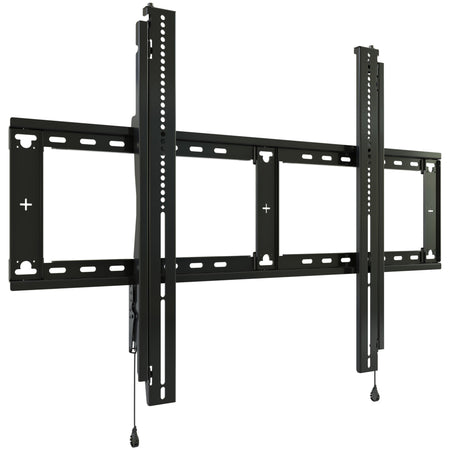

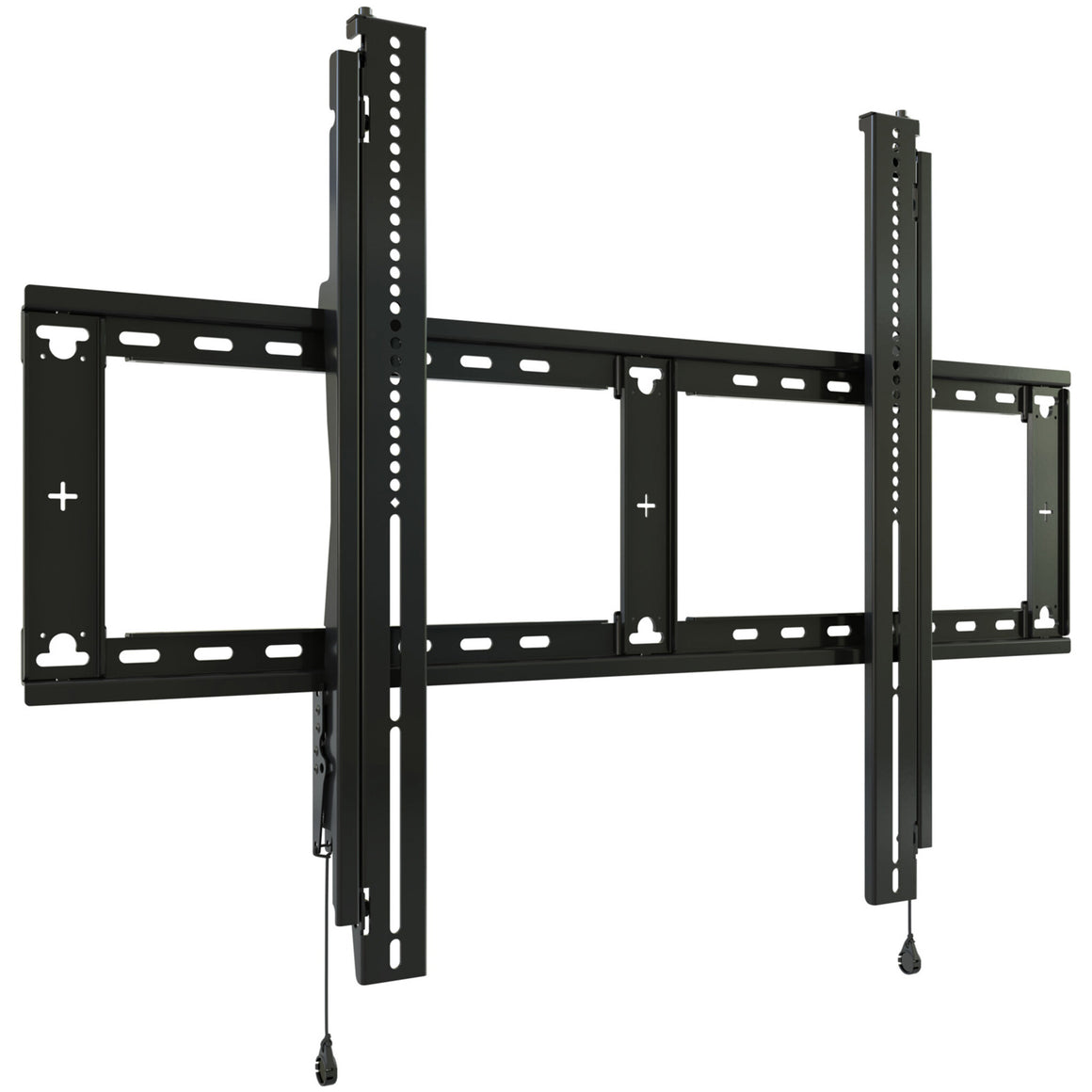

The Fit series RXF3 is an extra-large fixed display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 960 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 1.5” (38 mm) low-profile depth, and UL and TUV safety standard approvals.
| Mounting |
|---|
| Number of displays supported |
1 |
| Maximum VESA mount |
960 x 650 mm |
| Mounting type |
Wall |
| Maximum screen size |
2.49 m (98") |
| Minimum screen size |
124.5 cm (49") |
| Maximum weight capacity |
113.4 kg |
| Ergonomics |
|---|
| Height adjustment type |
Manual |
| Height adjustment |
Yes |
| Design |
|---|
| Certification |
TUV, UL Listed |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Height |
687 mm |
| Depth (max) |
3.9 cm |
| Depth (min) |
3.8 cm |
| Width |
965 mm |
| Packaging data |
|---|
| Package weight |
7.9 kg |
| Quantity per pack |
1 pair(s) |
