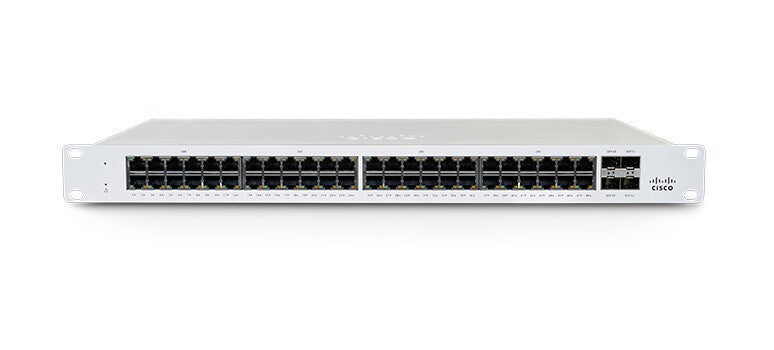

Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options
designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready
to support future wireless infrastructure deployments across a variety of different environments.
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Number of management ports |
1 pc(s) |
| SFP module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
|---|
| Virtual LAN features |
Voice VLAN |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1x, IEEE 802.3bt |
| Data transmission |
|---|
| Switching capacity |
104 Gbit/s |
| Security |
|---|
| Authentication type |
RADIUS |
| Security algorithms |
SNMP |
| Authentication |
MAC-based authentication |
| IGMP snooping |
Yes |
| DHCP features |
DHCP snooping |
| Multicast features |
|---|
| Multicast features |
Multicast traffic suppression |
| Multicast support |
Yes |
| Protocols |
|---|
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL) |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
White |
| Form factor |
1U |
| Rack mounting |
Yes |
| Performance |
|---|
| Mean time between failures (MTBF) |
309196 h |
| Firmware upgradeable |
Yes |
| Power |
|---|
| Power consumption (max) |
803 W |
| Input current |
12 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
740 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
3.69 kg |
| Height |
44 mm |
| Depth |
250 mm |
| Width |
440 mm |
| General |
|---|
| Product family |
Meraki |
