Postmodern Elegance
Postmodern Elegance

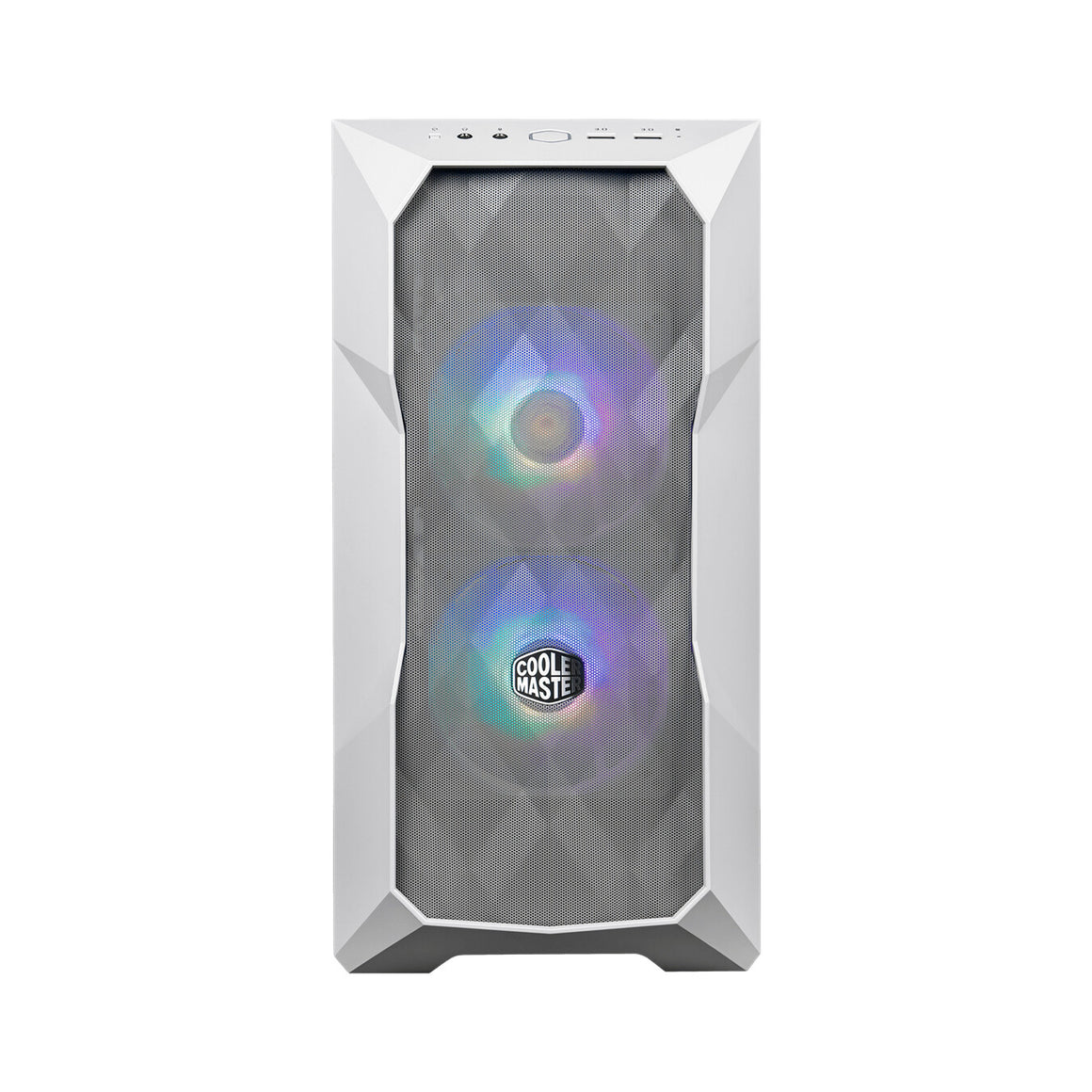

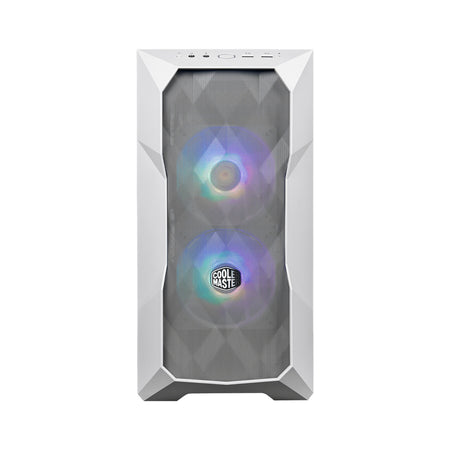

TD300 Mesh brings together modern presentation and performance with its three dimensional artistic mesh front panel. The polygonal diamond-cut facade emphasizes the illumination of two included SickleFlow PWM ARGB fans, cast various glowing effects, shifting based on the viewing angle.
Cooler Master’s FineMesh technology simultaneously provides high airflow, dust filtration, and strengthened structure for maximum performance and effortless cooling. With the exclusive removable top panel, adaptable drive cage, and ample cooling support, TD300mesh provides a canvas of unlimited possibilities.
Polygonal Mesh
Crafted with Cooler Master’s FineMesh technology, the polygonal mesh features a three-dimensional contour, capable of simultaneously providing high airflow and excellent dust filtration.
Sickleflow PWM ARGB Fans Included
Pre-installed with two highly acclaimed 120mm ARGB Sickleflow fans, managed by the included Hub to easily customize a comprehensive ARGB lighting system and minimize ARGB port usage on the motherboard.
ARGB/PWM Hub
The included HUB features 5 ARGB and 4 PWM ports and facilitates cable management in the system, allowing you to conveniently control fans with a single connector for power and PWM signal and another for ARGB signal.

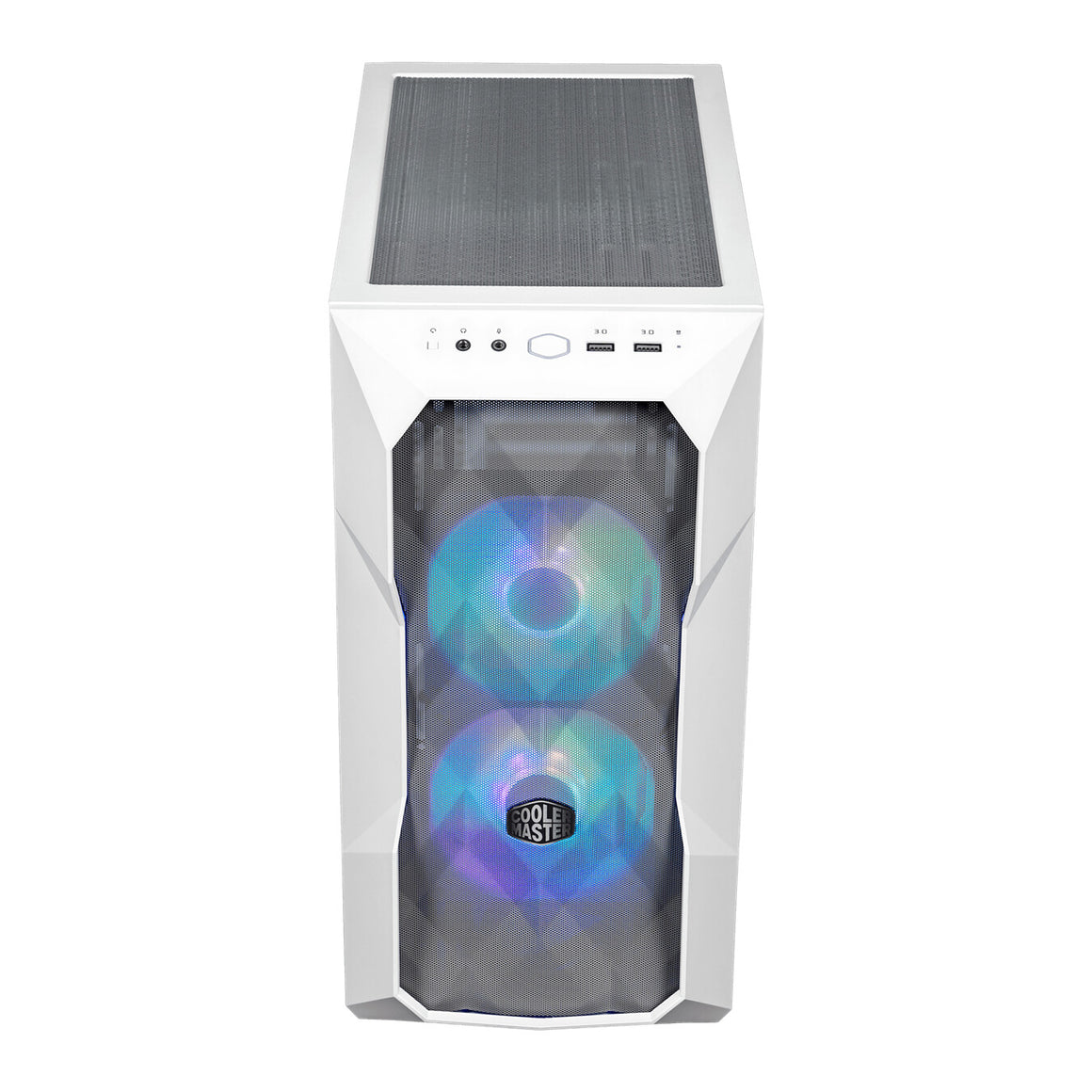

Removable Top Panel
The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

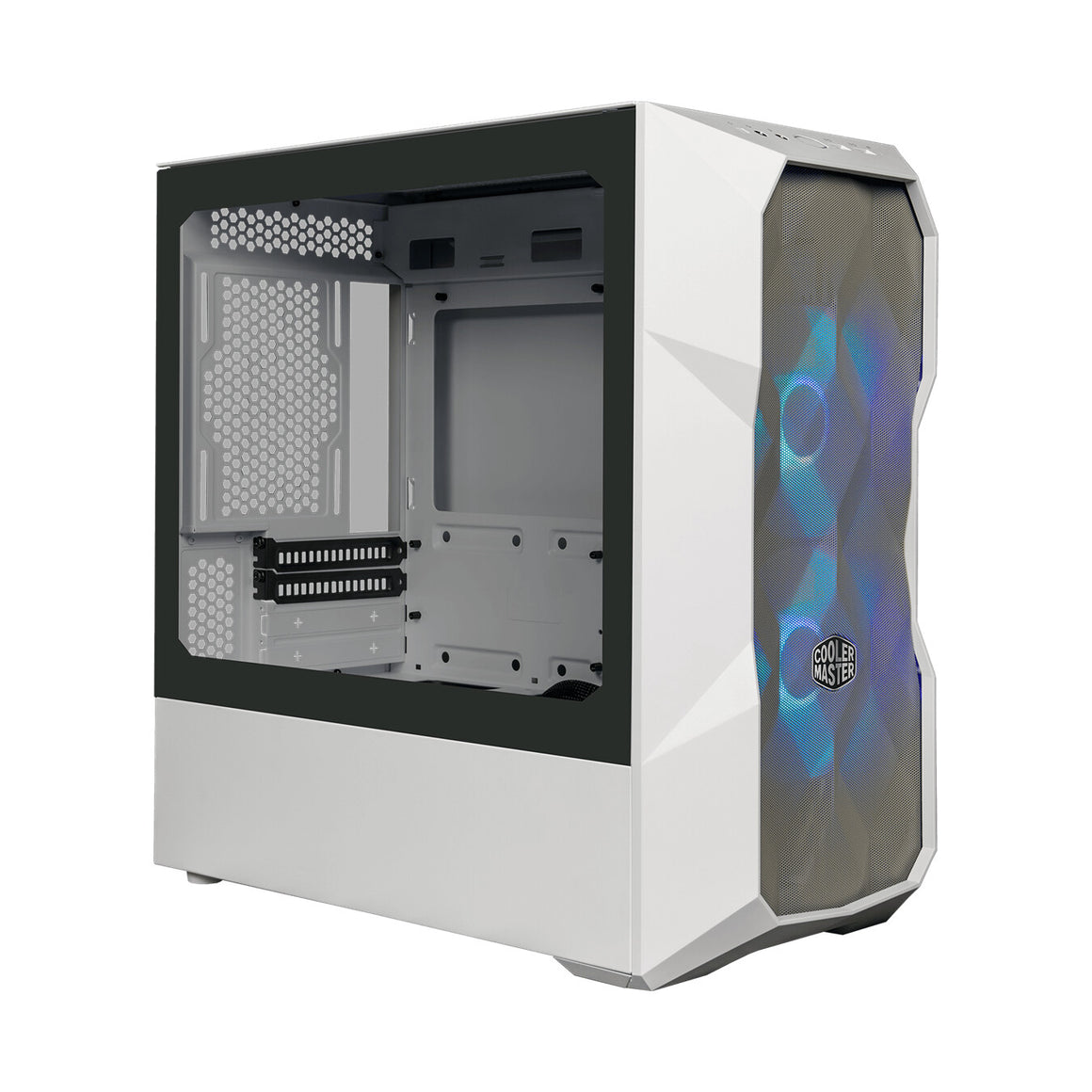

Tempered Glass Side Panel
Hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
Versatile Cooling Options
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Room For Upgrades
Support for up to a 344mm graphics card, a 166mm CPU cooler, and up to a 325mm PSU in length provides room for upgrades to stay ahead of the game.
Adaptable Drive Cage
The drive cage can be shifted towards the front to accommodate for PSU space, backwards to provide additional radiator space, or even completely removed.
| Design |
|---|
| Maximum PSU length |
32.5 cm |
| Maximum graphics card length |
34.4 cm |
| Maximum CPU cooler height |
16.6 cm |
| Anti-dust filter |
Yes |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Side window |
Yes |
| Number of expansion slots |
4 |
| Number of 2.5" bays |
4 |
| Number of 3.5" bays |
2 |
| Supported motherboard form factors |
micro ATX, Mini-ITX |
| Product colour |
White |
| Material |
Mesh, Plastic, Steel |
| Type |
PC |
| Form factor |
Mini Tower |
| Power supply |
|---|
| Supported power supply form factors |
ATX |
| Power supply location |
Bottom |
| Power supply included |
No |
| Ports & interfaces |
|---|
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Cooling |
|---|
| Top radiator sizes supported |
120,240,140,280 mm |
| Rear radiator sizes supported |
120 mm |
| Front radiator sizes supported |
120,240,140,280 mm |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
2x 120 mm |
| Storage |
|---|
| HDD/SSD combo cage |
Yes |
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
|---|
| Weight |
5.85 kg |
| Height |
210 mm |
| Depth |
366.5 mm |
| Width |
210 mm |
| Packaging data |
|---|
| Package weight |
7.1 kg |
| Package height |
493 mm |
| Package depth |
493 mm |
| Package width |
280 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Other features |
|---|
| Volume |
38.24 L |
