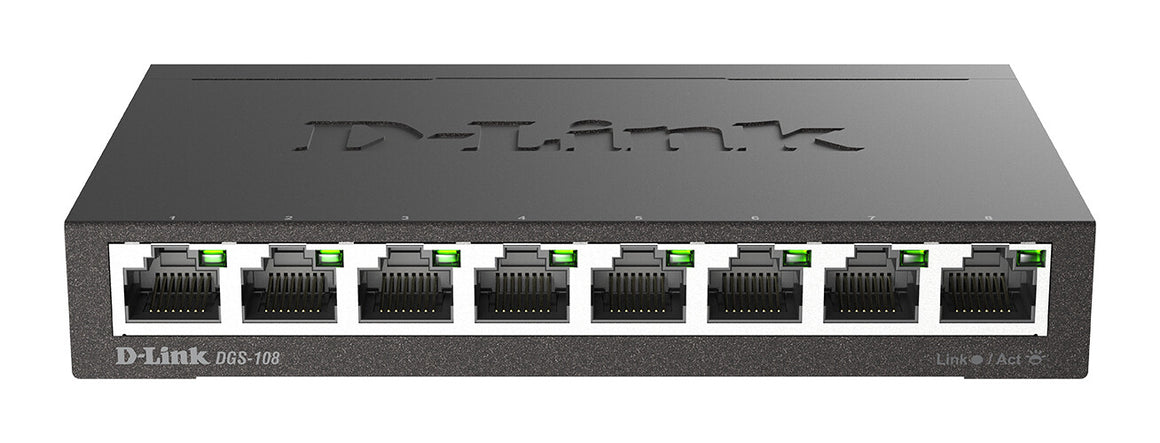

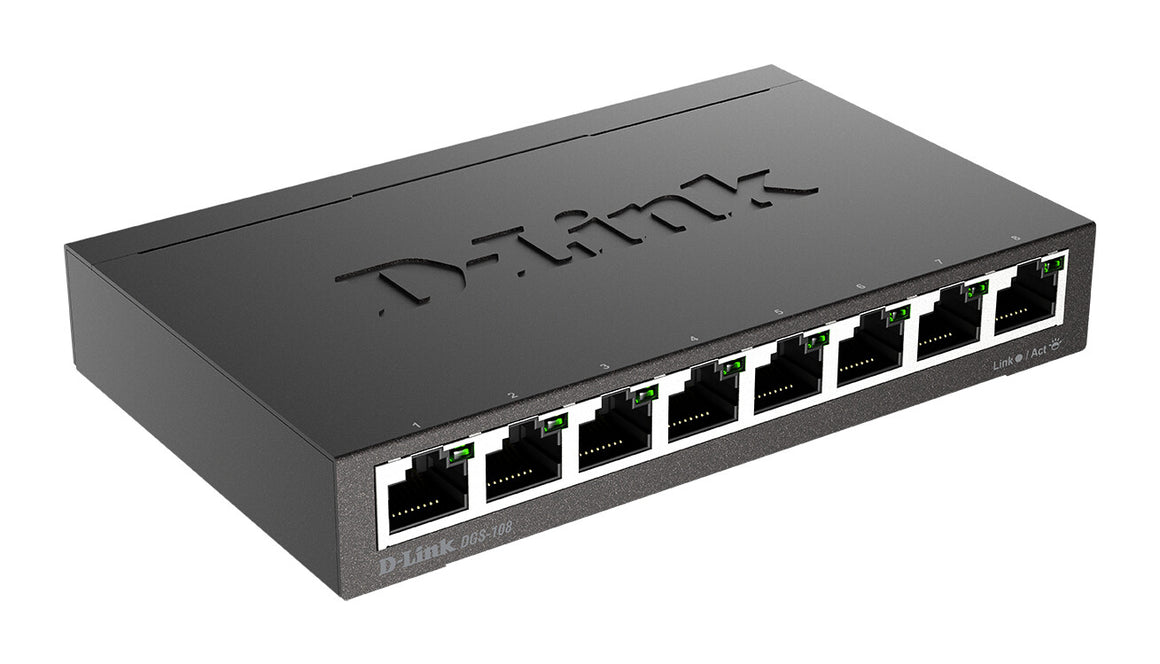

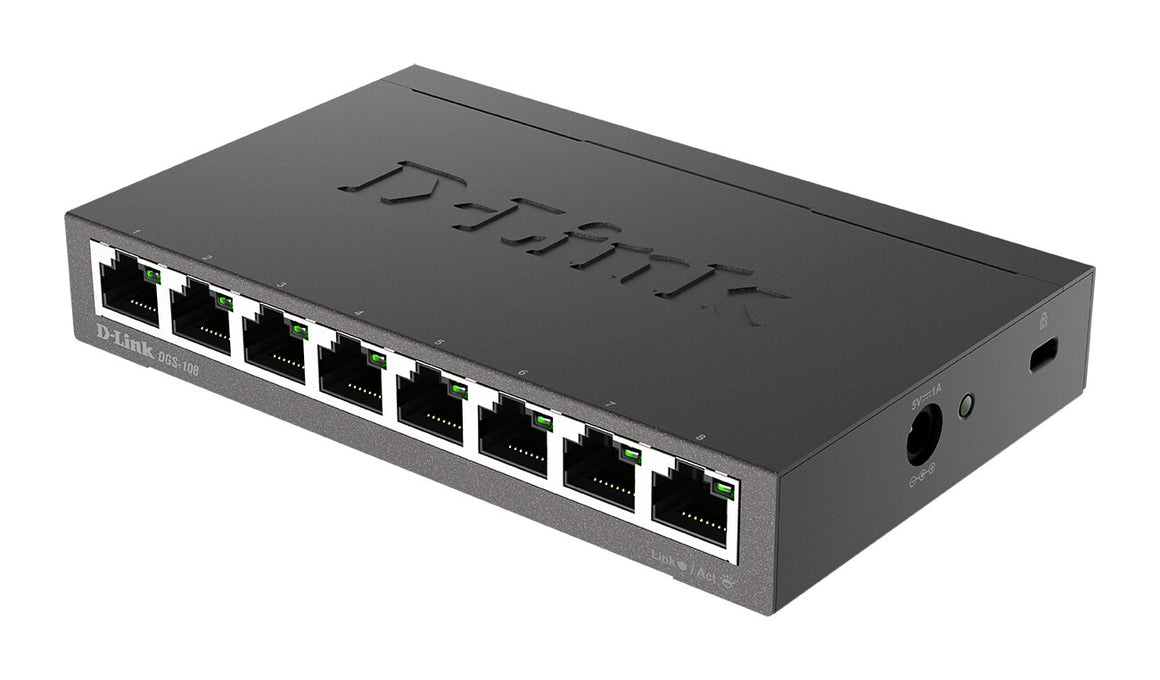

D-Link 8-Port Gigabit Unmanaged Desktop Switch

The DGS-1008D 8-Port Gigabit Desktop Switch is part of D-Link’s series of SOHO devices that allows you to easily expand and upgrade your network. D-Link’s Green Technology provides energy savings, reduces heat, and a longer product life without sacrificing performance or functionality. DGS-1008D provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. An energy-efficient power adapter (Energy Star Level V qualified), minimised use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.

Fast and Reliable Networking

The D-Link DGS-1008D 8-Port Gigabit Desktop Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to eight PCs or other devices. The DGS-1008D also features QoS, which prioritises network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. It’s stylish, easy-to-use, and comes IPv6-ready for a reliable network today and tomorrow.

Conserve Energy

The 8-Port Gigabit Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports. It also adjusts the amount of power supplied to a port according to the length of the connected Ethernet cable.

Environmentally-friendly

The 8-Port Gigabit Desktop Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimise the use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.

Switch type	Unmanaged
Switch layer	L2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Full duplex	Yes
Switching capacity	16 Gbit/s
MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Jumbo frames support	Yes
Rack mounting	No
Safety	CSA
Power consumption (typical)	4.5 W
Power over Ethernet (PoE)	No
Dimensions (WxDxH)	192 x 118 x 30 mm
Connectivity technology	Wired
I/O ports	8 x 10/100/1000BASE-T
Power requirements	7.5V 1A
Electromagnetic emissions	CE Mark, FCC Class B
Networking features	10BASE-T, 100BASE-TX & 1000BASE- T
Power LED	No
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Weight	300 g
Package width	104 mm
Package depth	158 mm
Package height	94 mm
Package weight	280 g
Shipping (inner) case height	19.3 cm
Shipping (inner) case width	23 cm
Shipping (inner) case length	49.8 cm
Shipping (inner) case net weight	1.9 kg
Products per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	350.2 kg
Master (outer) cases per pallet (air)	100 pc(s)
Products per pallet (air)	1000 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	2.06 m
Pallet gross weight (sea)	350.2 kg
Master (outer) cases per pallet (sea)	100 pc(s)
Products per pallet (sea)	1000 pc(s)
Pallet height (sea)	2.06 m
Shipping (inner) case gross weight	3.32 kg
Harmonized System (HS) code	85176990
