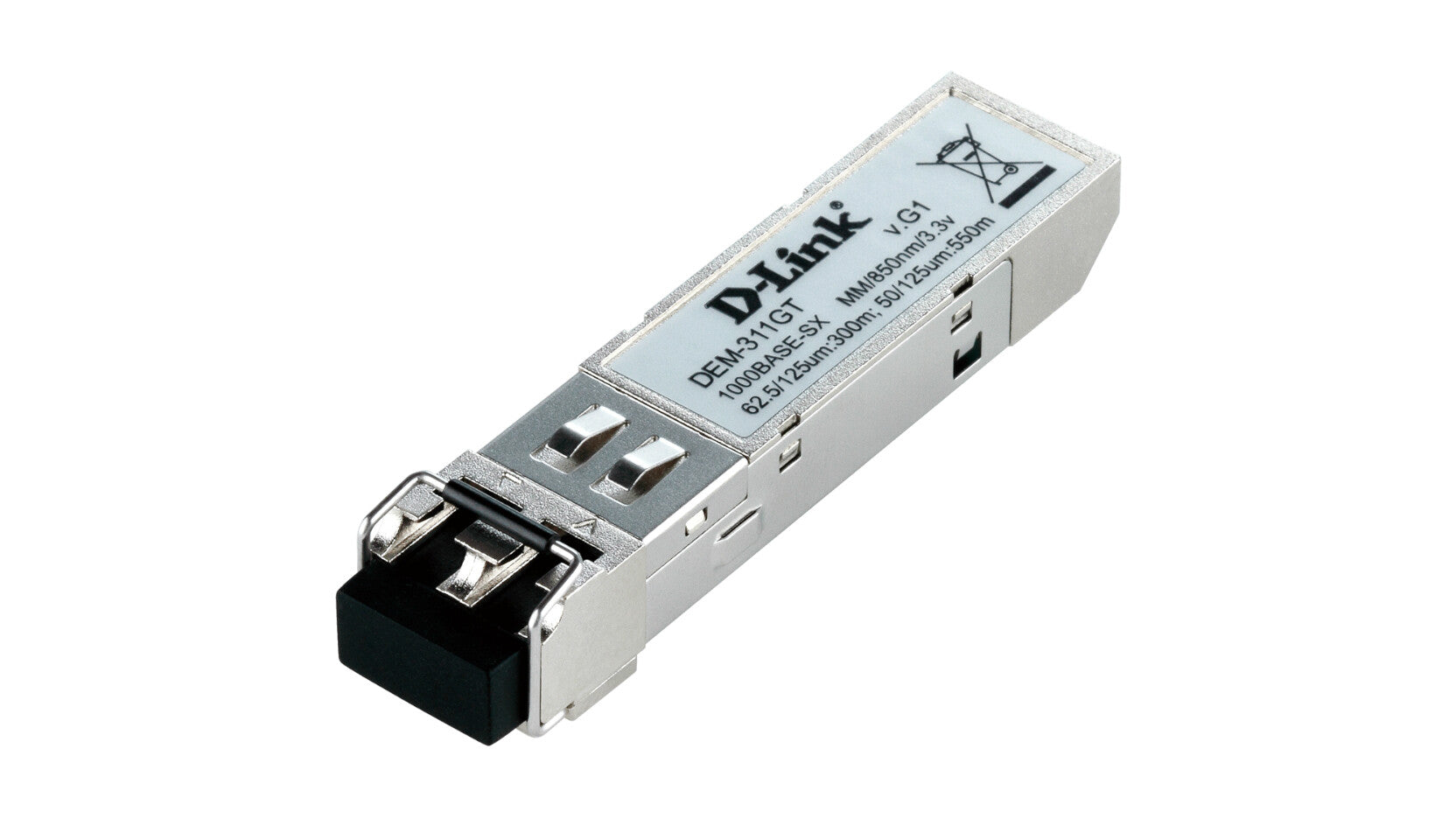

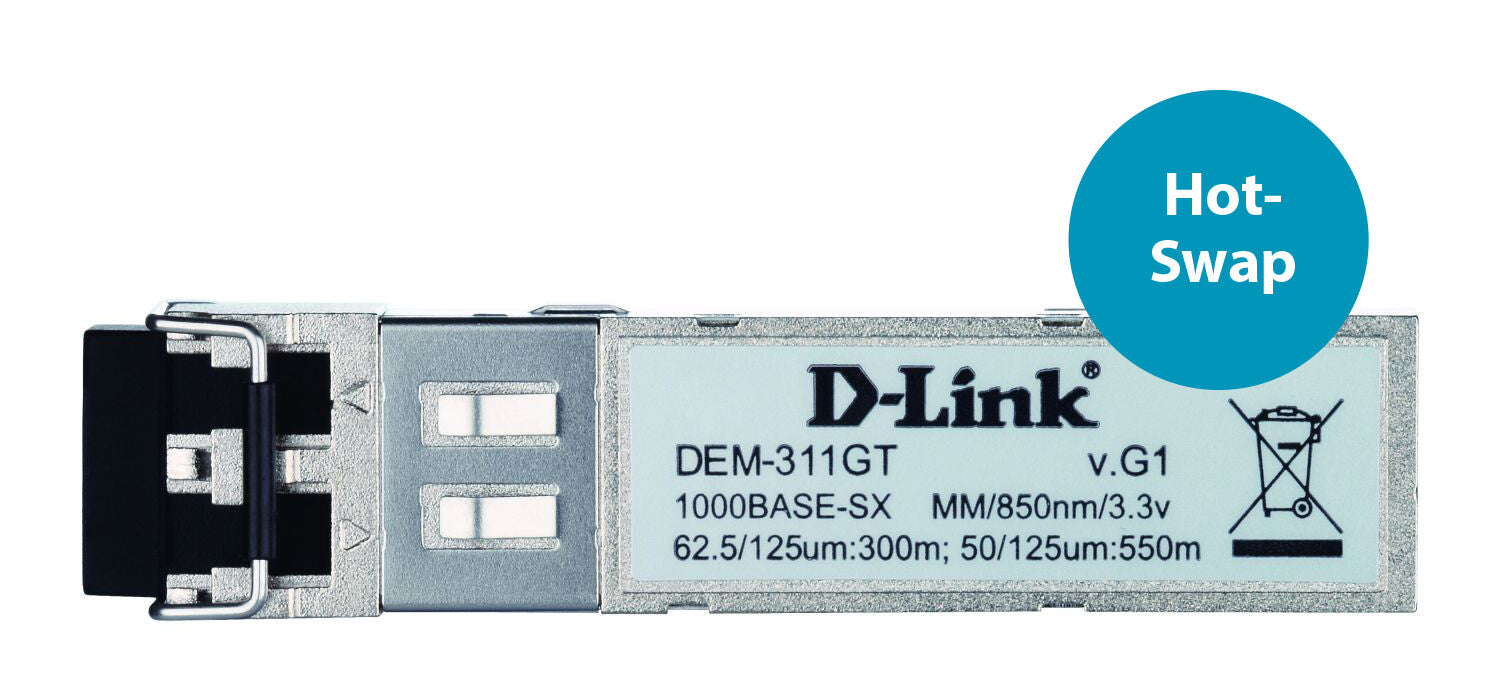

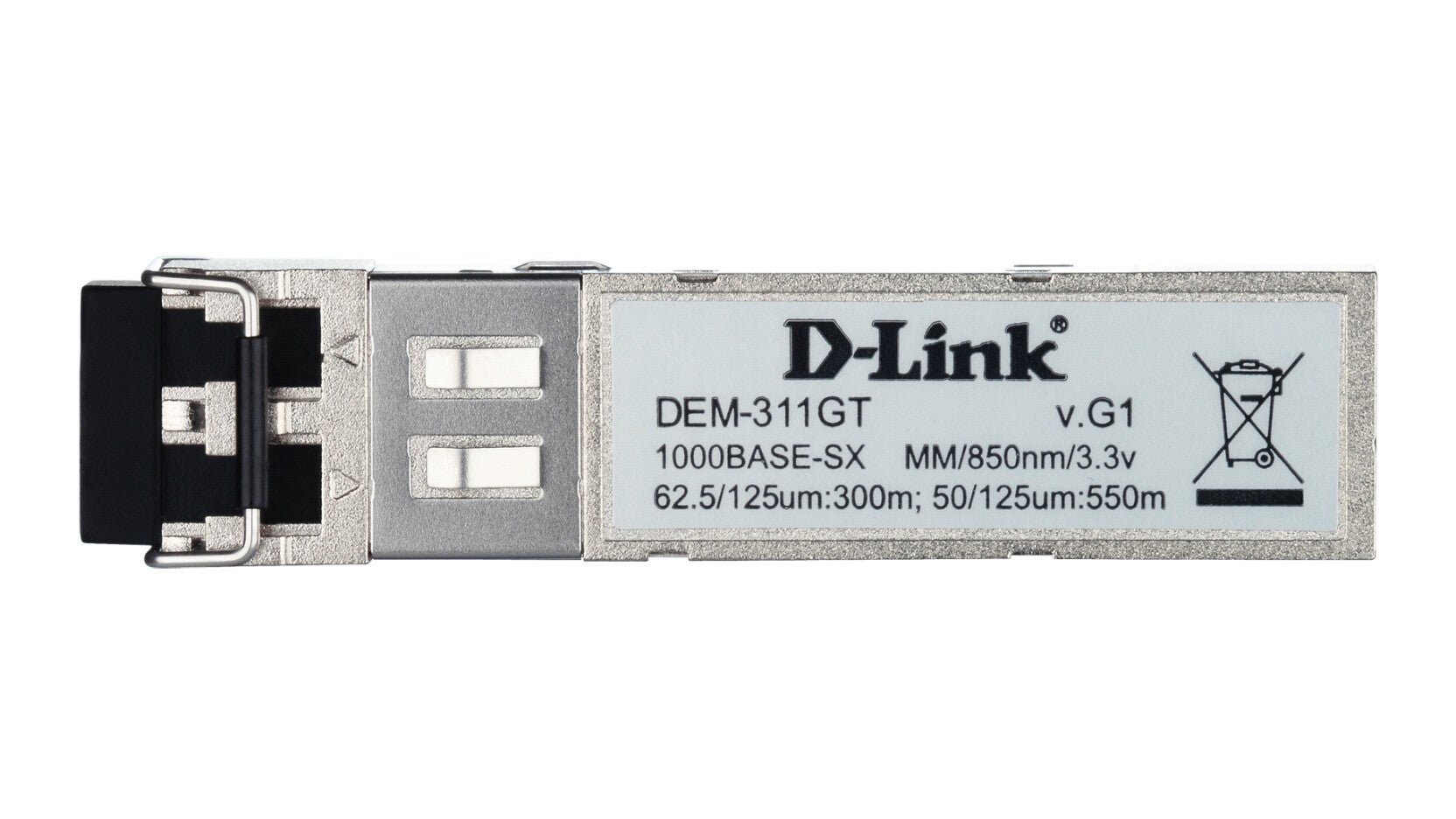

D-Link DEM-311GT network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm

SKU: DEM-311GT
Regular price £26.20 inc. VAT
  • SFP Fiber optic 1000 Mbit/s
  • Wavelength: 850 nm
  • Hot-Plug support
 More payment options

D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.

The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-311GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.

Performance
Duplex system Full
Networking standards IEEE 802.3x
Wavelength 850 nm
Maximum transfer distance 550 m
SFP transceiver standard SX
Fiber optic connector LC
Multi-mode fiber (MMF) supported Yes
Single-mode fiber (SMF) supported No
Interface type SFP
Maximum data transfer rate 1000 Mbit/s
SFP transceiver type Fiber optic
Features
Hot-Plug support Yes
Housing material Metal
Product colour Metallic
Power
Maximum voltage 6 V
Certificates
Certification MSA, RoHS
Operational conditions
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 8.5 mm
Depth 57.2 mm
Width 13.8 mm
Packaging data
Package weight 64 g
Package height 49 mm
Package depth 131 mm
Package width 74 mm
Logistics data
Harmonized System (HS) code 85369010
Shipping (inner) case length 36 cm
Shipping (inner) case width 26 cm
Shipping (inner) case height 31 cm
Shipping (inner) case net weight 3.2 kg
Products per shipping (inner) case 50 pc(s)
Pallet gross weight (air) 246.8 kg
Master (outer) cases per pallet (air) 54 pc(s)
Products per pallet (air) 2700 pc(s)
Pallet gross length 102 cm
Pallet gross width 122 cm
Pallet height (air) 199 cm
Pallet gross weight (sea) 246.8 kg
Master (outer) cases per pallet (sea) 54 pc(s)
Products per pallet (sea) 2700 pc(s)
Pallet height (sea) 199 cm
Shipping (inner) case gross weight 4.2 kg
