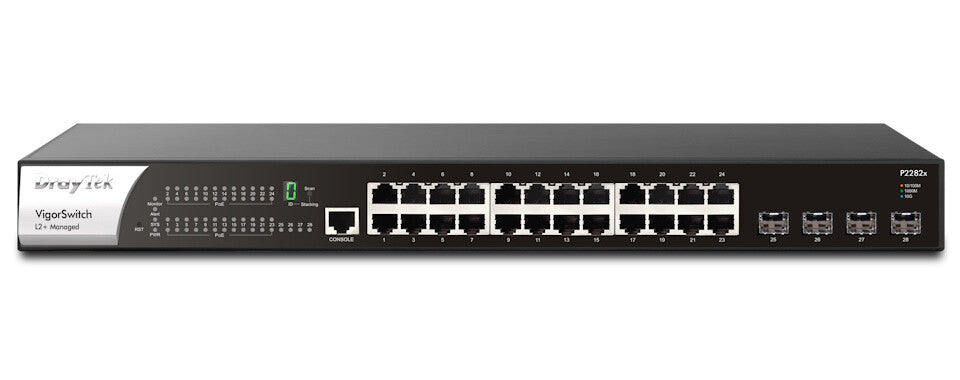

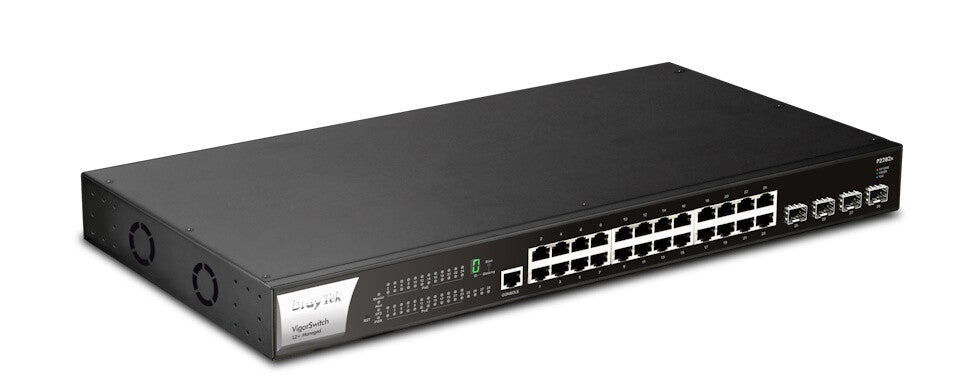

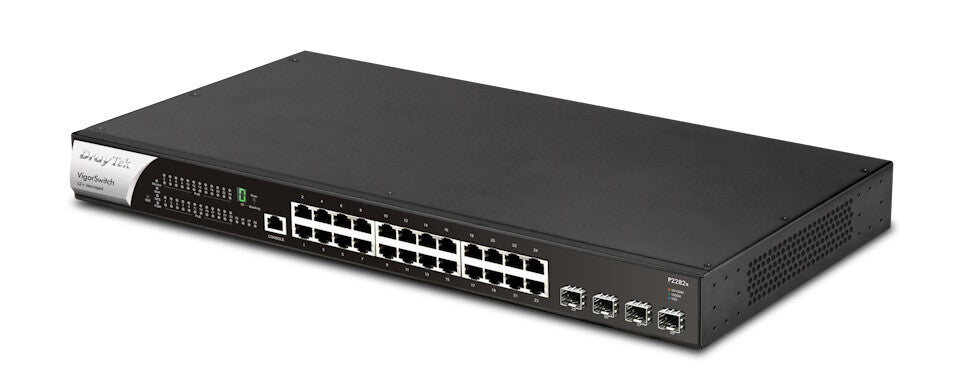

DrayTek VigorSwitch P2282x L2+ Managed 24-Port Gigabit PoE Switch with 4 x 10GbE SFP+ Ports and Power Backup Input

The VigorSwitch 2282x Series is a feature rich, high performance, L2+ managed Gigabit Ethernet switch with 24 1-Gigabit RJ-45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port.

Our cutting-edge networking switch with power redundancy options allows seamless operation and minimized downtime. This versatile switch comes equipped with both DC and AC power options, providing ultimate flexibility to cater to your unique power requirements.

The PoE VigorSwitch P2282x comes with 24 Power over Ethernet (PoE) ports, allowing you to easily power and connect multiple devices such as IP cameras, wireless access points, and VoIP phones.
With a total power output of 400 watts, it ensures stable and efficient power distribution, eliminating the need for additional power cables and adapters. The switch is also equipped with advanced management features, including VLAN support, QoS prioritization, and remote monitoring, making it ideal for use in small to medium-sized businesses and enterprise environments.

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Traffic classification	Yes
System event log	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Console port	RJ-45

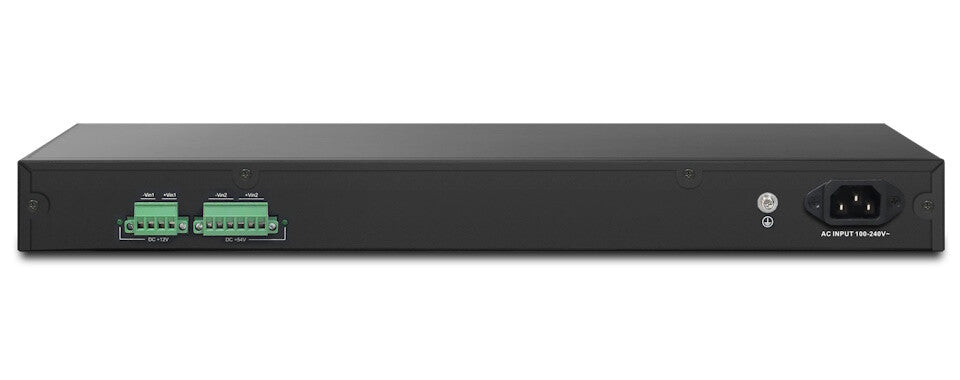

Power connector	AC/DC
10G support	Yes
Port mirroring	Yes
Full duplex	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Switching capacity	128 Gbit/s
Forwarding rate	95.2 Mpps
MAC address table	16000 entries
DHCP features	DHCP Option 66, DHCP Option 67, DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)	Yes
Access Control List (ACL) rules	512
IGMP snooping	Yes
Multicast support	Yes
Reset button	Yes
LED indicators	LAN
Market segment	Business
Firmware upgradeable	Yes
Power source	AC/DC
Power supply included	Yes
Redundant power supply (RPS) support	Yes
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	400 W
Warranty period	2 year(s)
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	440 mm
Depth	281 mm
Height	44 mm
Weight	4.26 kg
Quick start guide	Yes
Rack mount kit	Yes
Package type	Box
PSTI certified	Yes
