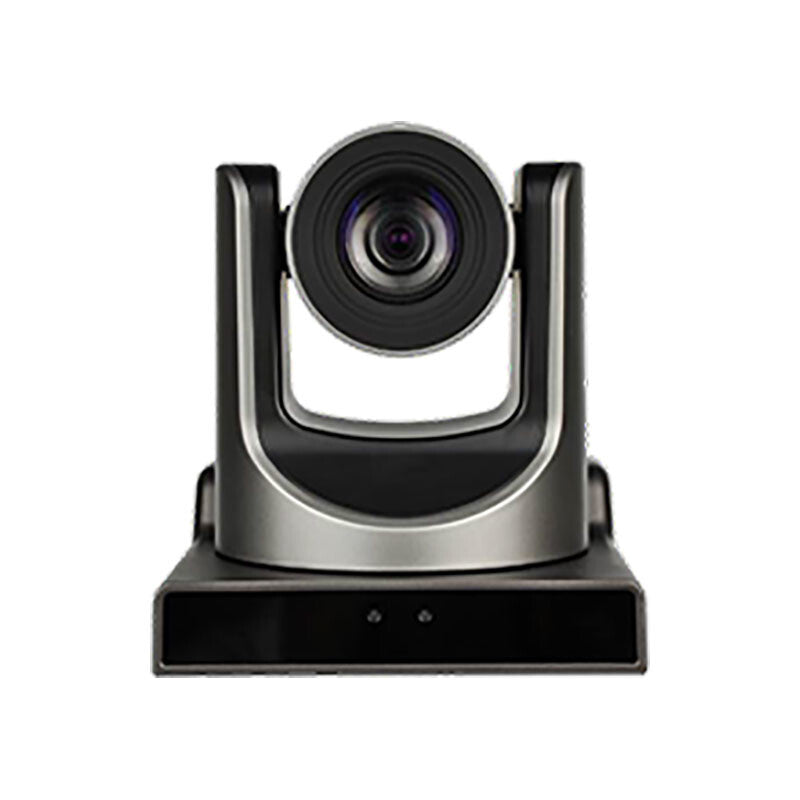

EDIS VX60L 8.42 MP Black, Silver 3840 x 2160 pixels 60 fps CMOS 25.4 / 1.8 mm (1 / 1.8")
Regular price
£832.61
inc. VAT
- 8.42 MP CMOS 25.4 / 1.8 mm (1 / 1.8")
- 4K Ultra HD 3840 x 2160 pixels 60 fps
- Digital zoom: 16 Optical zoom: 20
- Signal-to-Noise Ratio (SNR): 55 dB
- Black, Silver
Couldn't load pickup availability
| Camera | |
|---|---|
| 3D NR (Noise Reduction) | Yes |
| Number of camera presets | 255 |
| White balance | Auto, Indoor, Manual, One push, Outdoor |
| Aperture range (F-F) | 1.58 - 3.95 |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Minimum illumination | 0.5 lx |
| Horizontal field of view | 60° |
| Focal length range | 6.7 - 125 mm |
| Digital zoom | 16x |
| Optical zoom | 20x |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Sensor type | CMOS |
| Megapixel (approx.) | 8.42 MP |
| Video | |
|---|---|
| Supported graphics resolutions | 320 x 240, 720 x 480, 720 x 576, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3860 x 2160 |
| Video formats supported | H.264, H.265, M-JPEG, YUY2 |
| Supported video modes | 720p, 1080p, 2160p |
| HD type | 4K Ultra HD |
| Maximum frame rate | 60 fps |
| Maximum video resolution | 3840 x 2160 pixels |
| Design | |
|---|---|
| Pan speed (max) | 100 °/sec |
| Pan speed (min) | 1.7 °/sec |
| Tilt speed (max) | 69.9 °/sec |
| Tilt speed (min) | 1.7 °/sec |
| Product colour | Black, Silver |
| Ports & interfaces | |
|---|---|
| Microphone in | Yes |
| 3G-SDI output | Yes |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| BNC output ports | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| Power | |
|---|---|
| DC input voltage | 12 V |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | -10 - 40 °C |
| Network | |
|---|---|
| Supported network protocols | NDI|HX, NDI|HX2, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP |
| Ethernet LAN data rates | 10,100 Mbit/s |
| System requirements | |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Audio | |
|---|---|
| Automatic gain control | Yes |
| Noise reduction | Yes |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
| Remote control included | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 1.35 kg |
| Height | 164 mm |
| Depth | 142 mm |
| Width | 165 mm |
