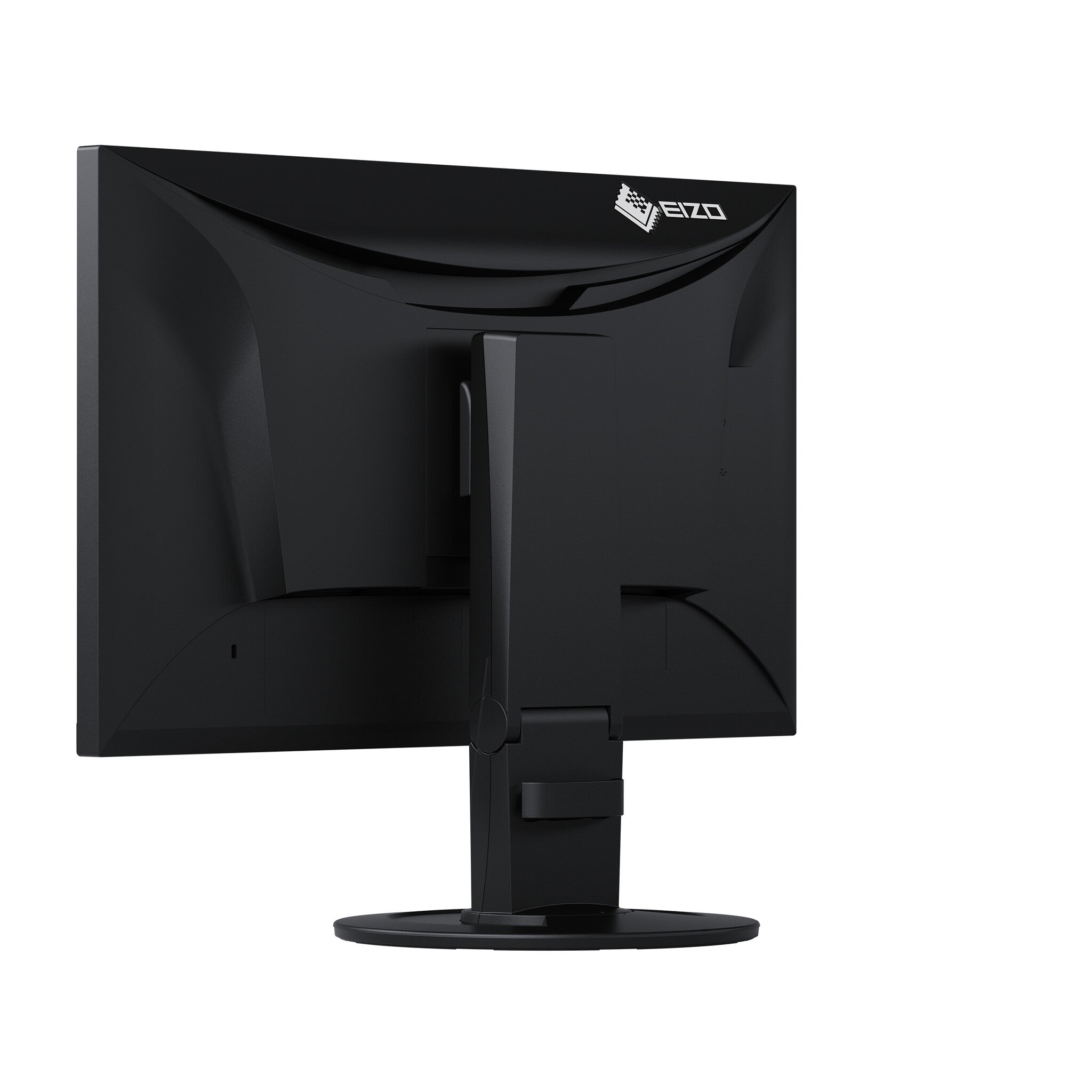

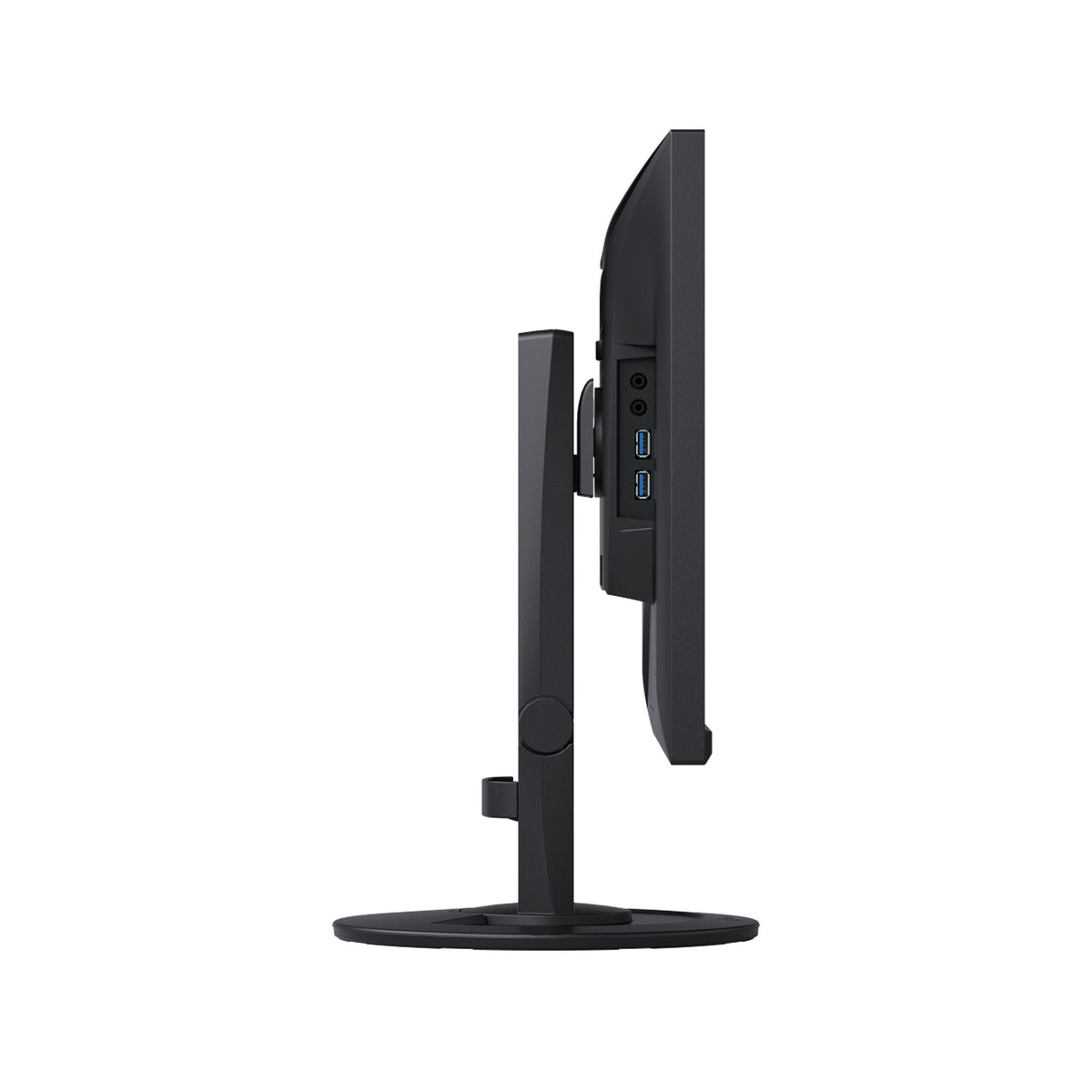

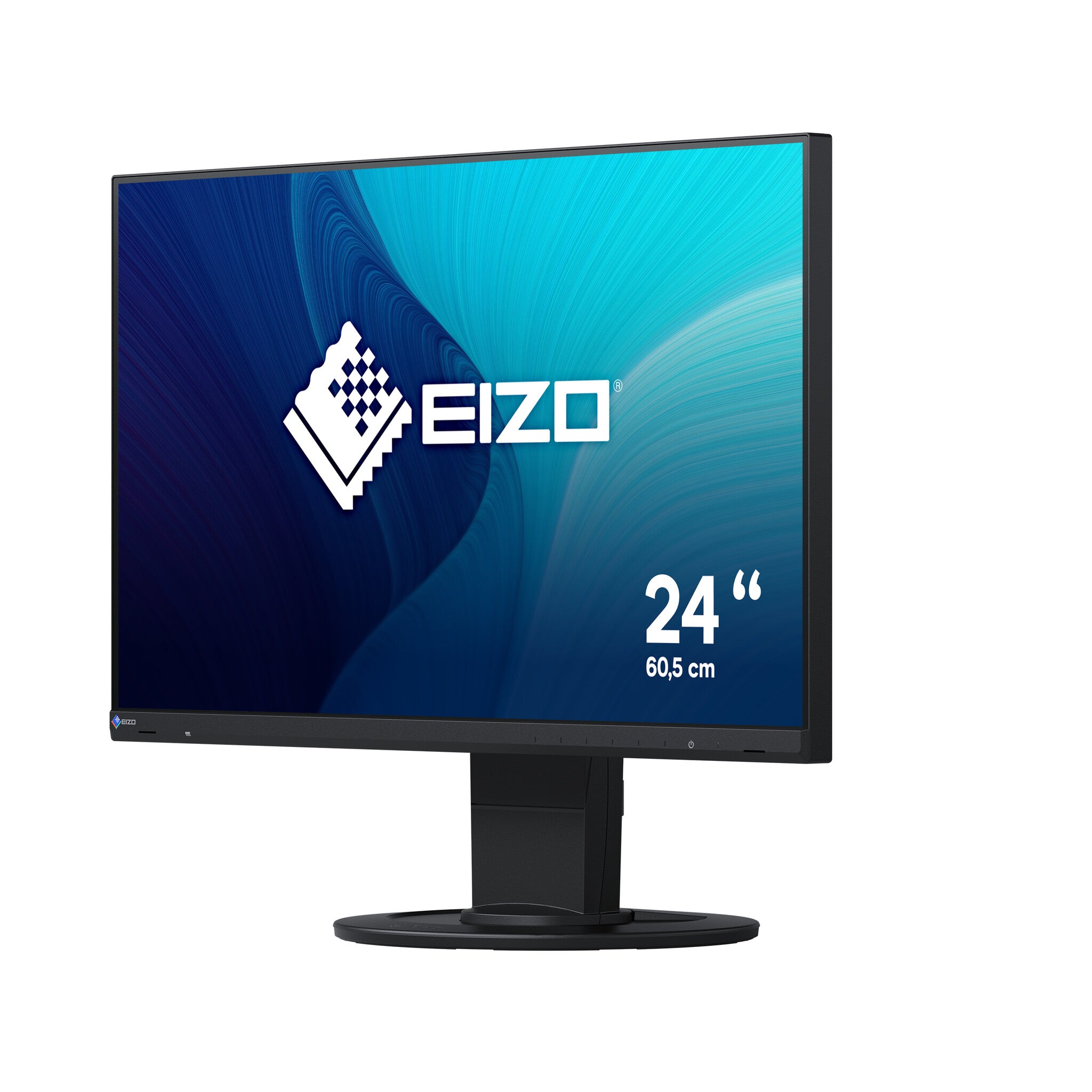

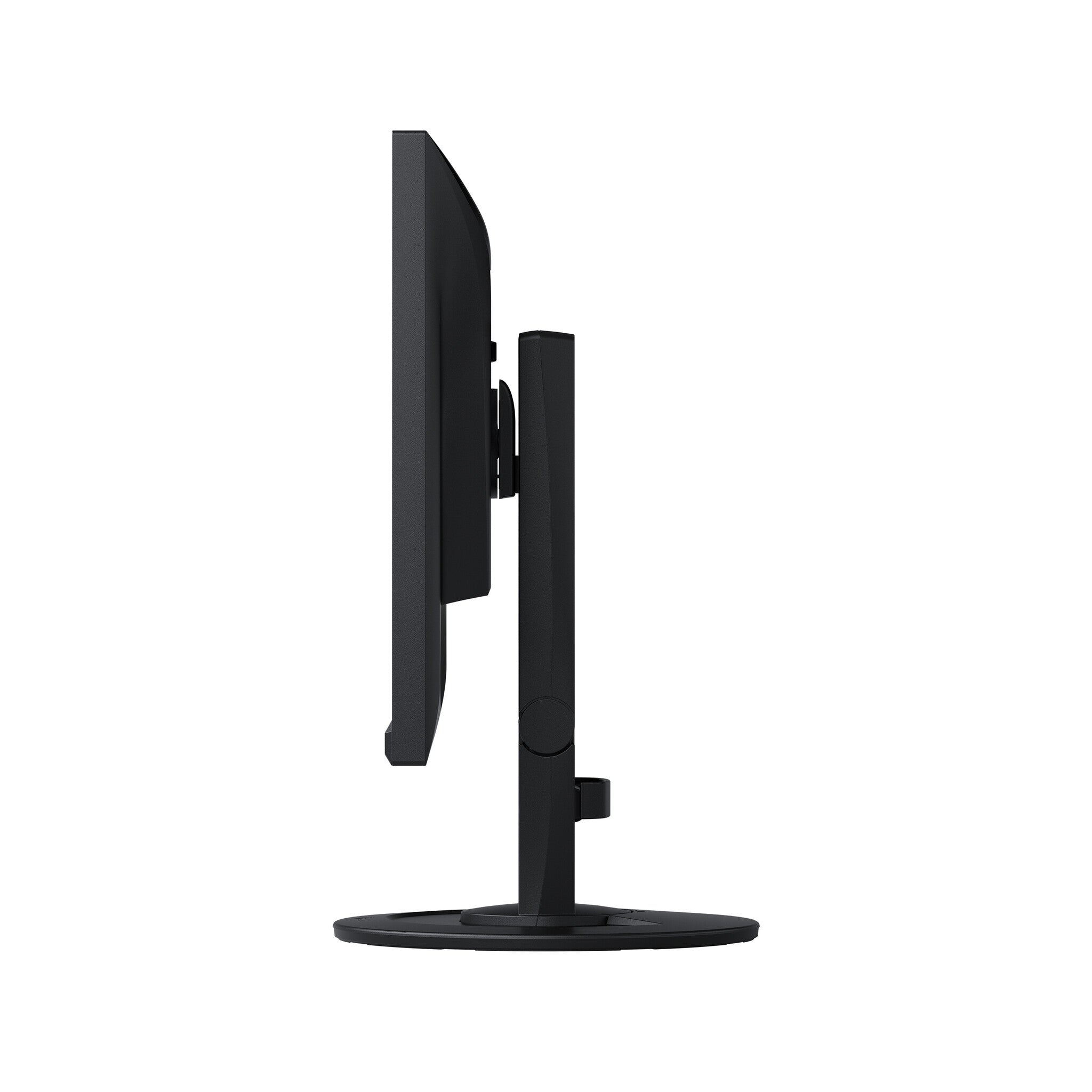

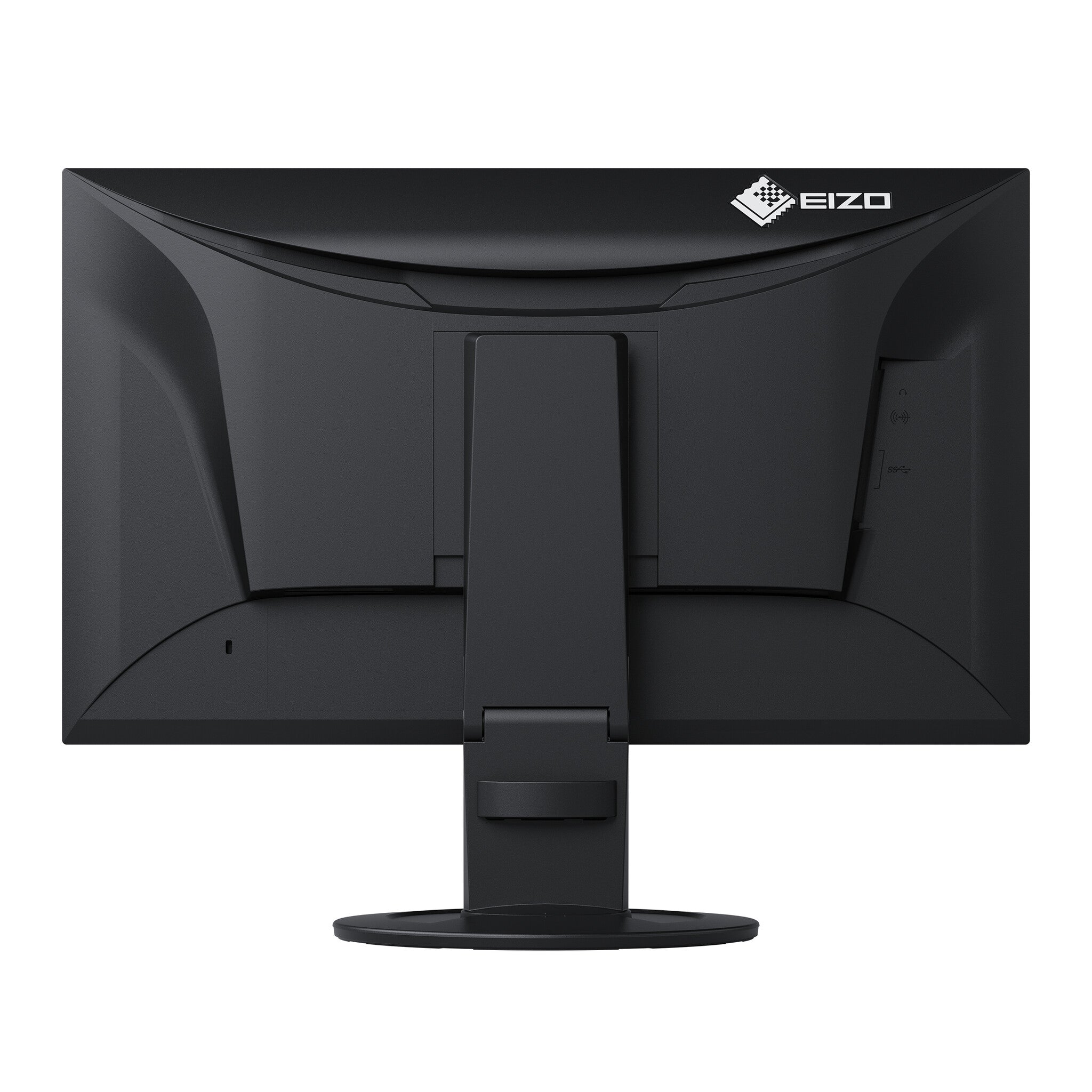

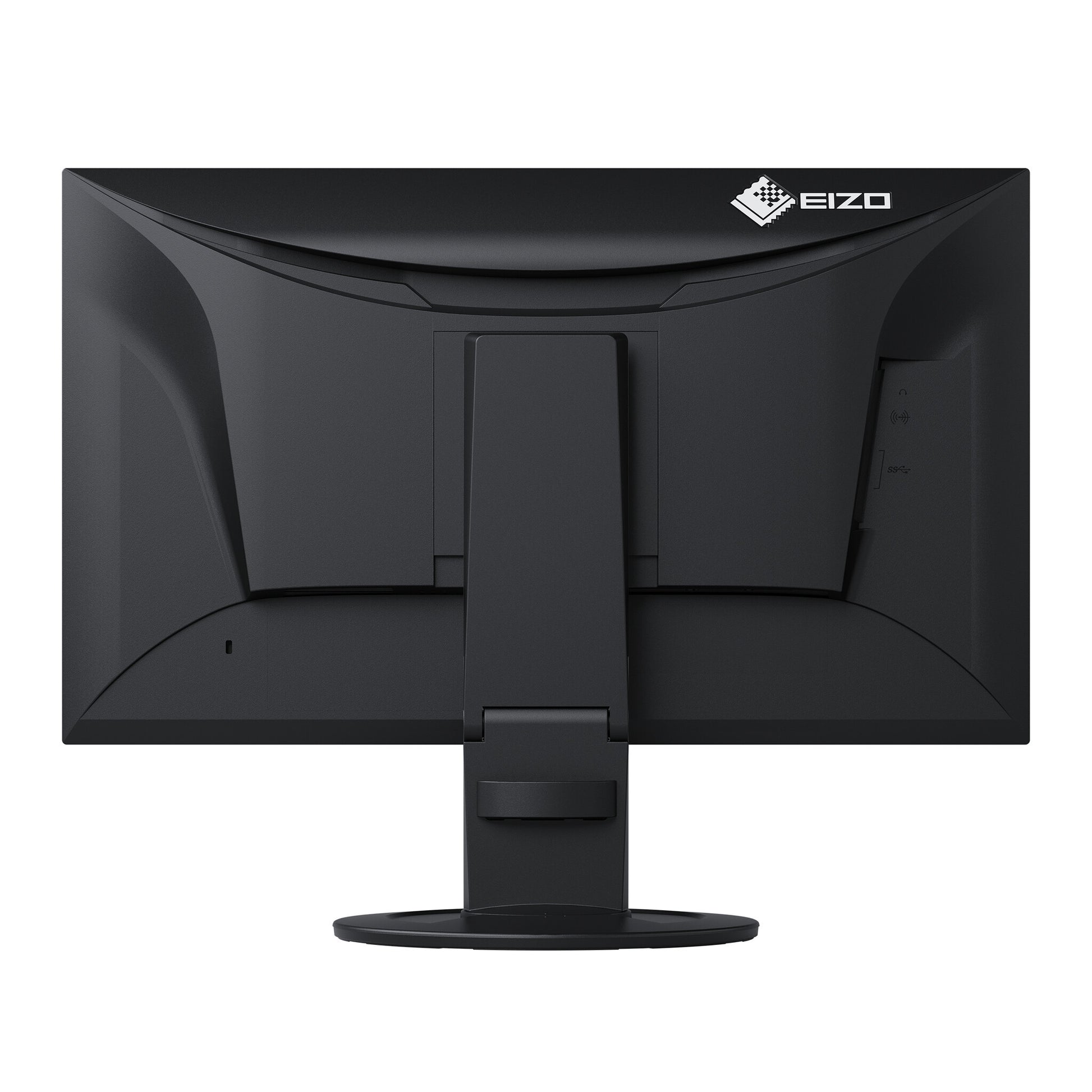

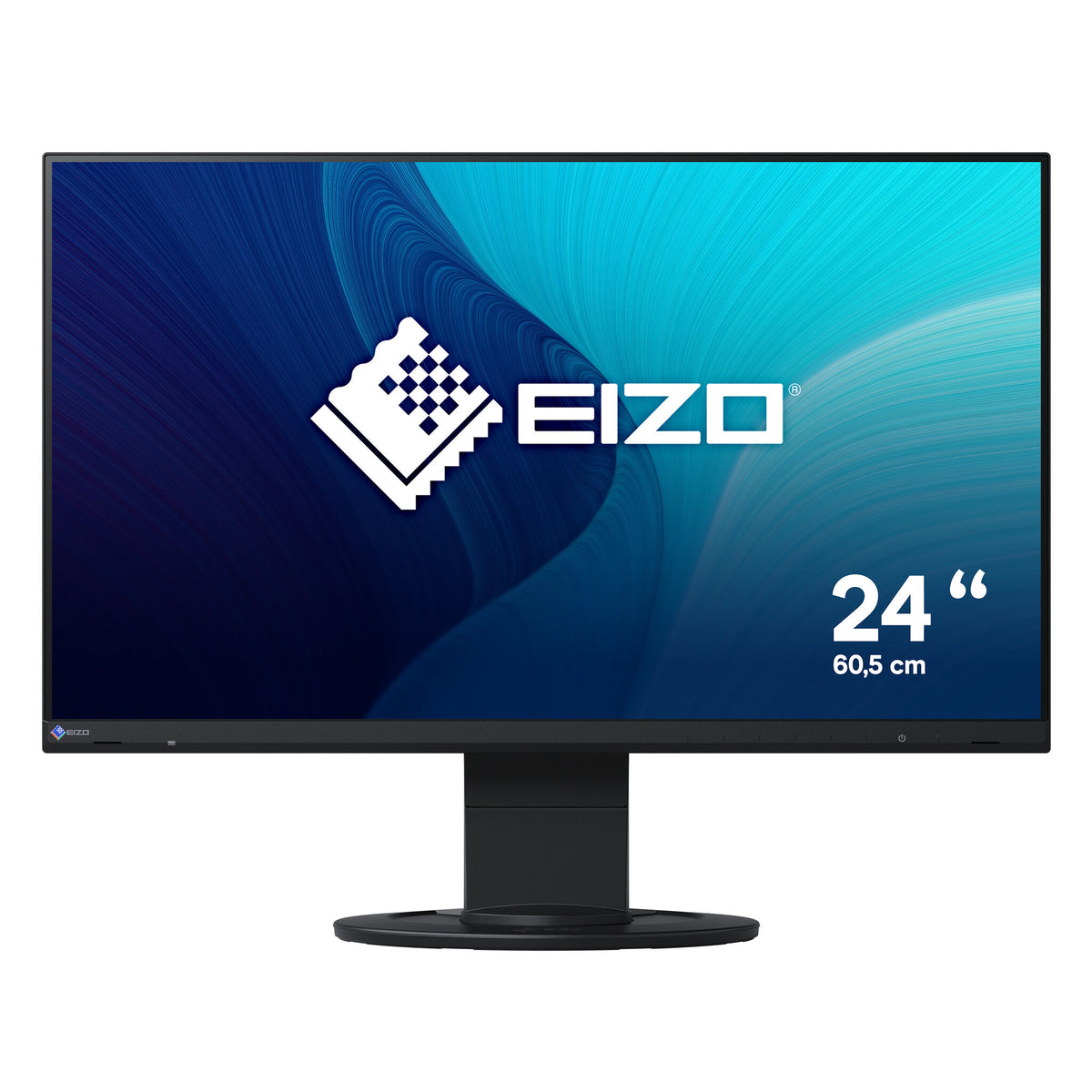

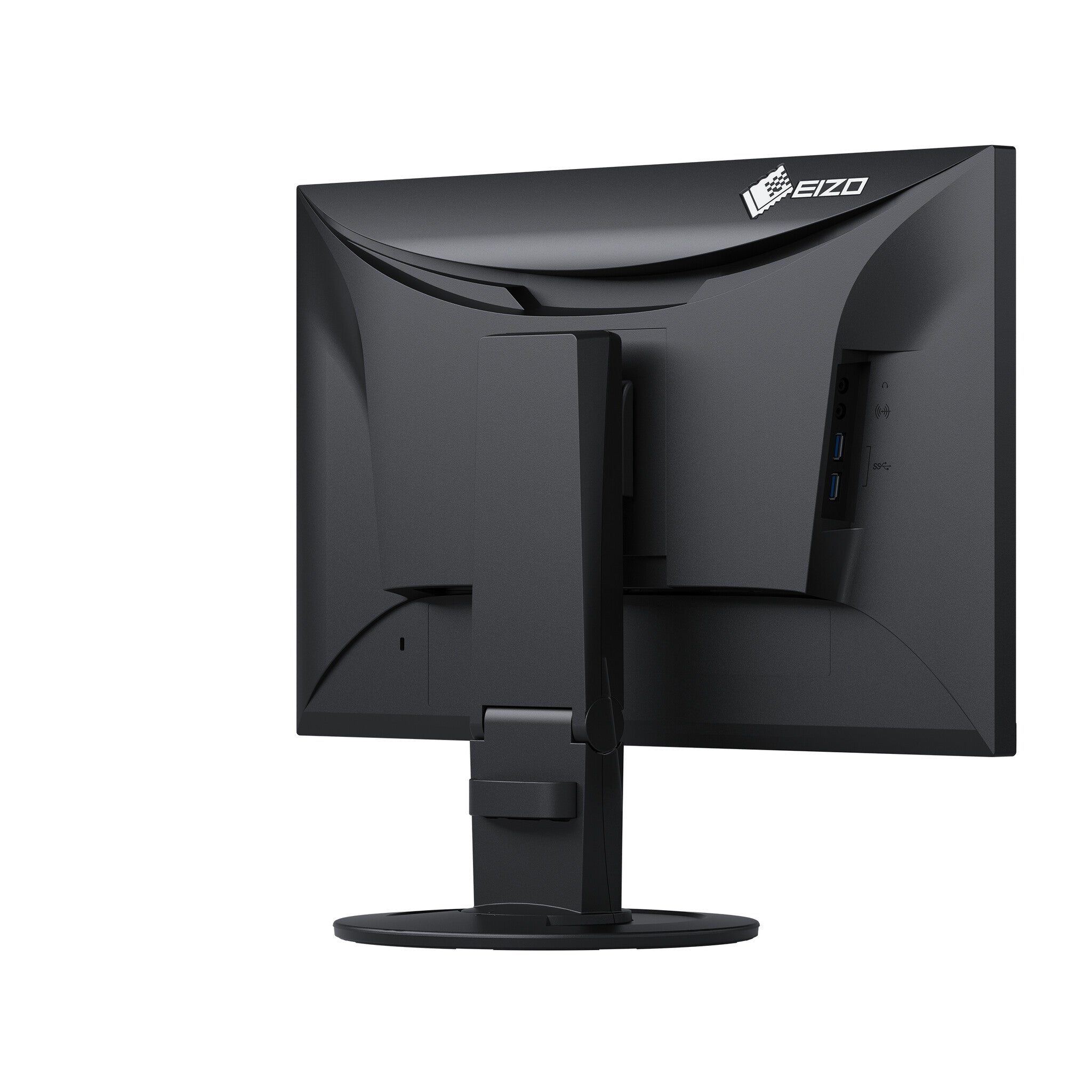

Energy-saving, ergonomic, reliable: the EV2460 offers a wide range of connection options thanks to DisplayPort, HDMI, DVI-D and D-Sub signal inputs as well as four USB downstream ports. The EV2460 caters for sophisticated computer workstations with the highest demands. Image quality and ergonomics are equally convincing. With a resolution of 1920 x 1080 pixels, an IPS LCD panel with an antireflective surface, this display excels at detailed, crystal-clear image reproduction.
| Display |
|---|
| Separate H/V sync |
Yes |
| 3D |
No |
| Colour gamut standard |
sRGB |
| Digital vertical frequency |
51 - 59 Hz |
| Digital horizontal frequency |
31 - 68 kHz |
| Viewable size, vertical |
29.6 cm |
| Viewable size, horizontal |
52.7 cm |
| Vertical scan range |
59 - 61 Hz |
| Horizontal scan range |
31 - 68 kHz |
| Pixel density |
93 ppi |
| Pixel pitch |
0.2745 x 0.2745 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
1000:1 |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Screen shape |
Flat |
| Response time |
5 ms |
| Display brightness (typical) |
250 cd/m² |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8") |
| Performance |
|---|
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in camera |
No |
| RMS rated power |
2 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black |
| Market positioning |
Home |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Headphone out |
Yes |
| Audio input |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| DVI-D ports quantity |
1 |
| DVI port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Type-A downstream ports quantity |
4 |
| Number of upstream ports |
1 |
| USB upstream port type |
USB Type-B |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
|---|
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
-5 - 35° |
| Tilt adjustment |
Yes |
| Swivel angle range |
0 - 344° |
| Swivelling |
Yes |
| Pivot angle |
-90 - 90° |
| Pivot |
Yes |
| Adjustable height (max) |
14 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
346699 |
| Energy efficiency scale |
A to G |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
9 W |
| Energy consumption (SDR) per 1000 hours |
9 kWh |
| Energy efficiency class (SDR) |
B |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
5 - 35 °C |
| Weight & dimensions |
|---|
| Weight (without stand) |
3.8 kg |
| Height (without stand) |
350.4 mm |
| Depth (without stand) |
53.6 mm |
| Width (without stand) |
537.8 mm |
| Weight (with stand) |
5.9 kg |
| Height (with stand) |
333.6 mm |
| Depth (with stand) |
233 mm |
| Width (with stand) |
537.8 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, USB |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, EPEAT Climate +, EPEAT Silver, TCO |
| General |
|---|
| Product family |
FlexScan |
| Other features |
|---|
| Certification |
CE, UKCA, CB, C-Tick, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 9, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC |
| Compliance certificates |
C-TICK, CB, CCC, CE, China RoHS, Federal Communications Commission (FCC), ICES, PSE, RCM, RoHS, cTUVus, UKCA, VCCI, WEEE |
| TV tuner integrated |
No |
| On/off switch |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
