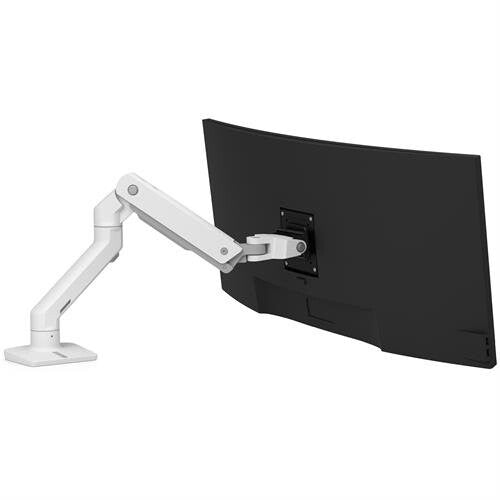

The HX Monitor Arm is the perfect accessory to add flexibility and superior ergonomics to your monitor or TV. The HX features a new post design, frees up space and allows positioning of your display for greater productivity.
Sleek and streamlined, it accommodates large monitors weighing up to 42 lbs (19 kg). Extension/retraction motion and height adjustment capability promote user comfort.
- Increases viewing comfort: Helps reduce eye, back and neck strain
- Sleek new post design
- Constant Force motion technology provides premium ease-of-use display adjustment
- Cable management feature routes cables tightly under the arm and through the extension, out of the way
- Eliminates scrolling: Rotate screen for portrait viewing of photos and documents
- Rotation-stop on base limits range to 180° and prevents monitor from making contact with wall
- Folding arm frees up space in constrained areas
- Upgrade this arm with the HX Triple Bow Kit to create a triple monitor arm
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Mounting |
Number of displays supported |
1 |
Panel mounting interface |
75 x 75,100 x 100,200 x 100,200 x 200,400 x 200,400 x 400,400 x 300 |
Maximum VESA mount |
400 x 400 mm |
Minimum VESA mount |
75 x 75 mm |
Suitable for TV |
Yes |
Mounting |
Clamp |
Mounting type |
Desk |
Maximum screen size |
124.5 cm (49") |
Maximum weight capacity |
19 kg |
Ergonomics |
Cable management |
Yes |

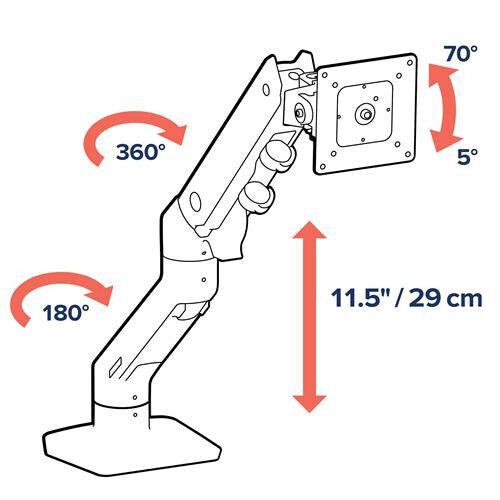

Pan range |
-180 - 180° |
Angle of rotation |
360° |
Tilt angle range |
-75 - 75° |
Tilt adjustment |
Yes |
Adjustable depth |
Yes |
Height adjustment type |
Manual |
Height adjustment |
Yes |
Design |
Easy to install |
Yes |
Product colour |
White |
Weight & dimensions |
Weight |
7.03 kg |
Packaging data |
Package weight |
8.3 kg |
Package height |
178 mm |
Package depth |
488 mm |
Package width |
305 mm |
General |
Product family |
HX Series |
Other features |
Certification |
BIFMA level® 2 |
Logistics data |
Harmonized System (HS) code |
85299097 |
