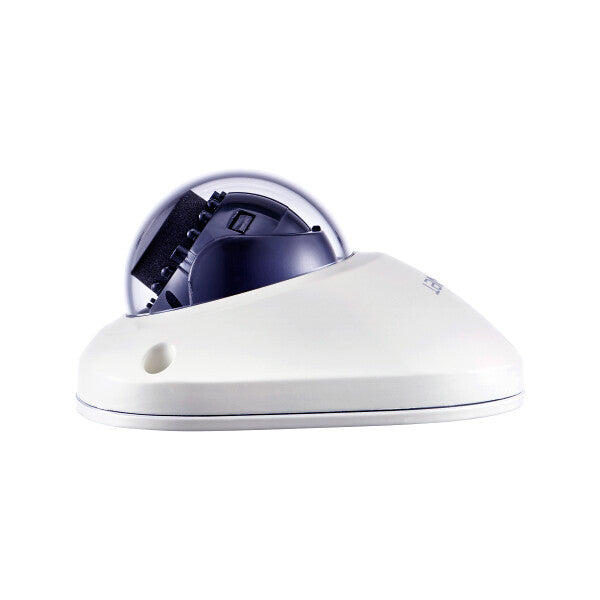

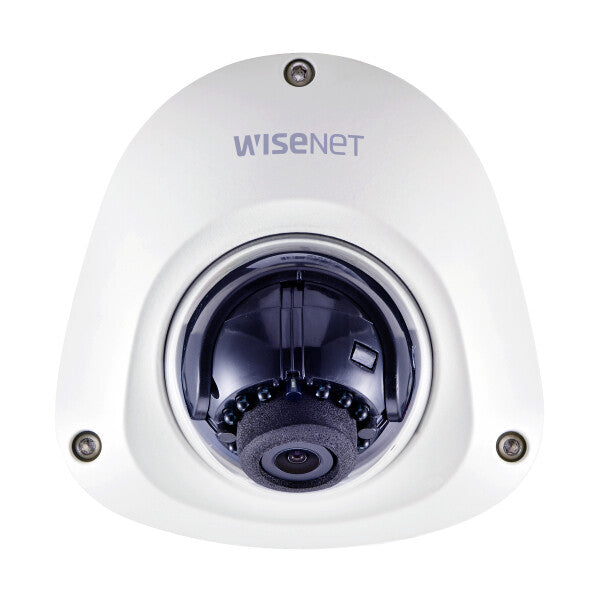

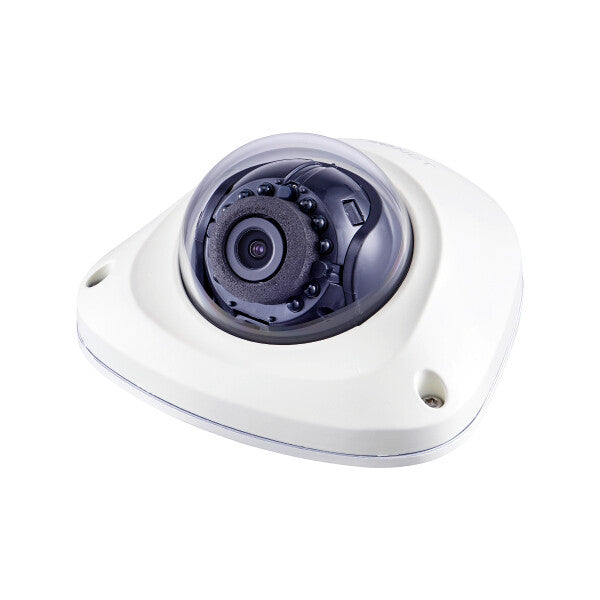

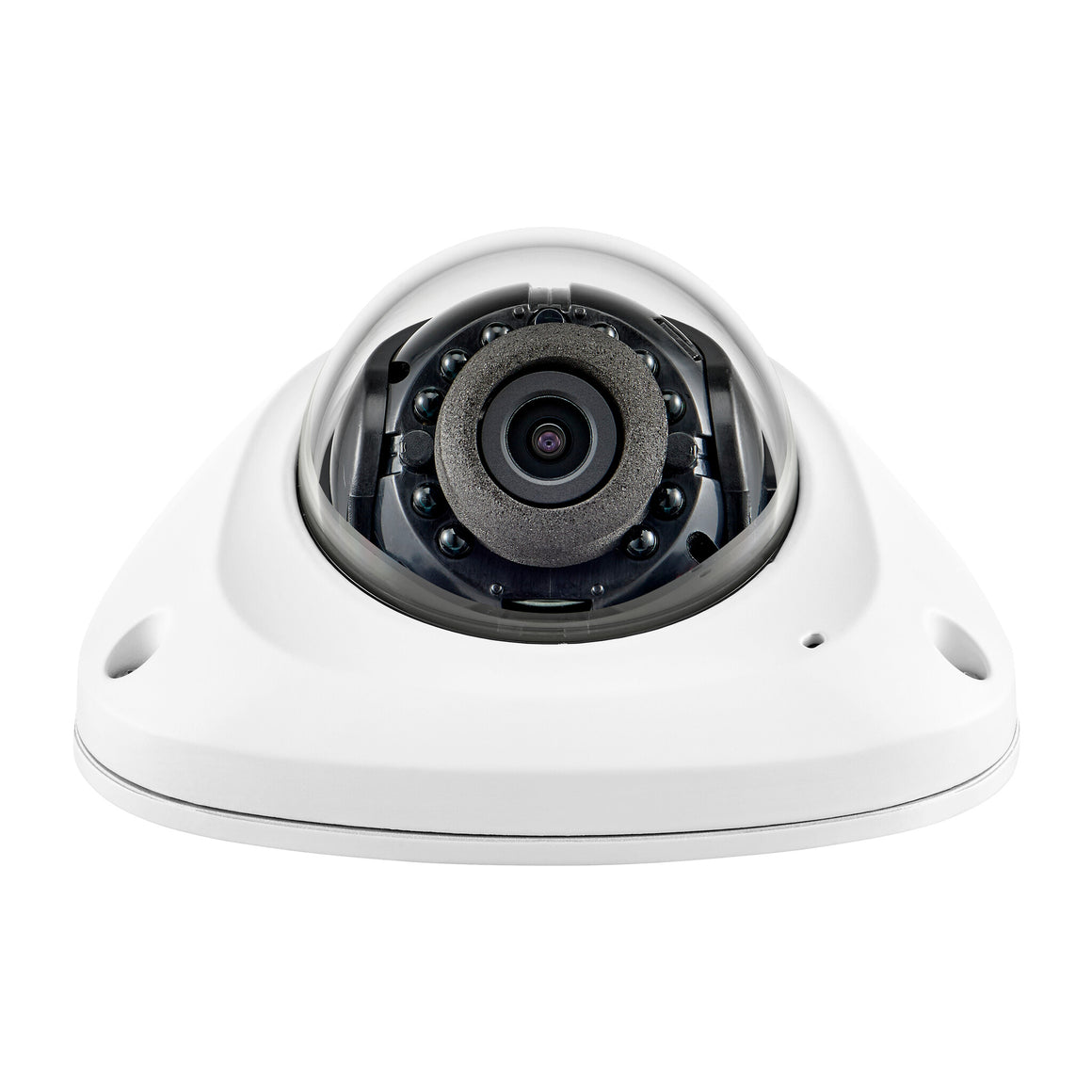

Hanwha ANV-L6023R security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels
Regular price
£161.05
inc. VAT
- 2 Megapixel (1920 x 1080) resolution
- 3.6mm lens w/ 94.8° HFoV
- 30fps@all resolutions (H.265/H.264)
- H.265/H.264, MJPEG codec support, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway View, WiseStream II support
- IR viewable length 15m
- IP66, IK10, NEMA4X support
Couldn't load pickup availability
| Performance | |
|---|---|
| Dynamic range | 120 dB |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium |
| Product colour | White |
| Form factor | Dome |
| Camera | |
|---|---|
| Number of Privacy masking areas | 6 |
| Camera shutter speed | 1/5 - 1/12000 s |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Tilt angle range | 0 - 67° |
| Lens viewing angle, diagonal | 115° |
| Lens viewing angle, vertical | 50° |
| Lens viewing angle, horizontal | 94.8° |
| Field of view (FOV) angle | 94.8° |
| Minimum illumination | 0 lx |
| Image sensor | |
|---|---|
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Fixed focal length | 3.6 mm |
| Maximum aperture number | 2 |
| Identify distance | 3.5 m |
| Recognize distance | 7.1 m |
| Observe distance | 14.1 m |
| Detect distance | 35.3 m |
| Night vision | |
|---|---|
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 15 m |
| Night vision | Yes |
| Video | |
|---|---|
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | Smart Super Noise Reduction (SSNR) |
| Noise reduction | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Video compression formats | H.264, H.265 |
| Video formats supported | H.264, H.265 |
| Total megapixels | 2 MP |
| Maximum resolution | 1920 x 1080 pixels |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Security algorithms | EAP-LEAP, EAP-PEAP, EAP-TLS, MSCHAPv2 |
| Network access storage (NAS) | Yes |
| Alert notification type | |
| Power | |
|---|---|
| Power consumption (max) | 6.7 W |
| Power source type | DC, PoE |
| Weight & dimensions | |
|---|---|
| Height | 100 mm |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Technical details | |
|---|---|
| Audio input | 1 |
