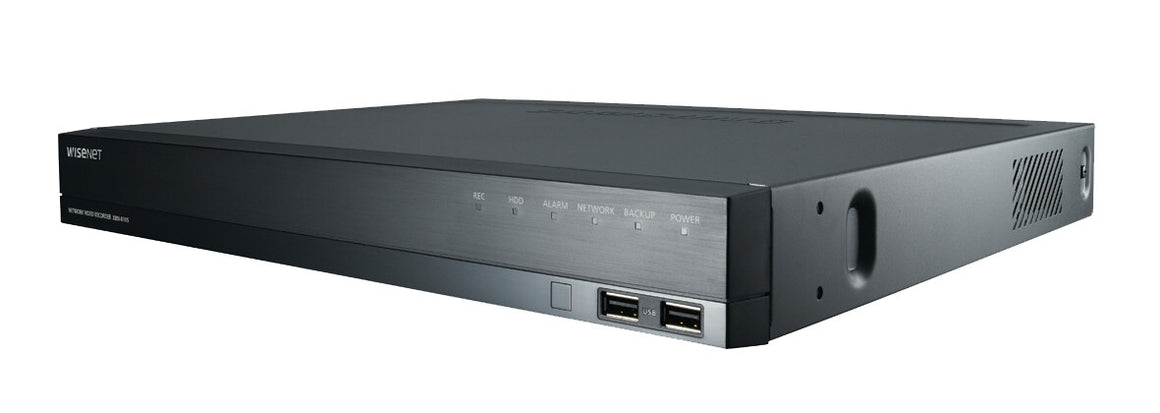

Hanwha XRN-820S network video recorder Black

SKU: XRN-820S
£695.89 inc. VAT
  • Up to 8 channels, Supports up to 32 megapixel camera resolution
  • 100Mbps network camera recording
  • Support 4K video out on HDMI monitor
  • Support dual monitor HDMI/VGA video out
  • H.265, H.264, MJPEG compression
  • WiseStream support
  • Maximum 2 internal HDDs (12TB)
  • ARB & failover (N+1), dynamic event, Wisenet AI metadata search support
Performance
Audio system 2-way
Video codecs H.265, H.264, MJPEG
Audio codecs G.711, G.726, AAC
Input bandwidth 100 Mbit/s
Output bandwidth 32 Mbit/s
PTZ control Yes
Supported resolutions 3840 x 2160, 1920x1080
Maximum resolution 3840 x 2160 pixels
Alarm output channels 2
Alarm input channels 4
Video input channels 8 channels
Wireless LAN features
Wi-Fi No
Hard drive
HDD interface SATA, SATA II, SATA III
Maximum storage capacity 12 TB
Number of HDDs supported 2
HDD capacity 0 GB
Ports & interfaces
Networking standards IEEE 802.3af, IEEE 802.3at
Audio RCA outputs 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
VGA (D-Sub) output ports 1
USB 2.0 ports quantity 2
HDMI output Yes
HDMI ports quantity 1
Power over Ethernet (PoE) ports quantity 8
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports 10
Features
LED indicators Yes
Product colour Black
Reset button Yes
Power
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 100 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power consumption (max) 160 W
Operational conditions
Operating relative humidity (H-H) 20 - 85%
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 2.7 kg
Height 50.7 mm
Depth 324.3 mm
Width 370 mm
