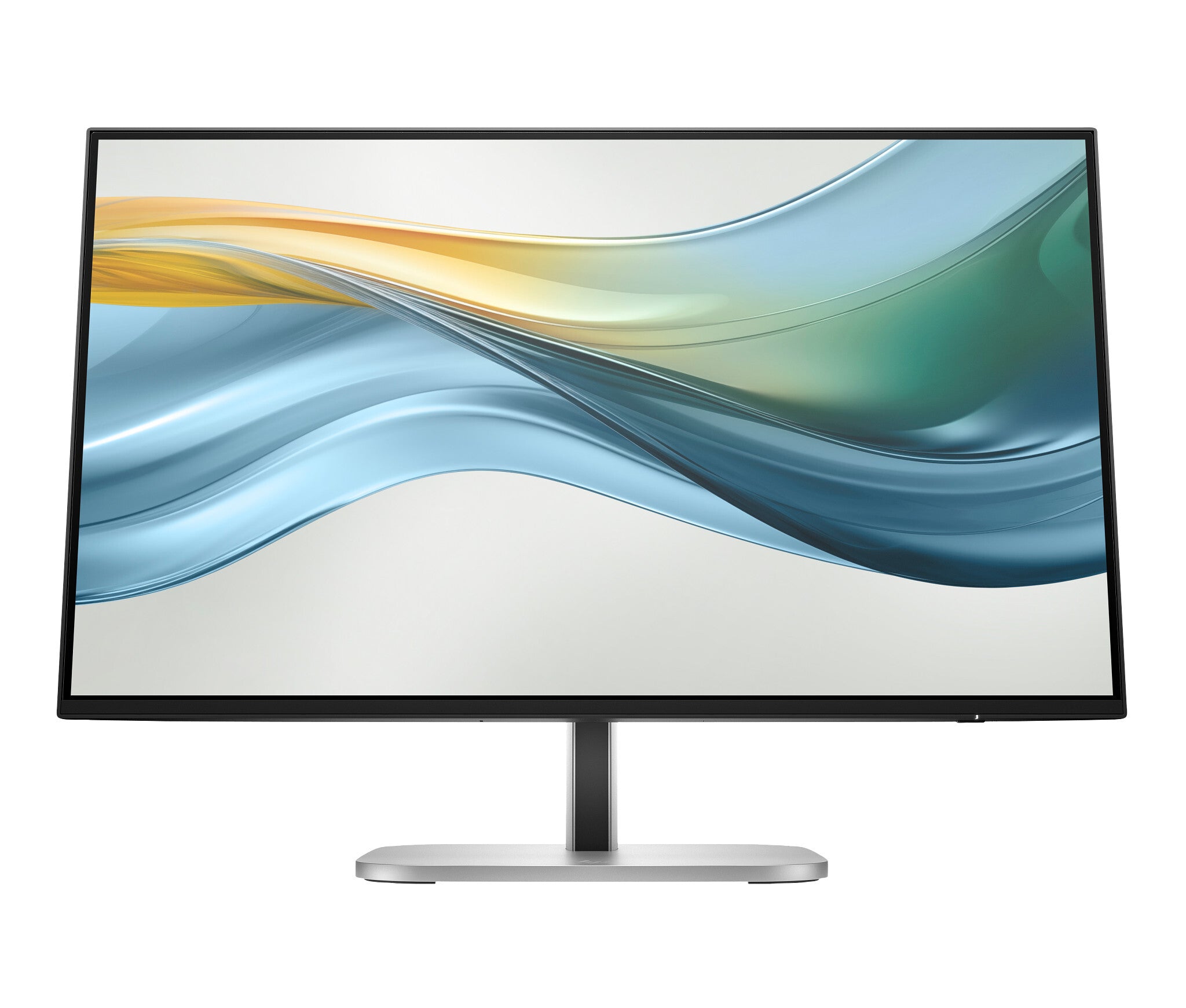

Powerfully designed to connect
Plug into more possibilities with the HP Series 5 Pro 23.8” FHD USB-C Monitor. Its sleek, modern design gives you crisp, stunning visuals and enhanced 100W power delivery with a single cable connection that seamlessly connects to PCs and peripherals at home or in the office.
| Display |
|---|
| Display bezel technology |

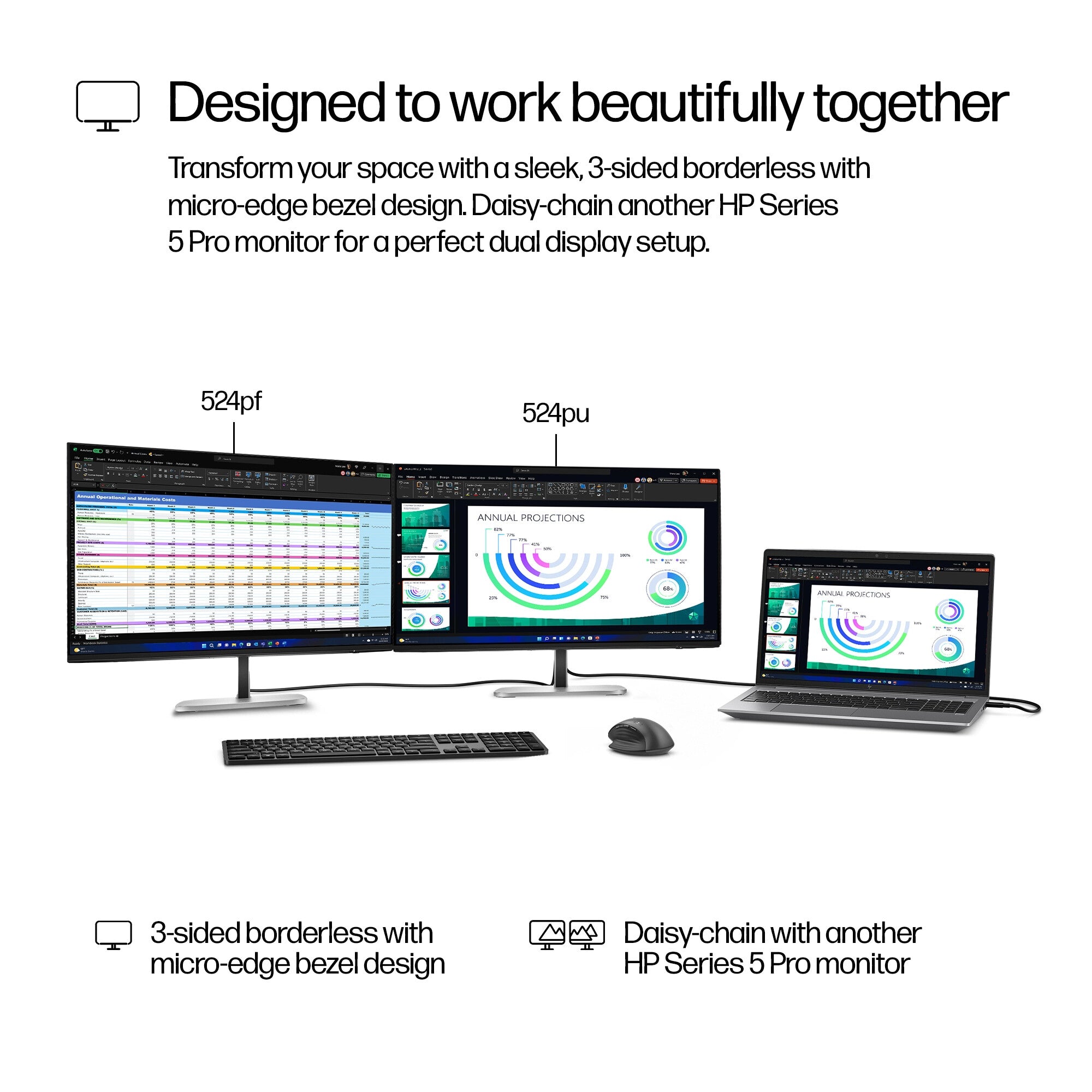

Micro-Edge |
| sRGB coverage (typical) |
100% |
| Colour gamut |
100% |
| Colour gamut standard |
sRGB |
| Colour depth |
8 bit |
| Surface hardness |
3H |
| Haze rate |
25% |
| Display diagonal (metric) |
60.5 cm |
| Viewable size, vertical |
29.6 cm |
| Viewable size, horizontal |
52.7 cm |
| Vertical scan range |
50 - 100 Hz |
| Horizontal scan range |
30 - 115 kHz |
| Pixel density |
93 ppi |
| Pixel pitch |
0.28 x 0.28 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
100 Hz |
| Contrast ratio (dynamic) |
10000000:1 |
| Contrast ratio (typical) |
1500:1 |
| Aspect ratio |
16:9 |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA) |
| Screen shape |
Flat |
| Anti-glare screen |
Yes |
| Display surface |
Matt |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time |
5 ms |
| Display brightness (typical) |
350 cd/m² |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display technology |
LCD |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8") |
| Performance |
|---|
| HP segment |
Business |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| Fast charging |
Yes |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in camera |
No |
| Built-in speaker(s) |
No |
| Design |
|---|
| Feet colour |
Silver, Black |
| Detachable stand |
Yes |
| Product colour |
Black, Silver |
| Market positioning |
Office |

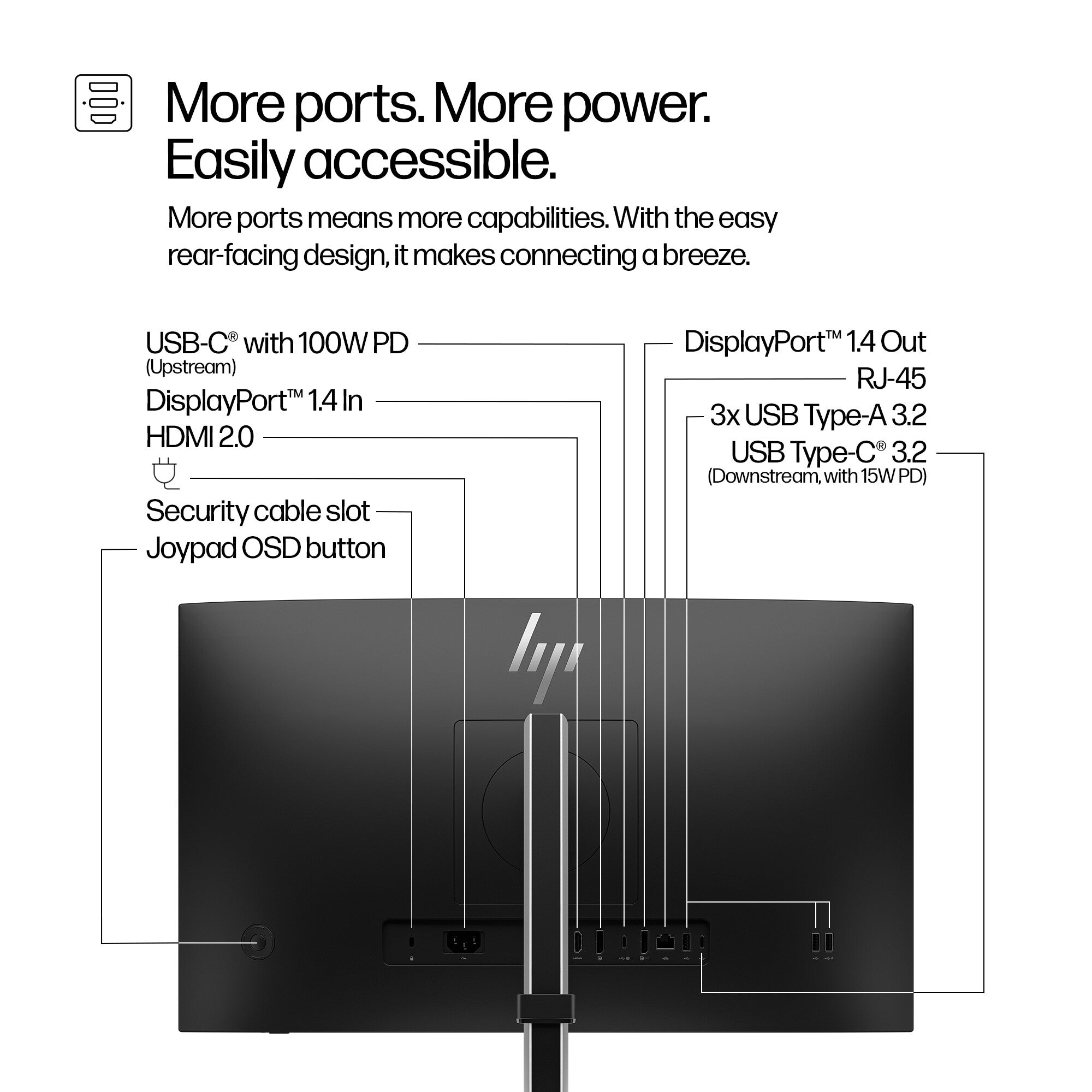

| Ports & interfaces |
|---|
| HDCP |
Yes |
| Headphone out |
No |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Network |
|---|
| Remotely operated |
Yes |
| Ethernet LAN |
Yes |

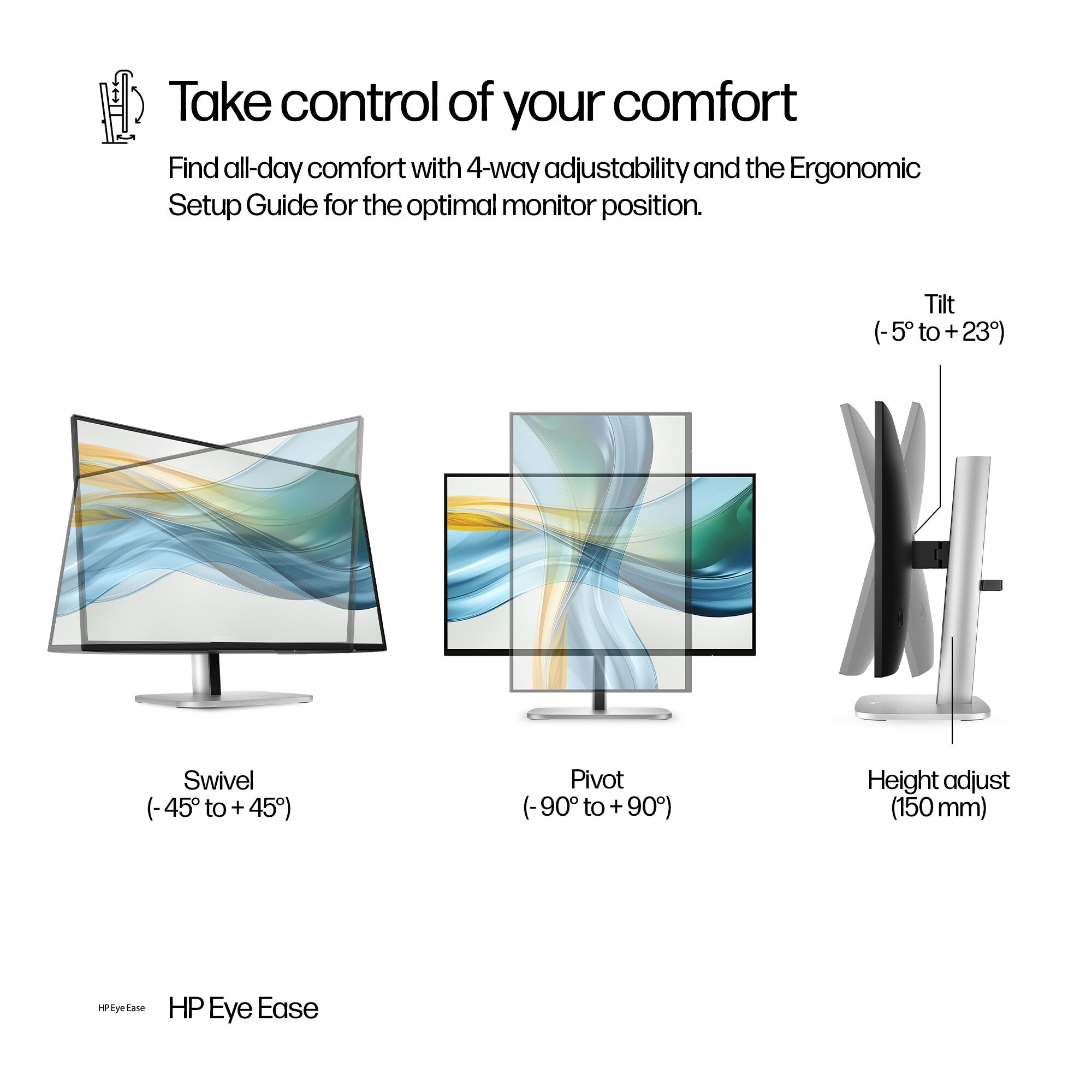

| Ergonomics |
|---|
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
-5 - 23° |
| Tilt adjustment |
Yes |
| Swivelling |
Yes |
| Pivot |
Yes |
| Adjustable height (max) |
15 cm |
| Height adjustment |
Yes |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| Energy efficiency scale |
A to G |
| Power supply type |
Internal |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (max) |
198 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
22 W |
| Energy consumption (SDR) per 1000 hours |
14 kWh |
| Energy efficiency class (HDR) |
D |
| Energy efficiency class (SDR) |
D |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
20 - 80% |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
5 - 35 °C |

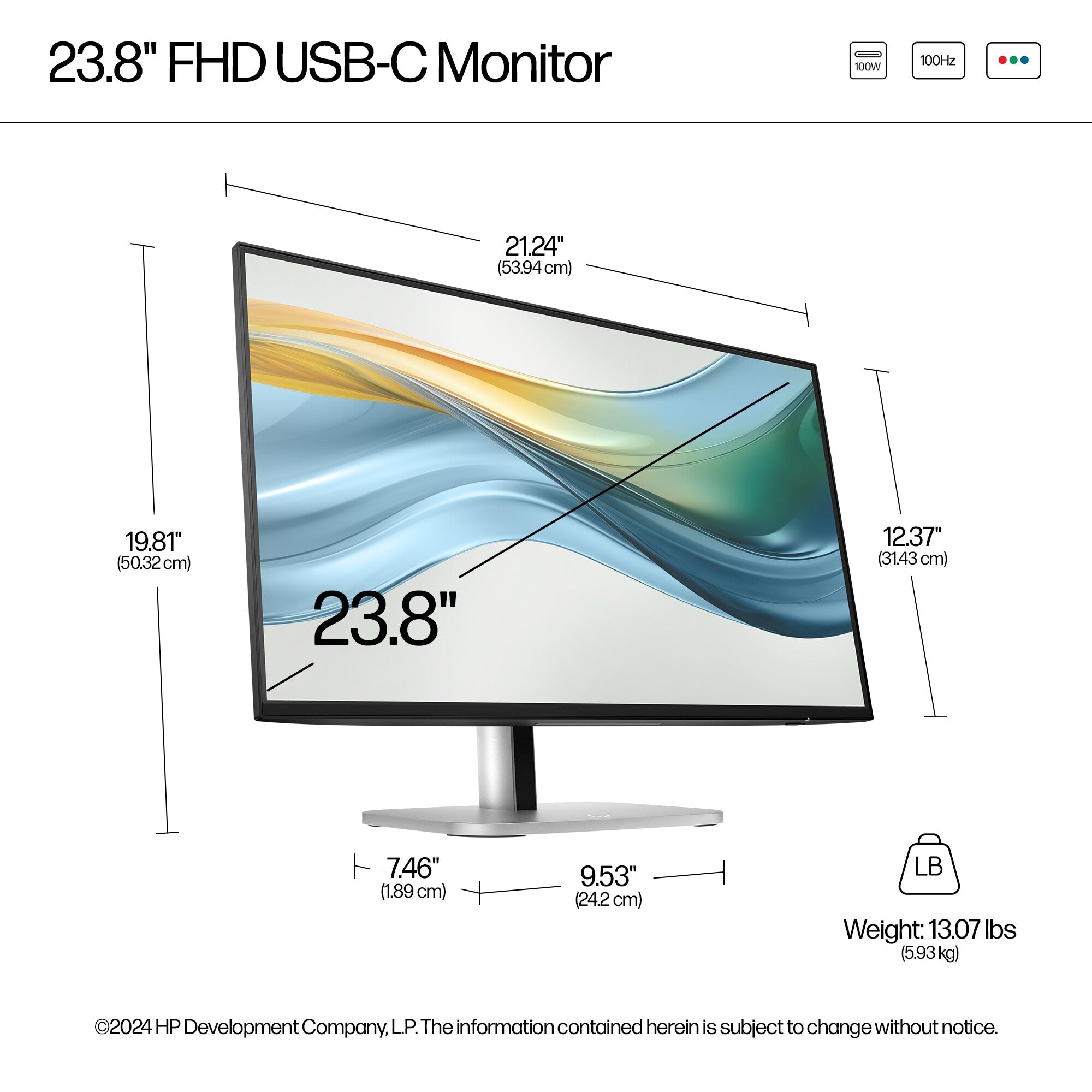

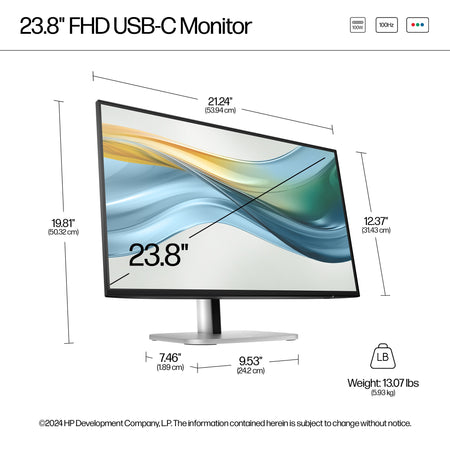

| Weight & dimensions |
|---|
| Height (without stand) |
314.3 mm |
| Depth (without stand) |
47.2 mm |
| Width (without stand) |
539.4 mm |
| Weight (with stand) |
5.93 kg |
| Height (with stand) |
503.2 mm |
| Depth (with stand) |
189.5 mm |
| Width (with stand) |
539.4 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
8.42 kg |
| Package height |
393 mm |
| Package depth |
140 mm |
| Package width |
621 mm |
| Packaging content |
|---|
| Bundled software |
HP Display Center; HP Client Management Script Library |
| Quick start guide |
Yes |
| Cables included |
AC |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| General |
|---|
| Product family |
Series 5 Pro |
| Other features |
|---|
| UNSPSC-code |
43211902 |
| Certification |
Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL Grade 1; cTUVus; EAC; FCC; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; California Energy Commission (CEC); UAE; TGM; Ukraine certificates; TÜV Flicker free certified; NRCS; PSE; GS; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Korea MEPS; Australian-New Zealand DoC; EMF |
| Ethernet LAN (RJ-45) ports |
1 |
| Manufacturer warranty |
HP three-year limited warranty |
| Compliance certificates |
BIS, BSMI, CB, CCC, CE, CECP, EAC, Federal Communications Commission (FCC), ICES, KC, KCC, Norma Oficial Mexicana (NOM), PSE, RCM, VCCI, WEEE, cTUVus |
| Weight |
5.93 kg |
| Country of origin |
China |
| Brand-specific features |
|---|
| HP GTIN (EAN/UPC) |
197961408201 |
| Technical details |
|---|
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
