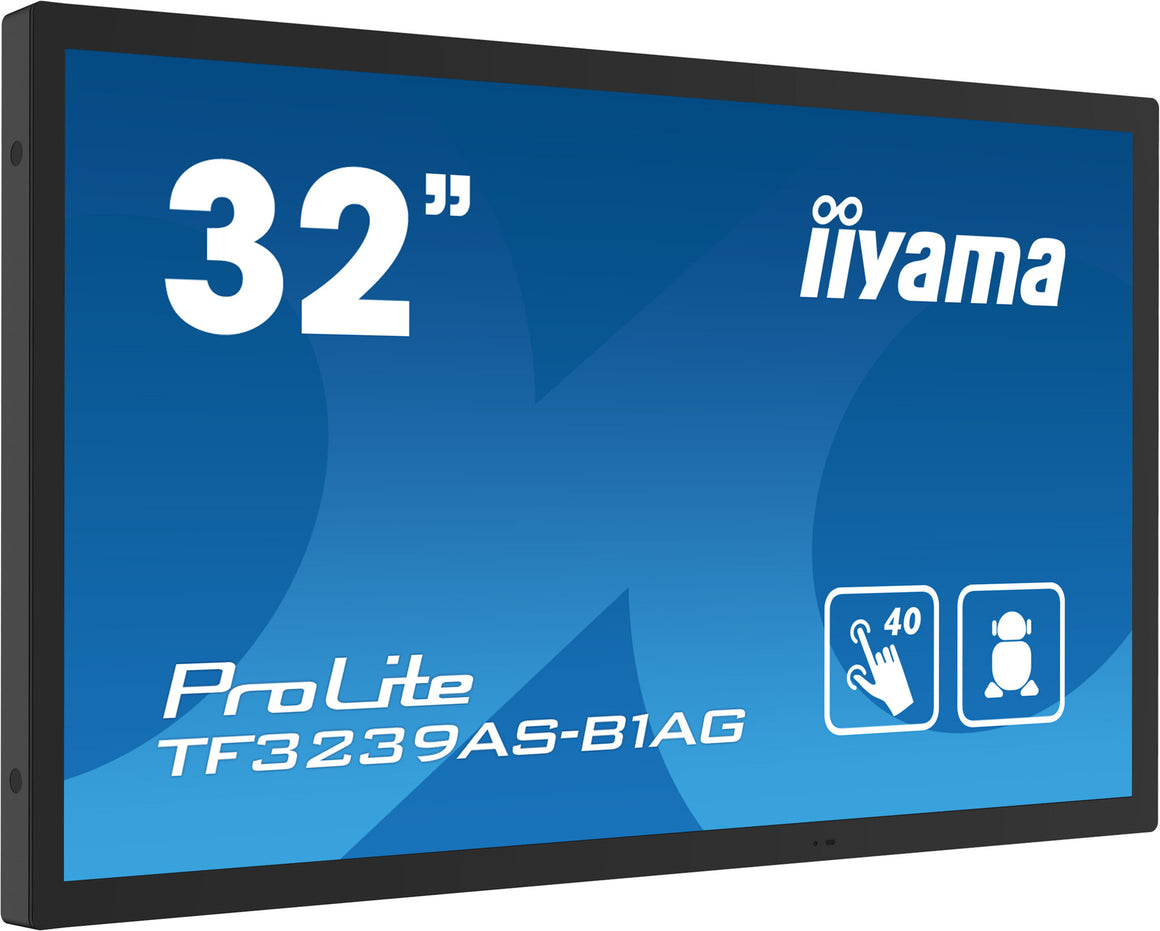

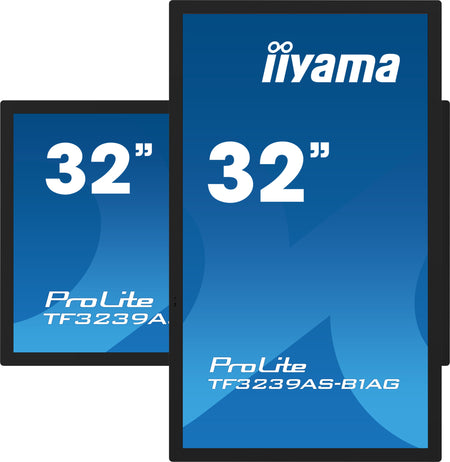

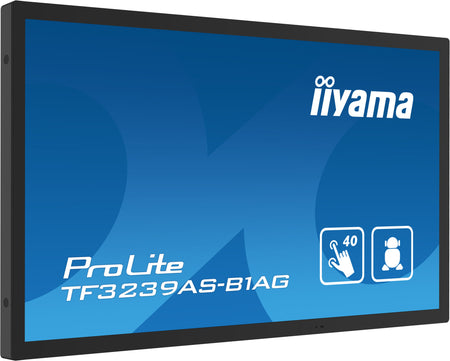

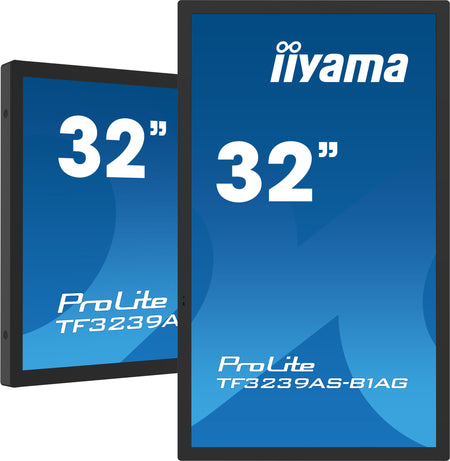

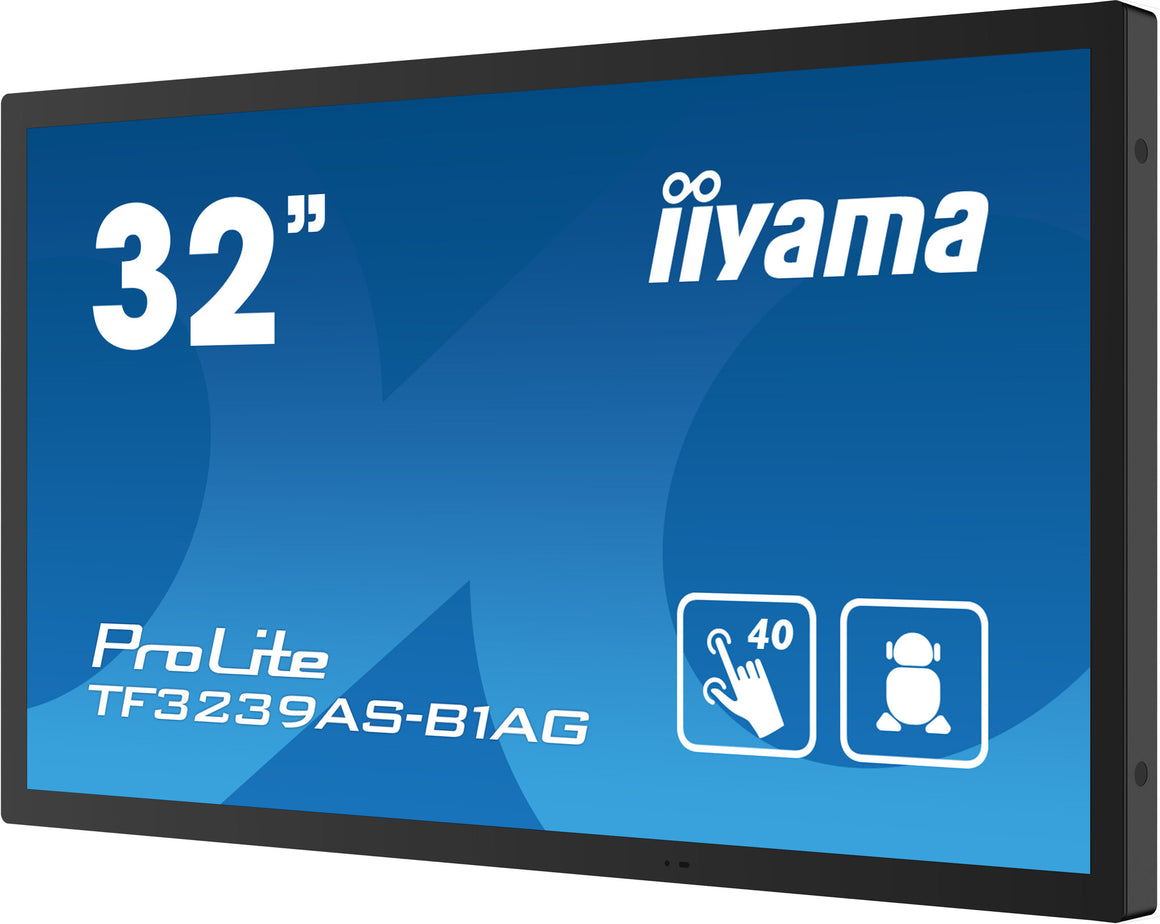

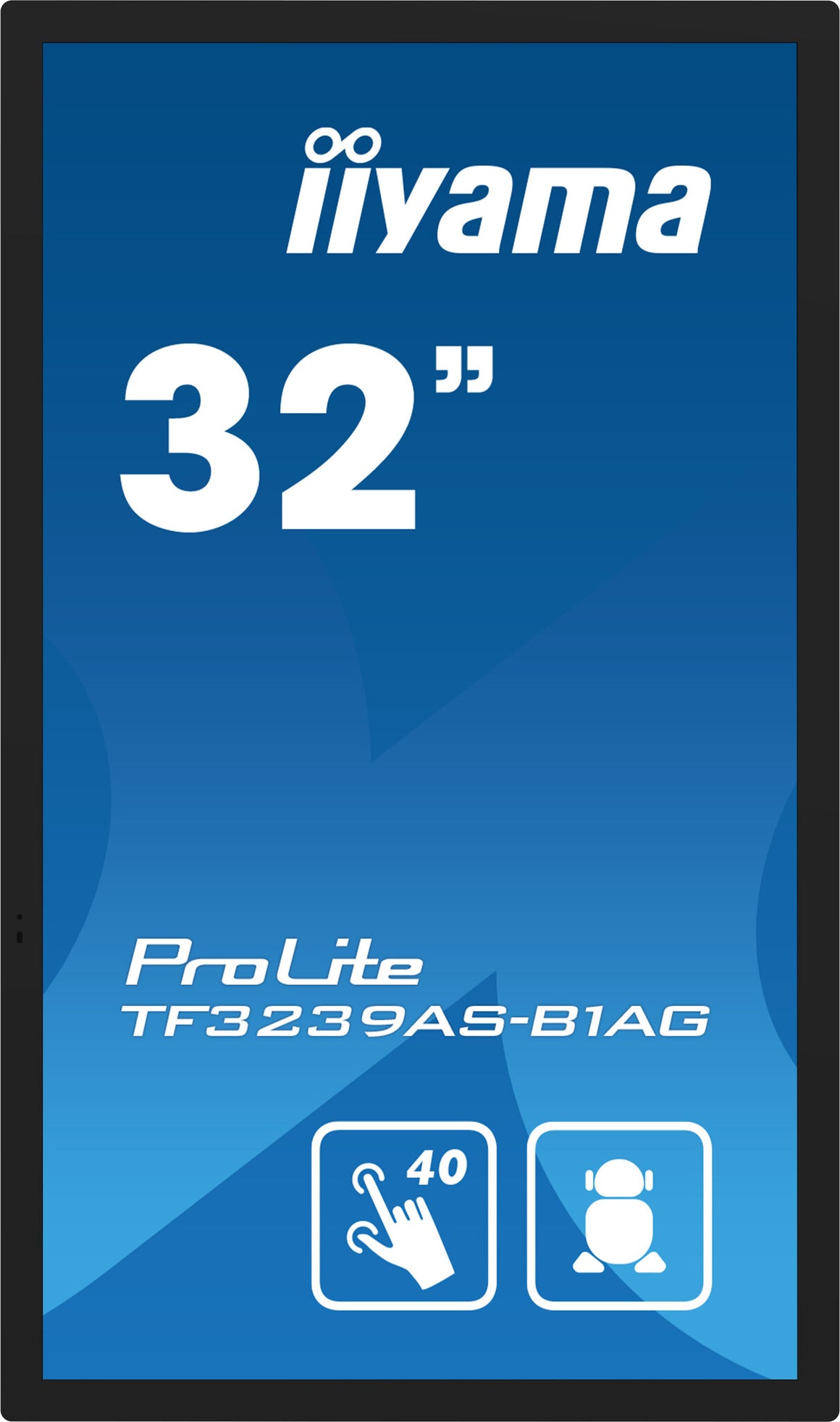

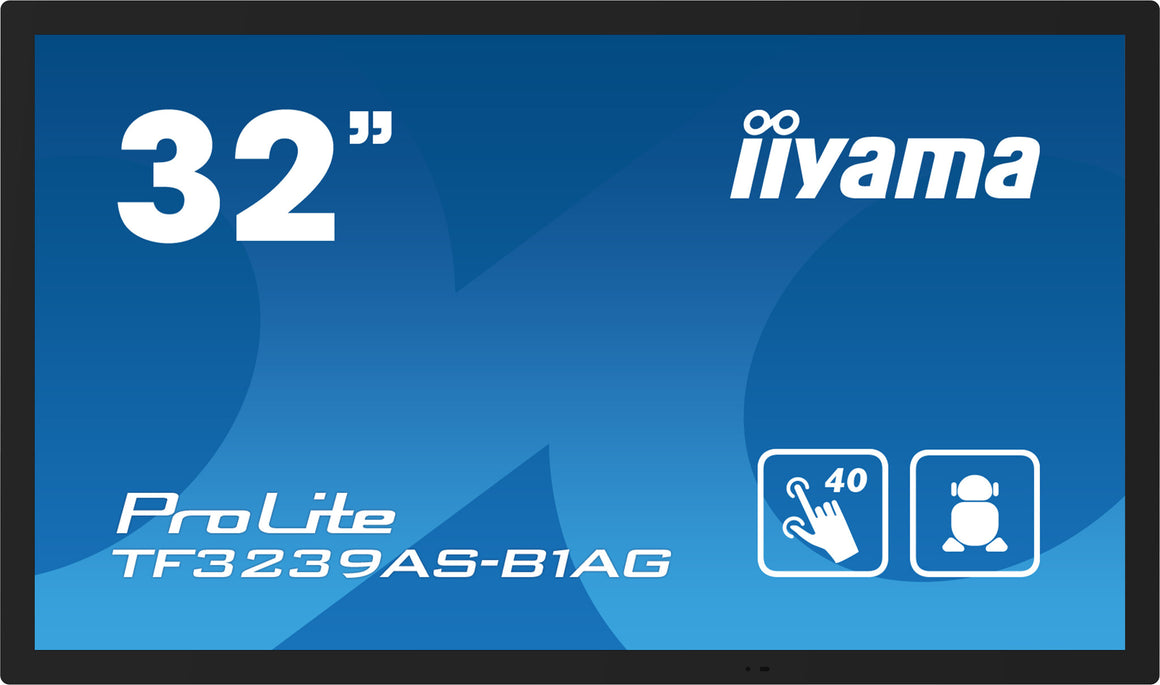

Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF3239AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before; while the FailOver feature ensures your content is always actively displayed through your choice of inputs For ease of integration, the TF3239AS-B1AG can be equipped with optional external mounting brackets ( OMK4-4 ).
| Display |
|---|
| Colour depth |
8 bit |
| Surface hardness |
7H |
| Haze rate |
25% |
| Display diagonal (metric) |
80 cm |
| Viewable size, vertical |
39.3 cm |
| Viewable size, horizontal |
69.8 cm |
| Horizontal scan range |
28 - 160 kHz |
| Pixel pitch |
0.363 x 0.363 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
1200:1 |
| Screen shape |
Flat |
| Anti-glare screen |
Yes |
| Display surface |
Matt |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time |
8 ms |
| Display brightness |
500 cd/m² |
| Display brightness (typical) |
500 cd/m² |
| Number of simultaneous touchpoints |
40 |
| Touchscreen technology |
Projected capacitive system |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
80 cm (31.5") |
| Performance |
|---|
| Operating system version |
11 |
| Operating system installed |
Android |
| Operating hours (hours/days) |
24/7 |
| Multimedia |
|---|
| RMS rated power |
20 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Glass thickness |
3 mm |
| Front bezel colour |
Black |
| Product colour |
Black |

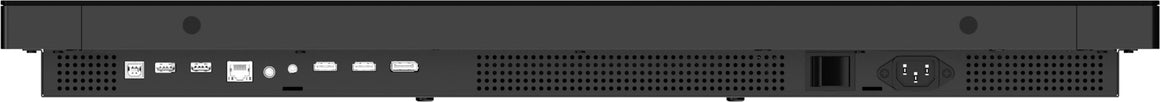

| Ports & interfaces |
|---|
| RS-232C |
Yes |
| HDCP version |
2.2 |
| HDCP |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
2 |
| DVI port |
No |
| USB Touch port |
Yes |
| USB version |
2.0 |
| Ergonomics |
|---|
| Number of OSD languages |
13 |
| On Screen Display (OSD) languages |
Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian |
| On Screen Display (OSD) |
Yes |

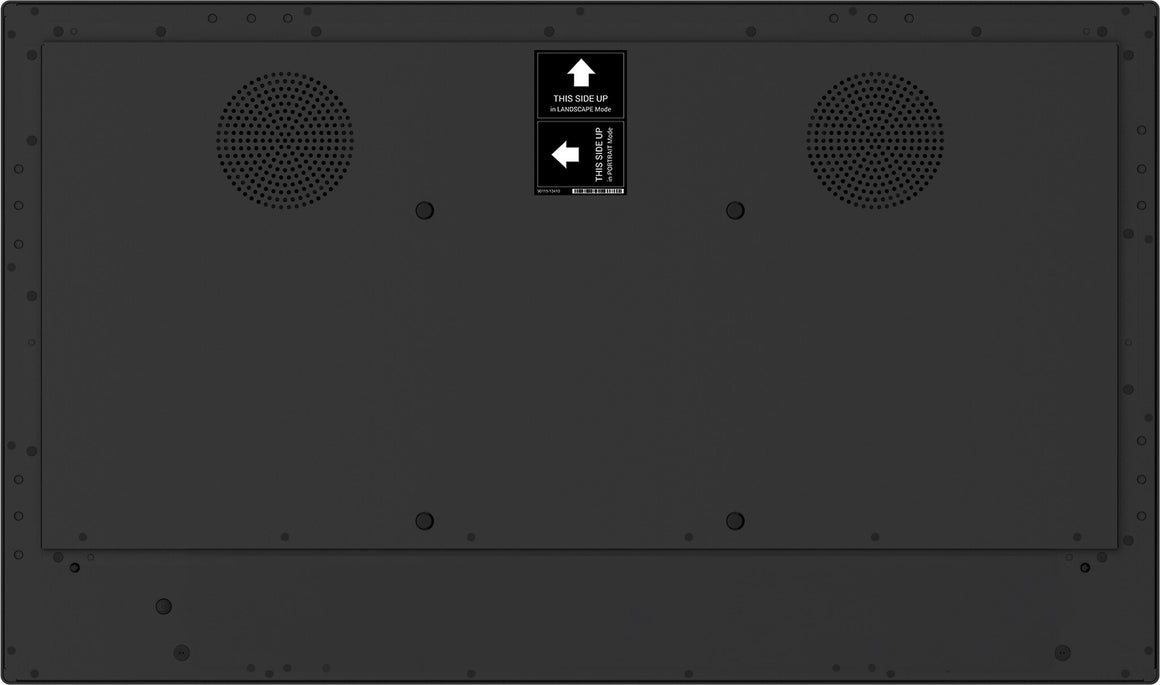

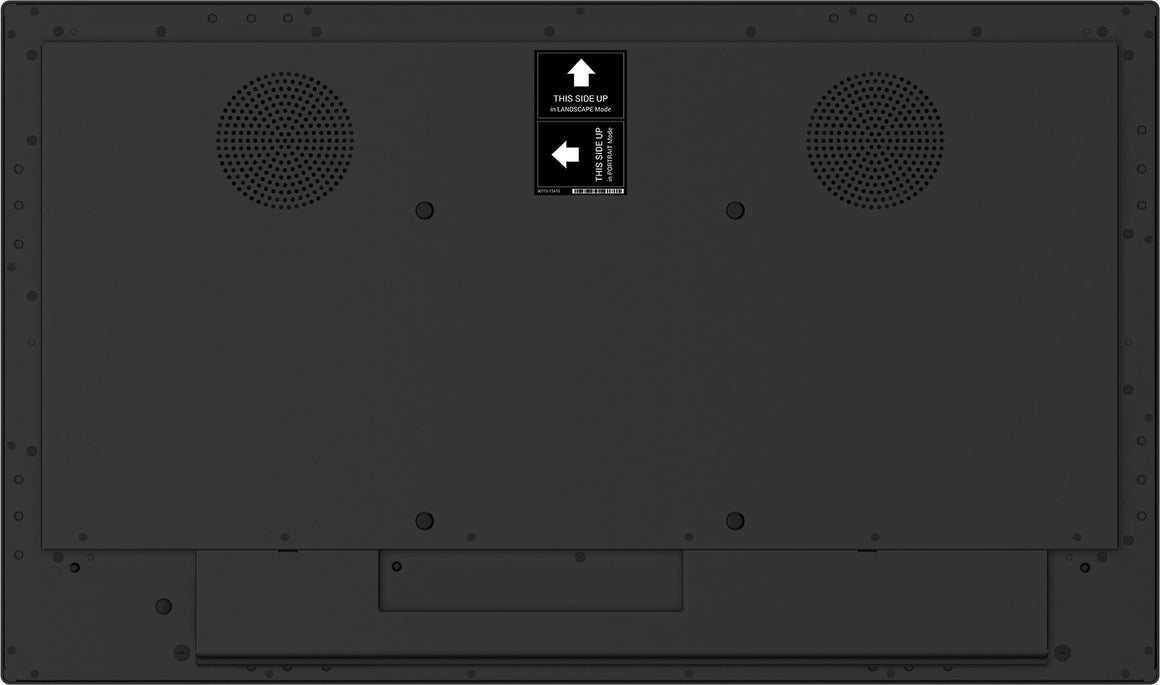

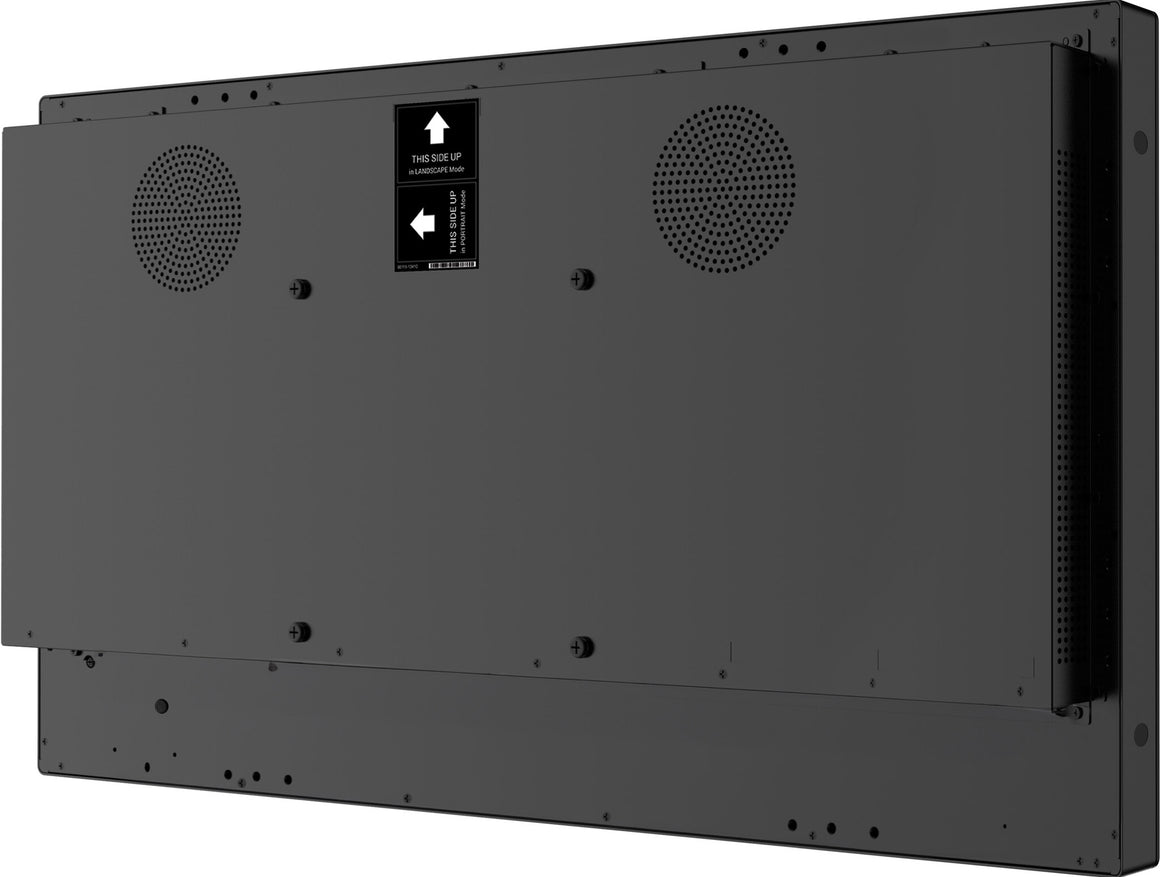

| Panel mounting interface |
200 x 200 mm |
| VESA mounting |
Yes |
| Power |
|---|
| Energy efficiency scale |
A to G |
| Power supply type |
Internal |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.4 W |
| Power consumption (typical) |
50 W |
| Energy consumption (SDR) per 1000 hours |
31 kWh |
| Energy efficiency class (HDR) |
Not available |
| Energy efficiency class (SDR) |
F |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Bezel width (bottom) |
2.2 cm |
| Bezel width (top) |
2.2 cm |
| Bezel width (side) |
2.2 cm |
| Weight (with stand) |
13.2 kg |
| Height (with stand) |
440.7 mm |
| Depth (with stand) |
62.4 mm |
| Width (with stand) |
746.2 mm |
| Packaging data |
|---|
| Package weight |
16.6 kg |
| Package height |
560 mm |
| Package depth |
840 mm |
| Package width |
840 mm |
| Packaging content |
|---|
| Batteries included |
Yes |
| Quick start guide |
Yes |
| Remote control batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB |
| Other features |
|---|
| Certification |
TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Package volume |
16600 cm³ |
| Ethernet LAN (RJ-45) ports |
1 |
| Mean time between failures (MTBF) |
50000 h |
| Built-in processor |
Yes |
| Active display area (W x H) |
698.4 x 392.8 mm |
| Multi-touch |
Yes |
| USB ports quantity |
3 |
| USB connector type |
USB Type-A, USB Type-B |
| Placement supported |
Indoor |
| Positional accuracy |
2.5 mm |
| International Protection (IP) code |
IP65 |
| Thin Client |
|---|
| Processor architecture |
ARM Cortex-A53+Cortex-A73 |
