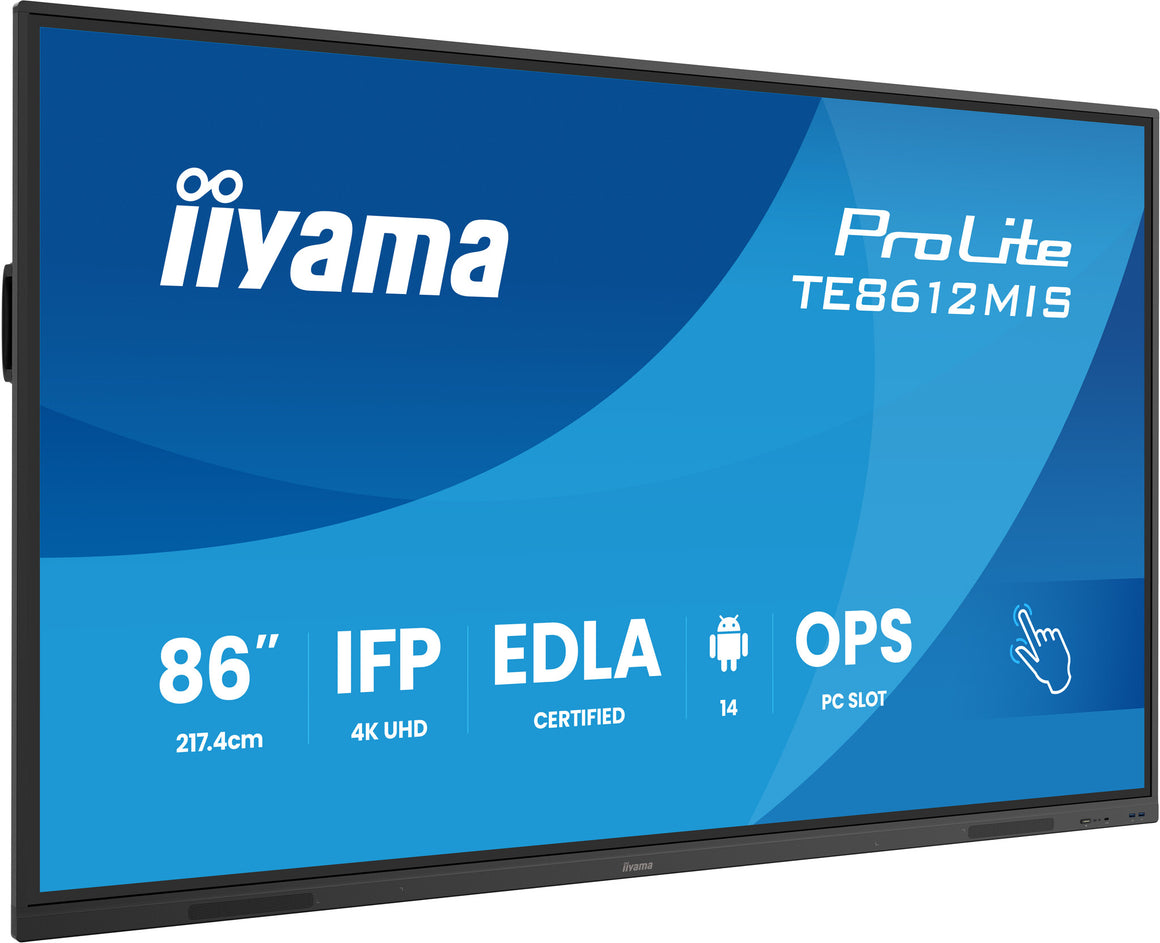

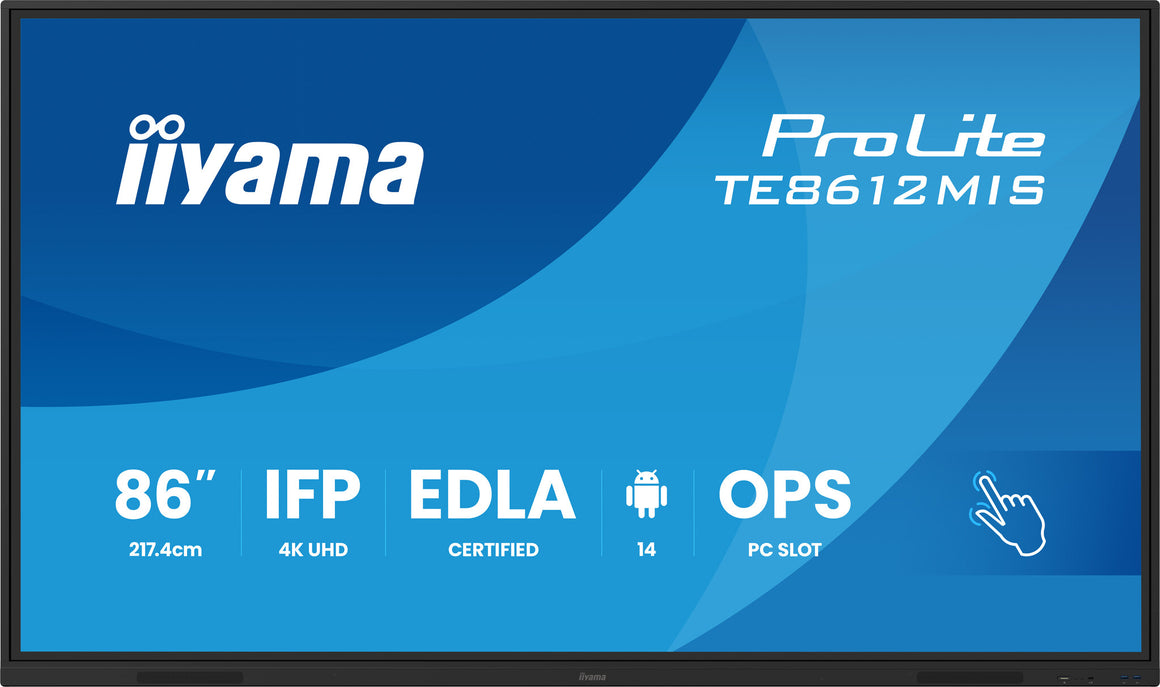

The TE8612MIS-B4AG is an exceptional 4K UHD interactive display designed by iiyama to enhance collaboration, communication, and engagement. With key features like Zero Airgap LCD DLED screen eliminating parallax, accurate PureTouch-IR, iiWare 13E with Android 14, WiFi and the iiyama DMS (Device management System), this display transforms the way you engage with content, making it an indispensable tool for modern workspaces and educational settings. Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke application and Cloud Drives or harmonize with your existing estate and unleash the true power of Windows and Office applications. iiyama TE8612MIS-B4AG becomes a highly personalised & flexible device within a busy hybrid environment for multiple users. Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. This affordable display transforms the modern workplaces, educational institutions, dynamic meeting spaces and beyond. Elevate your interactive experience with the iiyama TE12 SERIES displays and embrace the future of visual communication.
| Display |
|---|
| Surface hardness |
7H |
| Glass thickness |
3 mm |
| Horizontal scan range |
30 - 135 kHz |
| Display diagonal (metric) |
217.4 cm |
| Active display area (W x H) |
1895 x 1066 mm |
| Pixel pitch |
0.493 x 0.493 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
4000:1 |
| Contrast ratio (typical) |
1200:1 |
| Response time |
6.5 ms |
| Native aspect ratio |
16:9 |
| Multi-touch |
Yes |
| Number of simultaneous touchpoints |
40 |
| Touchscreen technology |
PureTouch-IR |
| Touchscreen |
Yes |
| HD type |
4K Ultra HD |
| Display brightness |
400 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| LED backlighting type |
Direct-LED |
| LED backlight |
Yes |
| Panel type |
IPS |
| Display technology |
LCD |
| Display diagonal |
2.17 m (85.6") |
| Ports & interfaces |
|---|
| OPS module slot |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Remote (IR) input |
1 |
| RS-232C |
Yes |
| PC Audio in |
Yes |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB Power Delivery up to |
65 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB connector type |
USB Type-A, USB Type-C |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
5 |
| USB port |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts in |
1 |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) input ports |
1 |
| HDMI output ports quantity |
1 |
| HDMI input ports quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
32 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Mounting type |
Wall |
| Anti-glare screen |
Yes |
| Bezel colour |
Black |
| Bezel width (top) |
1.65 cm |
| Bezel width (side) |
1.65 cm |
| Bezel width (bottom) |
3 cm |
| Panel mounting interface |
800 x 600 mm |
| VESA mounting |
Yes |
| Orientation |
Horizontal |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Interactive flat panel |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Operating hours (hours/days) |
24/7 |
| Number of OSD languages |
14 |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Swedish |
| Purpose |
Universal |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (SDR) per 1000 hours |
181 kWh |
| Energy efficiency class (SDR) |
G |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
181 W |
| Computer system |
|---|
| Operating system version |
14 |
| Operating system installed |
Android |
| Internal storage capacity |
128 GB |
| On-board graphics card model |
ARM Mali-G52 |
| Internal memory |
8 GB |
| Processor architecture |
ARM Cortex-A53+Cortex-A72 |
| Processor family |
ARM Cortex |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
48.5 kg |
| Display height |
1160 mm |
| Display depth |
98 mm |
| Display width |
1957 mm |
| Packaging data |
|---|
| Package weight |
64.5 kg |
| Package height |
1291 mm |
| Package depth |
2110 mm |
| Package width |
2110 mm |
| Packaging content |
|---|
| Cables included |
AC, HDMI, RS-232 |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| Technical details |
|---|
| OPS slot |
1 |
| Compliance certificates |
RoHS |
| Warranty period |
5 year(s) |
| Other features |
|---|
| Plug and Play |
Yes |
| Backlight type |
Direct LED |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Quick start guide |
Yes |
| Housing material |
Metal |
| Power supply type |
Internal |
| Audio output |
3.5mm |
