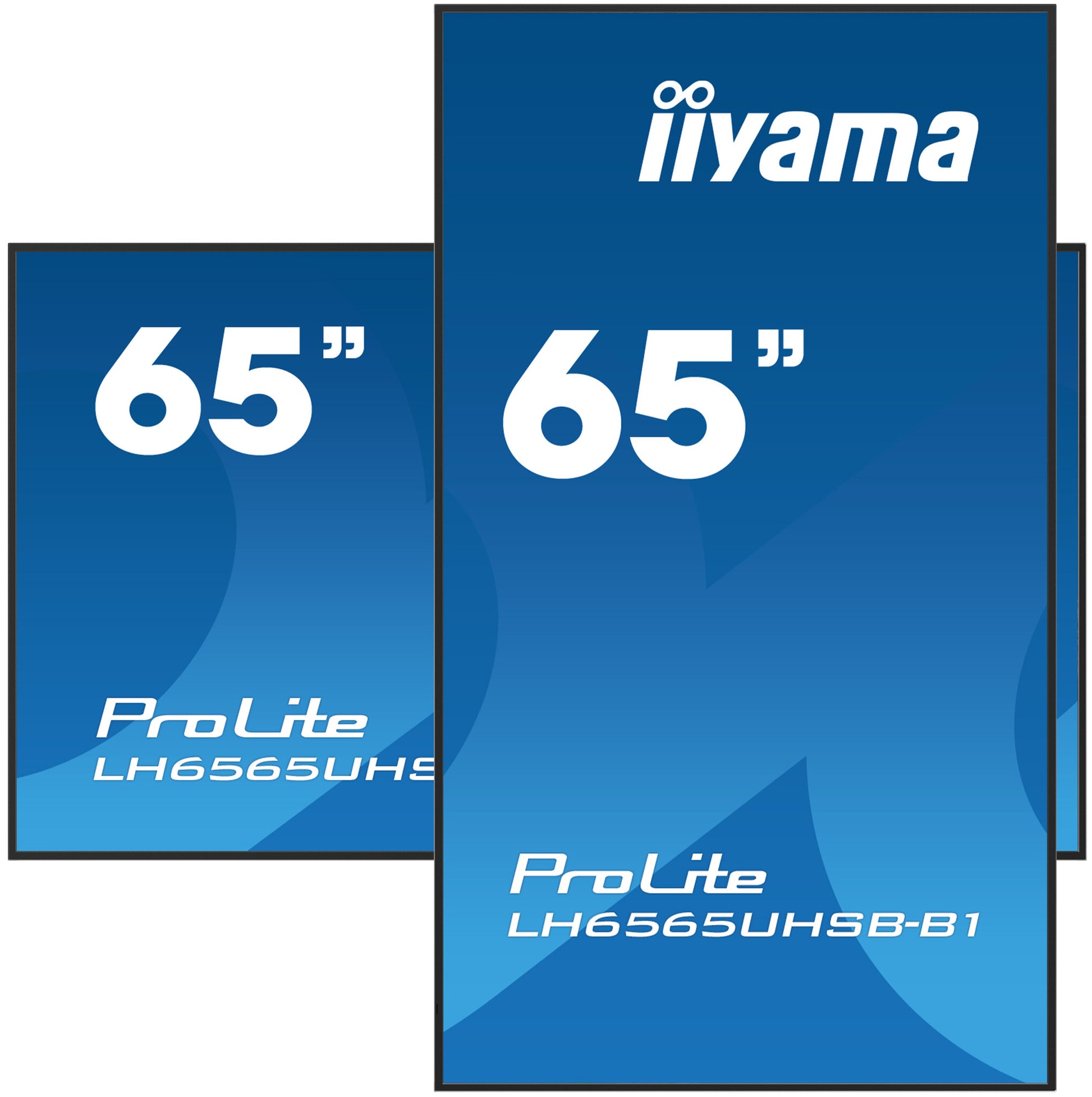

Create dynamic, show stopping content, designed to entice and captivate your audience. The LH6565UHSB vivid-bright display, boasting 800cd/m², can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and smoothly run third party applications, including multiple CMS platforms. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.
| Display |
|---|
| RGB colour space |
NTSC |
| Native refresh rate |
60 Hz |
| Horizontal scan range |
28 - 160 kHz |
| Haze rate |
1% |
| Display diagonal (metric) |
163.9 cm |
| Active display area (W x H) |
803.52 x 680.72 mm |
| Pixel pitch |
0.372 x 0.372 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Touchscreen |
No |
| HD type |
4K Ultra HD |
| Display brightness |
800 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| Panel type |
IPS |
| Display technology |
LED |
| Display diagonal |
163.8 cm (64.5") |

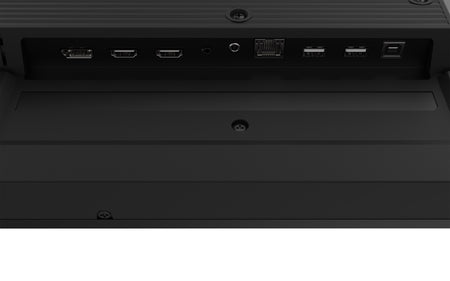

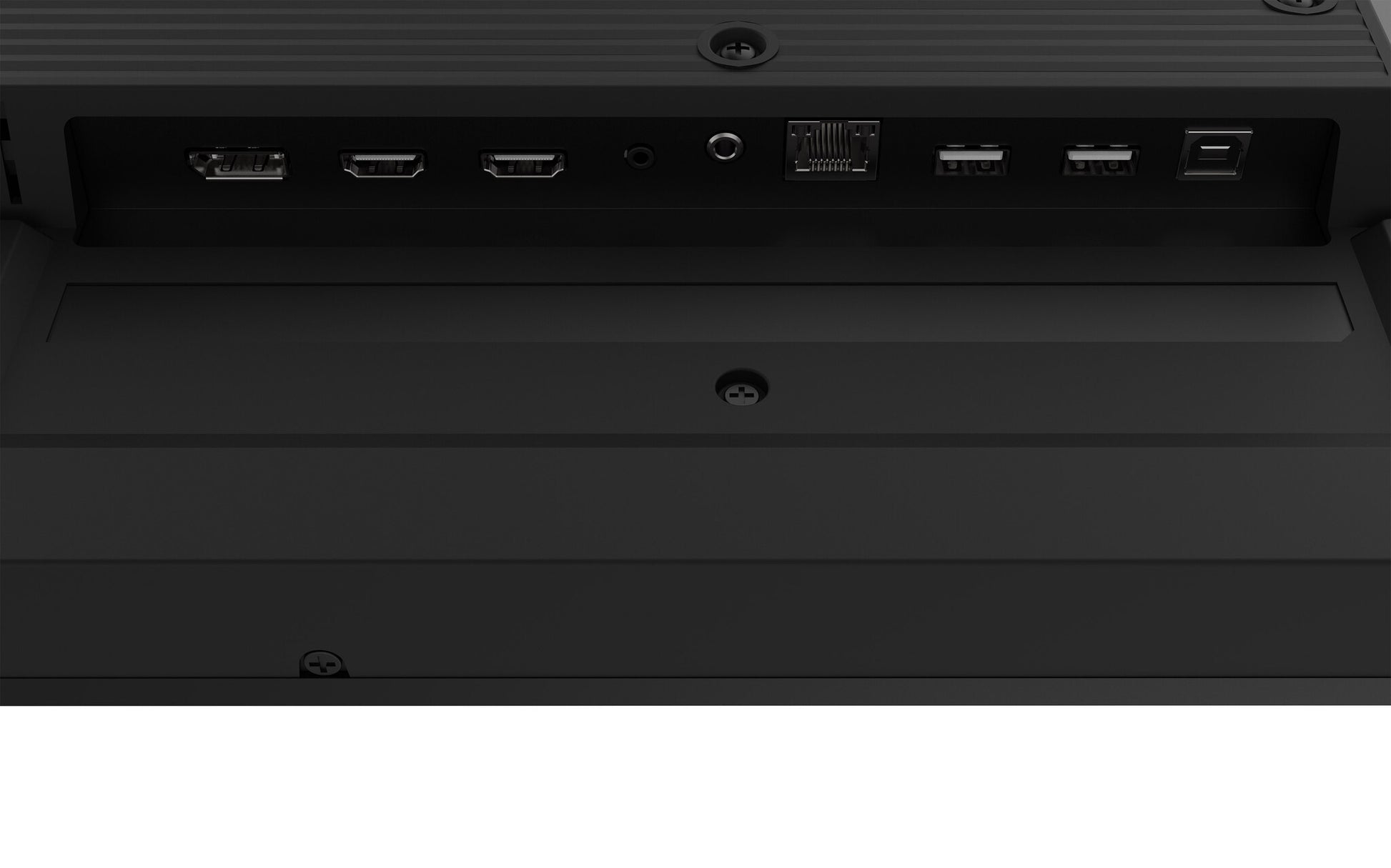

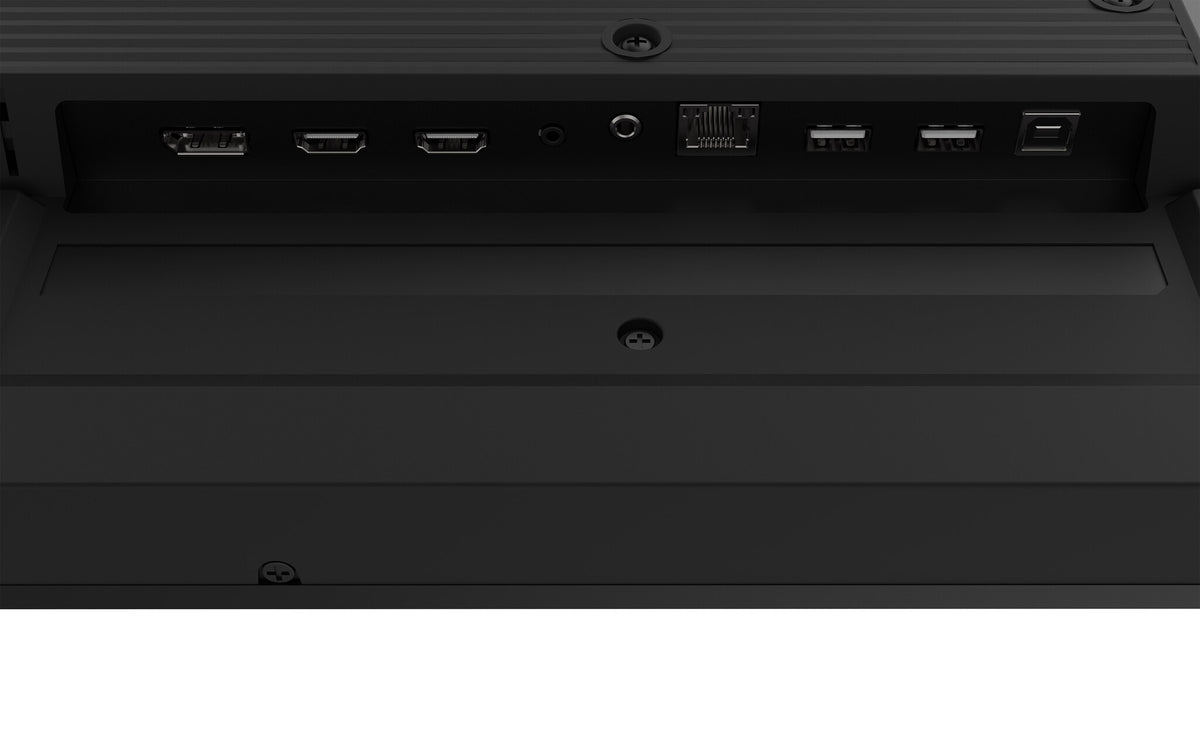

| Ports & interfaces |
|---|
| RS-232C |
Yes |
| RS-232 interface |
Yes |
| Audio (L/R) in |
1 |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB version |
2.0 |
| USB ports quantity |
2 |
| USB port |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
2 |
| Audio |
|---|
| RMS rated power |
20 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Bezel colour |
black |
| Bezel width (top) |
1.49 cm |
| Bezel width (side) |
1.49 cm |
| Bezel width (bottom) |
1.49 cm |

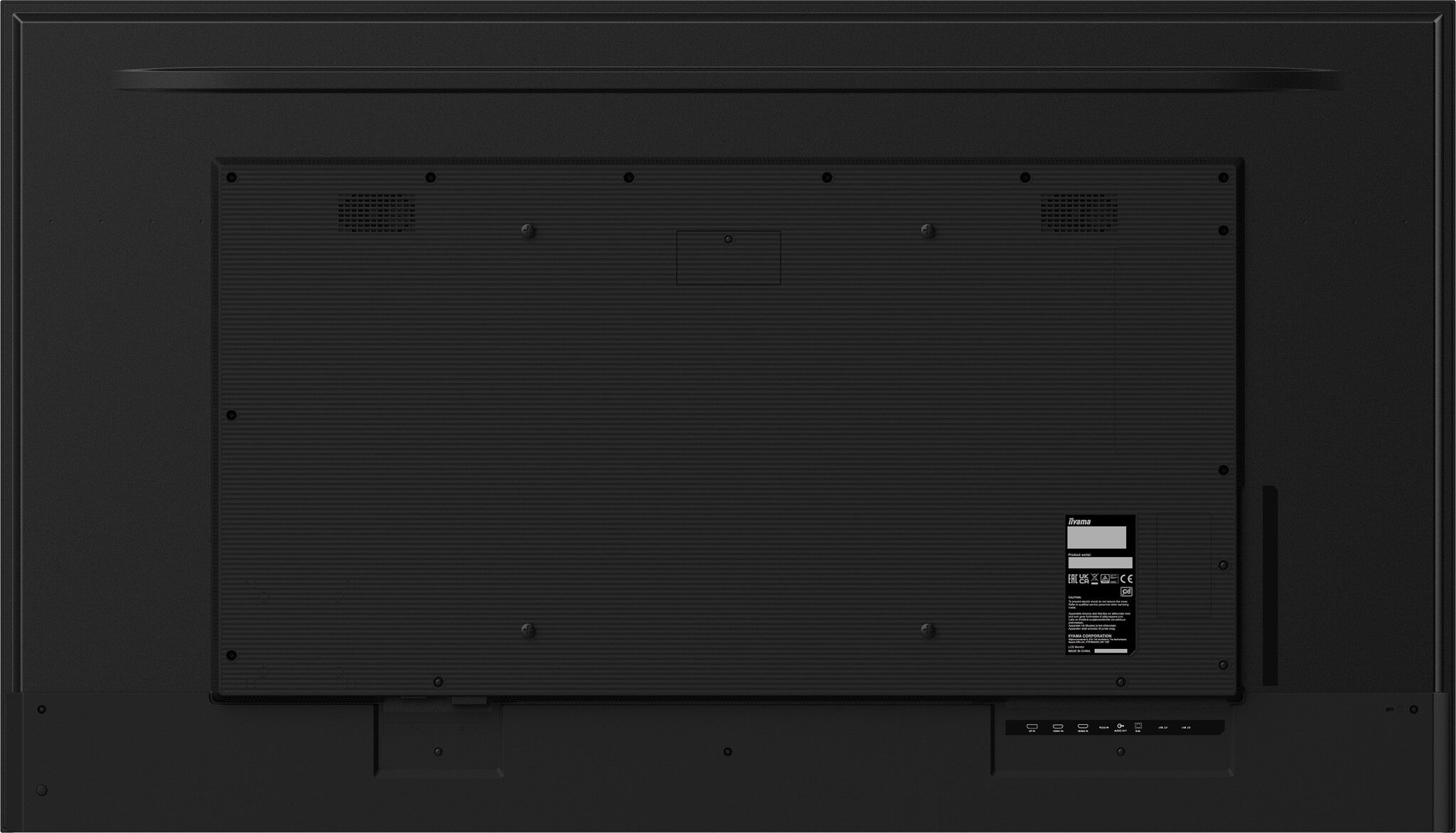

| Panel mounting interface |
400 x 400 mm |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Product colour |
Black |
| Product design |
Kiosk design |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Operating hours (hours/days) |
24/7 |
| Number of OSD languages |
8 |
| On Screen Display (OSD) languages |
Simplified Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Purpose |
Commercial |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (SDR) per 1000 hours |
104 kWh |
| Energy efficiency class (SDR) |
E |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
104 W |
| Computer system |
|---|
| Operating system installed |
Android 11 |
| Internal storage capacity |
32 GB |
| On-board graphics card model |
ARM Mali-G52 |
| Internal memory |
4 GB |
| Processor cores |
8 |
| Processor architecture |
ARM Cortex-A53+Cortex-A73 |
| Processor family |
ARM Cortex |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Computer system |
Yes |
| Weight & dimensions |
|---|
| Display weight |
20.7 kg |
| Display height |
832.5 mm |
| Display depth |
56 mm |
| Display width |
1456.5 mm |
| Packaging data |
|---|
| Package weight |
28.7 kg |
| Package height |
1016 mm |
| Package depth |
162 mm |
| Package width |
1345 mm |
| Packaging content |
|---|
| Cables included |
HDMI, Power, RS-232 |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
-20 - 60% |
| Operating temperature (T-T) |
0 - 40 °C |
