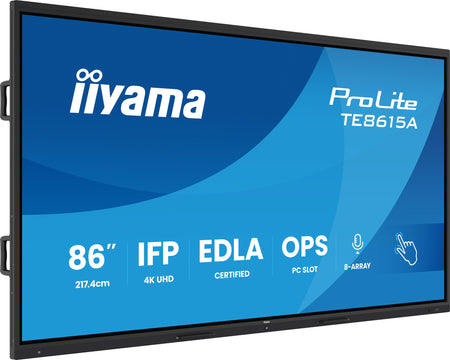

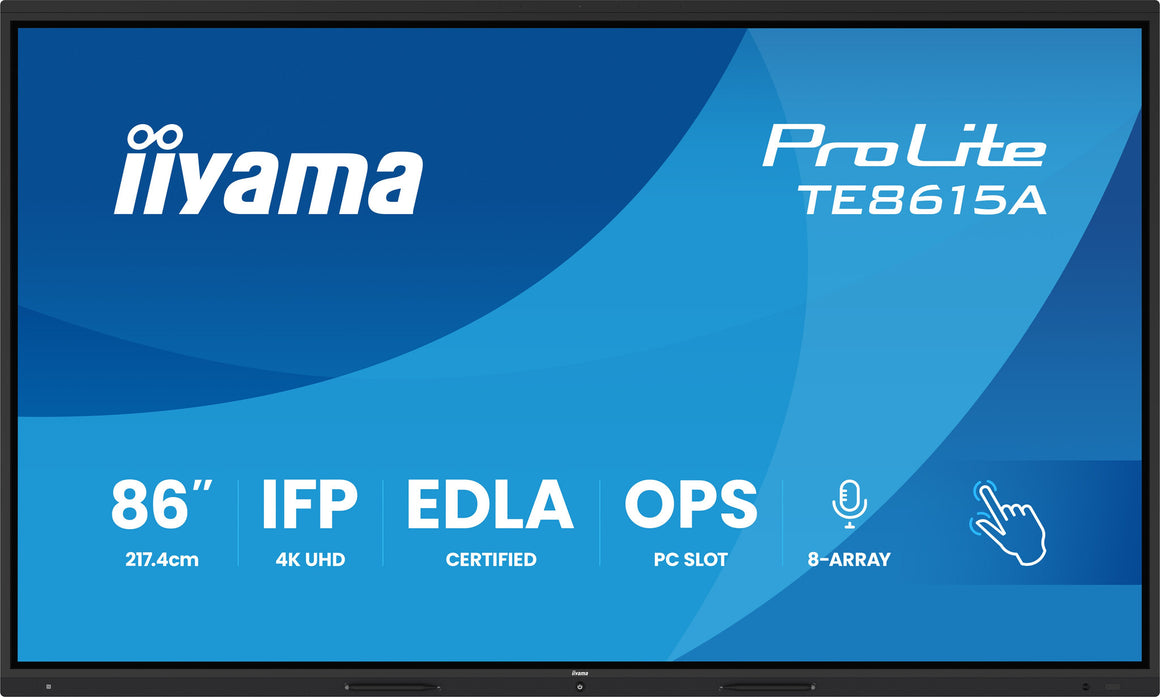

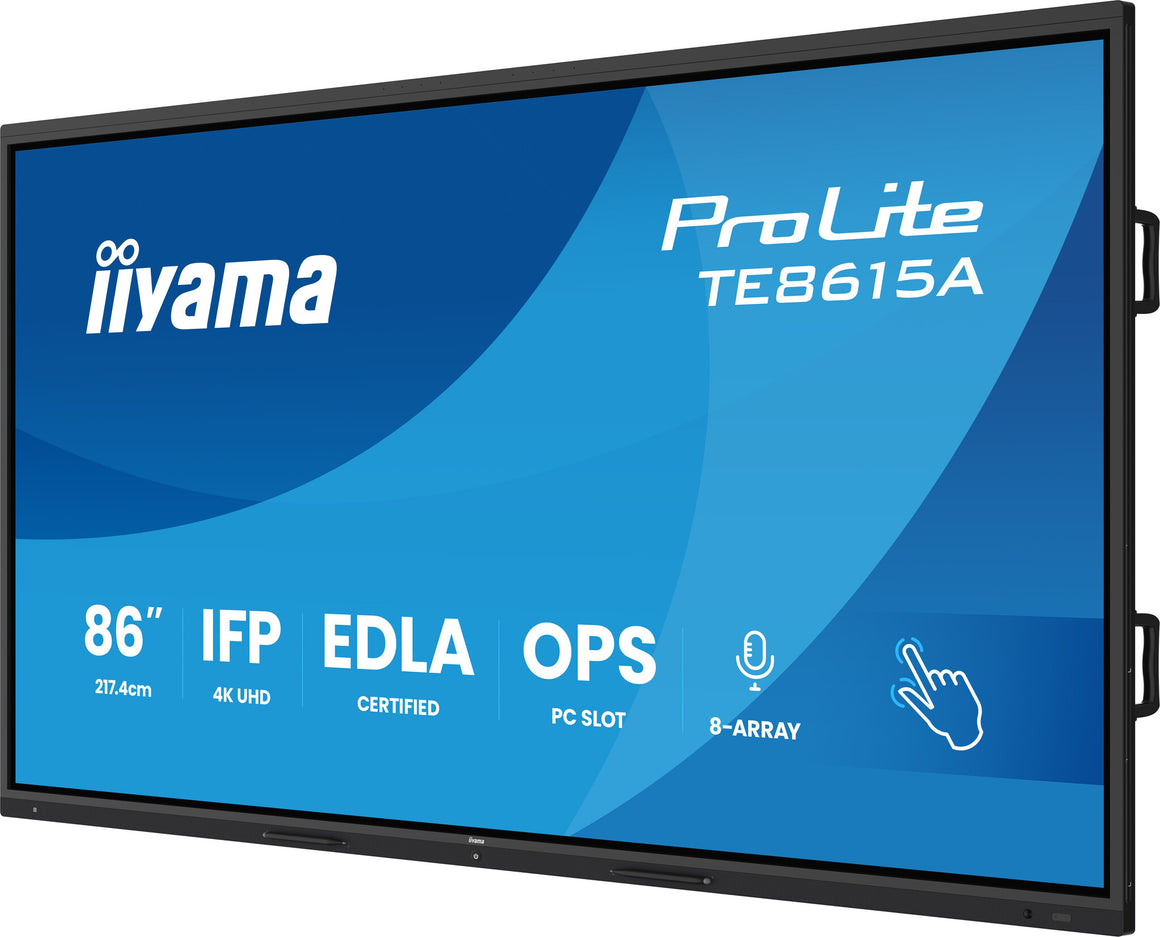

Elegance and functionality come together in the ProLite TE8615A-B1AG. This 86” 4K UHD panel not only delivers precision and performance, but also brings a premium look to modern classrooms and collaborative business environments. With its button-free front panel (only a discreet power button), integrated pen holders, and a stylish fabric-covered bottom bezel that subtly houses high-quality front-facing speakers, the TE8615A elevates the visual experience of any room. It’s more than a tool—it’s part of your space. Coupled with DeepContrast-IR+ technology and Palm Rejection, it offers fluid and natural writing on the Optical Bonding LCD, eliminating parallax for an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA Certified), the display integrates effortlessly into Google environments. Features like WiFi 6, Bluetooth 5.0 and PIR motion sensor add a layer of connectivity, energy efficiency, and access control. With iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), the TE8615A promotes seamless teamwork—whether you're presenting, teaching, or brainstorming. The TE8615A-B1AG isn’t just an interactive display—it’s a centerpiece for connection, creativity, and collaboration, all wrapped in a refined, modern design.
| Display |
|---|
| Surface hardness |
7H |
| Glass thickness |
3.2 mm |
| Display diagonal (metric) |
217.4 cm |
| Active display area (W x H) |
1895 x 1066 mm |
| Pixel pitch |
0.493 x 0.493 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Number of simultaneous touchpoints (Android) |
32 |
| Multi-touch |
Yes |
| Number of simultaneous touchpoints |
40 |
| Touchscreen technology |
Infrared |
| Touchscreen |
Yes |
| HD type |
4K Ultra HD |
| Display brightness |
550 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| Panel type |
IPS |
| Display diagonal |
2.17 m (85.6") |

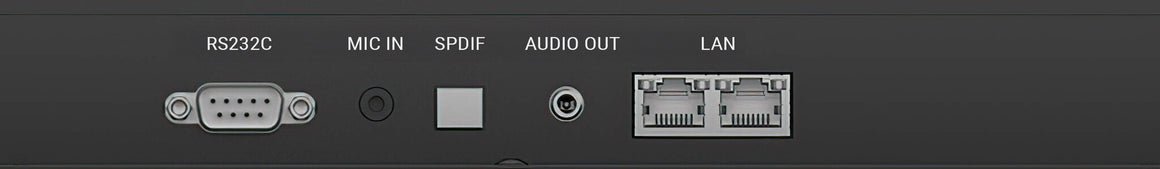

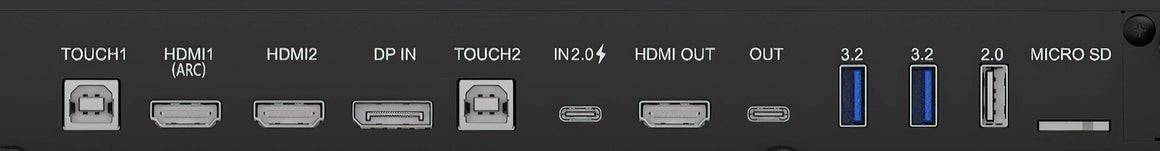

| Ports & interfaces |
|---|
| OPS module slot |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| RS-232C |
Yes |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
2 |
| Ethernet LAN |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB connector type |
USB Type-A, USB Type-C |
| USB ports quantity |
4 |
| USB port |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts in |
1 |
| DisplayPorts quantity |
1 |
| DVI port |
No |
| HDMI output ports quantity |
1 |
| HDMI input ports quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
60 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Anti-glare screen |
Yes |
| Bezel colour |
Black |

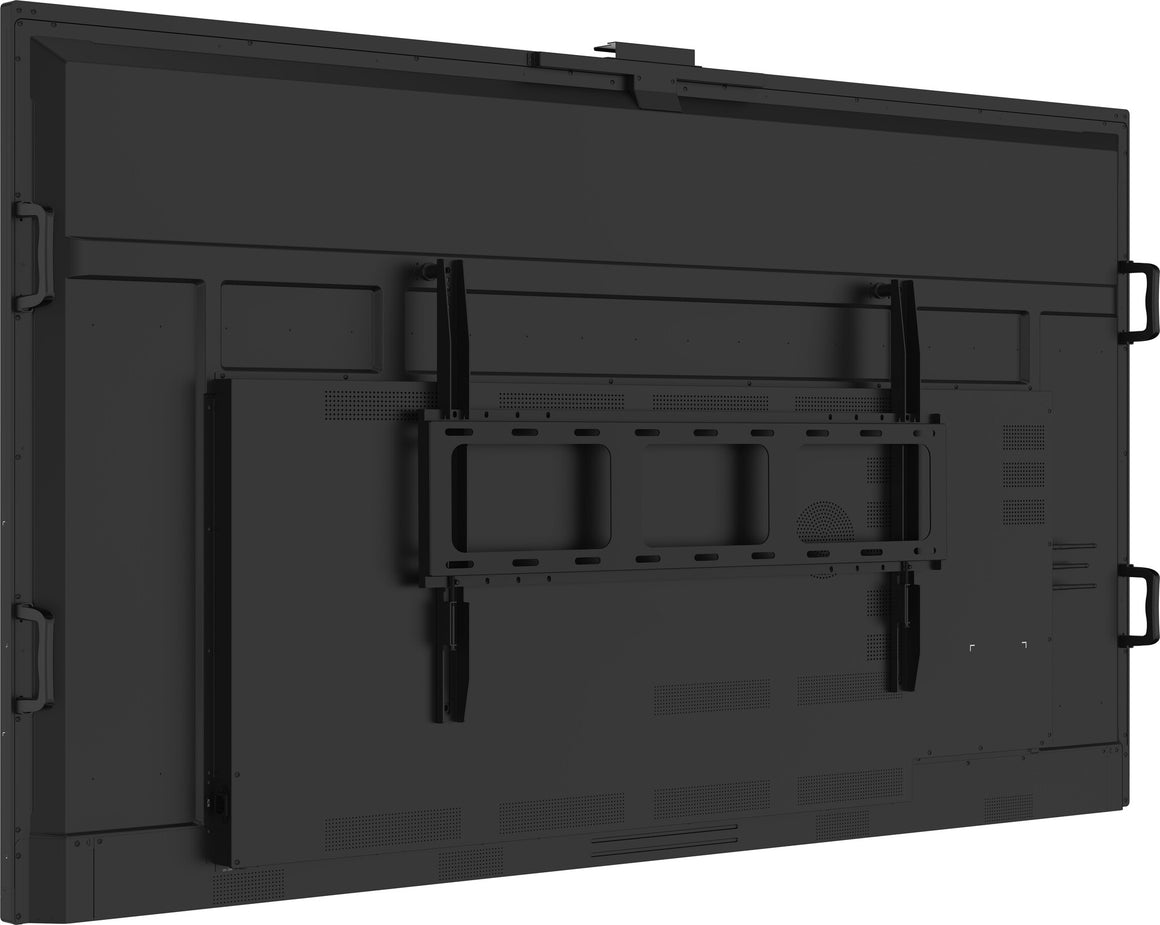

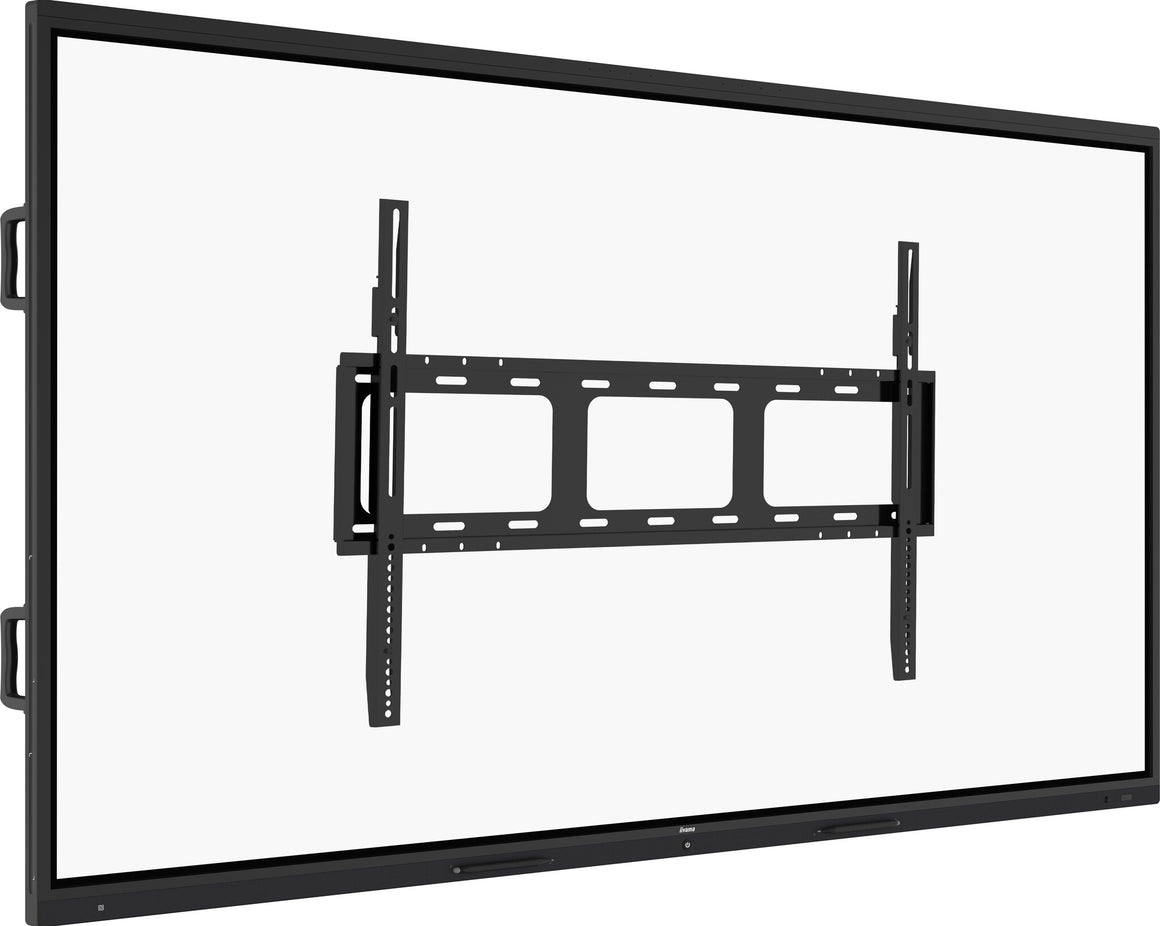

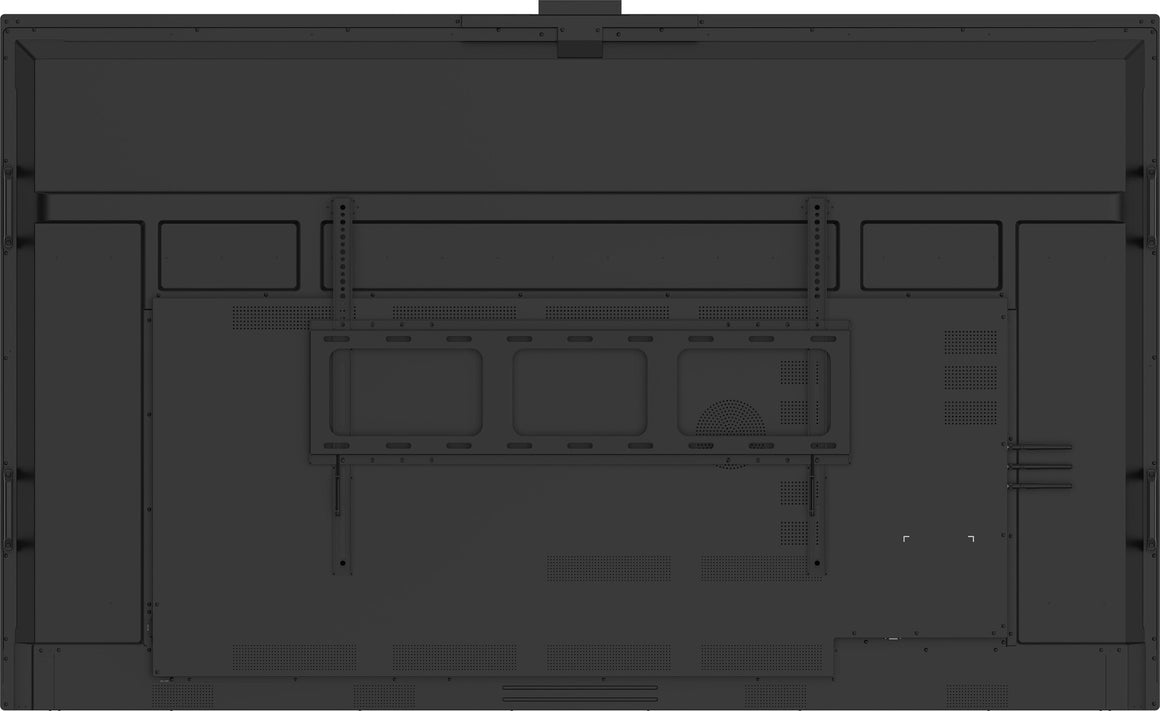

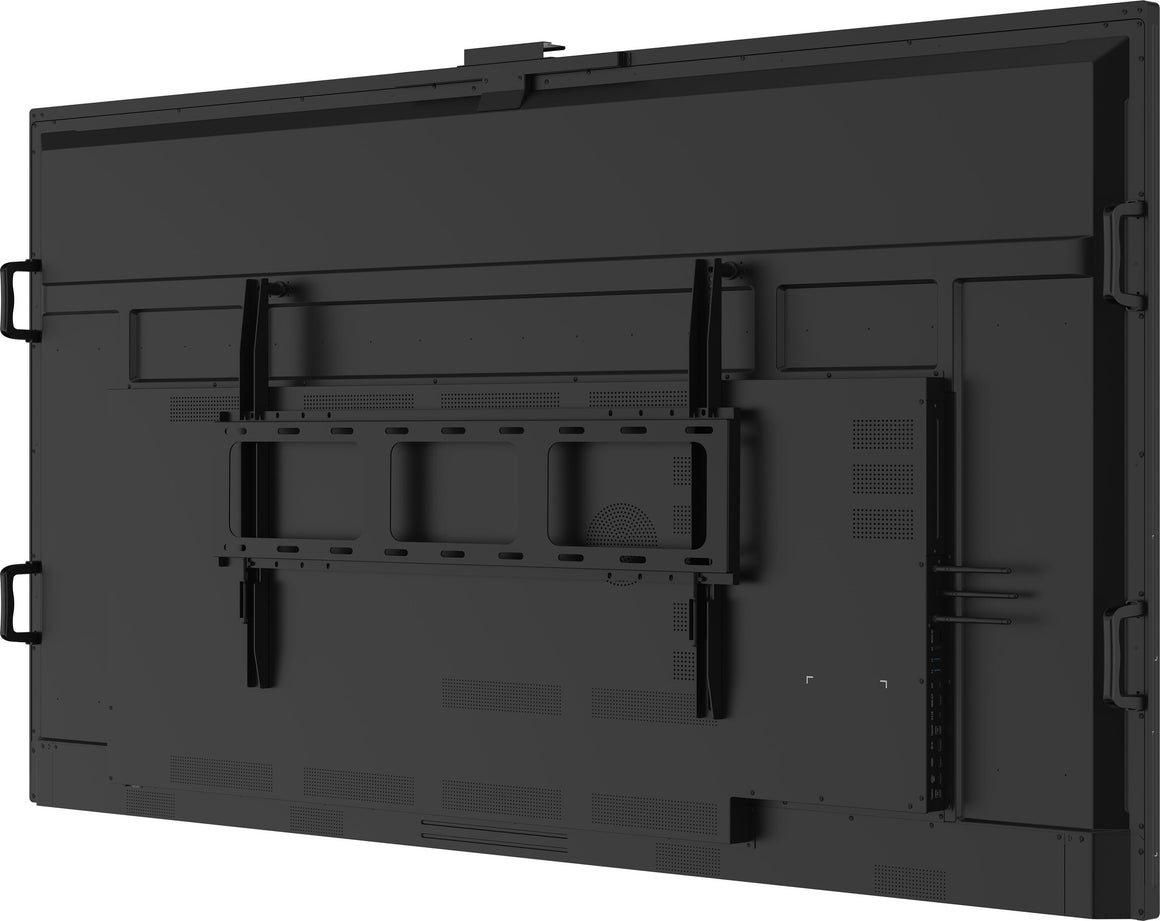

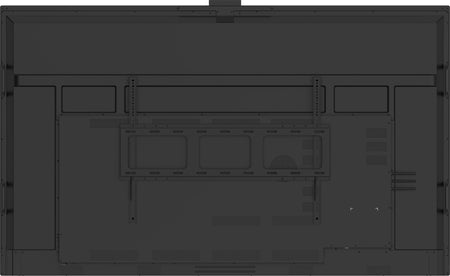

| Panel mounting interface |
800 x 600 mm |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Orientation |
Horizontal |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Interactive flat panel |
| Performance |
|---|
| Mean time between failures (MTBF) |
50000 h |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Motion sensor |
Yes |
| Ambient light sensor |
Yes |
| Number of OSD languages |
14 |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Multi |
| Picture-in-Picture |
Yes |
| Purpose |
Universal |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (SDR) per 1000 hours |
300 kWh |
| Energy efficiency class (SDR) |
G |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
300 W |
| Computer system |
|---|
| Operating system version |
14 |
| Operating system installed |
Android |
| Internal storage capacity |
128 GB |
| On-board graphics card model |
ARM Mali-G52 |
| Internal memory |
16 GB |
| Processor cores |
7 |
| Processor architecture |
ARM Cortex-A53+Cortex-A72 |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Display weight |
68 kg |
| Display height |
1174.3 mm |
| Display depth |
87.1 mm |
| Display width |
1955.6 mm |
| Packaging data |
|---|
| Package weight |
82.7 kg |
| Package height |
1265 mm |
| Package depth |
2095 mm |
| Package width |
2095 mm |
| Packaging content |
|---|

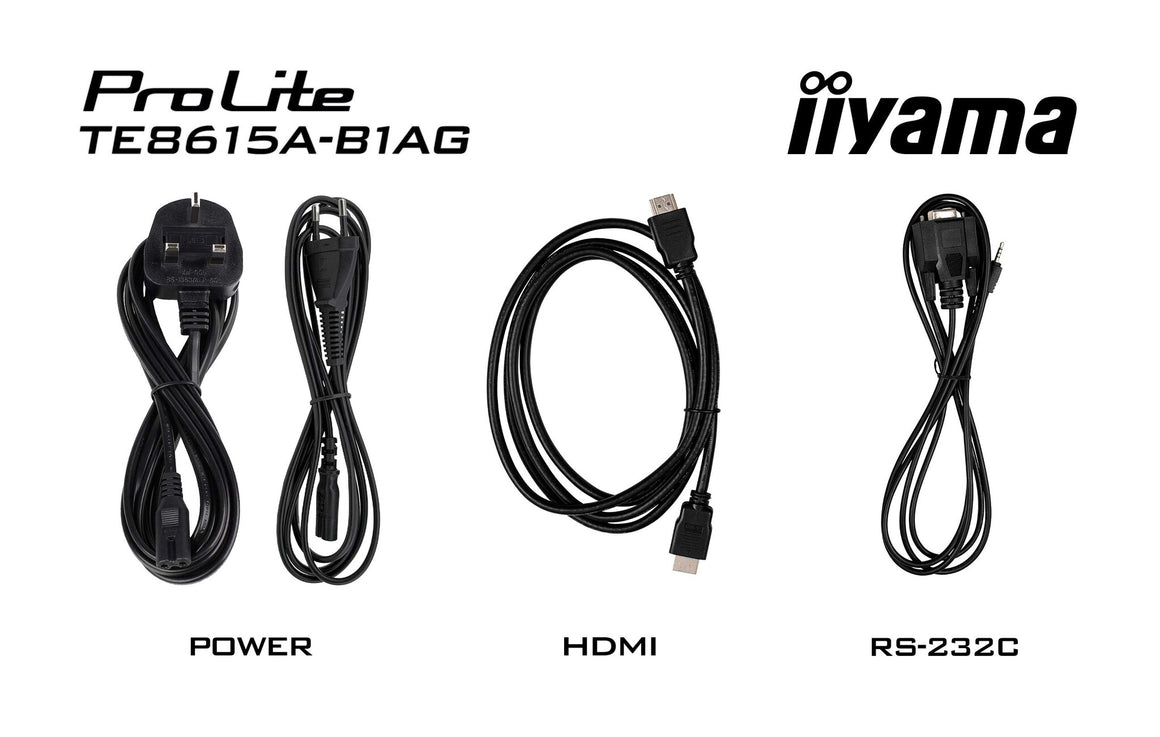

| Cables included |
AC, HDMI, USB |

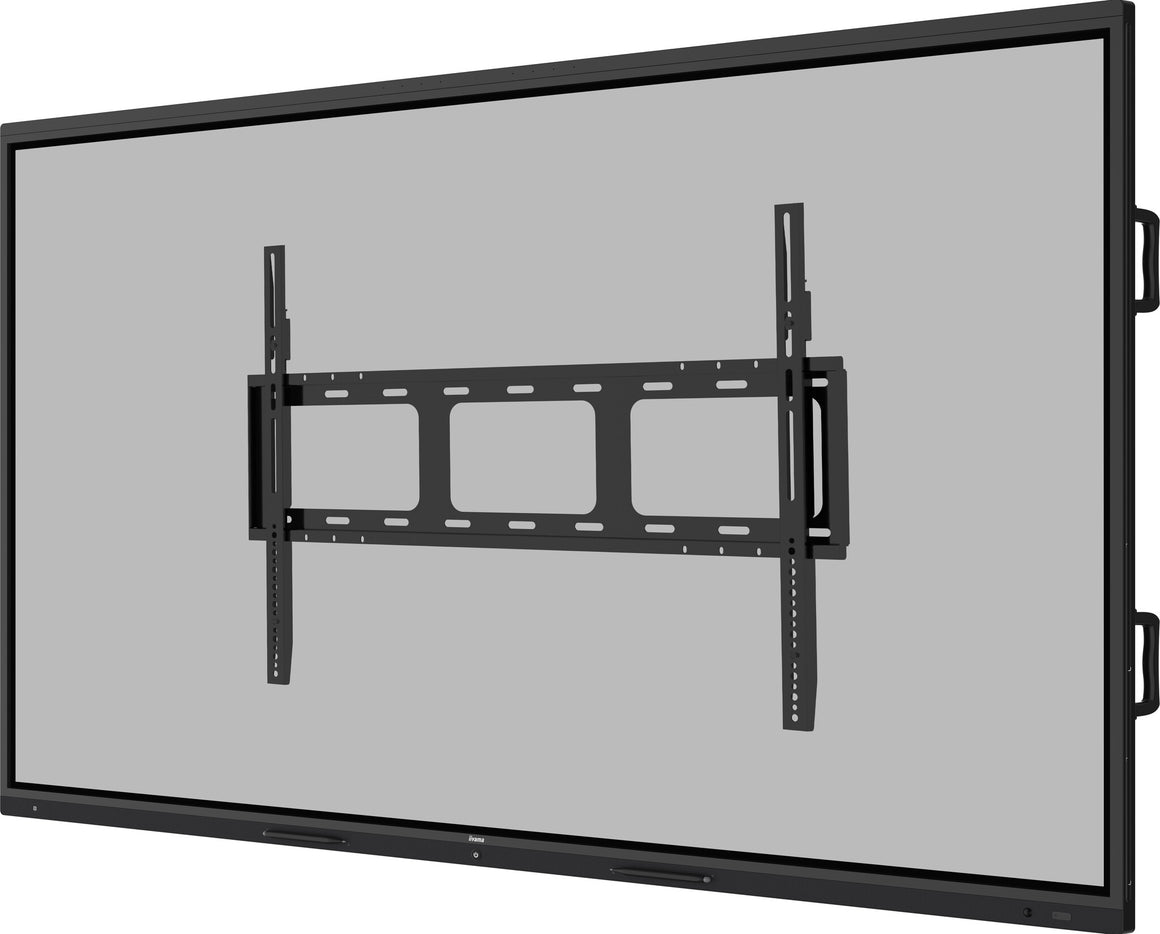

| Mounting kit |
Yes |

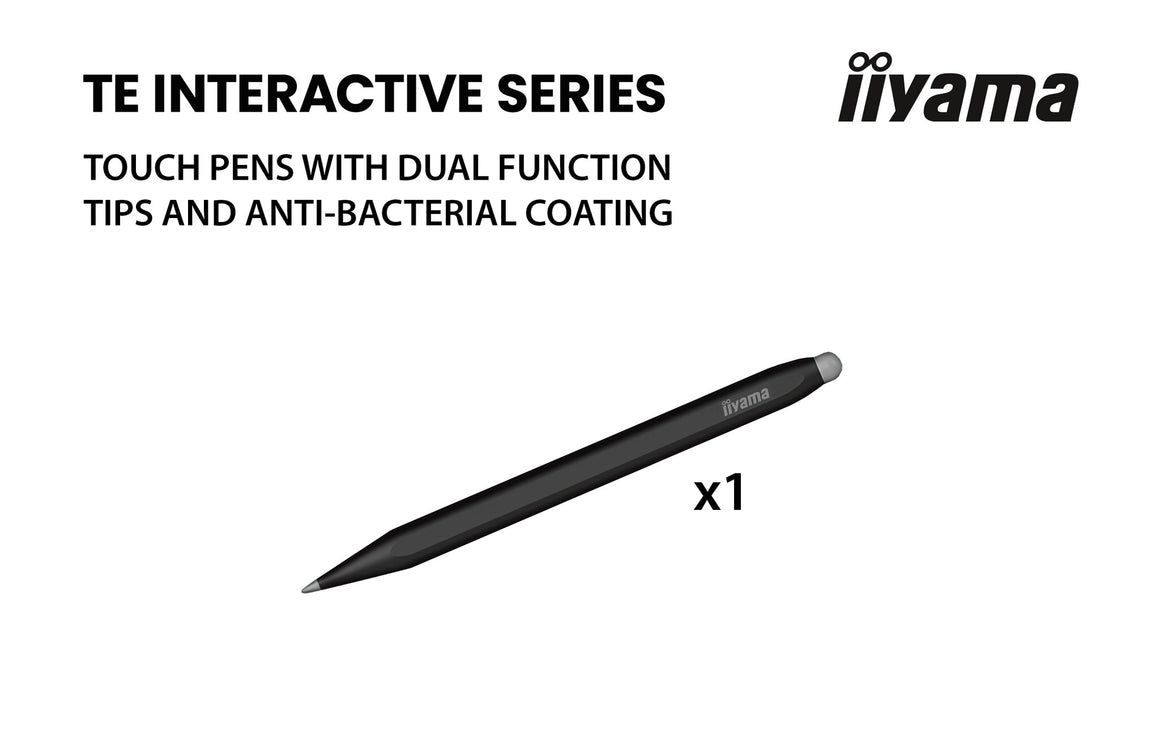

| Stylus pen |
Yes |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
-20 - 60% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS), EPEAT |
| Technical details |
|---|
| OPS slot |
1 |
| Other features |
|---|
| Quick start guide |
Yes |
| Power supply type |
Internal |
| Bluetooth version |
5.0 |
| Audio input |
Mini jack |
| Audio output |
Mini jack |
| Bluetooth |
Yes |
