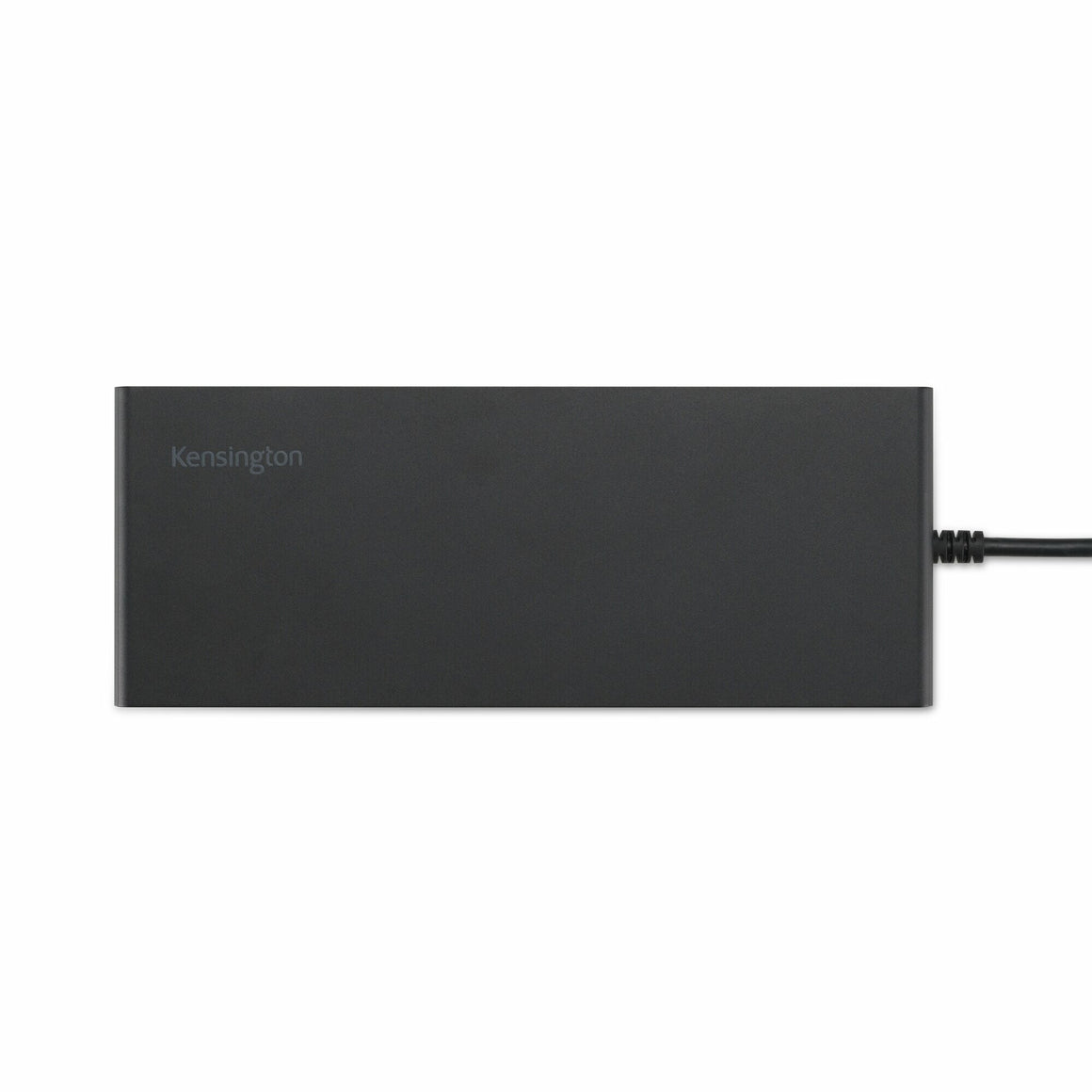

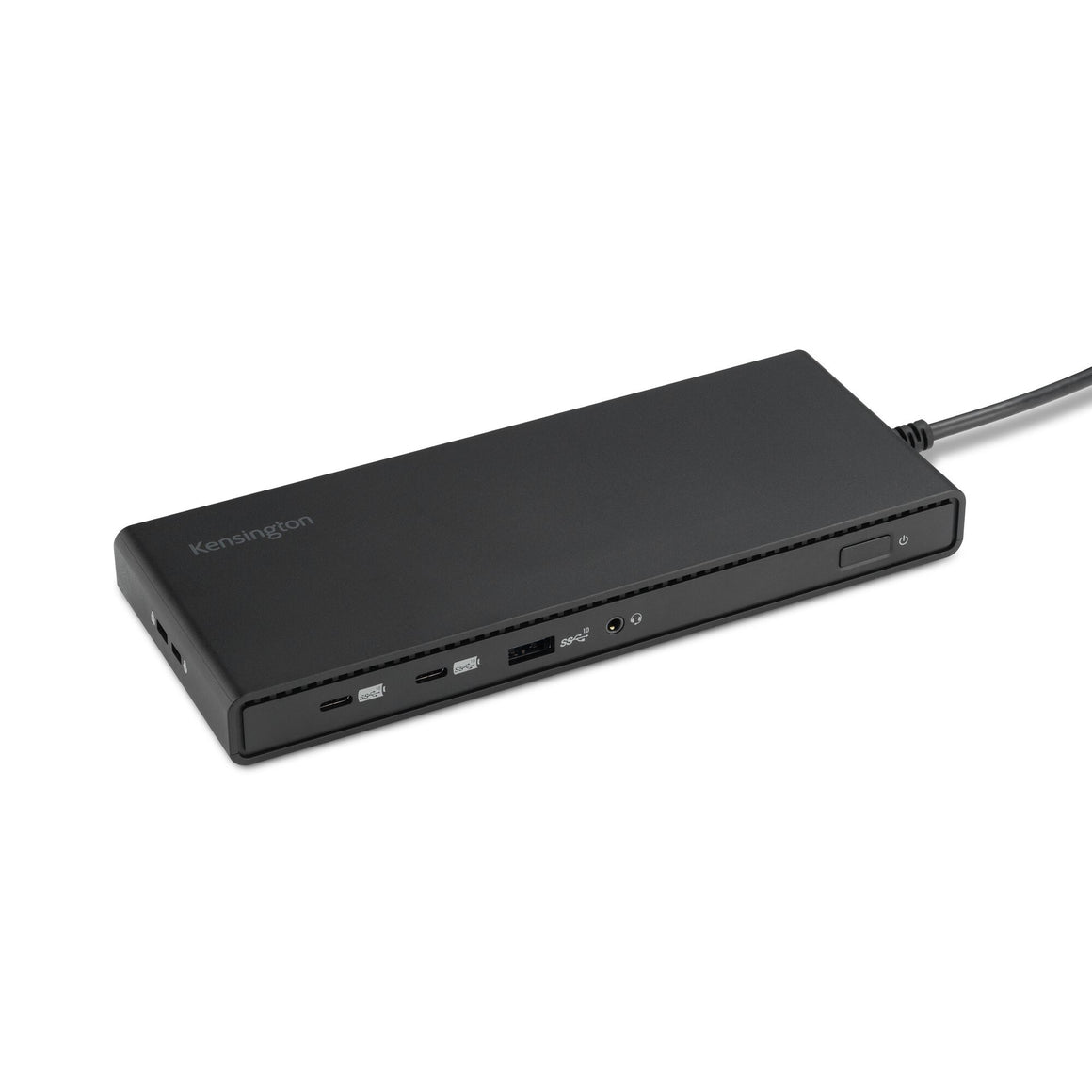

Ideal for professionals requiring a plug-and-play docking solution for USB-C laptops and organizations putting sustainability at the forefront, the SD4842P USB-C® 10Gbps Triple Video Docking Station amplifies visual productivity.

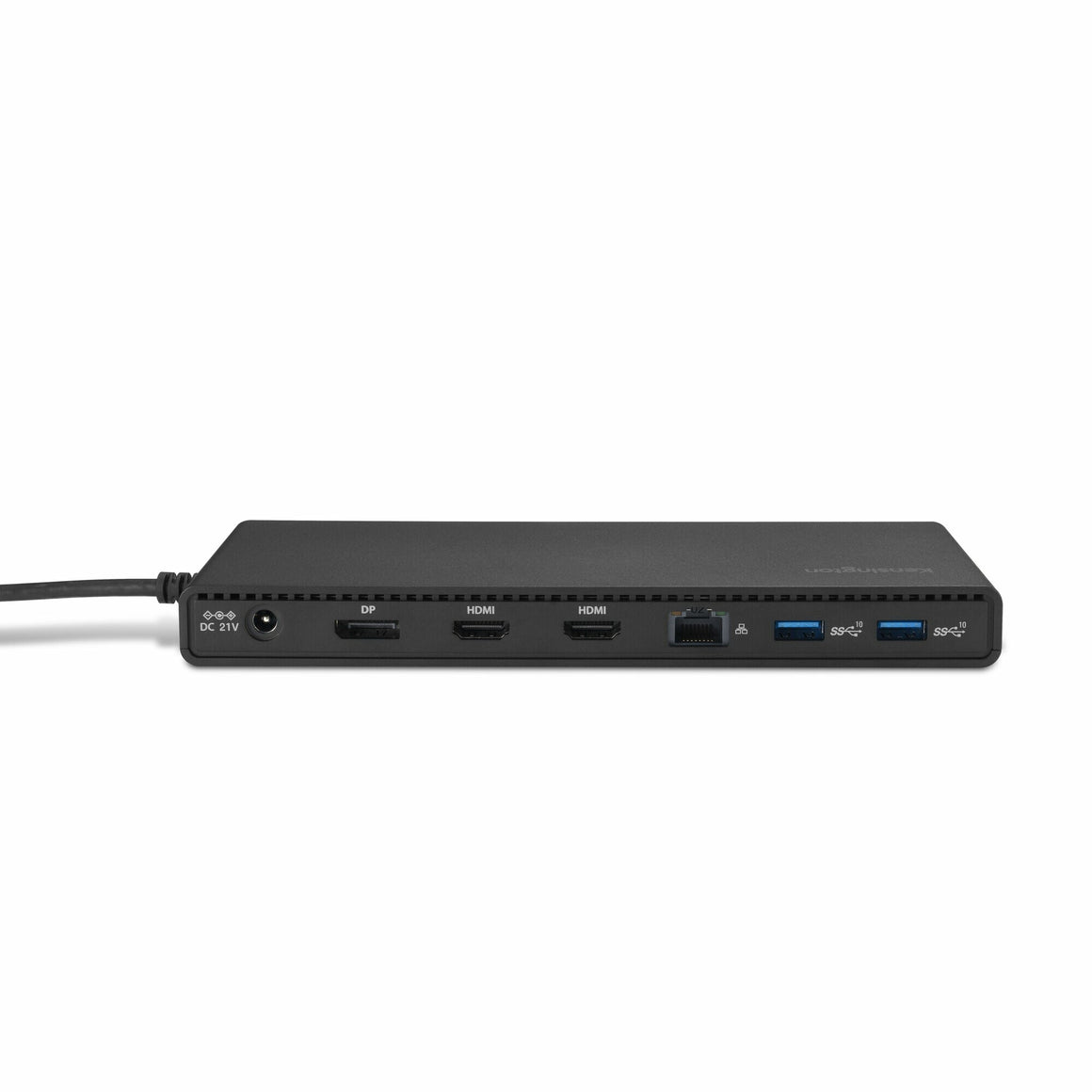

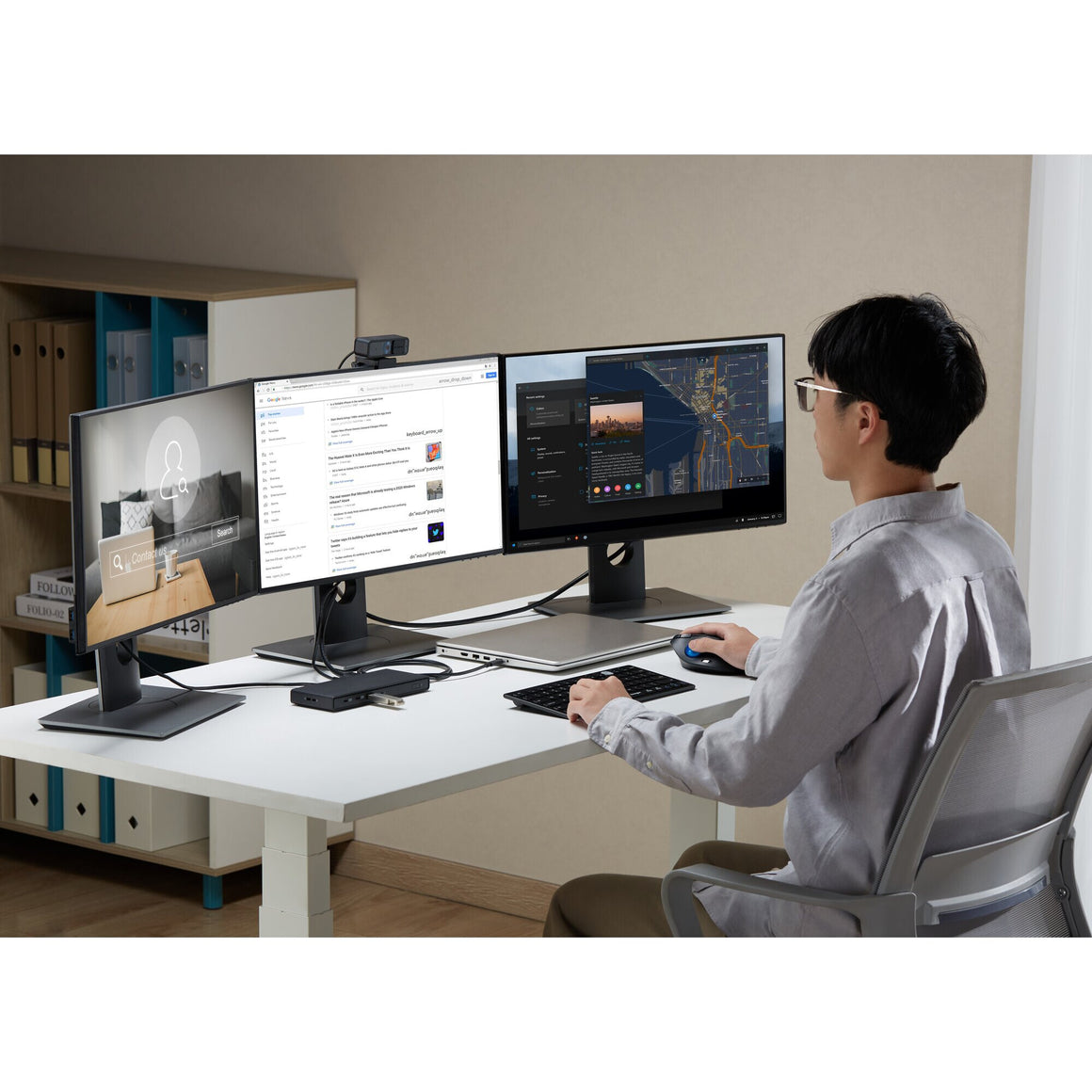

Aimed at reducing our environmental impact, all the plastic material used in the SD4842P is composed of up to 70% post-consumer recycled content (PCR). The SD4842P supports up to 3 external Full HD monitors (1080p @ 120Hz) via 1 x DP and 2 x HDMI® connections. The dock also eliminates the need for cumbersome adapters, charging connected accessories without relying on a host laptop connection.
Expand your screens with an effortless dock that will enhance your workflow.
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| HDCP |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Combo headphone/mic port |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
2 |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |

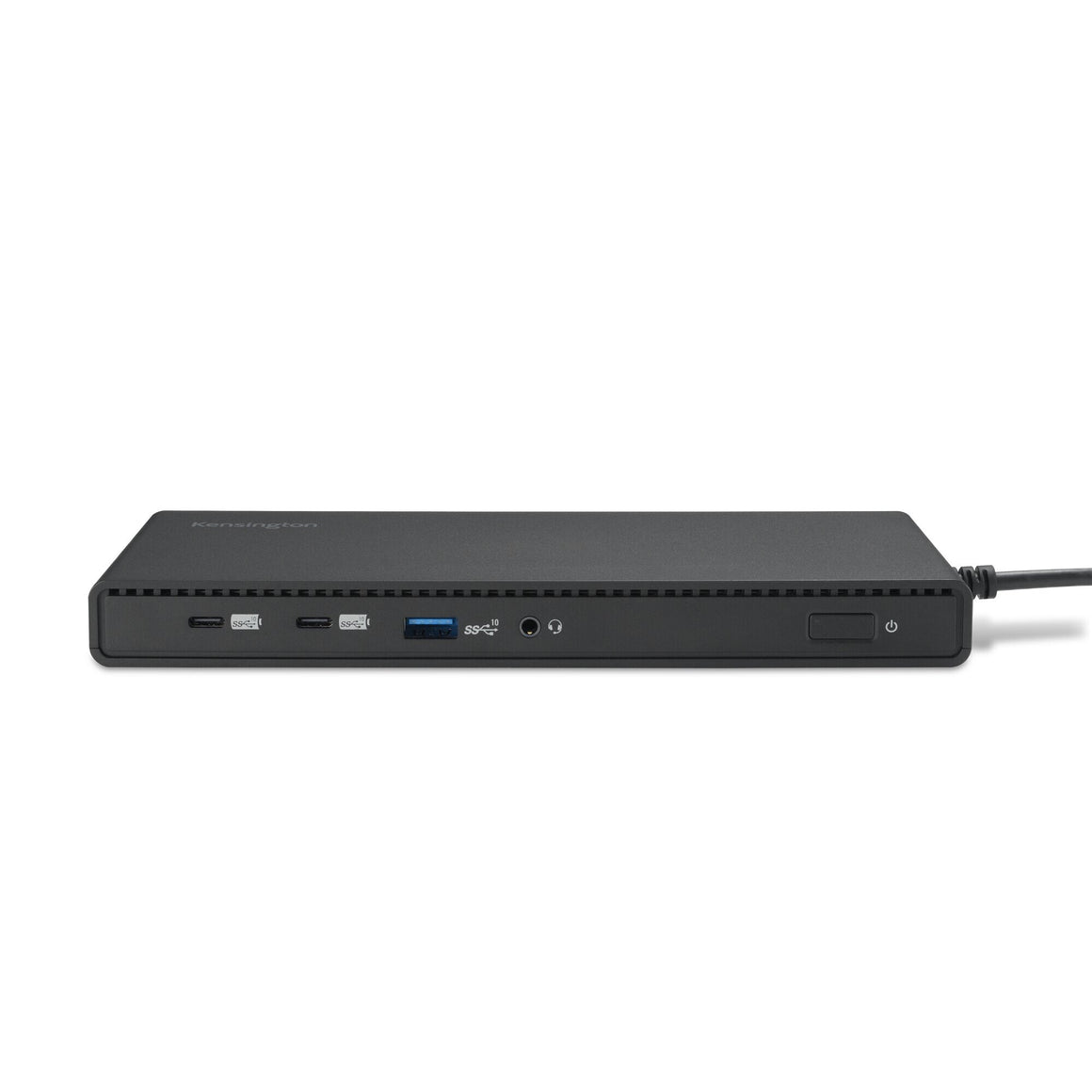

| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Connectivity technology |
Docking |
| Network |
|---|
| Ethernet LAN data rates |
10,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Country of origin |
Vietnam |
| Plug and Play |
Yes |
| LED indicators |
Yes |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| On/off switch |
Yes |

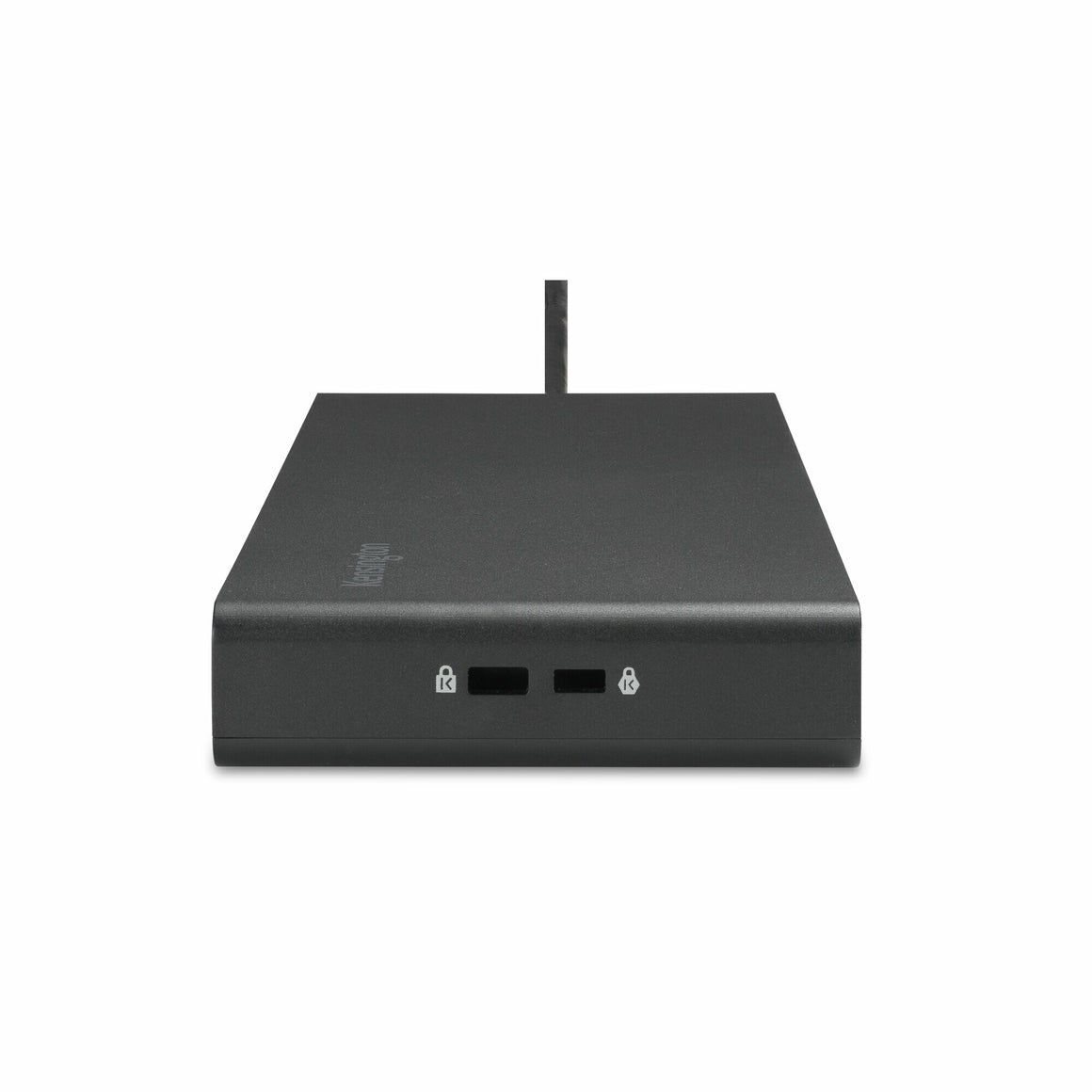

| Cable lock slot type |
Kensington, Nano |
| Cable lock slot |
Yes |
| Maximum refresh rate |
120 Hz |
| Number of displays supported |
3 |
| HD type |
4K Ultra HD |
| Data transfer rate |
10 Gbit/s |
| Card reader integrated |
No |
| Product colour |
Black |
| Power |
|---|
| Compatible power plug types |
EU, UK |
| Output voltage |
21 V |
| Output current |
7.1 A |
| Input current |
2.5 A |
| AC input voltage |
100 - 240 V |
| Power source type |
DC |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 55% |
| Storage temperature (T-T) |
-18 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
ErP |
| Weight & dimensions |
|---|
| Weight |
293 g |
| Height |
36 mm |
| Depth |
104 mm |
| Width |
195 mm |
| Packaging data |
|---|
| Package weight |
1.15 kg |
| Package height |
100 mm |
| Package depth |
245 mm |
| Package width |
125 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC |

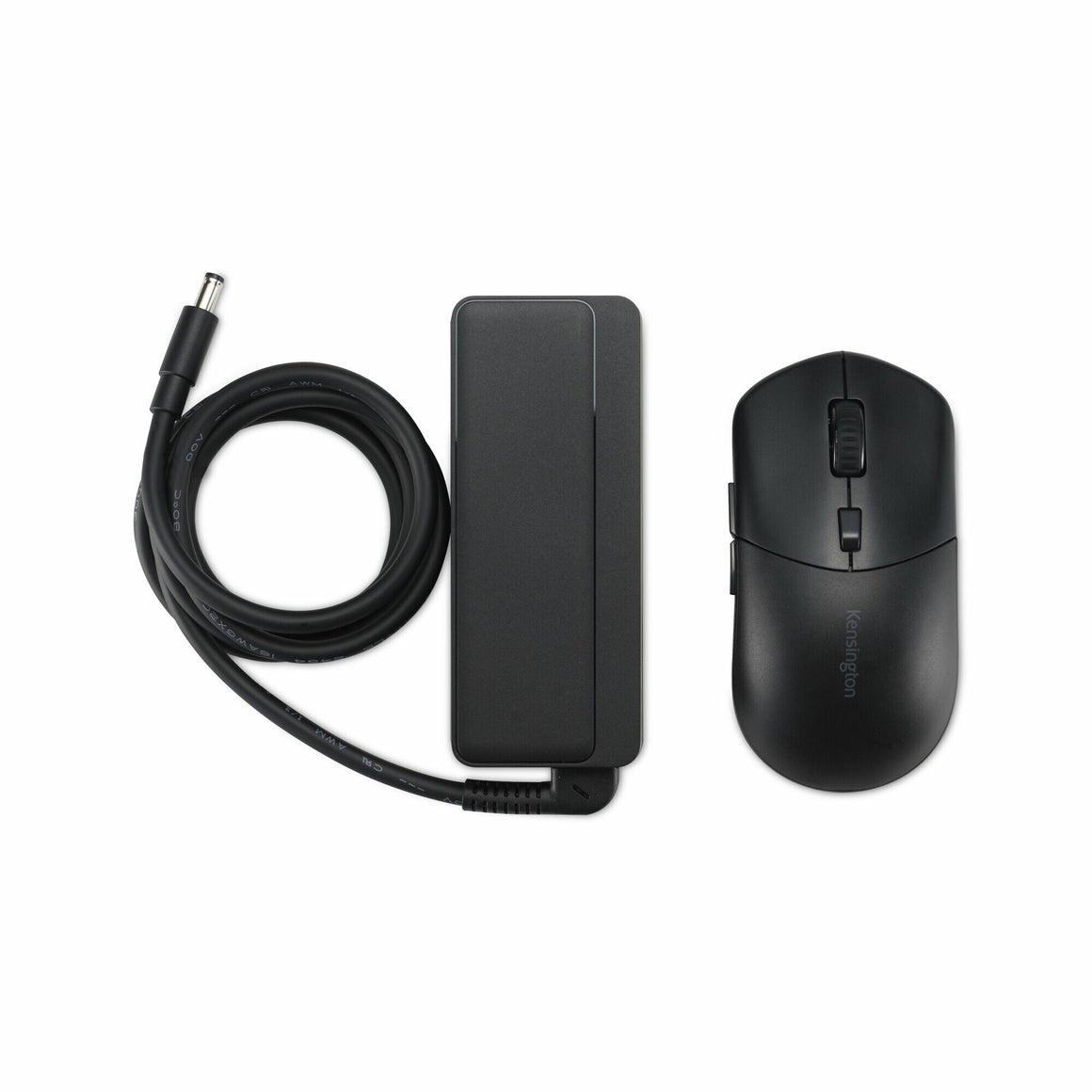

| AC adapter included |
Yes |
| Warranty card |
Yes |
| Technical details |
|---|

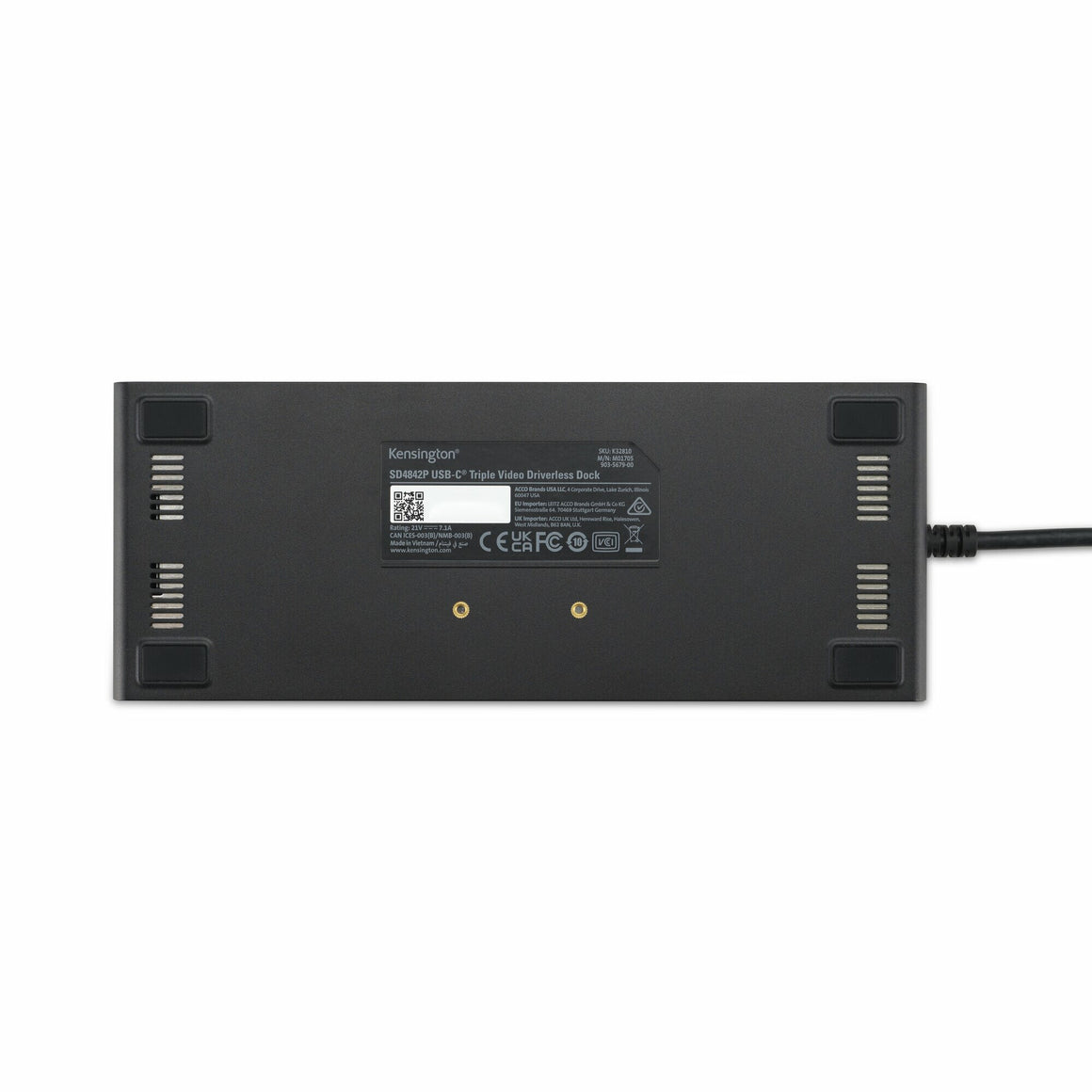

| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Logistics data |
|---|
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case width |
260 mm |
| Master (outer) case length |
345 mm |
| Master (outer) case height |
220 mm |
| Master (outer) case gross weight |
7.5 kg |
| Other features |
|---|
| Compatible operating systems |
Windows 10 or above |
| USB ports quantity |
5 |
| Minimum system requirements |
CPU: Intel Core i5 6th generation or aboveMemory: 8Gb or aboveGPU: Intel HD Graphics 620 or above |
| Special features |
EQ |
