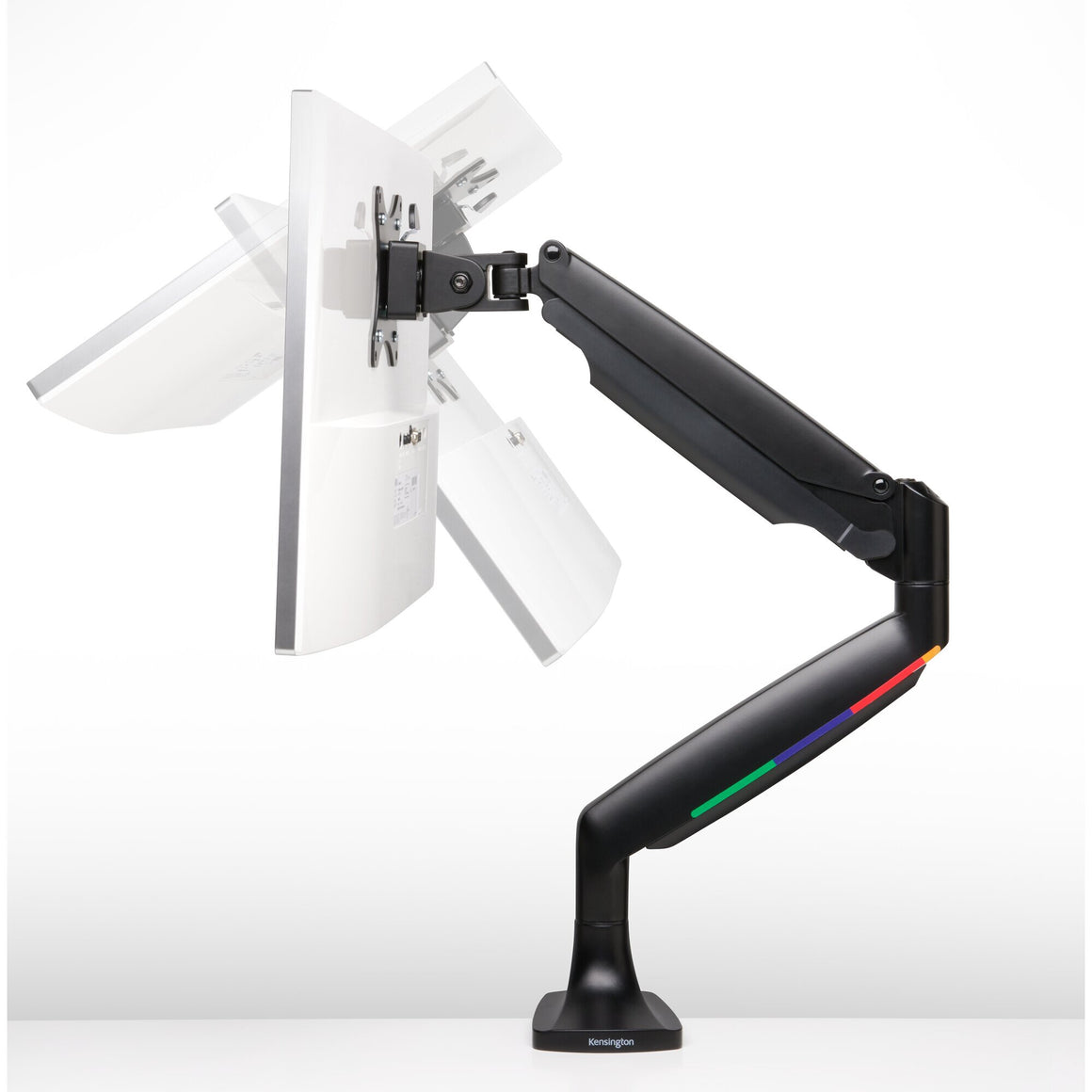

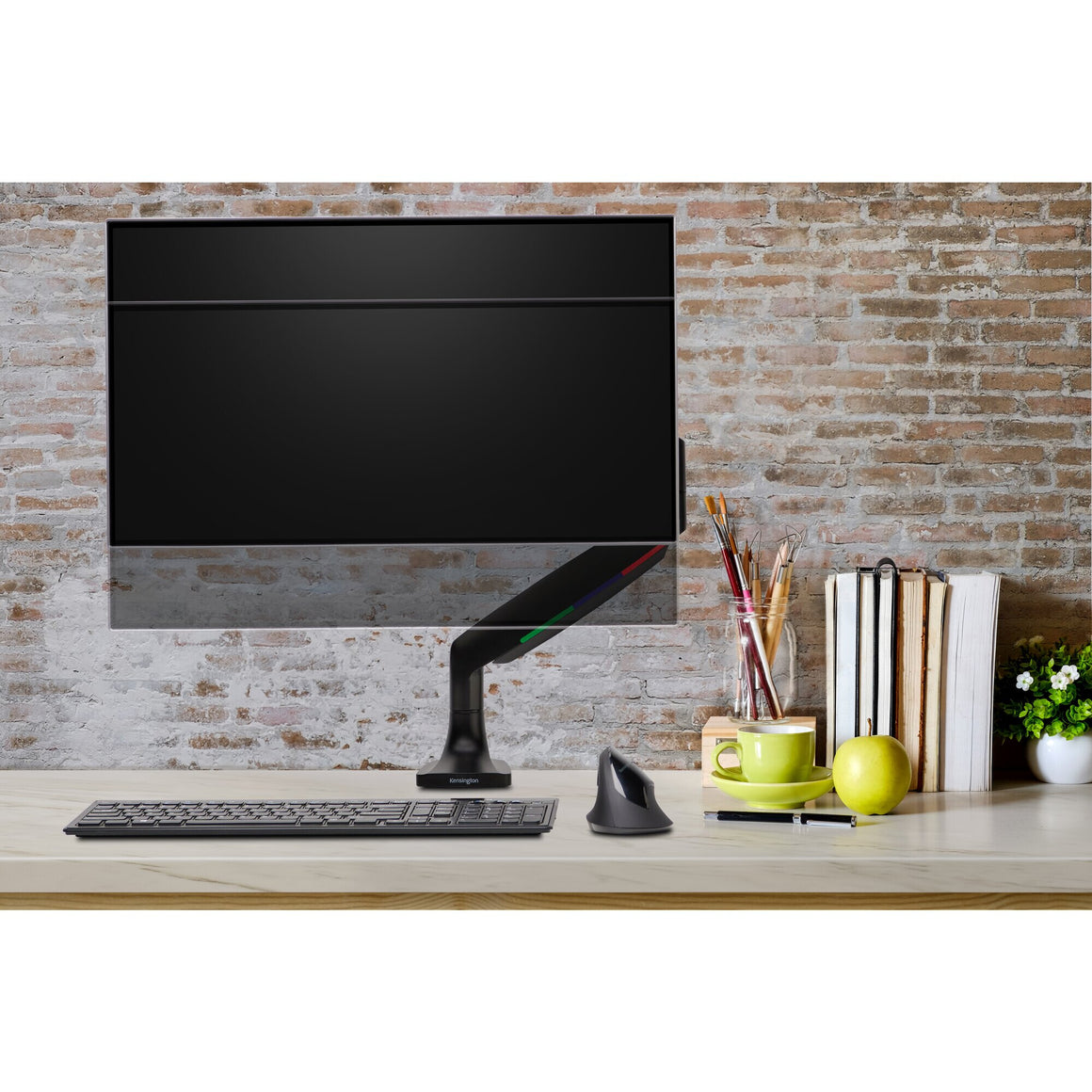

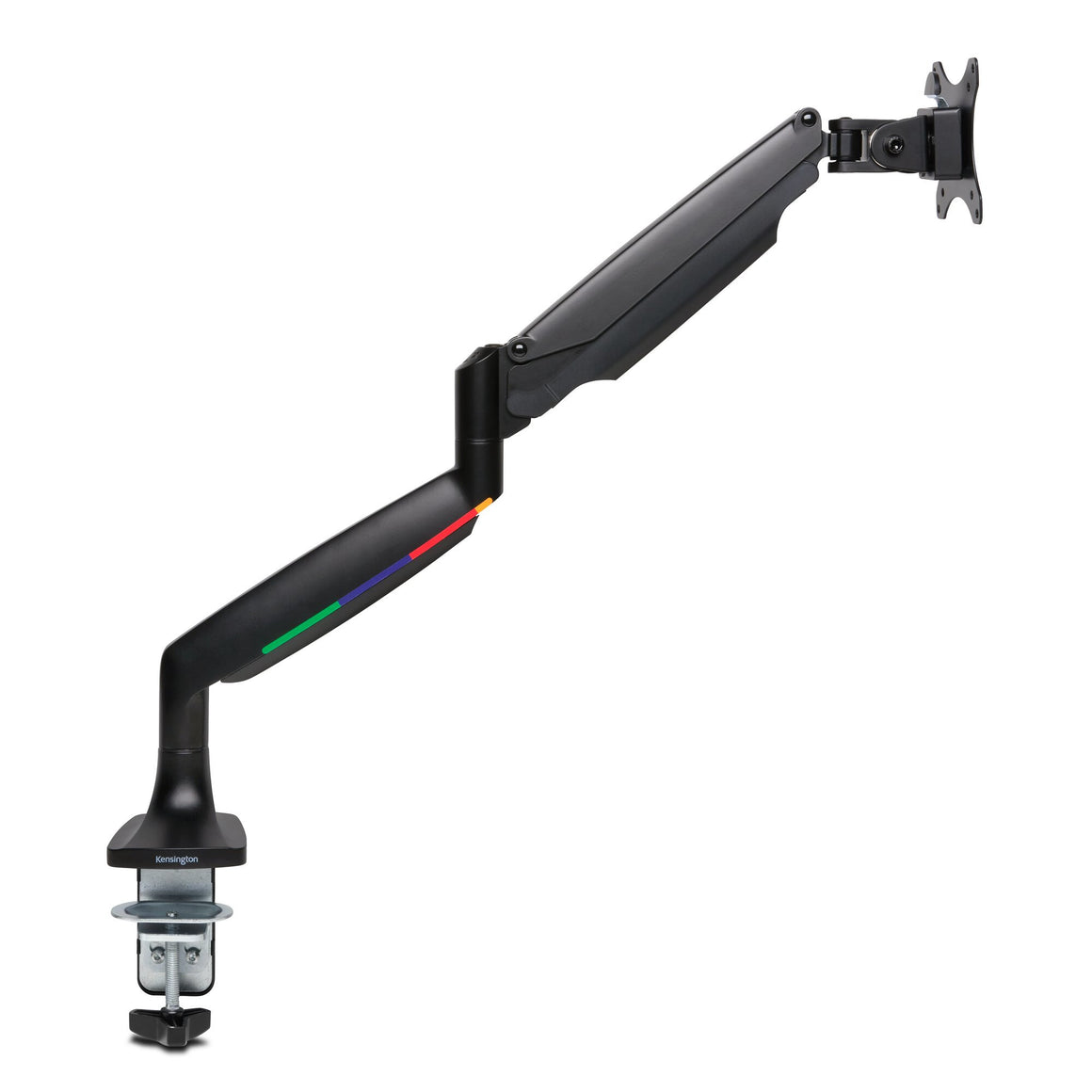

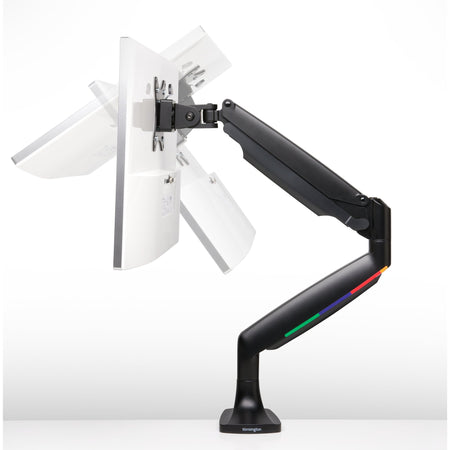

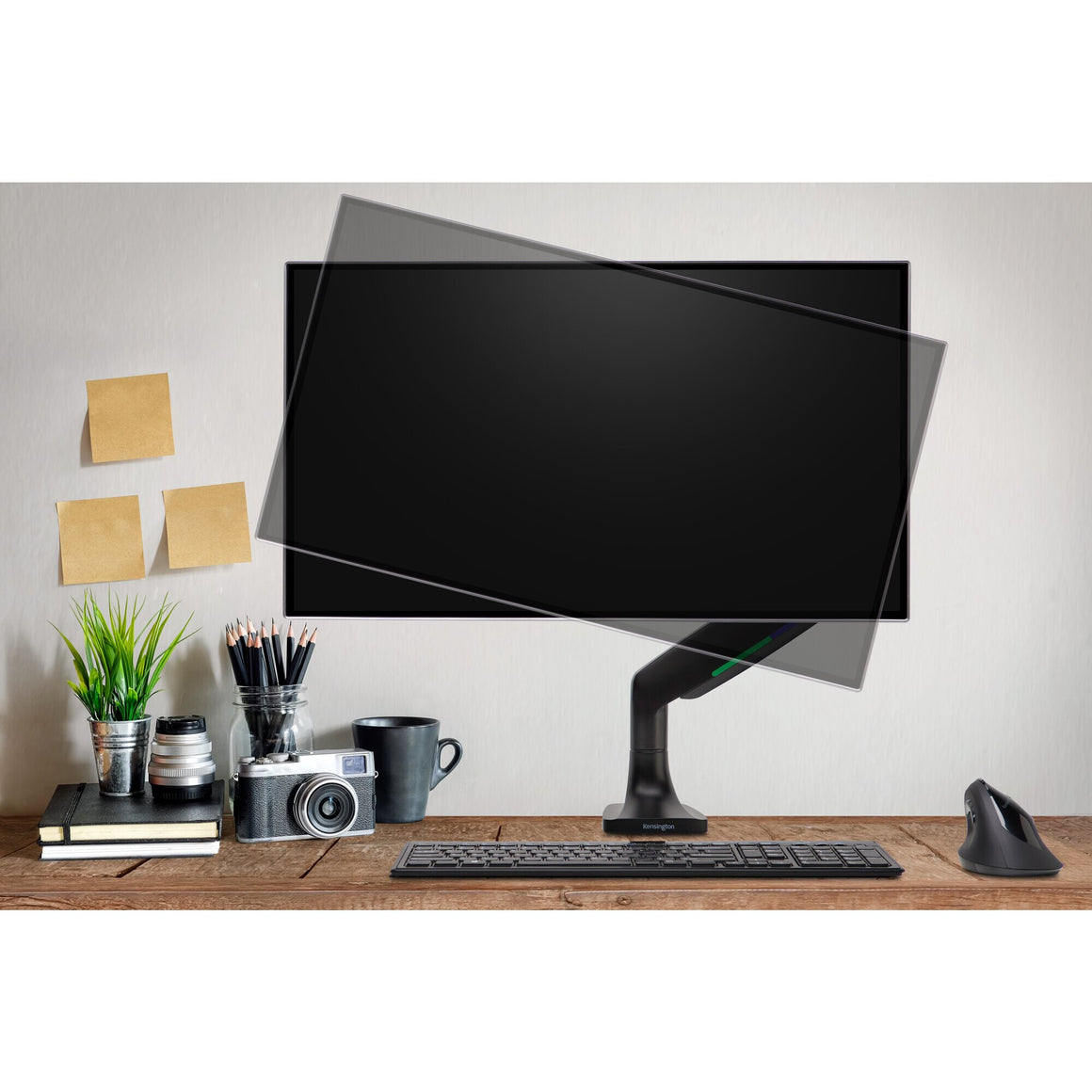

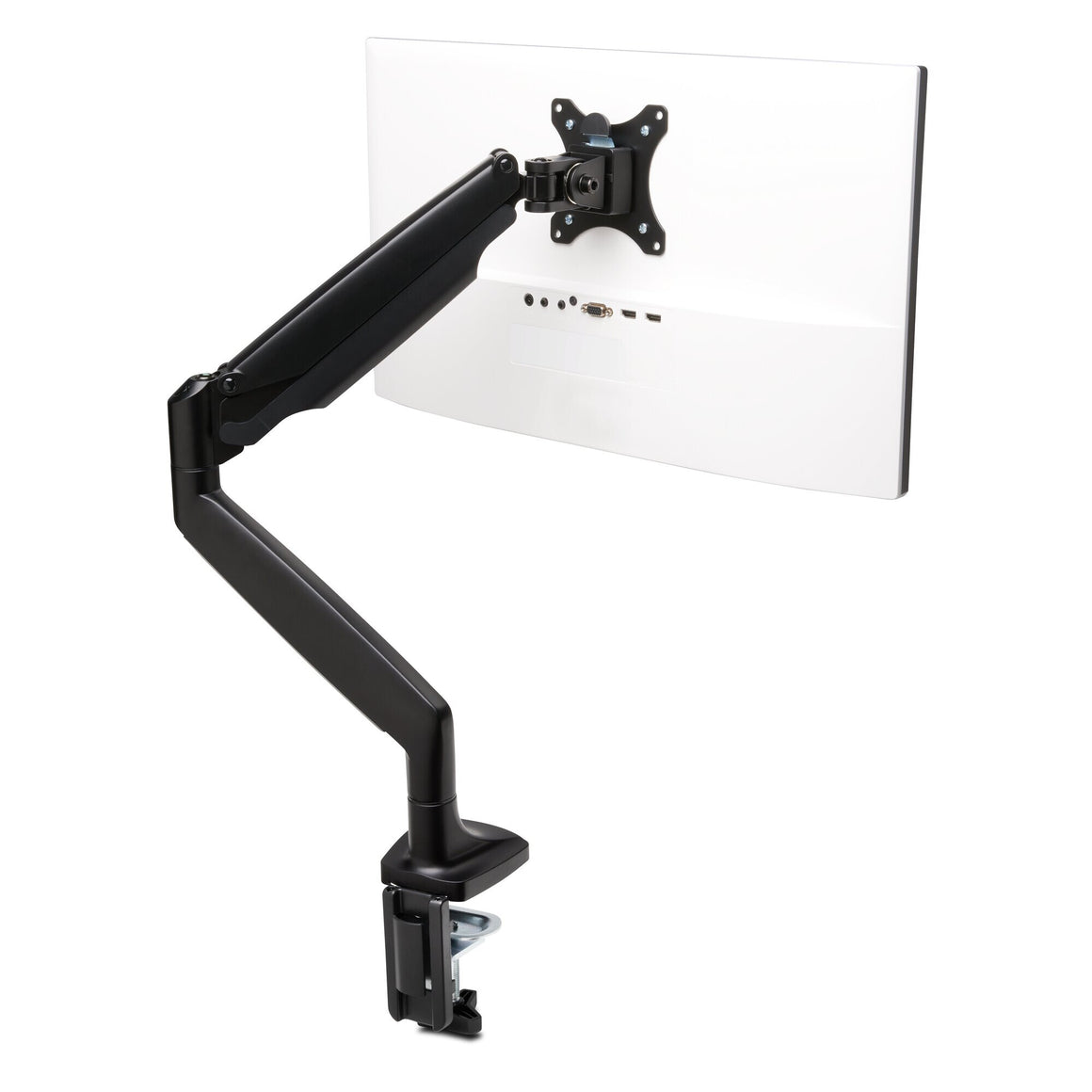

Incorrect monitor placement can lead to poor posture, eye strain, as well as neck, back and shoulder discomfort. The SmartFit™ One-Touch Height Adjustable Single Monitor Arm supports more comfortable monitor placement. Thoughtfully designed to simplify proper ergonomic fit, it offers a fully-articulating design for maximum flexibility. A heavy duty build provides stability in every position while its gas spring monitor mount makes adjusting the height, depth and angle of your monitor effortless - from landscape to portrait mode. The built-in cable management system organises and conceals cables while the arm lifts your external monitor up and out of the way, decluttering and clearing valuable desk space.
| Mounting |
|---|
| Desk thickness (max) |
8.5 cm |
| Desk thickness (min) |
1 cm |
| Number of displays supported |
1 |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Maximum VESA mount |
100 x 100 mm |
| Minimum VESA mount |
75 x 75 mm |
| Mounting |
Clamp |
| Mounting type |
Desk |
| Maximum screen size |
86.4 cm (34") |
| Minimum screen size |
33 cm (13") |
| Maximum weight capacity |
9 kg |
| Ergonomics |
|---|
| Cable management |
Yes |
| Angle of rotation |
180° |
| Swivel angle |
135° |
| Tilt angle range |
-90 - 90° |
| Tilt adjustment |
Yes |
| Height adjustment range |
170 - 505 mm |
| Height adjustment type |
Manual |
| Height adjustment |
Yes |
| Design |
|---|
| Easy to install |
Yes |
| Housing material |
Aluminium, Plastic, Steel |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Weight |
3.34 kg |
| Height |
665 mm |
| Depth |
115 mm |
| Width |
590 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
4.22 kg |
| Package height |
114 mm |
| Package depth |
315 mm |
| Package width |
496 mm |
| Other features |
|---|
| Certification |
Prop 65, BIFMA |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per pallet (UK) |
49 pc(s) |
| Harmonized System (HS) code |
85299097 |
| Master (outer) case gross weight |
1.78 kg |
| Master (outer) case height |
480 mm |
| Master (outer) case length |
514 mm |
| Master (outer) case width |
333.5 mm |
