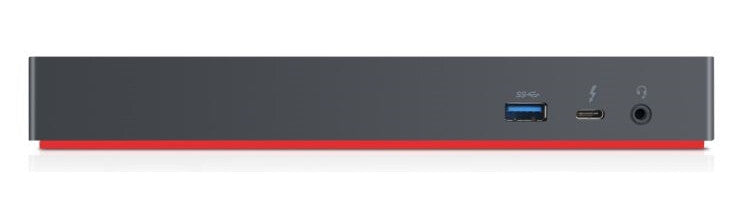

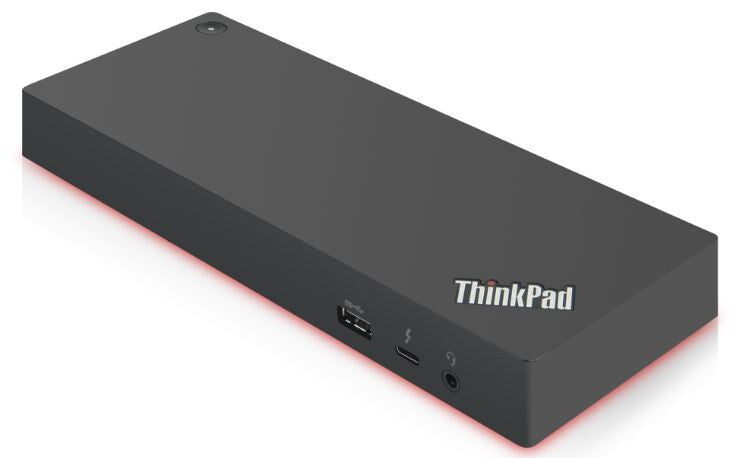

Lenovo 40AN0135UK laptop dock/port replicator Wired Thunderbolt 3 Black

SKU: 40AN0135UK
£128.53 inc. VAT

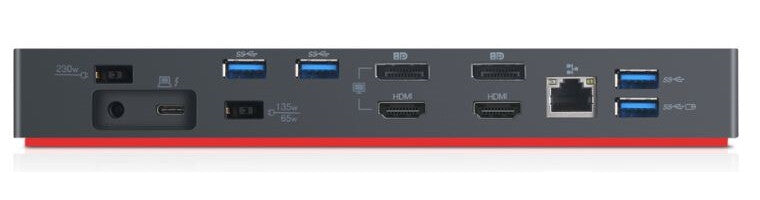

  • Ports: 2x HDMI; 2x DisplayPort; 1x ThunderBolt 3 Gen 2
  • Ports: 1x USB-C (Thunderbolt 3 compatible); 4x USB 3.1 Gen 2; 1x USB 3.1 Gen 2 with Always-on charging
  • 1x RJ-45 Ethernet 10Base-T/100Base-TX/1000Base-T; 1x Audio Connector (3.5mm). 1x Security-lock slot (lock sold separately
  • The dock is supported on the following operating systems: Microsoft Windows 7; Microsoft Windows 10
  • In the Box: Dock; 135W Power Adapter and Power Cord; Thunderbolt 3 cable; Documentation
 More payment options

Maximize Your Productivity with a Thunderbolt 3 Dock. Powerful, versatile and incredibly fast! This Intel Thunderbolt™ Chipset powered Thunderbolt Dock Gen 2 invented to boost productivity with extended compatibility on both USB-C and Thunderbolt enabled laptop. Expand your horizons with multiple 4K displays, and transfer files at record speed.It’s everything you need to enhance your creativity and efficiency today.

Expand compatibility on USB-C and Thunderbolt systems: Dual UHD Displays provide the best video experience. Enhanced performance with professional video solutions and exclusive network manageability. The ThinkPad Thunderbolt 3 Dock Gen 2 is supported on the following Lenovo systems: ThinkPad X1 Yoga 2nd Gen (Machine Types: 20JD, 20JE, 20JF, 20JG); ThinkPad X1 Yoga 3rd Gen (Machine Types: 20LD, 20LE); ThinkPad T570 (Machine Types: 20H9, 20HA, 20JW, 20JX); ThinkPad P51s (Machine Types: 20HB, 20HC, 20JY, 20K0); ThinkPad T580 (Machine Types: 20L9, 20LA); ThinkPad P52s (Machine Types: 20LB, 20LC).

Ports & interfaces
Combo headphone/mic port Yes
Microphone in No
DisplayPorts quantity 2
HDMI ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Host interface Thunderbolt 3
Connectivity technology Wired
Network
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports 1
Ethernet LAN Yes
Performance
Compatibility ThinkPad X1 Yoga 2nd Gen, ThinkPad X1 Yoga 3rd Gen, Thinkpad T570 (20H9,20HA), Thinkpad T570 (20JW,20JX), Thinkpad P51s (20HB,20HC), Thinkpad P51s (20JY,20K0), Thinkpad T580 (20L9,20LA), ThinkPad P52s (20LB,20LC)
Brand compatibility Lenovo
Charging function Yes
Plug and Play Yes
LED indicators Yes
Cable lock slot Yes
Maximum digital resolution 3840 x 2160 pixels
Card reader integrated No
Product colour Black
Power
Power supply 135 W
Software
Windows operating systems supported Windows 10, Windows 7
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 525 g
Height 30 mm
Depth 80 mm
Width 220 mm
Packaging data
Package weight 1.4 kg
Package height 75 mm
Package depth 164 mm
Package width 270 mm
Quantity per pack 1 pc(s)
Packaging content
Cables included Thunderbolt
AC adapter included Yes
Manual Yes
Logistics data
Harmonized System (HS) code 84733020
