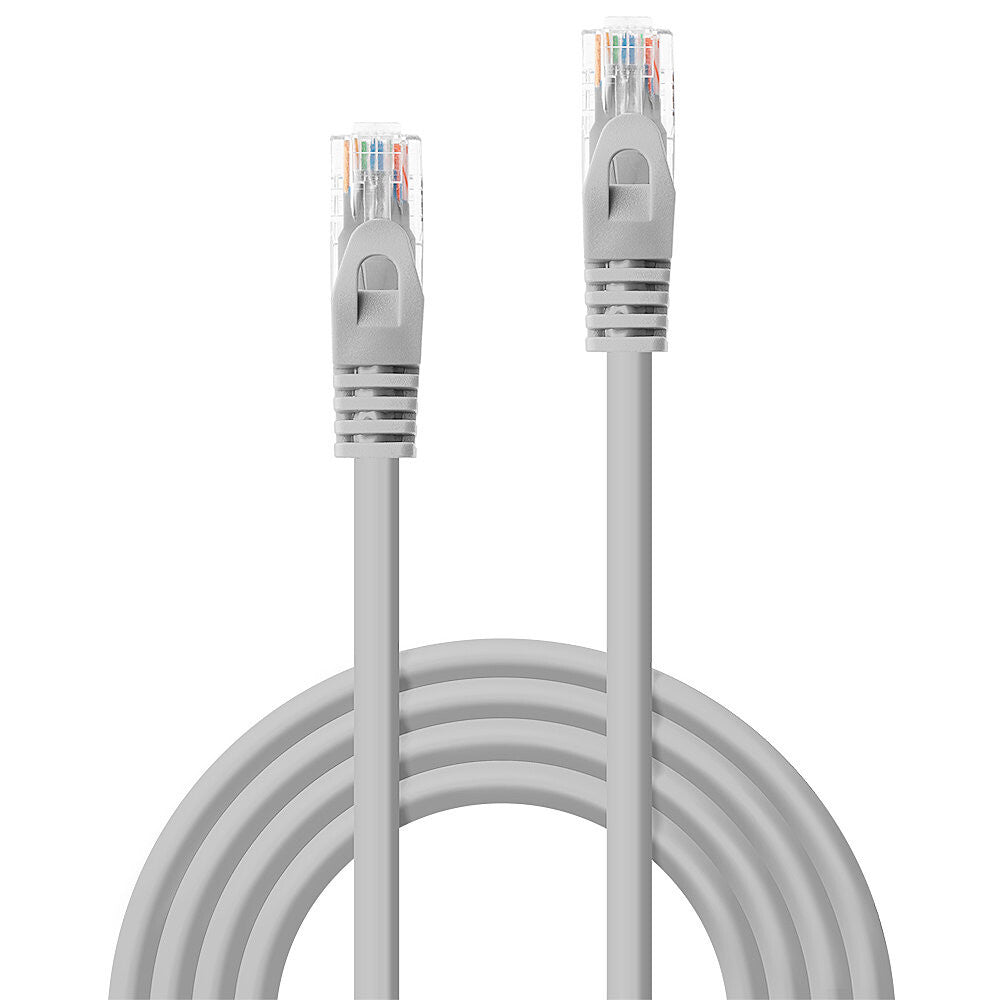

Cat.5e U/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

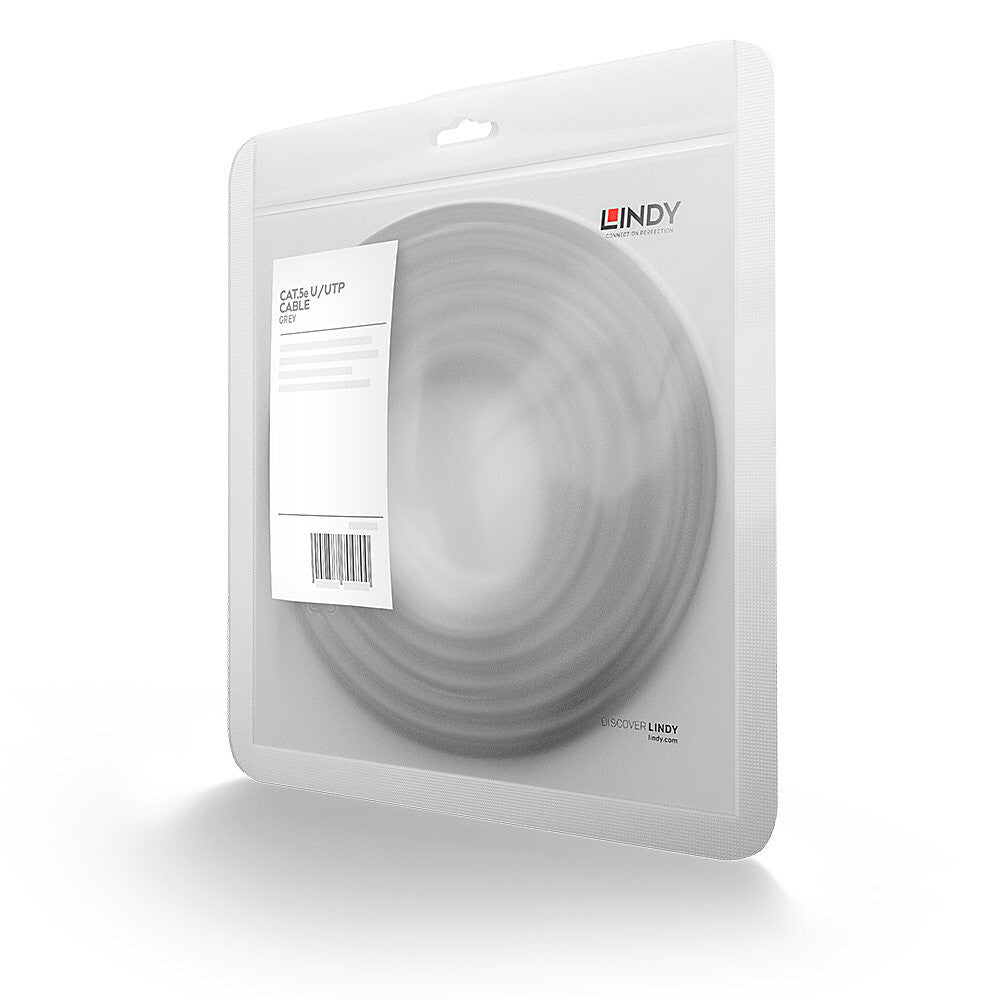

Cat.5e cable, designed for operating frequencies up to 100MHz. The unshielded version (U/UTP) is designed in its electrophysical parameters (NExT, FExT etc.) in such a way that it can be used for Gigabit Ethernet despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

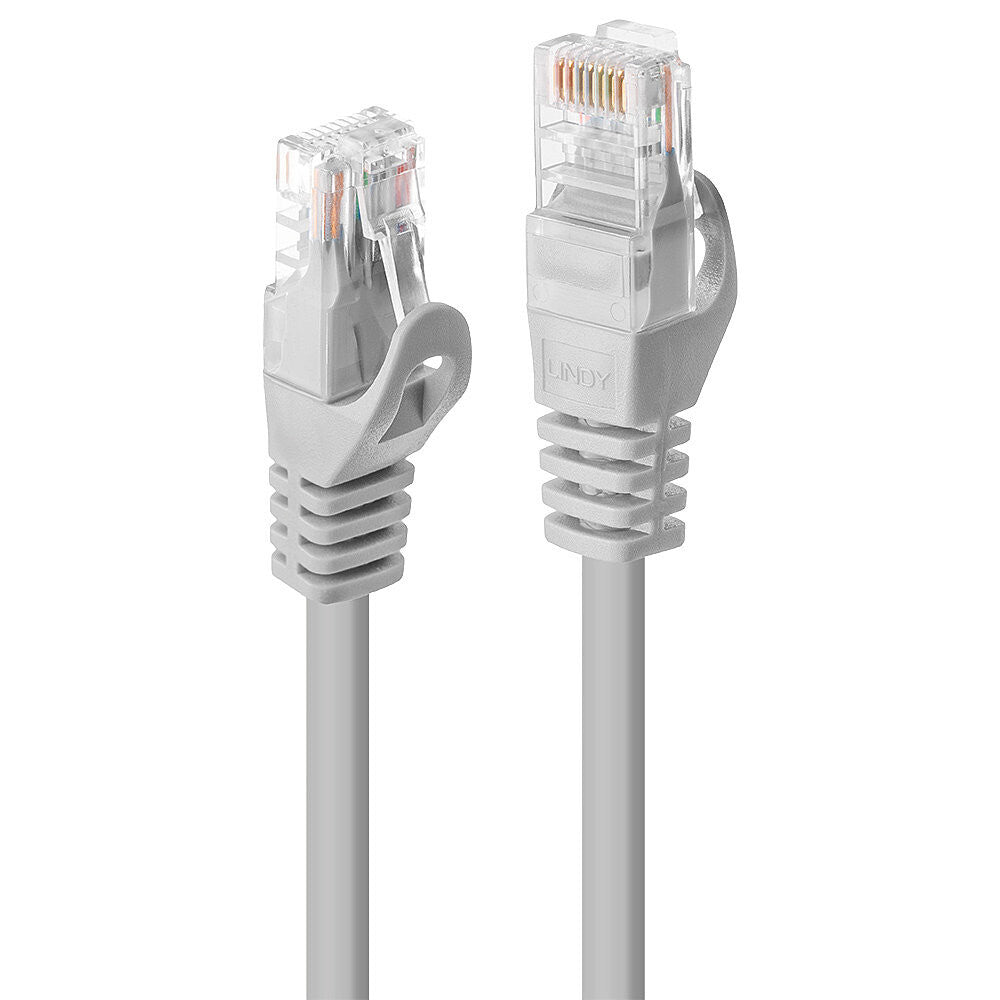

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m.
| Features |
|---|
| Bend radius (min) |
5.7 cm |
| Frequency |
100 MHz |
| AWG wire size |
26 |
| Conductor material |
Copper |
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector contacts plating |
Gold |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 2 |
RJ-45 |
| Connector 1 |
RJ-45 |
| Product colour |
Grey |
| Cable shielding |
U/UTP (UTP) |
| Cable standard |
Cat5e |
| Cable length |
0.3 m |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 75 °C |
| Operating temperature (T-T) |
-10 - 60 °C |
| Certificates |
|---|
| Certification |
RoHS, REACH, UL, California Proposition 65 |
| Weight & dimensions |
|---|
| Connector 1 dimensions (WxDxH) |
11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) |
11.6 x 22.8 x 8.3 mm |
| Outer diameter |
4.8 mm |
| Packaging data |
|---|
| Package type |
Polybag |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
