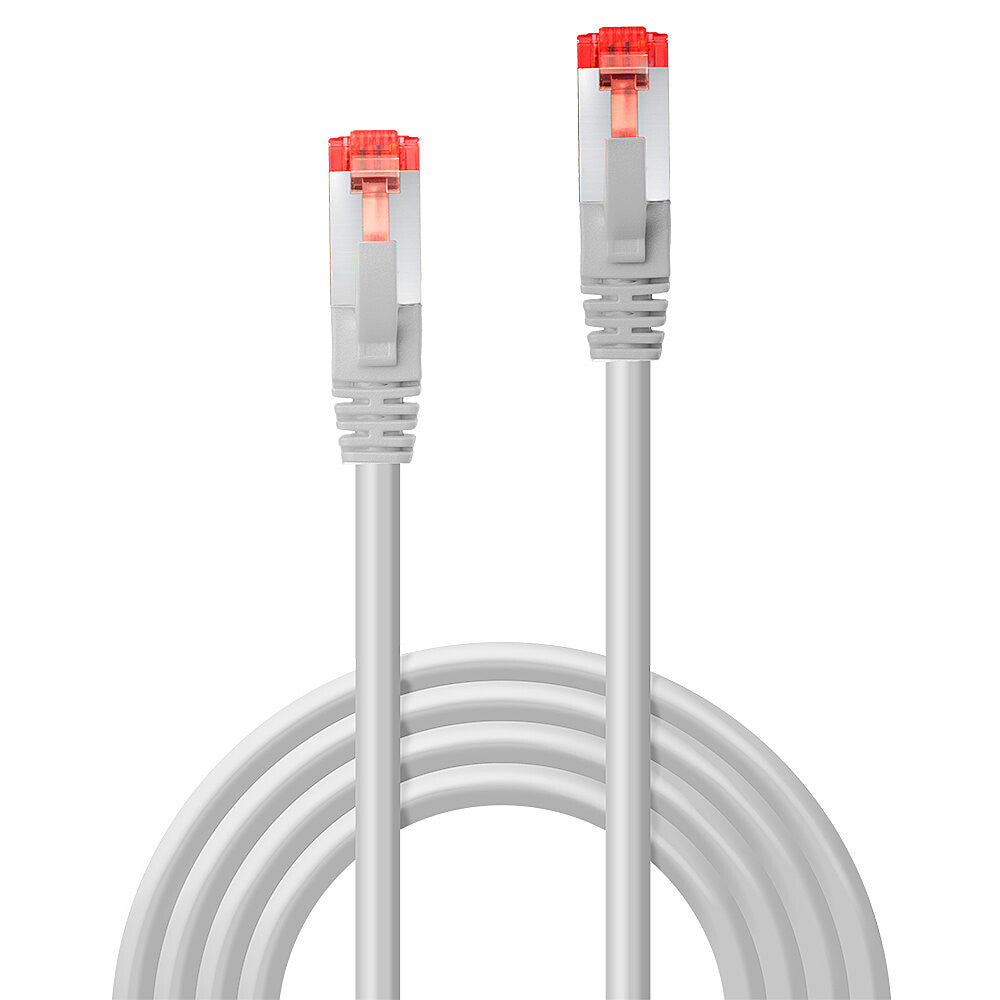

Cat.6 S/FTP network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

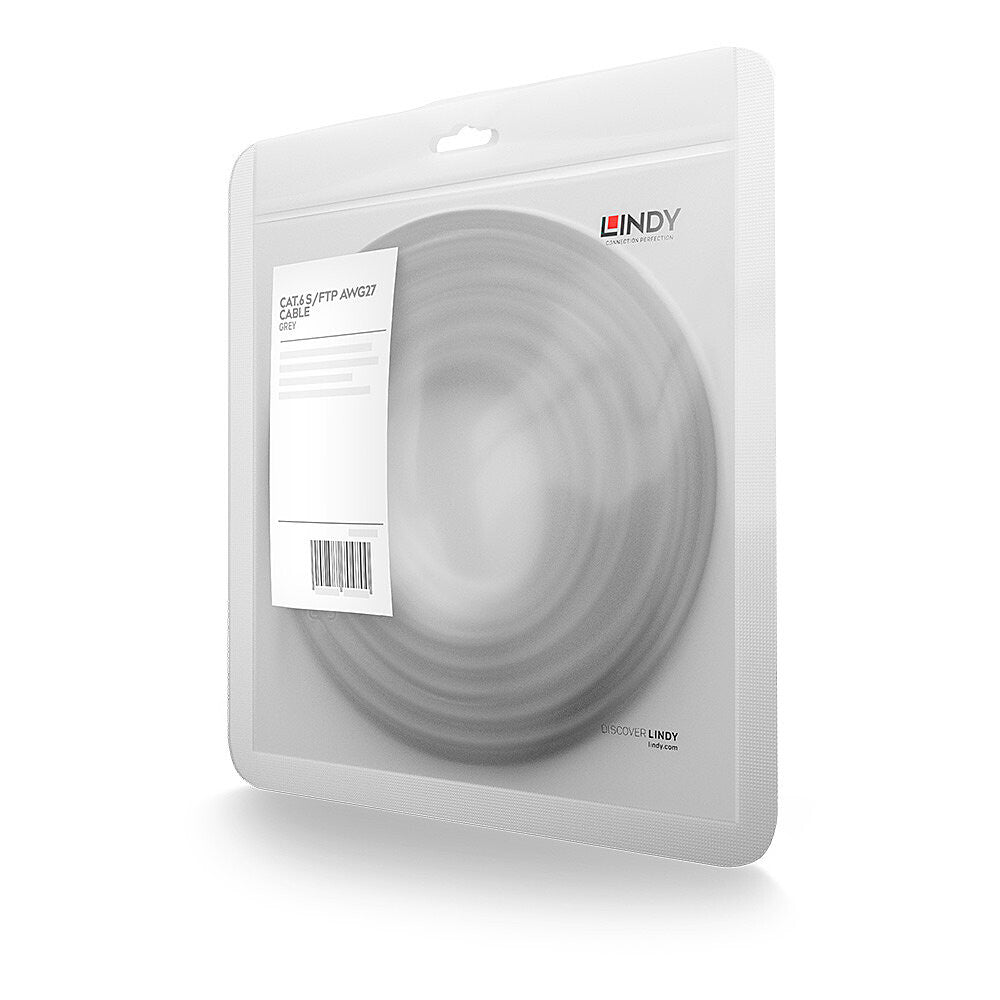

Cat.6 cable for operating frequencies up to 250MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

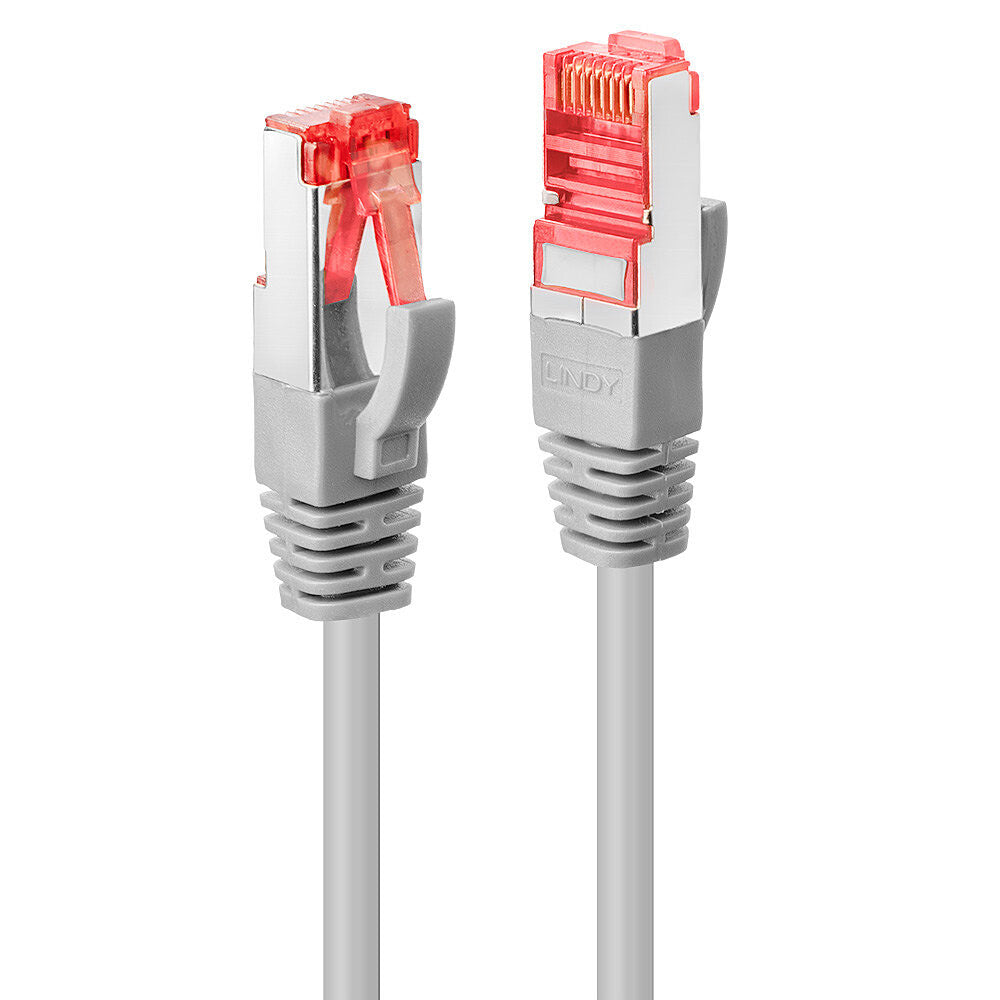

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.
| Features |
| Snagless cable boot |
Yes |
| Bend radius (min) |
7.4 cm |
| Frequency |
250 MHz |
| AWG wire size |
27 |
| Cabling technology |
10GBase-T |
| Cable class |
E |
| Conductor material |
Copper |
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector shield material |
Aluminium |
| Connector shielding |
Yes |
| Connector contacts plating |
Nickel/Gold |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 2 |
RJ-45 |
| Connector 1 |
RJ-45 |
| Product colour |
Grey |
| Cable shielding |
S/FTP (S-STP) |
| Cable standard |
Cat6 |
| Cable length |
0.3 m |
| Operational conditions |
| Storage temperature (T-T) |
-20 - 75 °C |
| Operating temperature (T-T) |
-10 - 60 °C |
| Certificates |
| Certification |
RoHS, REACH, UL, California Proposition 65 |
| Weight & dimensions |
| Connector 1 dimensions (WxDxH) |
11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) |
11.6 x 22.8 x 8.3 mm |
| Outer diameter |
6.2 mm |
| Packaging data |
| Package type |
Polybag |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
