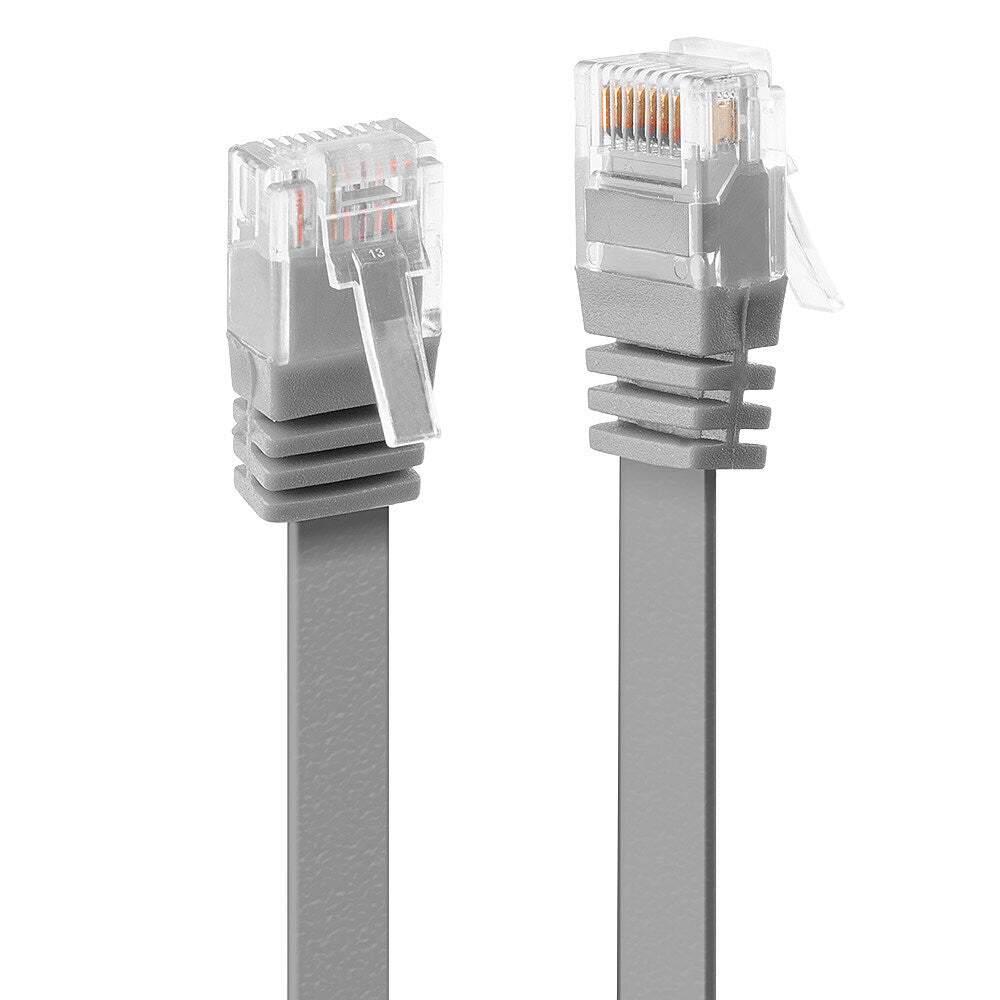

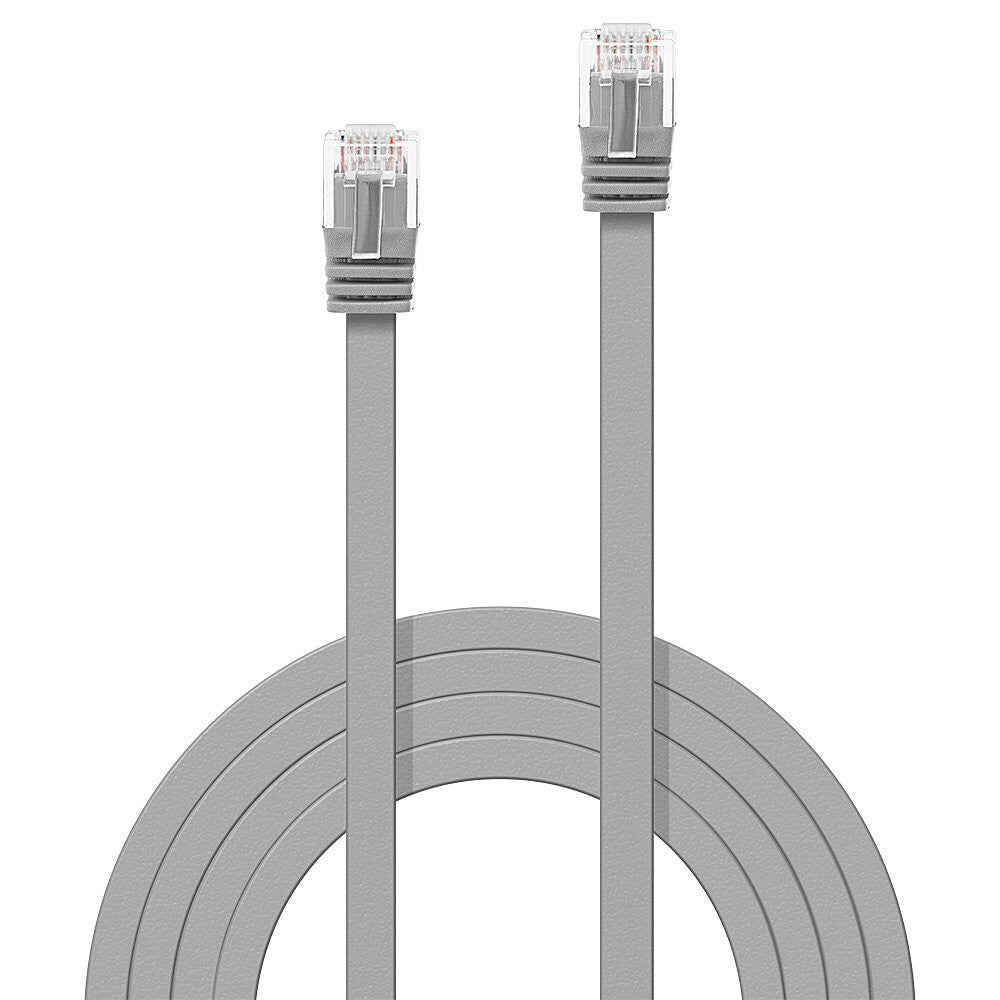

Cat.6 U/UTP flat network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameter (NExT, FExT, etc.) despite the lack of shielding. Designed as flat ribbon cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very fleixible and thin ribbon cable construction allows the cables to be installed in restricted or limited spaces.
Available lengths: 0.3m, 1m, 2m, 3m, 5m, 10m.
Available colours: Black, Grey, White, Red.
| Features |
|---|
| Bend radius (min) |
6 cm |
| Frequency |
250 MHz |
| Data transfer rate |
100 Mbit/s |
| AWG wire size |
32 |
| Cabling technology |
10/100Base-T(X) |
| Conductor material |
Copper |
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector contacts plating |
Gold |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 2 |
RJ-45 |
| Connector 1 |
RJ-45 |
| Product colour |
Grey |
| Cable shielding |
U/UTP (UTP) |
| Cable standard |
Cat6 |
| Cable length |
0.3 m |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 40 °C |
| Operating temperature (T-T) |
-10 - 60 °C |
| Certificates |
|---|
| Certification |
RoHS, REACH, UL, California Proposition 65 |
| Weight & dimensions |
|---|
| Connector 1 dimensions (WxDxH) |
11.6 x 22.7 x 6.5 mm |
| Connector 2 dimensions (WxDxH) |
11.6 x 22.7 x 6.5 mm |
| Packaging data |
|---|
| Package type |
Polybag |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
