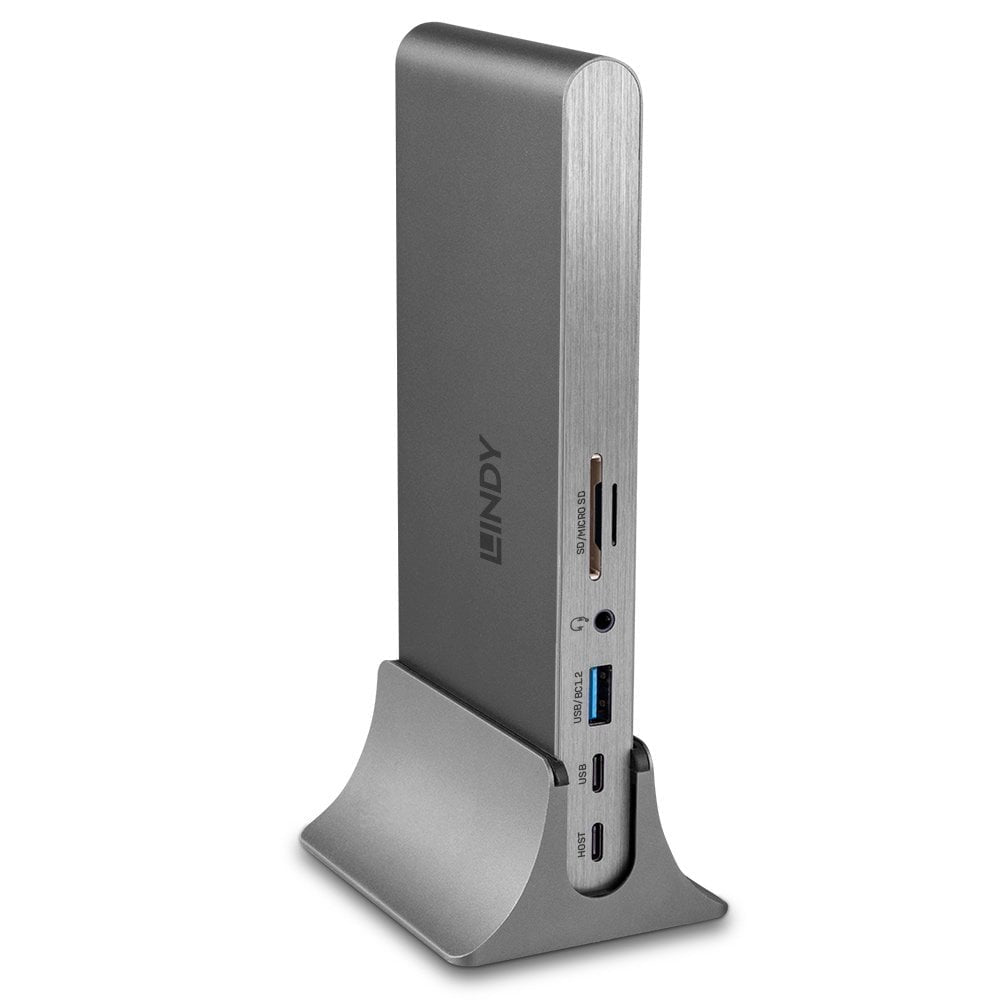

The DST-Pro 5K is a feature packed docking station designed to deliver unrivalled video output. Housed in a robust aluminium body, this dock delivers great additional connectivity for your device. A space-saving stand is also included to help keep your workspace clutter-free.
Extended Displays
When it comes to external display resolution, this docking station stands out from the crowd. With support for a single display resolution of 5k@60Hz (DisplayPort), you can connect your laptop with some of the industry's leading displays and monitors. There is also support for dual display (5K@60Hz + 4K@60Hz) and triple display (1 x 4K@60Hz, 2 x 4K@30Hz) setups. So, whether you need one, two or three displays, simply plug in your laptop and allow the DST-Pro 5K to provide Ultra HD resolutions through a single USB-C connection.
Added Connectivity

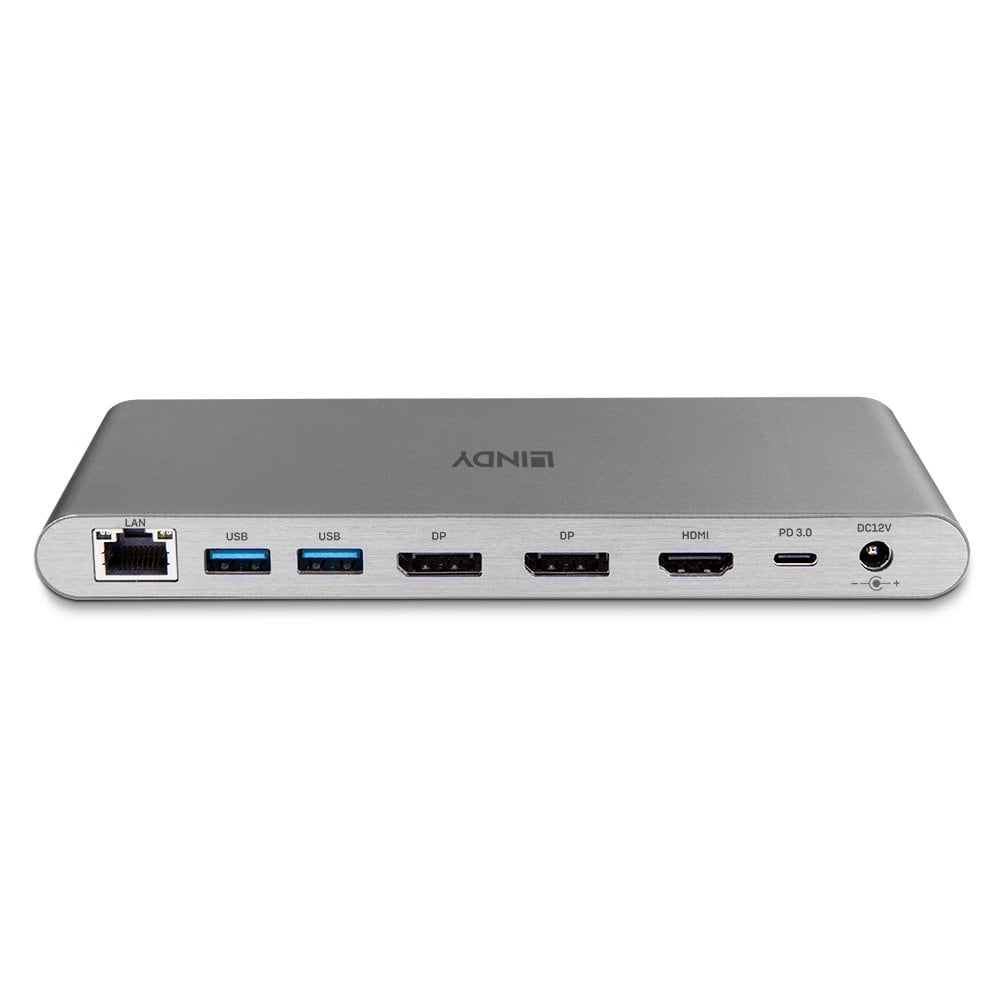

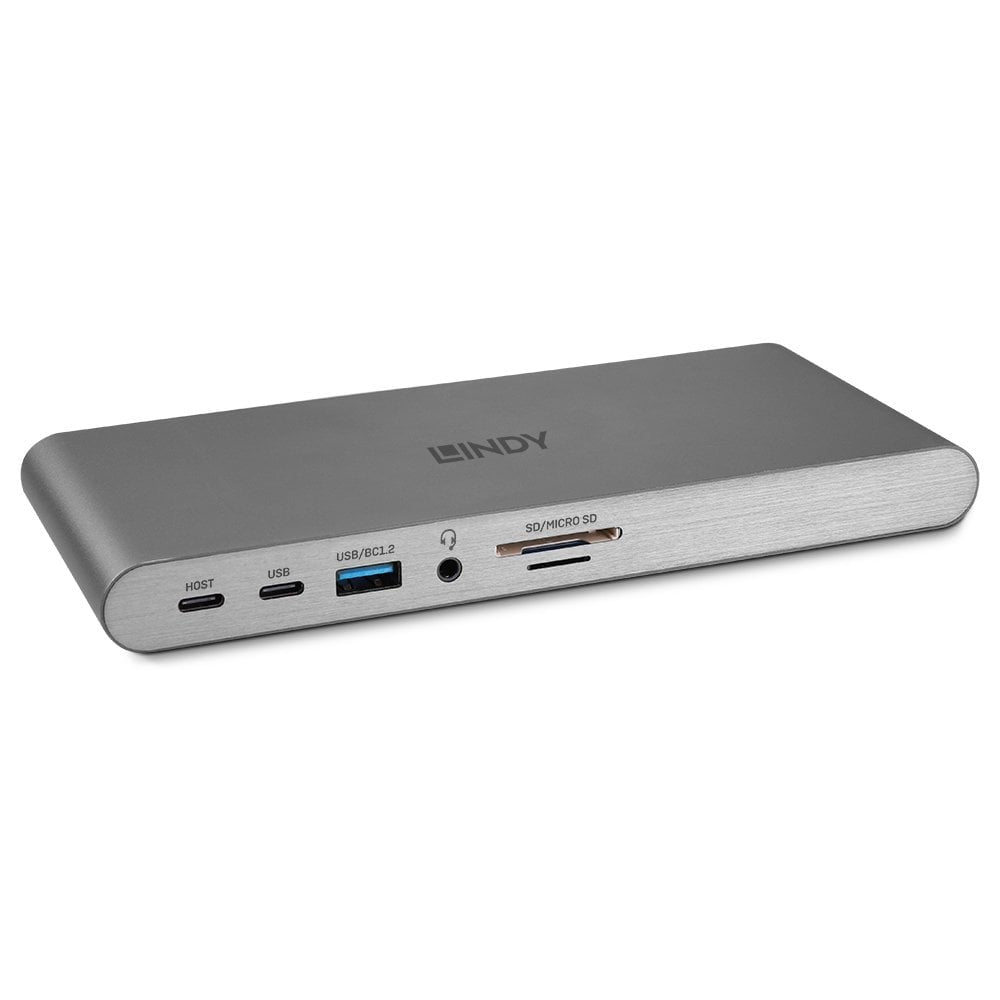

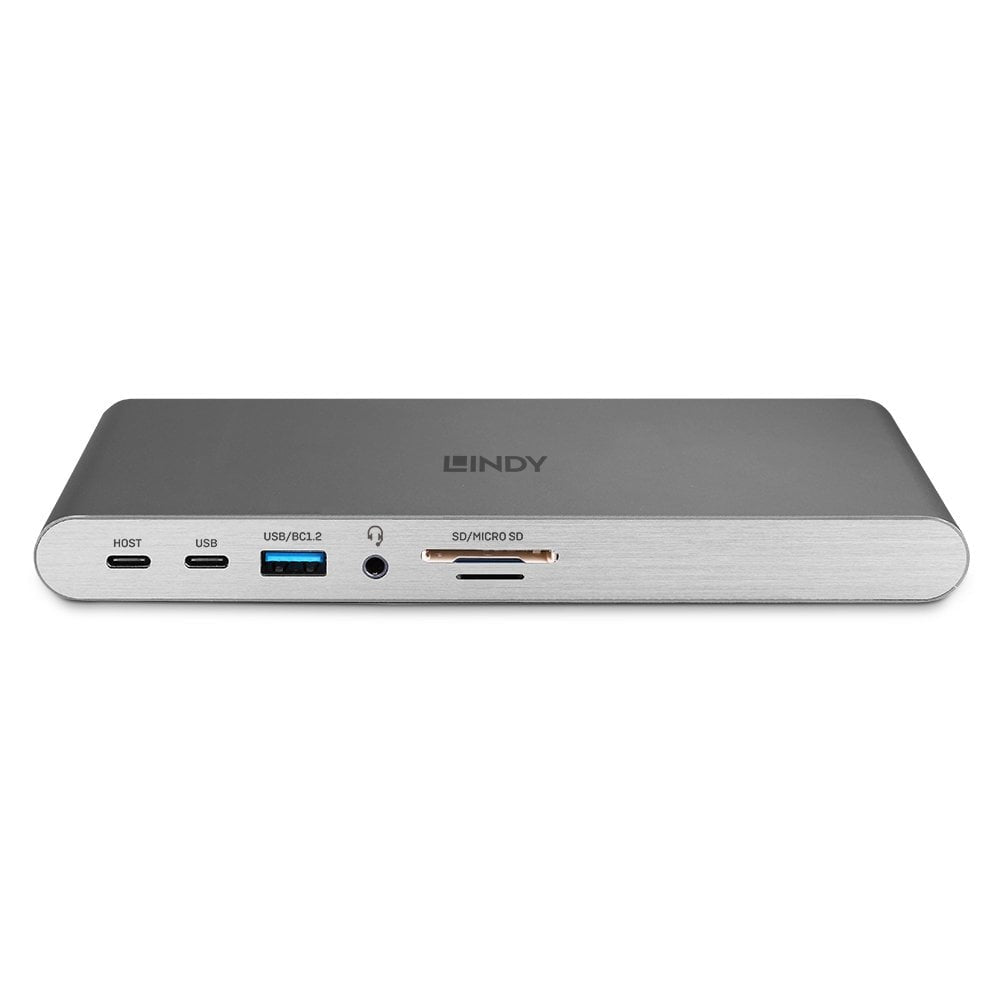

This docking station delivers great additional connectivity. SuperSpeed USB (5Gbps), Gigabit Ethernet, SD, microSD, HDMI, DisplayPort and a 3.5mm combo jack, are all featured. This allows for improved internet speeds, greater storage capacity and a comprehensive desktop experience.
Pass-through Charging
This docking station comes with a 24W PSU (Power Supply Unit). This is to ensure that there is enough power for the docking station to function without needing to take any power from your device's connected charger. Thanks to the integrated PD 3.0 port, you can plug your USB-C charger into the docking station and experience up to 100W pass-through charging (depending on the charger's capabilities). The USB-A port on the front of the dock also has support for Battery Charging 1.2 meaning you can charge mobile devices with 5V and up to 1.5A.
Plug-and-Play
This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.
| Ports & interfaces |
|---|
| HDCP |
Yes |
| HDCP version |
2.2 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology |
Wired |
| Network |
|---|
| Wake-on-LAN ready |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Plug and Play |
Yes |
| Housing material |
Aluminium |
| Maximum refresh rate |
60 Hz |
| Maximum digital resolution |
7680 x 4320 pixels |
| Data transfer rate |
5 Gbit/s |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Card reader integrated |
Yes |
| Product colour |
Silver |
| Power |
|---|
| Power consumption (max) |
24 W |
| Output voltage |
20 V |
| Output current |
5 A |
| Power connector |
USB Type-C |
| Power source type |
DC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating temperature (T-T) |
-20 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
439 g |
| Height |
18 mm |
| Depth |
77 mm |
| Width |
180 mm |
| Packaging data |
|---|
| Package weight |
780 g |
| Package height |
70 mm |
| Package depth |
120 mm |
| Package width |
200 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Cables included |
USB Type-C |
| Manual |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, REACH, RoHS |
