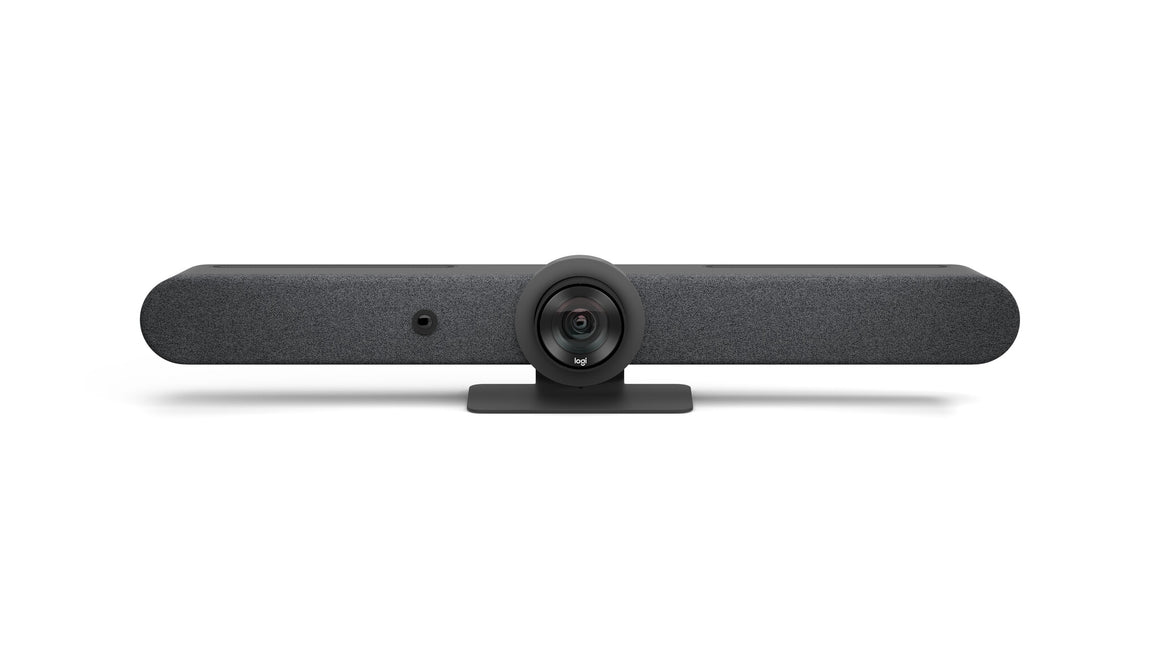

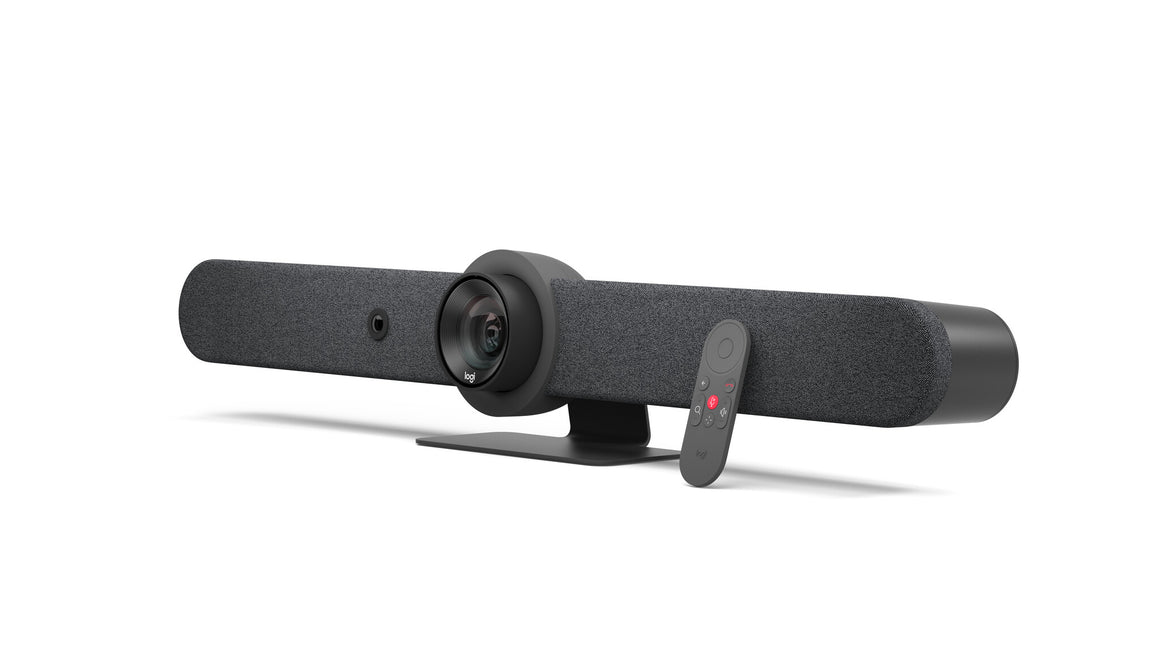

Rally Bar is Logitech’s premier, all-in-one video bar for midsize meeting rooms. With cinema-quality video and audio, AI-driven performance, and beautiful design, Rally Bar sets a new standard for video collaboration.
Rally Bar creates a natural, frictionless meeting experience with motorized PTZ and 15x optical + digital HD zoom. AI Viewfinder persistently views the room, ensuring all meeting participants are captured and framed to perfection.
Powerful low-distortion speakers and adaptive beamforming mics, optimized by RightSound™, deliver outstanding conversational accuracy. Out of the box, Rally Bar provides an expansive 15’ mic pickup range with the option to extend coverage for larger groups and settings.
Simple, versatile, and meticulously designed for scale, Rally Bar offers clutter-free cable management and multiple mounting options. Plug and play Rally Bar with virtually any PC or Mac, or run supported video conferencing applications on the device without a computer.
| Performance |
|---|
| PTZ control |
Yes |
| Tilt angle range |
-15 - 15° |
| Pan range |
-25 - 25° |
| Product colour |
Graphite |
| Product type |
Group video conferencing system |
| Video |
|---|
| Maximum frame rate |
30 fps |
| Supported video modes |
576p, 720p, 900p, 1440p, 2160p |
| HD type |
4K Ultra HD |
| Audio |
|---|
| Sample rates |
0 - 48 kHz |
| Noise reduction |
Yes |
| Echo cancellation |
Yes |
| RMS rated power |
8 W |
| Microphone pick-up range |
4.5 m |
| Audio beamforming |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Line-out impedance |
4 Ω |
| Output level |
92/99 dB |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
|---|
| Microphone in |
Yes |
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB connector type |
USB Type-A, USB Type-C |
| HDMI output ports quantity |
2 |
| HDMI input ports quantity |
1 |
| HDMI ports quantity |
3 |
| Interface module |
|---|
| Interface module Ethernet LAN (RJ-45) ports |
1 |
| Network |
|---|
| Security algorithms |
128-bit AES |
| Supported network protocols |
IPv4, IPv6 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Camera |
|---|
| Remote control interface |
Bluetooth |
| Diagonal field of view |
90° |
| Vertical field of view |
52.2° |
| Horizontal field of view |
82.1° |
| Digital zoom |
3x |
| Optical zoom |
5x |
| Zoom capability |
Yes |
| Microphone |
|---|
| Number of microphones |
6 |
| Sound pressure level (max) |
90 dB |
| Microphone direction type |
Omnidirectional |
| Microphone frequency |
90 - 16000 Hz |
| Microphone sensitivity |
-36 dB |
| Logistics data |
|---|
| Master (outer) case gross weight |
4.73 kg |
| Master (outer) case length |
330 mm |
| Master (outer) case width |
300 mm |
| Master (outer) case height |
160 mm |
| Harmonized System (HS) code |
85176990 |
| Computer system |
|---|
| Mac operating systems supported |
MacOS |
| Windows operating systems supported |
Yes |
| Battery |
|---|
| Battery capacity |
0.675 Wh |
| Operational conditions |
|---|
| Heat dissipation |
64 BTU/h |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Power |
|---|
| Power plug type |
Type G |
| Battery technology |
Lithium |
| Battery capacity |
220 mAh |
| Number of batteries supported |
1 |
| DC input voltage |
19 V |
| Current |
4.754 A |
| AC input voltage |
100 - 240 V |
| Power source type |
AC |
| Weight & dimensions |
|---|
| Package weight |
9.29 kg |
| Package height |
218 mm |
| Package depth |
989 mm |
| Package width |
207 mm |
| Weight |
7.08 kg |
| Height |
164 mm |
| Depth |
160 mm |
| Width |
910 mm |
| Packaging content |
|---|
| Packaging content |
Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation |
| Remote control included |
Yes |
| Quick start guide |
Yes |
| Batteries included |
Yes |
| AC adapter included |
Yes |
| HDMI cable length |
2 m |
| Power cable length |
2.5 m |
| Cables included |
AC, DC, HDMI, USB Type-A to USB Type-C |
