High-definition performance for personal computing.

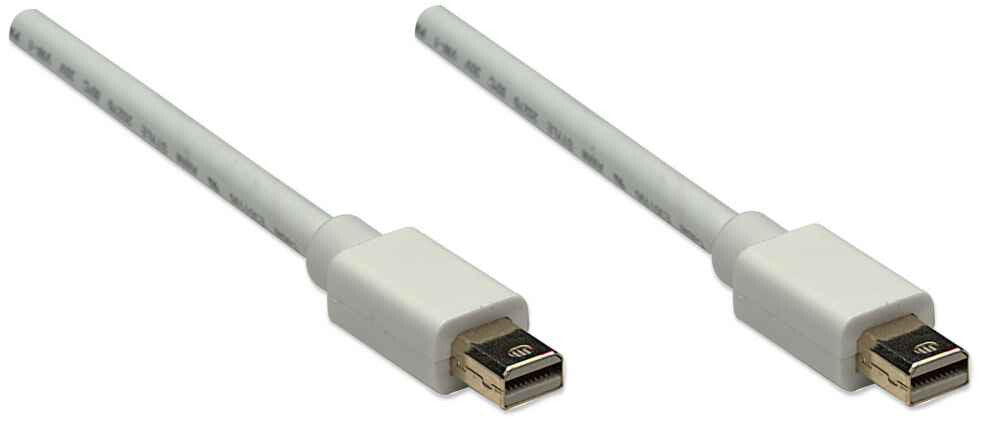

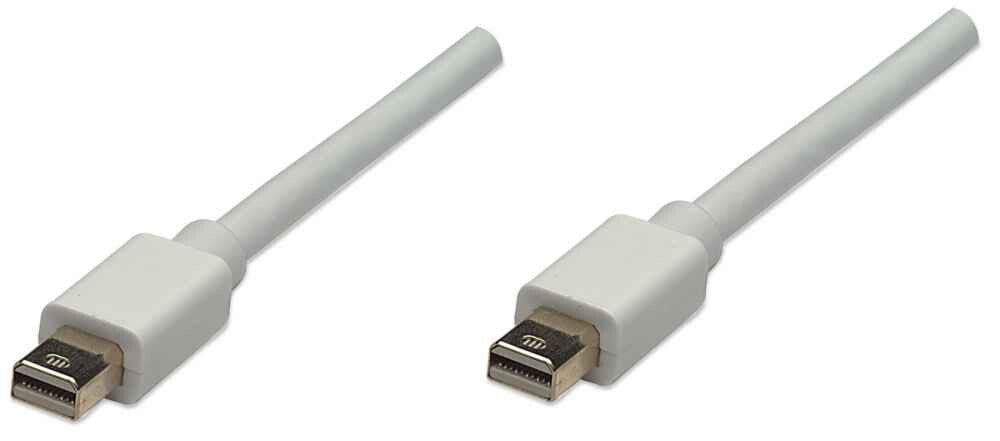

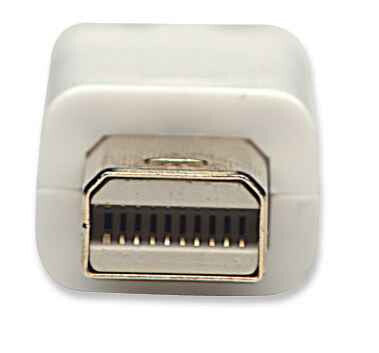

Manhattan Mini DisplayPort cables deliver both high-definition digital audio and video signals between desktop or notebook computers and an output device. The 20-pin connector is small and compact but offers 14.8 Gbps bandwidth, Deep colour and 24-bit, 8-channel uncompressed audio capability. It's ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, moulded boots with strain relief, protective PVC jackets and gold-plated connections ensure that Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.
| Features |
|---|
| Data transfer rate |
14.8 Gbit/s |
| AWG wire size |
32 |
| Jacket material |
Acrylonitrile butadiene styrene (ABS) |
| Cable shielding |
Aluminum mylar foil |
| Magnetically shielded |
Yes |
| Product colour |
White |
| Maximum refresh rate |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| DisplayPort version |
1.2 |
| Connector contacts plating |
Gold |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
Mini DisplayPort |
| Connector 1 |
Mini DisplayPort |
| Cable length |
1 m |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 96% |
| Storage temperature (T-T) |
-25 - 85 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Certificates |
|---|
| Certification |
UL 20276ISO 9002 |
| Weight & dimensions |
|---|
| Weight |
44 g |
| Packaging data |
|---|
| Package type |
Polybag |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
