A TV wall mount for almost anywhere

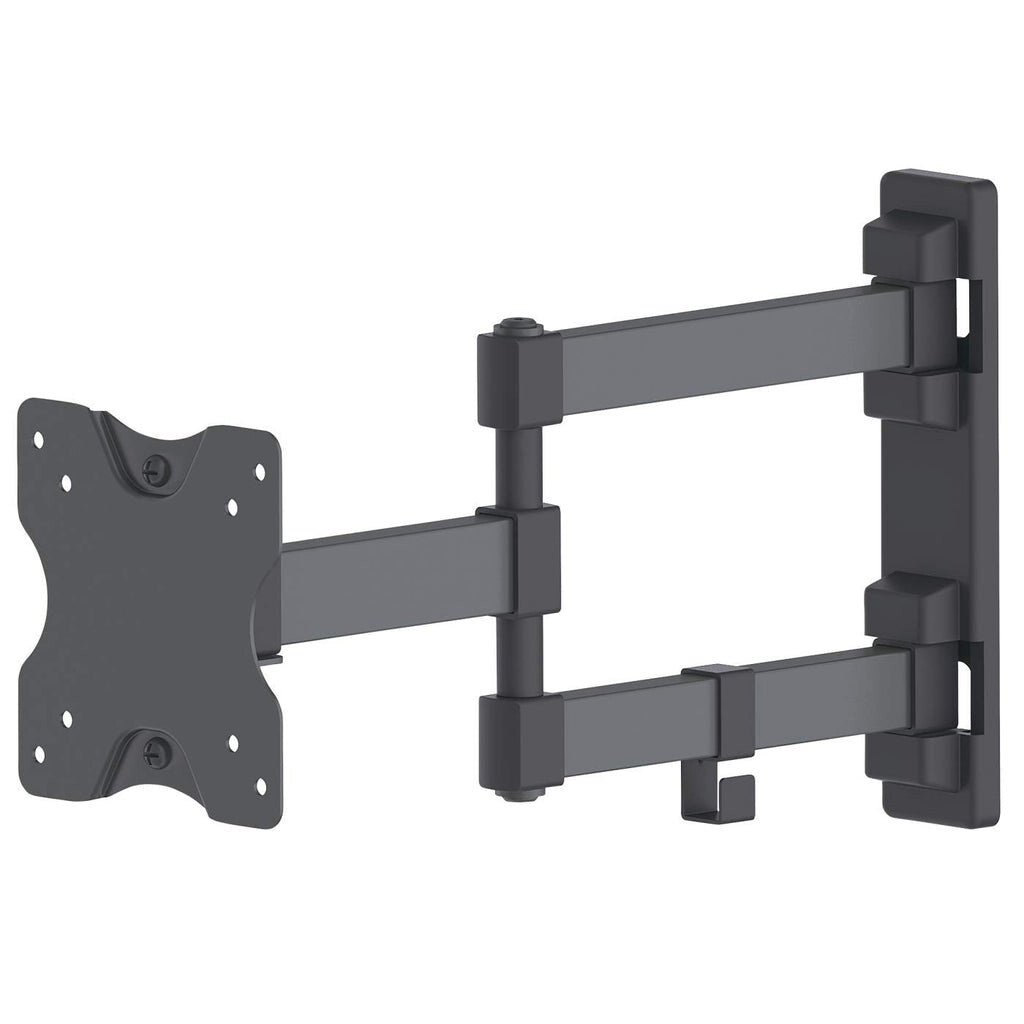

Overcome an odd floor plan, annoying glare or awkward furniture placement that can limit your flat-panel TV experience. The Manhattan Universal Flat-Panel TV Articulating Wall Mount folds nearly flat against the wall and safely extends on a strong, double-arm frame that helps you achieve prime viewing positions from almost anywhere in the room. VESA-compliant and constructed of quality materials, this articulating wall mount fits a range of display sizes for a secure and confident above-the-floor TV installation. It's the perfect fit for mounting a TV in your living room, bedroom or den, as well as for commercial uses in hotels, classrooms, conference rooms, for digital signage and more. The Manhattan Universal Flat-Panel TV Articulating Wall Mount brings your TV enjoyment front and centre.
| Mounting |
|---|
| Distance to the wall (max) |
35.4 cm |
| Distance to the wall (min) |
5 cm |
| Number of displays supported |
1 |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Maximum VESA mount |
100 x 100 mm |
| Minimum VESA mount |
75 x 75 mm |
| Mounting type |
Wall |
| Maximum screen size |
68.6 cm (27") |
| Minimum screen size |
33 cm (13") |
| Maximum weight capacity |
20 kg |
| Ergonomics |
|---|
| Swivel angle range |
-90 - 90° |
| Tilt angle range |
-12 - 5° |
| Tilt adjustment |
Yes |
| Design |
|---|
| Housing material |
Steel |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Weight |
1.33 kg |
| Height |
206 mm |
| Width |
118 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Other features |
|---|
| Depth (max) |
34.4 cm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
