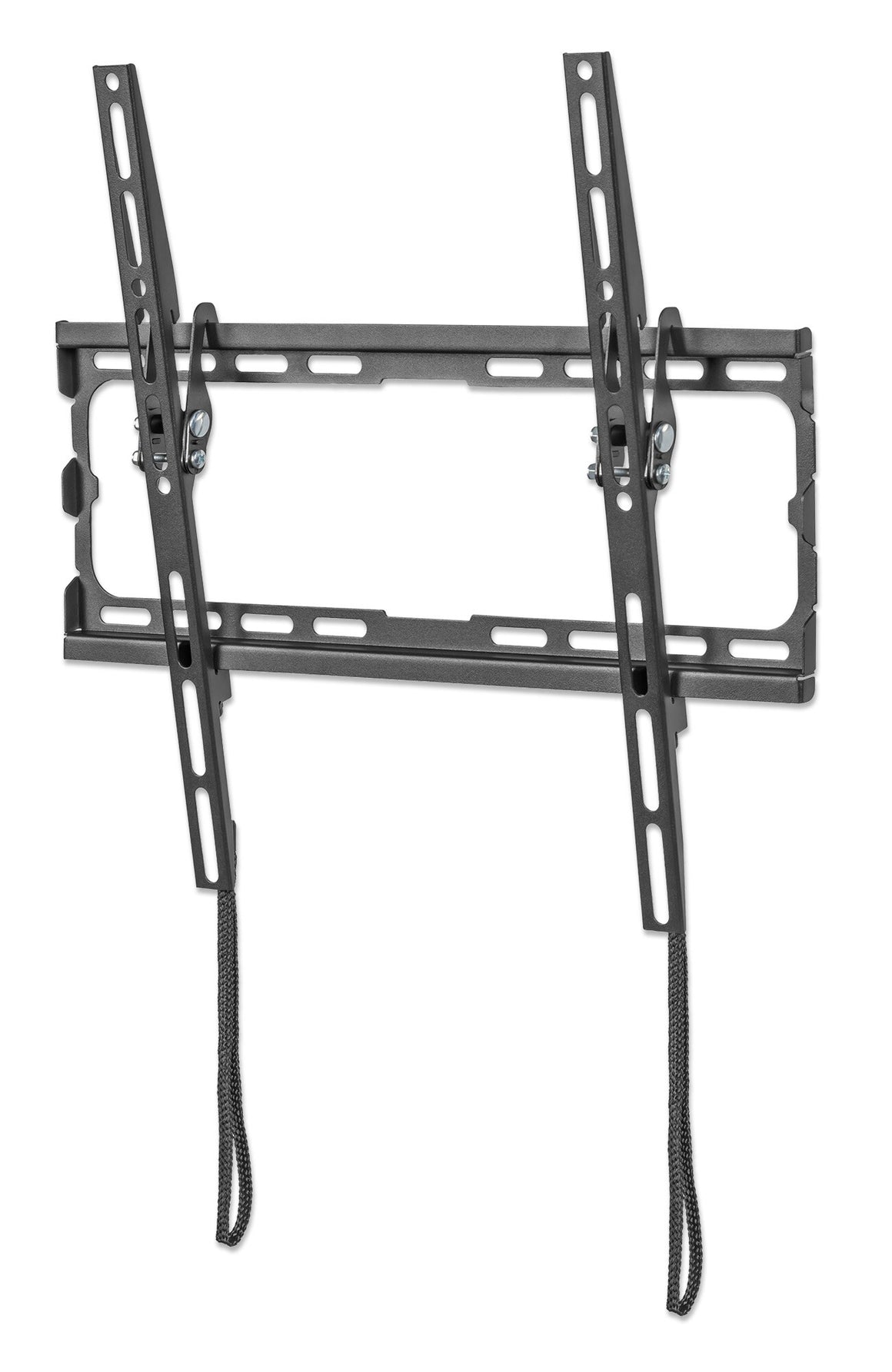

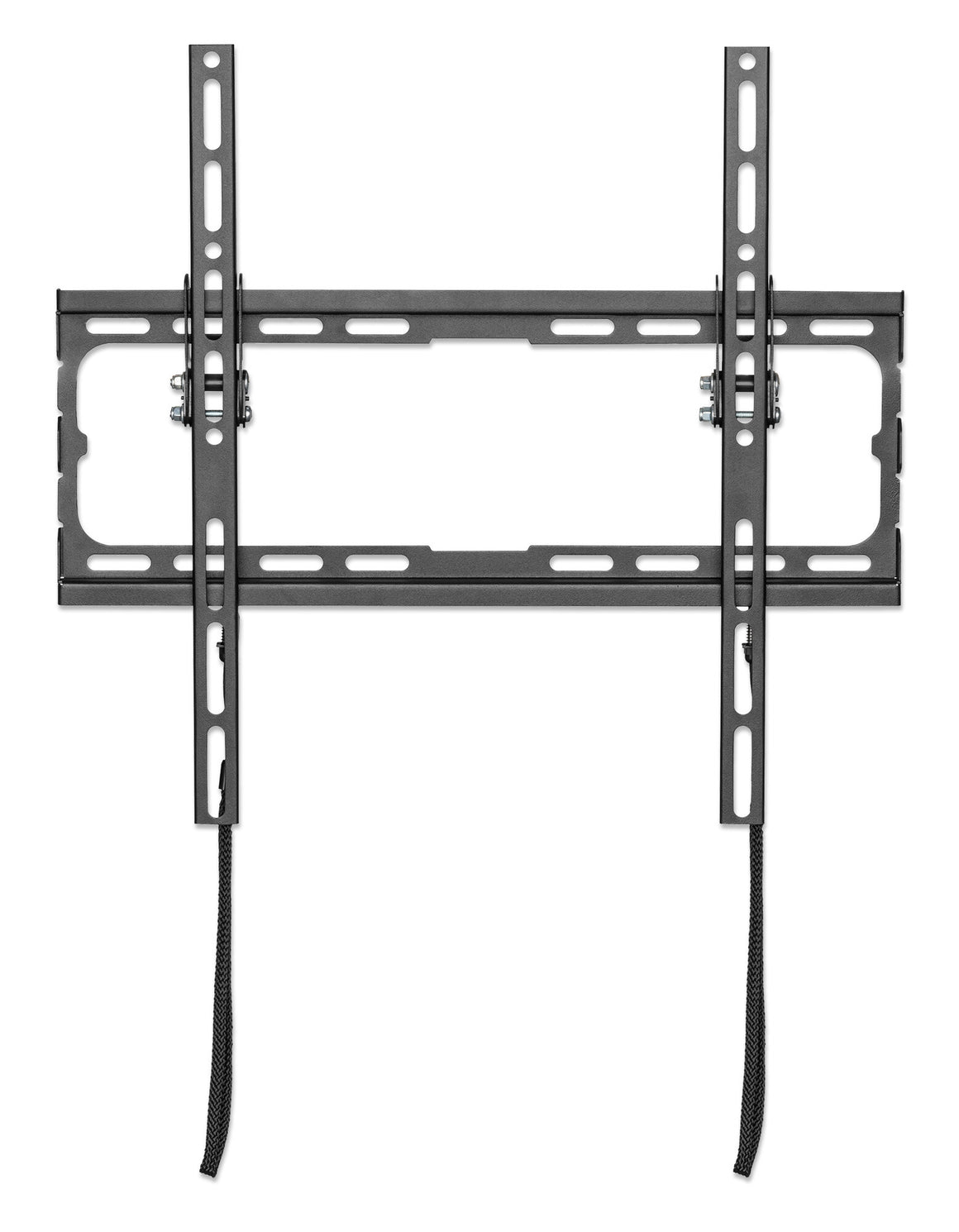

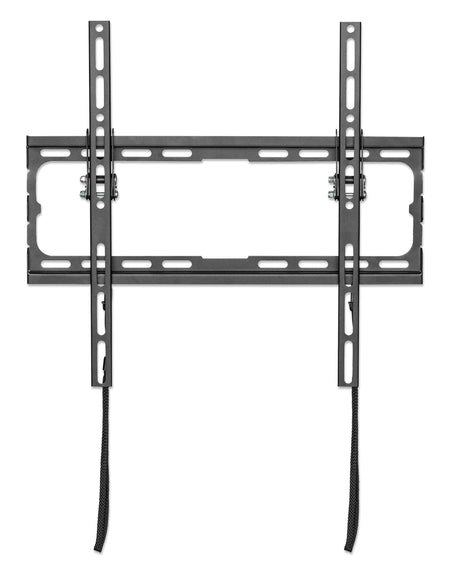

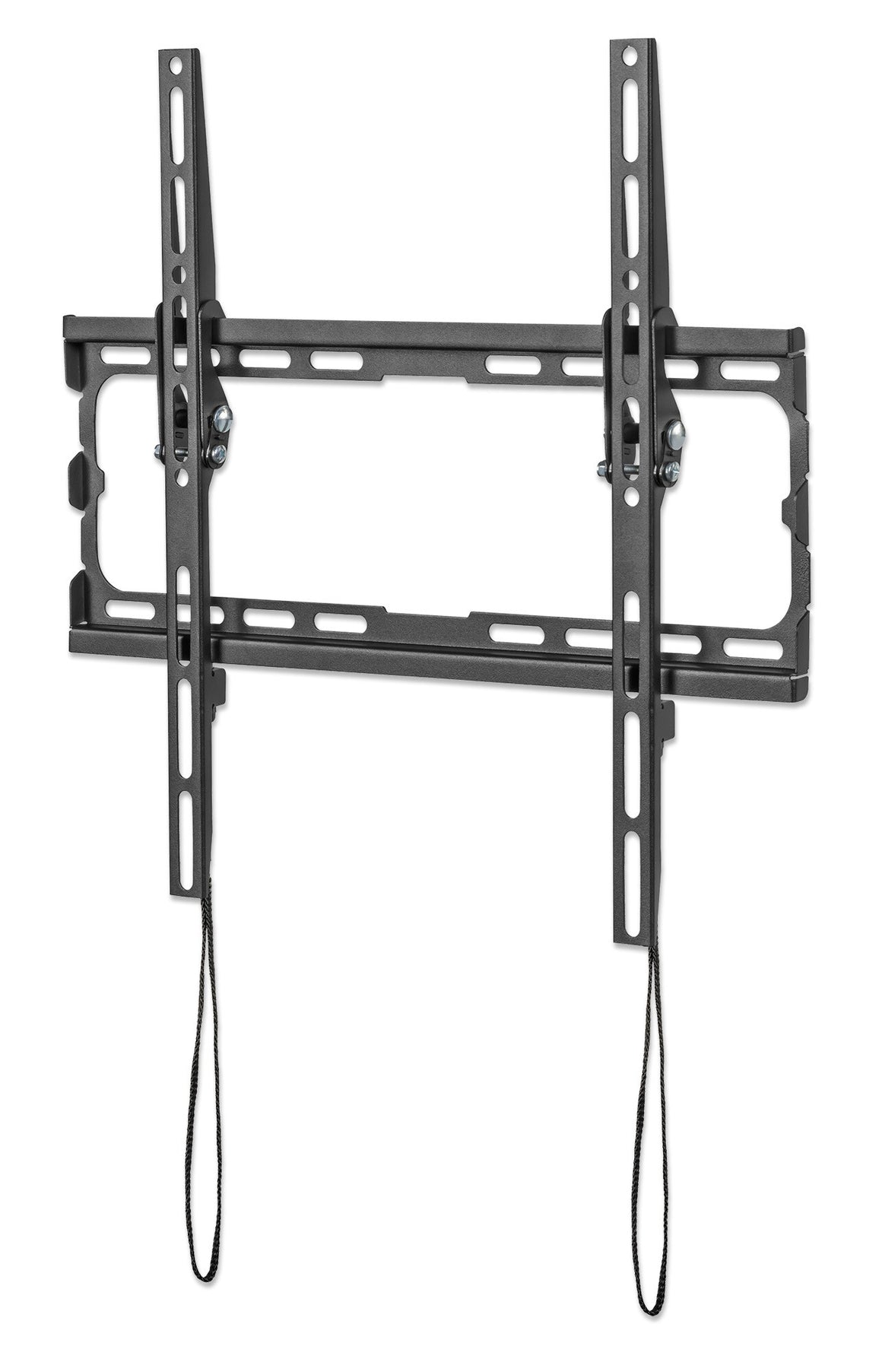

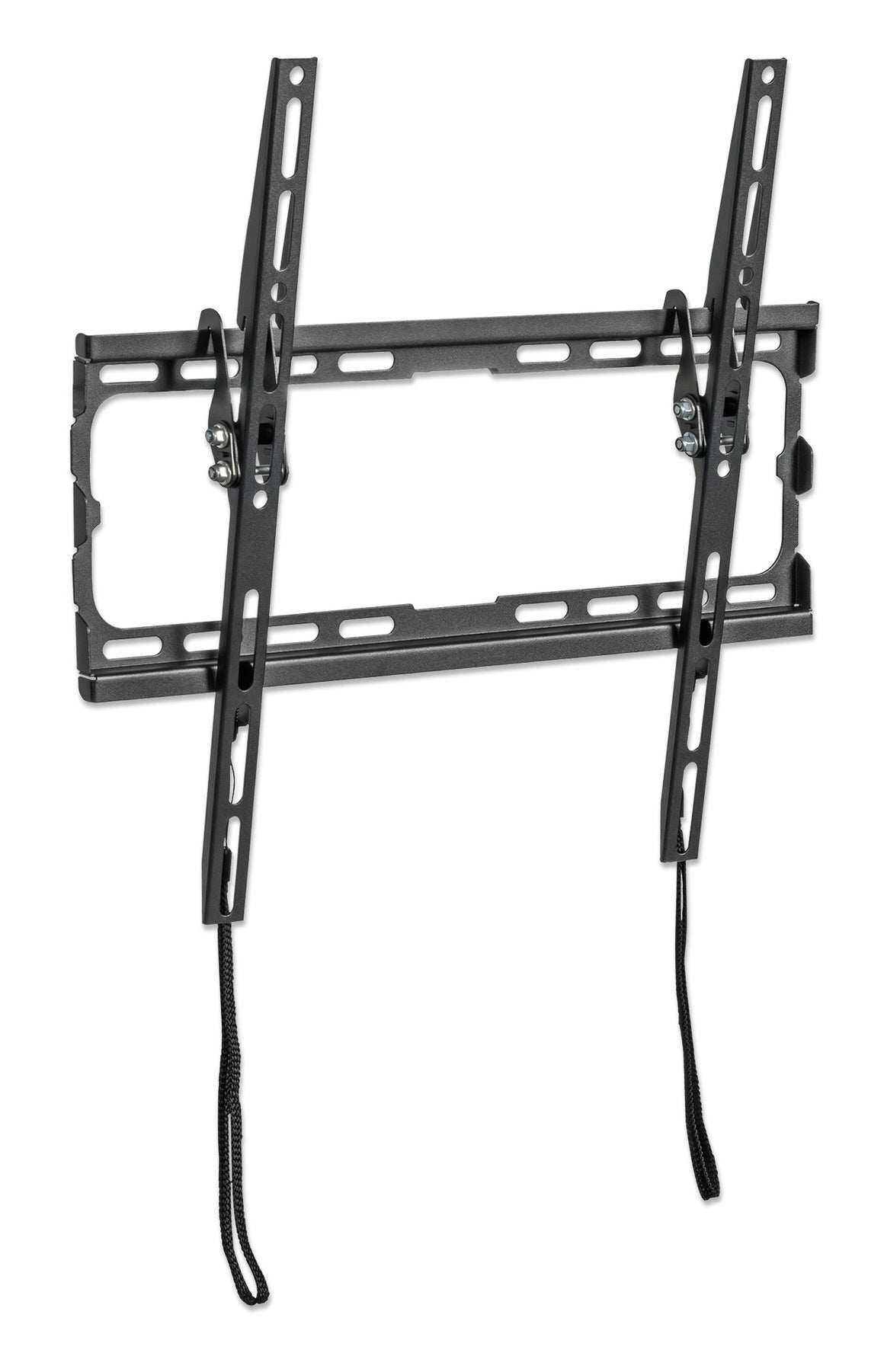

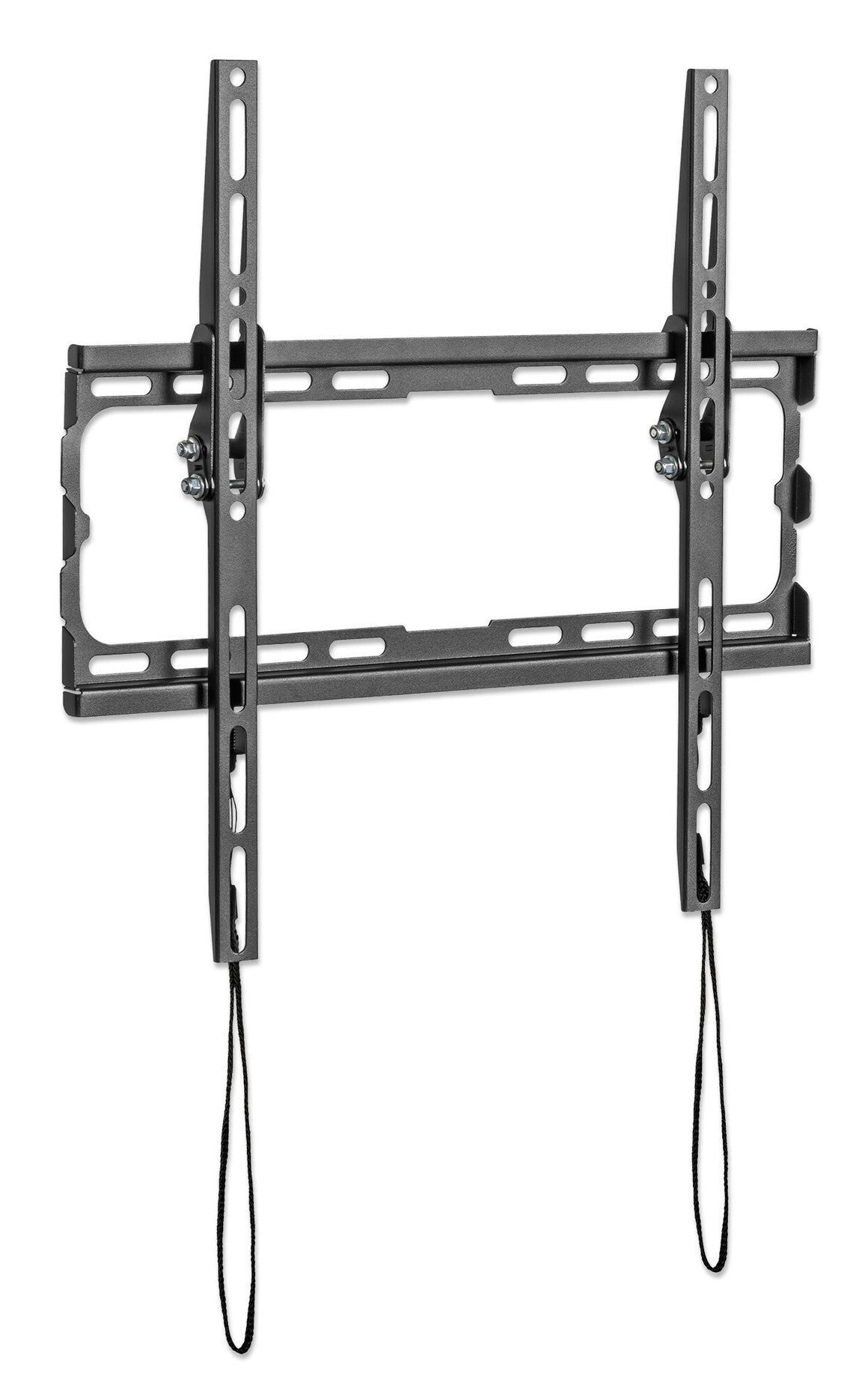

Slim and strong Tilting TV Wall Bracket - adjustable mounting bracket puts displays in the right perspective and avoids annoying glare
This tilting TV Wall Mount from Manhattan safely holds your TV and offers a toolless 0 to -8° tilt adjustment for optimized views. It fits flat LCD, OLED or plasma TVs up to 70"" and weighing up to 45 kg (100 lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation with intuitive snap-in spring locks with release cords that let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
| Mounting |
|---|
| Number of displays supported |
1 |
| Panel mounting interface |
75 x 75,100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,200 x 300,200 x 400,300 x 400,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300 |
| Maximum VESA mount |
400 x 400 mm |
| Minimum VESA mount |
75 x 75 mm |
| Mounting type |
Wall |
| Maximum screen size |
177.8 cm (70") |
| Minimum screen size |
81.3 cm (32") |
| Maximum weight capacity |
48 kg |
| Ergonomics |
|---|
| Distance to the wall (max) |
2 cm |

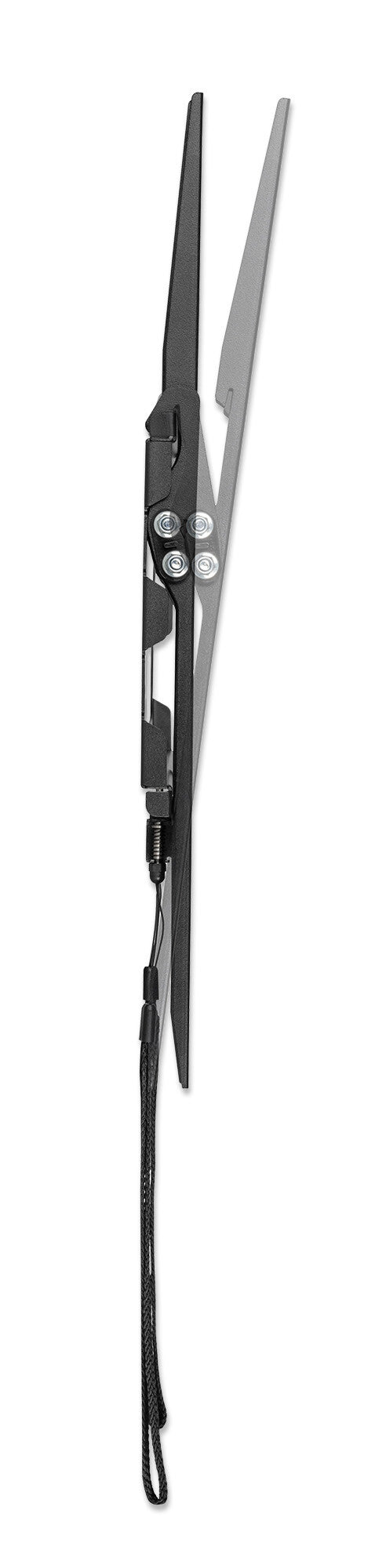

| Tilt angle range |
-8 - 0° |
| Tilt adjustment |
Yes |
| Design |
|---|
| Housing material |
Steel |
| Product colour |
Black |
| Packaging content |
|---|
| Packaging content |
Low-Profile Tilting TV Wall MountInstallation hardware with instructions |
| Manual |
Yes |
| Mounting kit |
Yes |
| Technical details |
|---|
| Quantity per pack |
1 pc(s) |
| Weight & dimensions |
|---|
| Weight |
700 g |
| Height |
418 mm |
| Depth (max) |
2 cm |
| Width |
440 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
1 kg |
| Package height |
175 mm |
| Package depth |
28 mm |
| Package width |
450 mm |
| Logistics data |
|---|
| Products per master (outer) case |
18 pc(s) |
| Master (outer) case gross weight |
20.2 kg |
| Master (outer) case height |
280 mm |
| Master (outer) case length |
370 mm |
| Master (outer) case width |
470 mm |
