Faster Speeds. Broader Access. Higher Capacity.
A New Era of Home WiFi

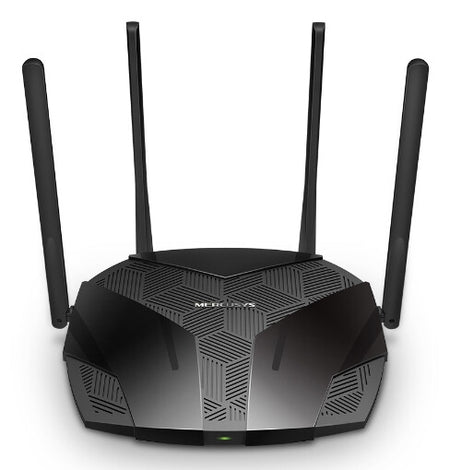

AX3000 Dual-Band Wi-Fi 6 Router

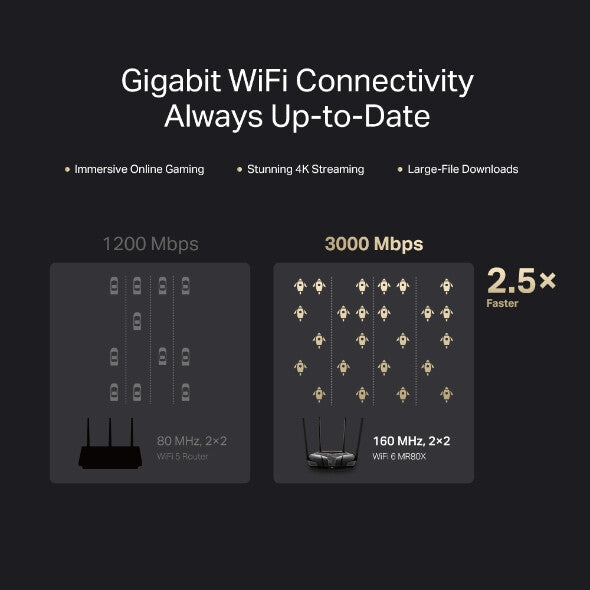

Gigabit WiFi Connectivity, Always Up-to-Date
Doubling the bandwidth with 160 MHz channels,1 MR80X unlocks the limits of the previous channel width and provides next-level speeds for your devices. With WiFi 6 speeds up to 3 Gbps,2 finish large-file downloads in minutes and experience stunning 4K streaming without lag.

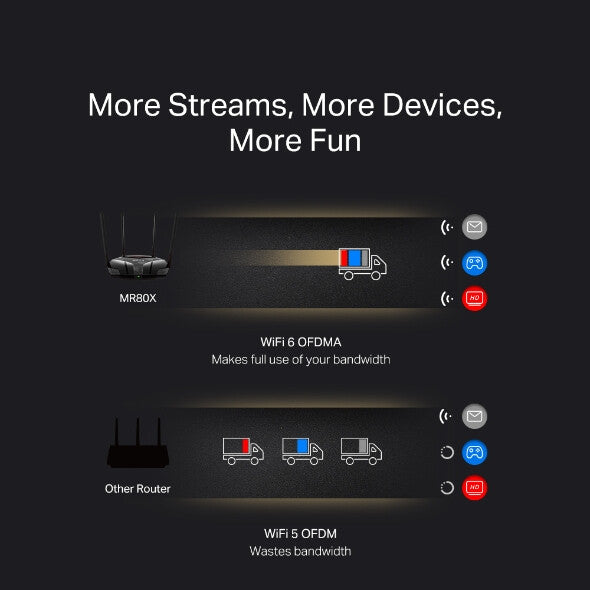

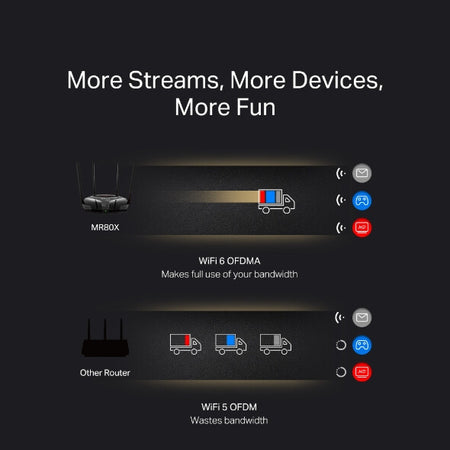

Connect 4× More Devices, All Simultaneously
Streaming or gaming on multiple devices brings more fun without dragging down performance. MR80X supports OFDMA and MU-MIMO1 to power up your WiFi by allowing multiple clients to transmit at the same time. This delivers 4× greater network capacity and efficiency in traffic-dense environments.
Reduce the Interference from Your Neighbors’ WiFi
Interference from nearby wireless networks may cause issues with your signal, especially when you live in an apartment or close to your neighbors. MR80X supports BSS Coloring to mark the data frames from different APs. This helps minimize the signal interference from your neighbors to improve transmission efficiency.
Eco-Friendly Power Saving
Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend your devices’ battery life.

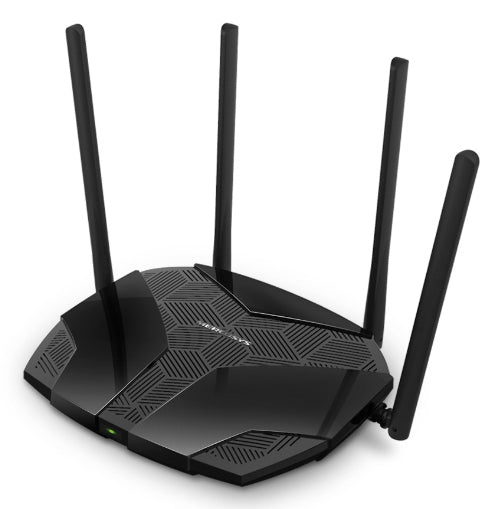

More Targeted Signals that Penetrate Walls
Four external high-gain antennas armed with integrated signal amplifiers provide strong WiFi signals that reach farther. Beamforming detects your connected devices and concentrates wireless signal strength towards them, making your connections more stable.
The Latest WPA3 Protects Your Personal Network
The latest security standard, WPA3, offers improved comprehensive WiFi protection to defend your devices and private information against brute-force attacks4.
Protect Against Brute-Force Attacks
Delivers robust protection even when you are using a weak password
Advanced Forward Secrecy
Prevents data from being snooped even if a cracker compromises a session’s secret keys
Unbreakable 128-Bit Encryption
Creates an active defense against security threats and intruders
Smart Connect
Assigns Devices to the Best Band Automatically
Smart Connect allows each of MR80X's wireless bands to use the same wireless settings. MR80X balances network demand and assigns your devices to the band with the best signal and speed. This keeps your devices always running optimally when you walk around your home.

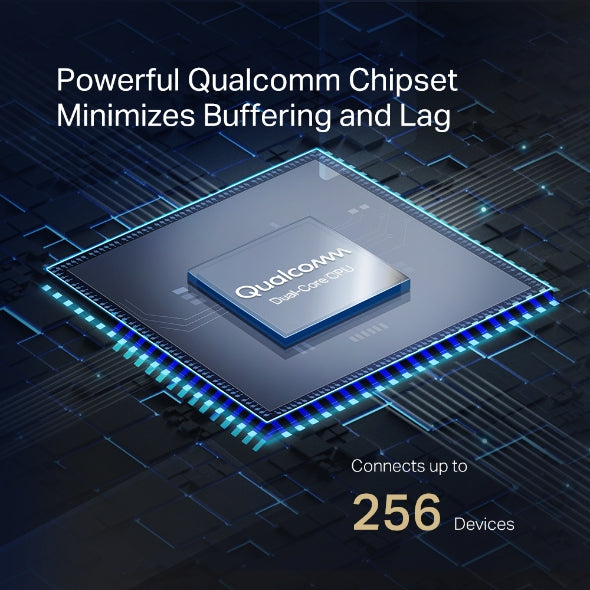

Powerful Qualcomm Chipset Minimizes Buffering and Lag
Powered by a highly integrated Qualcomm WiFi 6 chipset that combines a 64-bit dual-core CPU and an advanced 12-thread programmable network processor, MR80X enables stable connections for up to 256 devices.5 Your network can now handle massive data throughput, allowing numerous bandwidth-intensive tasks to run smoothly at the same time.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| SIM card slot |
No |
| DSL WAN |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| WLAN data transfer rate (second band) |
574 Mbit/s |
| WLAN data transfer rate (first band) |
2402 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
3000 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| VPN support |
OpenVPN, PPTP supported |
| VPN server |
OpenVPN, PPTP |
| Wireless radio |
Yes |
| Number of guest networks (2.4 GHz) |
1 |
| Number of guest networks (5 GHz) |
1 |
| Port forwarding |
Yes |
| Port triggering |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Mobile network |
|---|
| 5G |
No |
| 3G |
No |
| 4G |
No |

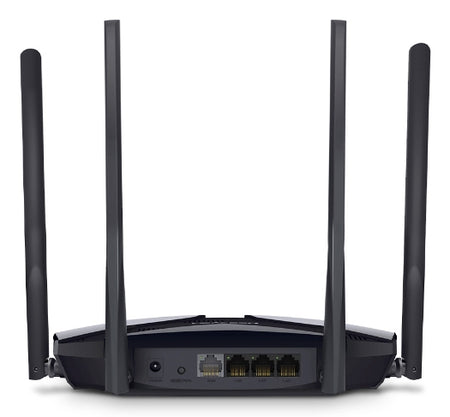

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB port |
No |
| Ethernet LAN (RJ-45) ports |
3 |
| Management features |
|---|
| WPS push button |
Yes |
| Reset button |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Security |
|---|
| NAT functionality |
Port Forwarding, Port Triggering, UPnP, DMZ |
| Network address translation (NAT) |
Yes |
| DMZ support |
Yes |
| Firewall security |
SPI Firewall, IP and MAC Address Binding |
| Guest access |
Yes |
| Firewall |
Yes |
| Security algorithms |
WEP, WPA, WPA2, WPA3 |
| Protocols |
|---|
| Universal Plug and Play (UPnP) |
Yes |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| LED indicators |
LAN, WAN |
| Product colour |
Black |
| Product type |
Tabletop router |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Antenna |
|---|
| Antennas quantity |
4 |
| Antenna gain level (max) |
5 dBi |
| Antenna design |
External |
| Power |
|---|
| External power adapter |
Yes |
| Power source type |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
208.8 mm |
| Depth |
171.6 mm |
| Height |
41.7 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
