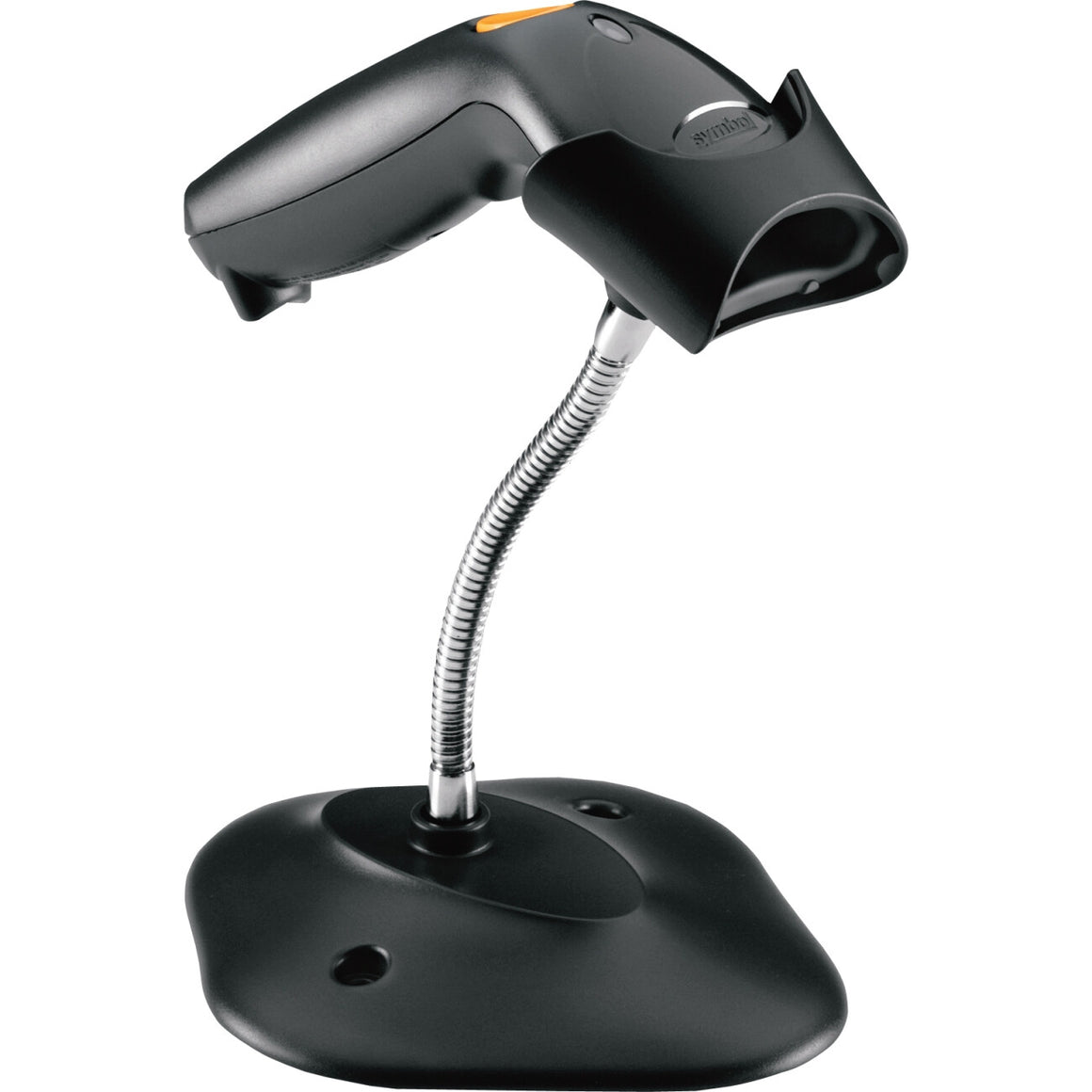

This bi-directional LS1203 handheld scanner handles all 1D bar codes and is ideal for small retailers. It delivers the functionality, features and reliability needed to improve operational efficiencies from the check-out line to the storeroom. It minimizes manual keying — ensuring accuracy in all customer transactions — and it automates paper-based inventory processes. The device easily integrates multiple interfaces to help ensure connectivity to a host and PC system.
Durable, single-board construction
Meets 5-ft drop tests, significantly reducing downtime and repair costs.
Multiple interfaces: RS232, USB, keyboard wedge (KBW) in one scanner
Simplifies installation and integration, ensuring future compatibility.
Sleek, lightweight, ergonomic design
Maximizes comfort for all-day use.
Intuitive scanning and plug-and-play capability
Minimizes setup and training time.
Choice of triggered or continuous mode
Ensures versatile, accurate first-time scanning.
| Scanning |
|---|
| Tilt reading angle |
-30 - 30° |
| Wavelength |
650 nm |
| Read rate (max) |
100 reads/s |
| Sensor type |
Laser |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128) |
| 2D (matrix & stacked) barcodes supported |
Not supported |
| Type |
Handheld bar code reader |
| Ports & interfaces |
|---|
| Standard interfaces |
USB |
| Connectivity technology |
Wired |
| Performance |
|---|
| Product colour |
Black |
| Power |
|---|
| Power consumption |
100 mA |
| Input voltage |
5 V |
| Power source type |
DC |
| Weight & dimensions |
|---|
| Weight |
122 g |
| Height |
60.9 mm |
| Depth |
180.3 mm |
| Width |
60.9 mm |
| Packaging data |
|---|
| Cables included |
USB |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| General |
|---|
| Product family |
Motorola |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
