The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

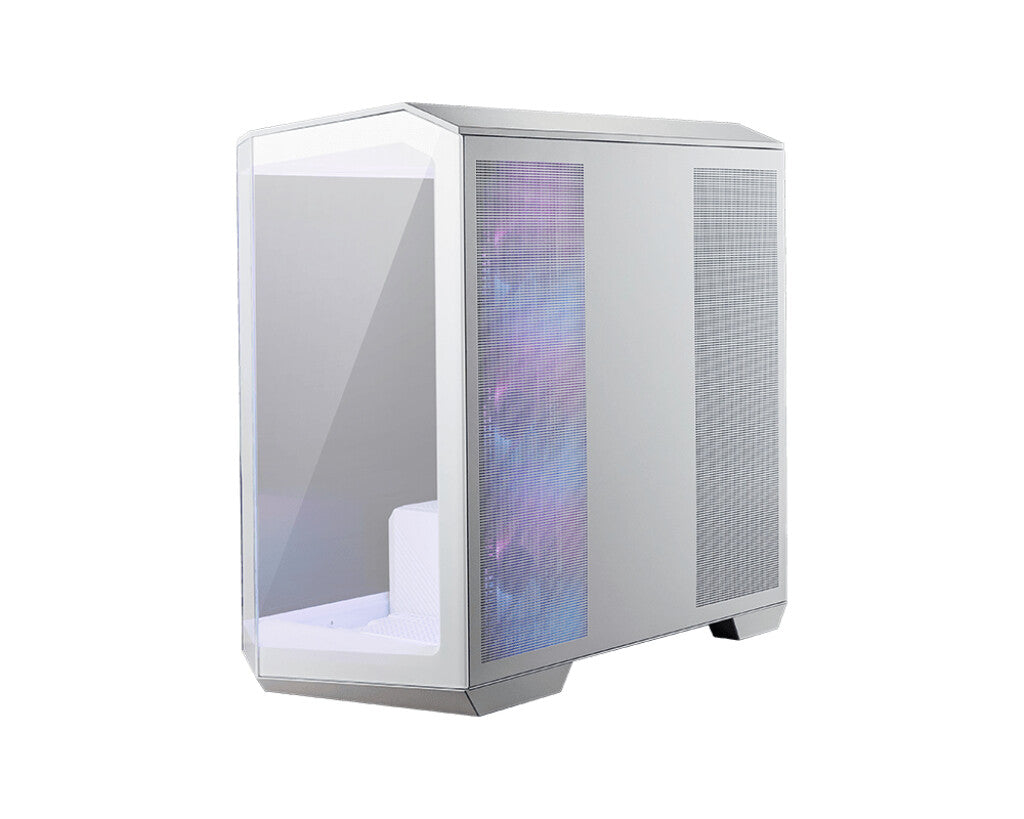

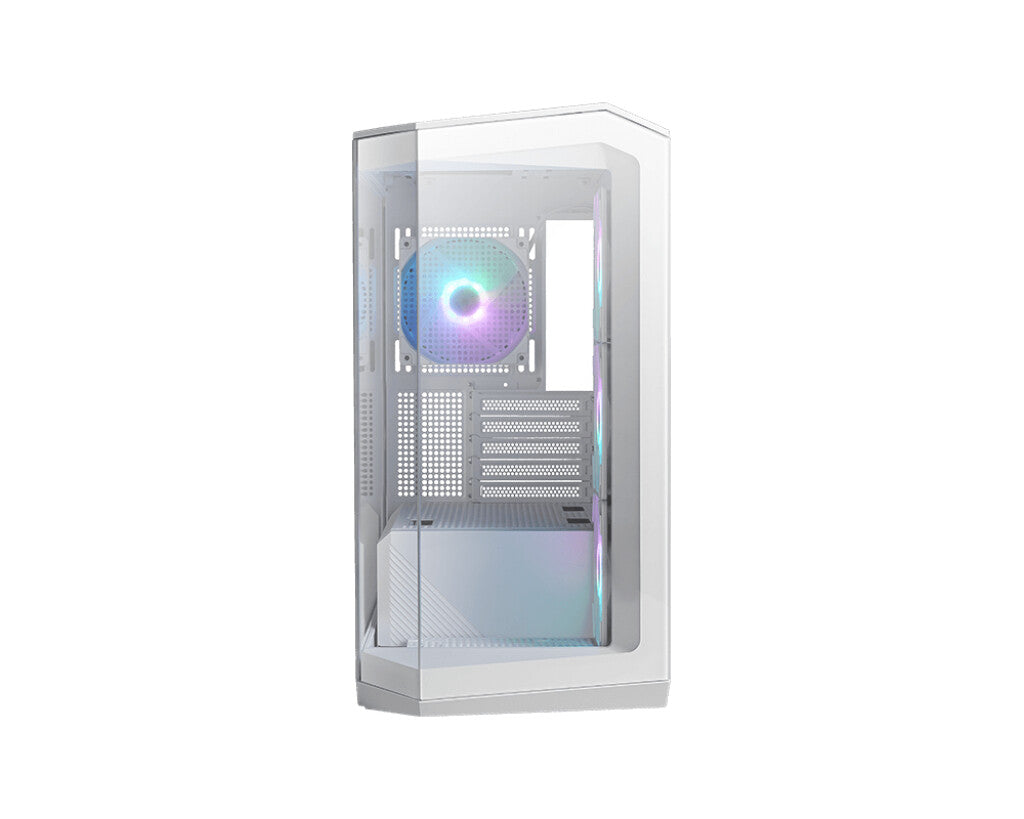

To meet the desire to show the ARGB PC build, the MAG PANO M100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness, supports a back-connect motherboard, and comes with the reverse-blade fan on the side, a 1-to-4 ARGB-PWM control board to let user organize cables easily.
FANCY APPEARANCE
Build and display the coolest PC with controllable ARGB lighting.
HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.
EASY TO INSTALL
The gaming case has many features that make the installation process all the easier.
BETTER TOGETHER
Synergize the MAG PANO M100R PZ series with a compatible MSI motherboard through bridging with a USB 3.2 Gen 2x2 Type-C port for high speed data transmission.
CONNECTABLE FRONT I/O
- USB 3.2 Gen 2x2 Type-C
- USB 3.2 Gen 1 Type-A
- Mic-in / Audio-out
- LED Switch
- Power
| Design |
|---|
| Maximum PSU length |
20 cm |
| Maximum graphics card length |
39 cm |
| Maximum CPU cooler height |
17.5 cm |
| LED indicators |
Yes |
| On/off button |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Suitable for |
Gaming |
| Side window |
Yes |
| Number of expansion slots |
5 |
| Number of 2.5" bays |
1 |
| Number of 3.5" bays |
1 |
| Supported motherboard form factors |
ITX, micro ATX |
| Product colour |
White |
| Type |
PC |
| Form factor |
Micro Tower |
| Power supply |
|---|
| Supported power supply form factors |
ATX |
| Power supply shroud |
Yes |
| Power supply location |
Bottom |
| Ports & interfaces |
|---|
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Cooling |
|---|
| Top radiator sizes supported |
120,240,360 mm |
| Rear radiator sizes supported |
120,140 mm |
| Bottom fans diameters supported |
120 mm |
| Number of bottom fans supported (max) |
1 |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Rear fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 120 mm |
| Side fans diameters supported |
120 mm |
| Number of side fans supported (max) |
3 |
| Side fans installed |
3x 120 mm |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
|---|
| Weight |
8.66 kg |
| Height |
405 mm |
| Depth |
440 mm |
| Width |
235 mm |
| Packaging data |
|---|
| Package weight |
11.3 kg |
