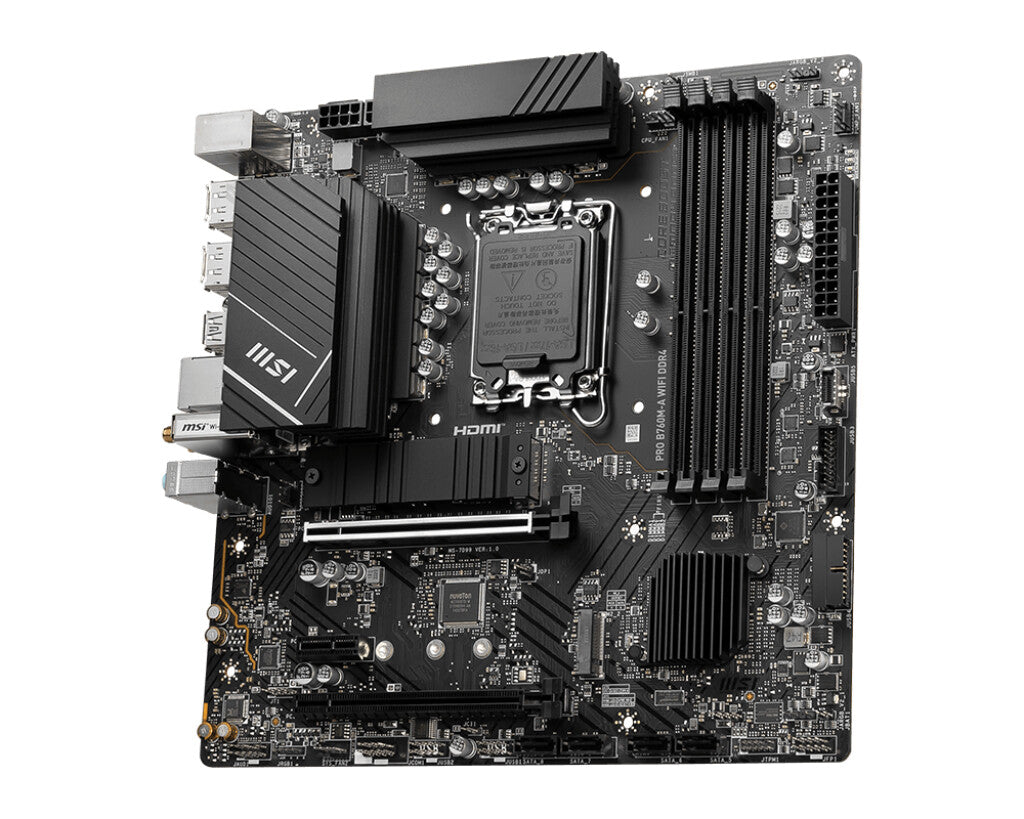

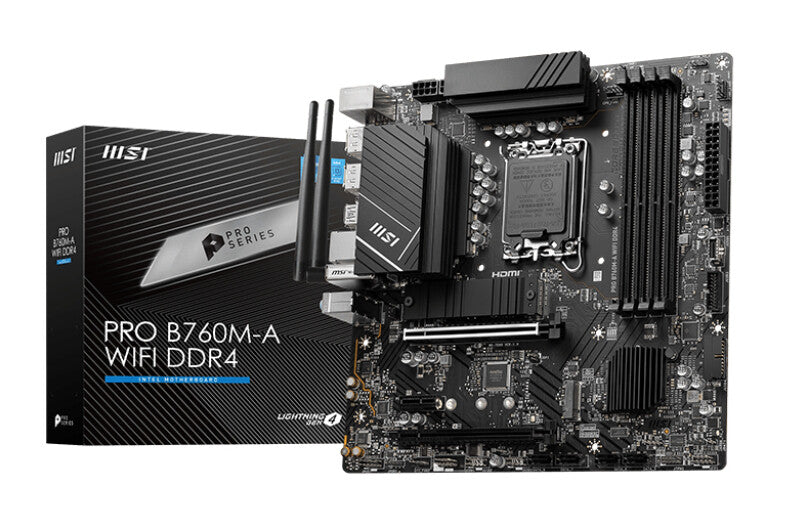

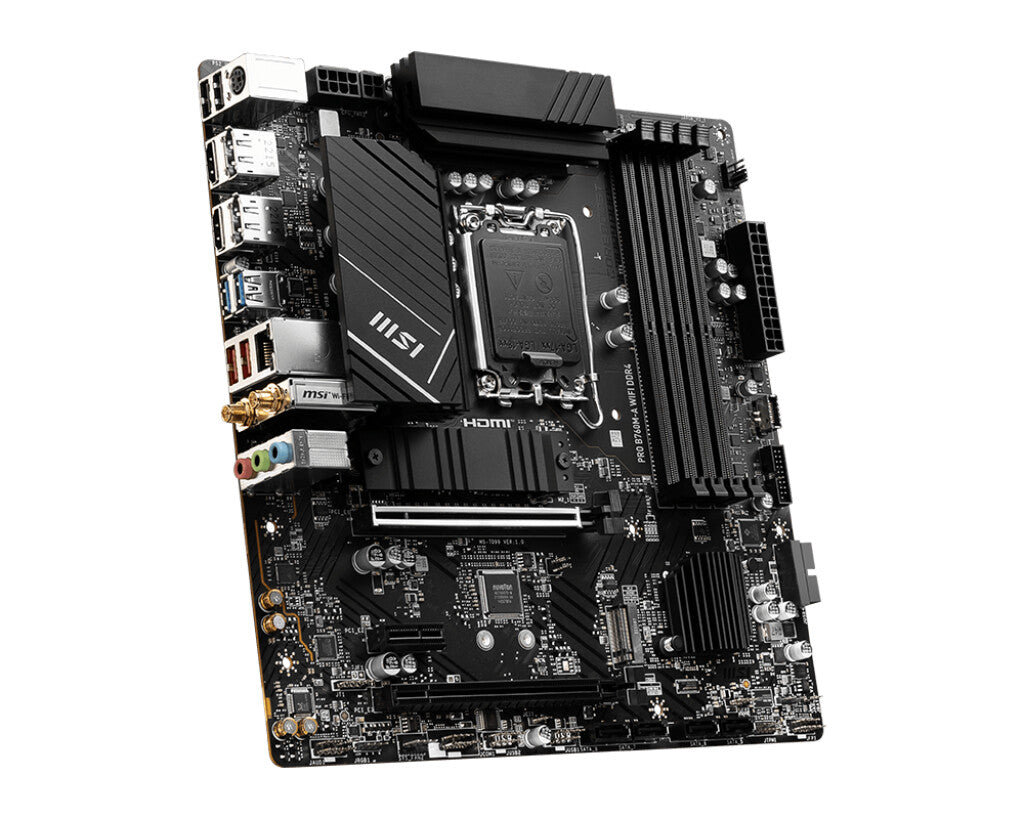

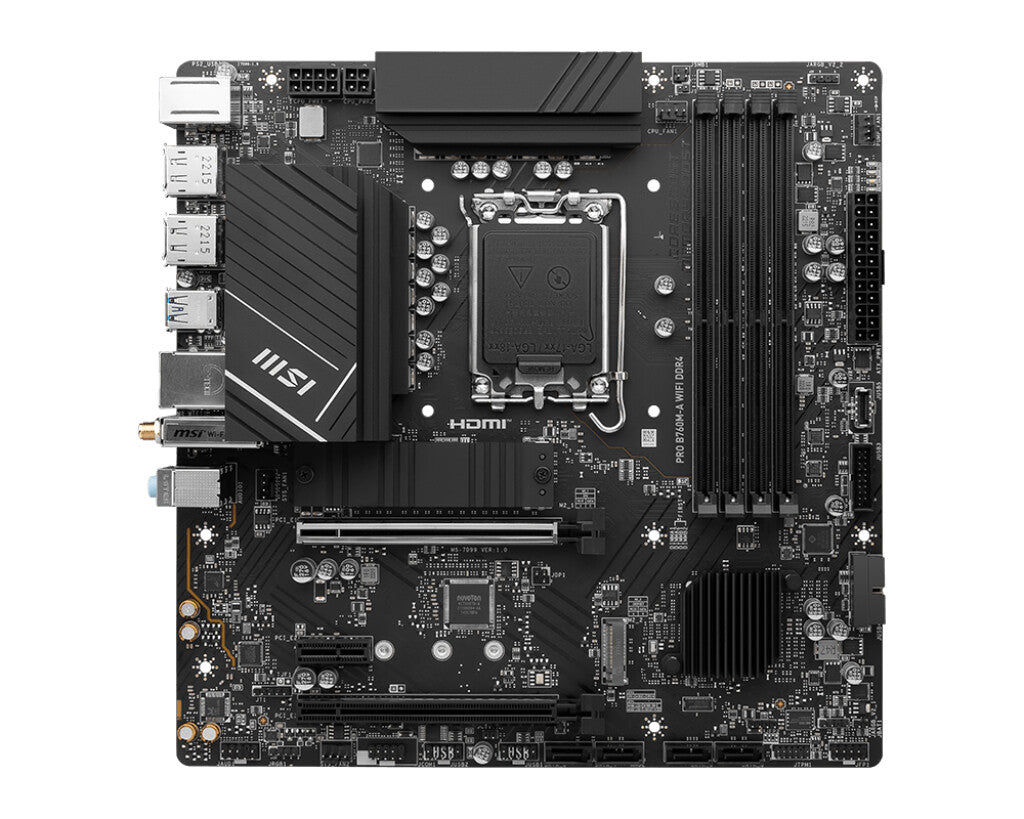

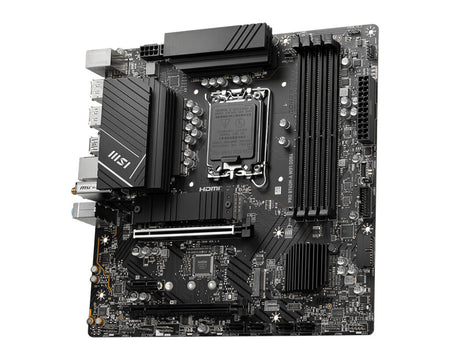

MSI PRO B760M-A WIFI DDR4 motherboard Intel B760 LGA 1700 micro ATX

SKU: PRO B760M-A WIFI DDR4
Regular price £125.90 inc. VAT
  • Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
 More payment options

PRO B790M-A WIFI DDR4
PRO B760M-A WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version

BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

CONTROL IN ONE CLICK
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

AUTO DETECT YOUR FAN
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

USB FRONT TYPE-C
MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

Processor
Supported processor sockets LGA 1700
Maximum number of SMP processors 1
Compatible processor series Intel® Celeron®, Intel® Pentium® Gold
Processor socket LGA 1700
Processor manufacturer Intel
Memory
Maximum internal memory 128 GB
Supported memory clock speed (max) 5333 MHz
Supported memory clock speeds 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz
ECC сompatibility Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR4-SDRAM
Storage controllers
RAID levels 0, 1, 5, 10
RAID support Yes
Supported storage drive interfaces M.2, SATA III
Graphics
Parallel processing technology support Not supported
Internal I/O
RGB LED pin header Yes
TPM connector Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel connector Yes
Front panel audio connector Yes
Number of SATA III connectors 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 4
USB 2.0 connectors 4

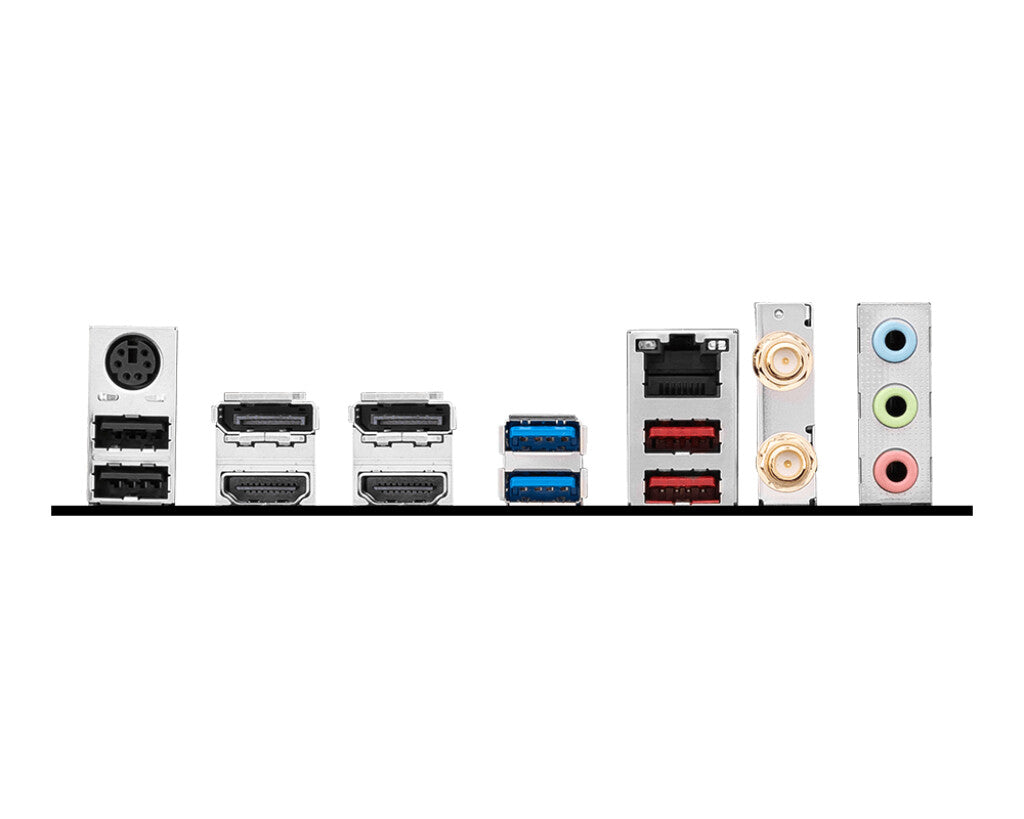

Rear panel I/O ports
DisplayPorts quantity 2
HDMI ports quantity 2
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 2.0 ports quantity 2
Network
Bluetooth Yes
Wi-Fi standards 802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 10, Windows 11
Power source type ATX
Product colour Black
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Motherboard chipset Intel B760
Motherboard chipset family Intel
Motherboard form factor micro ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 2
PCI Express x1 (Gen 3.x) slots 2
BIOS
System Management BIOS (SMBIOS) version 3.5
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Weight & dimensions
Depth 243.8 mm
Width 243.8 mm
