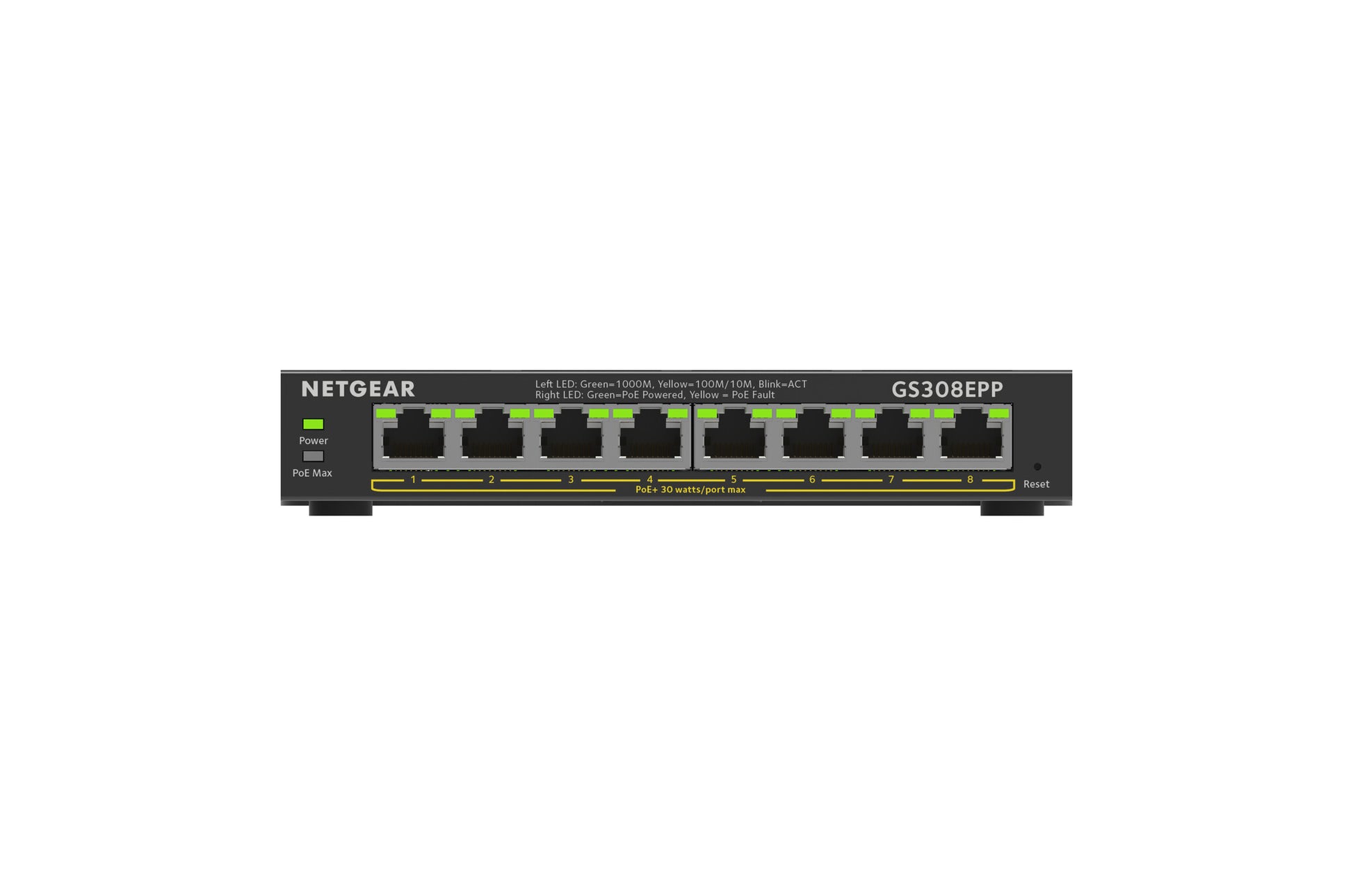

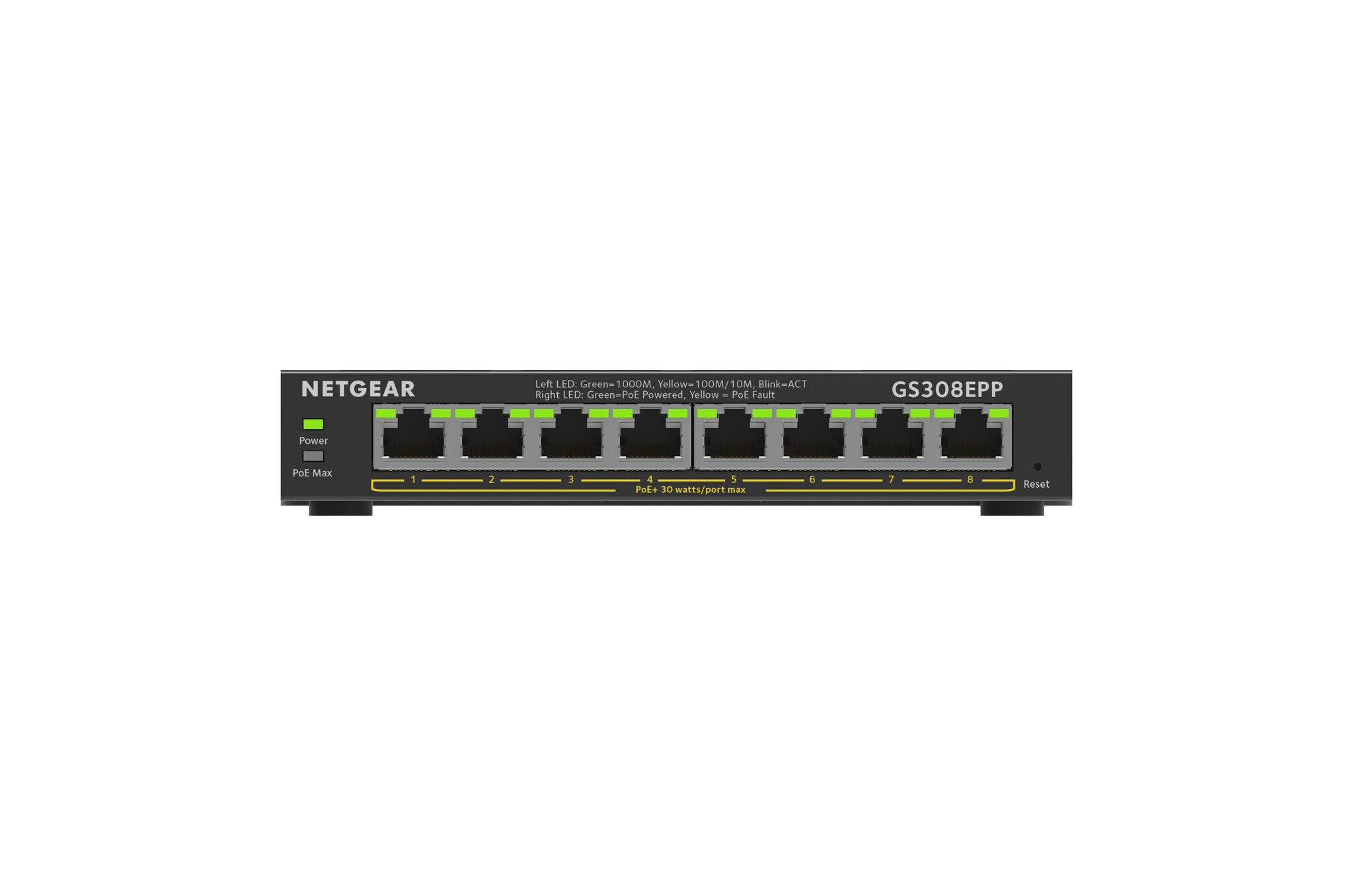

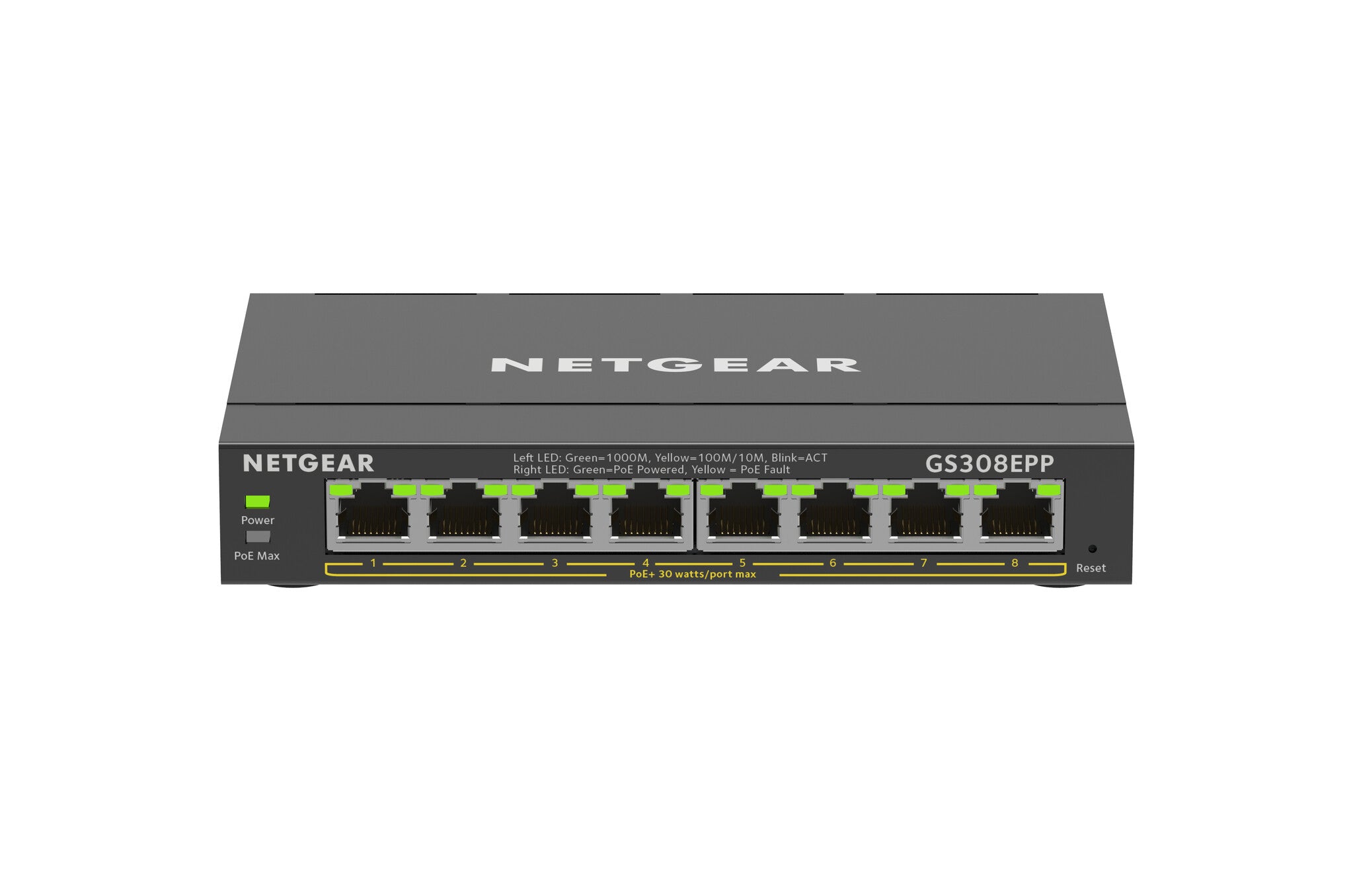

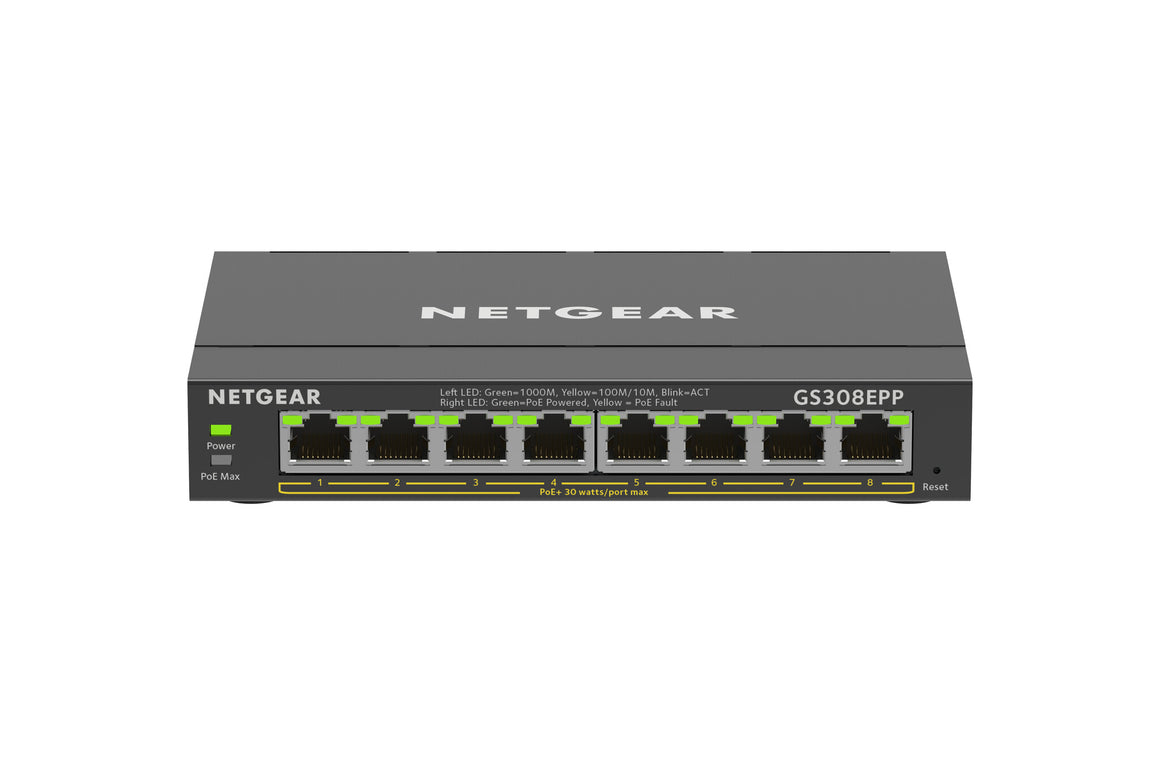

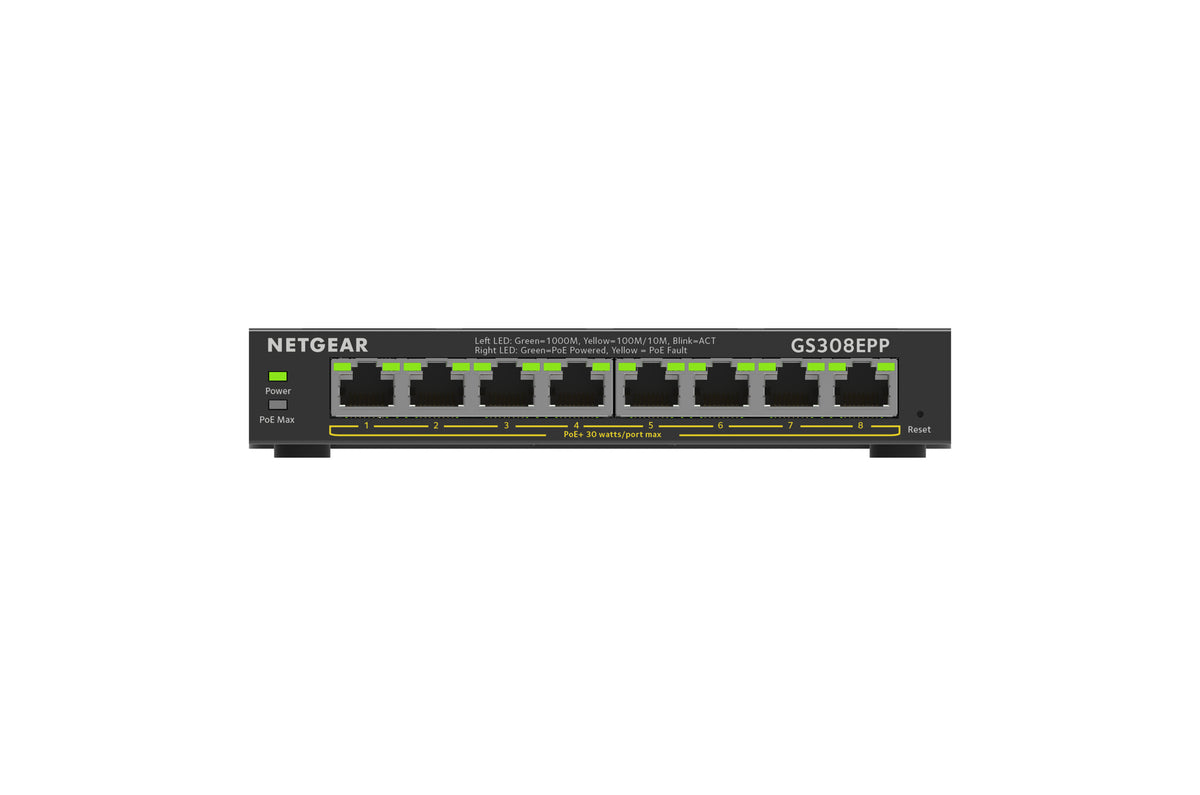

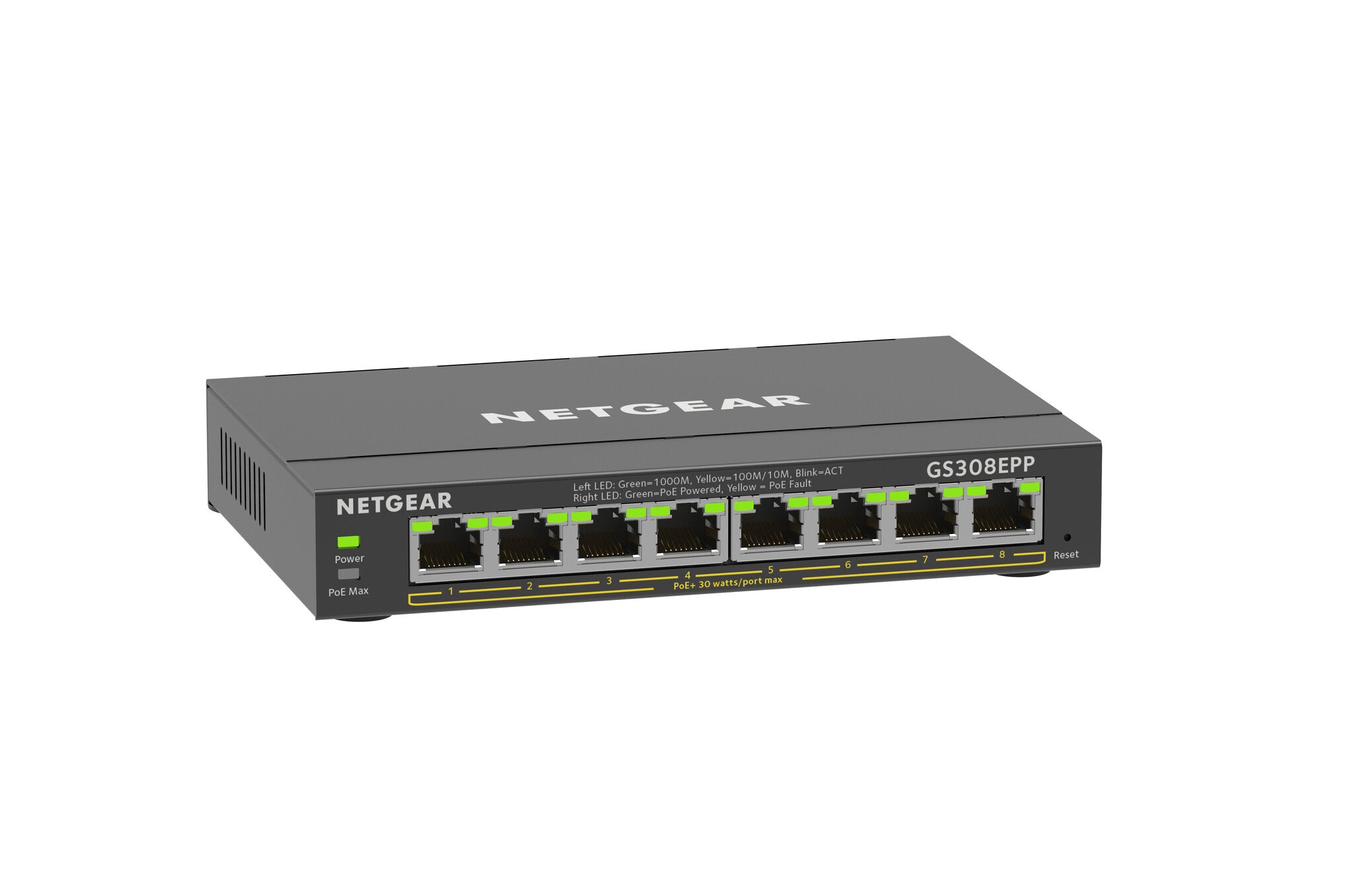

300 Series SOHO Plus (GS308EPP)
8-Port Gigabit Ethernet PoE+ Plus Switch (123W)
Easy to manage, fundamental network features at an affordable cost for SMBs. GS308EPP offers 123W total power budget to power devices PoE devices such as VoIP phones, IP cameras, wireless access points, etc.
Gigabit Ethernet
8 ports provide up to 1000 Mbps of dedicated, non-blocking bandwidth each.
PoE+ Support
8 PoE+ ports provide a total of 123W of power so you can power and connect your devices with a single wire.
Advanced PoE Controls
Manage PoE prioritization, PoE power limit per port, and more for simple control over all PoE-powered devices.
Non-Blocking Switching
10Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.
Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.
Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.
| Management features |
|---|
| MIB support |
Y |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| VLAN support |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Jumbo frames |
9216 |
| Jumbo frames support |
Yes |
| Switching capacity |
16 Gbit/s |
| MAC address table |
4000 entries |
| Security |
|---|
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Power |
|---|

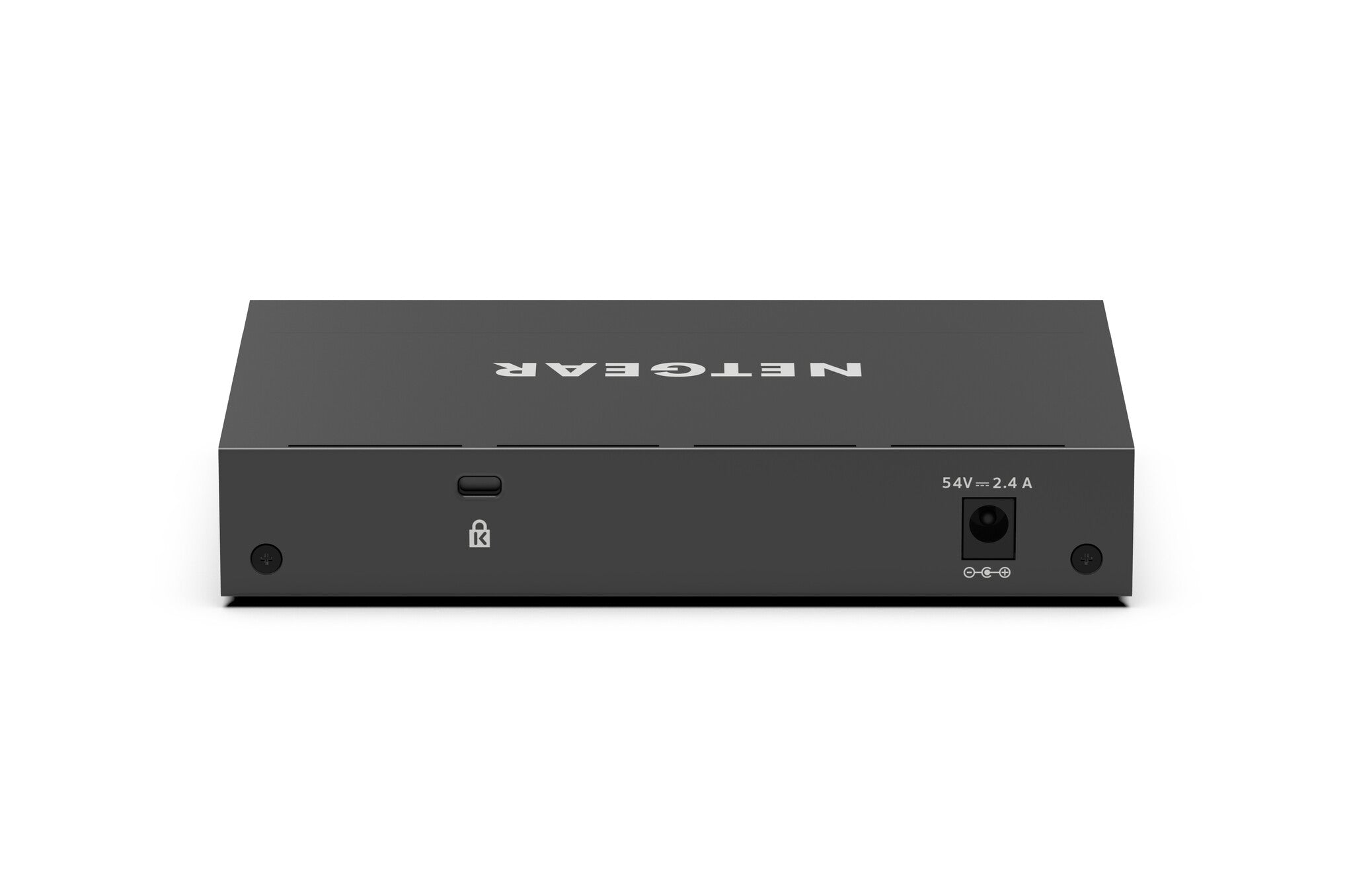

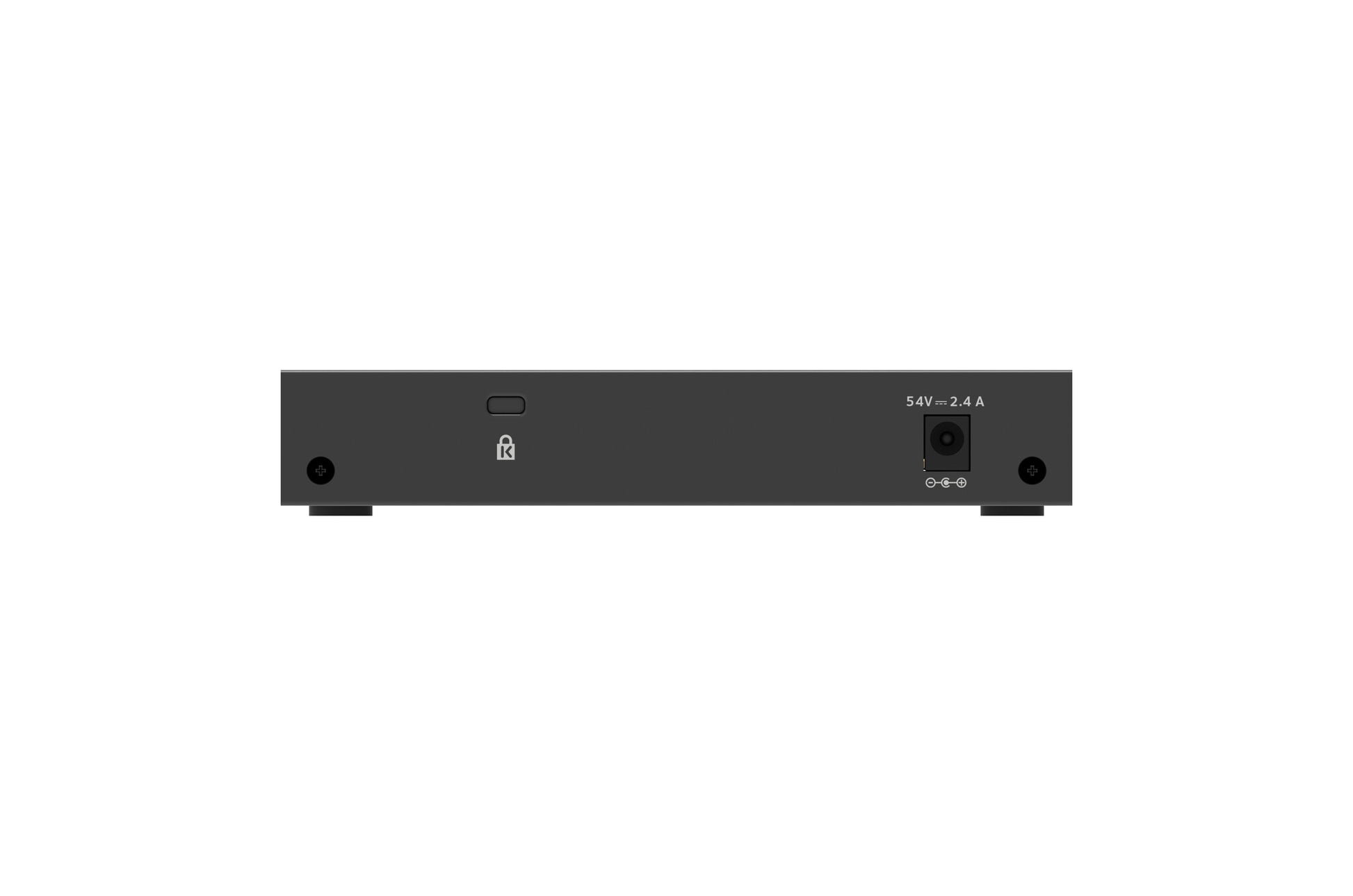

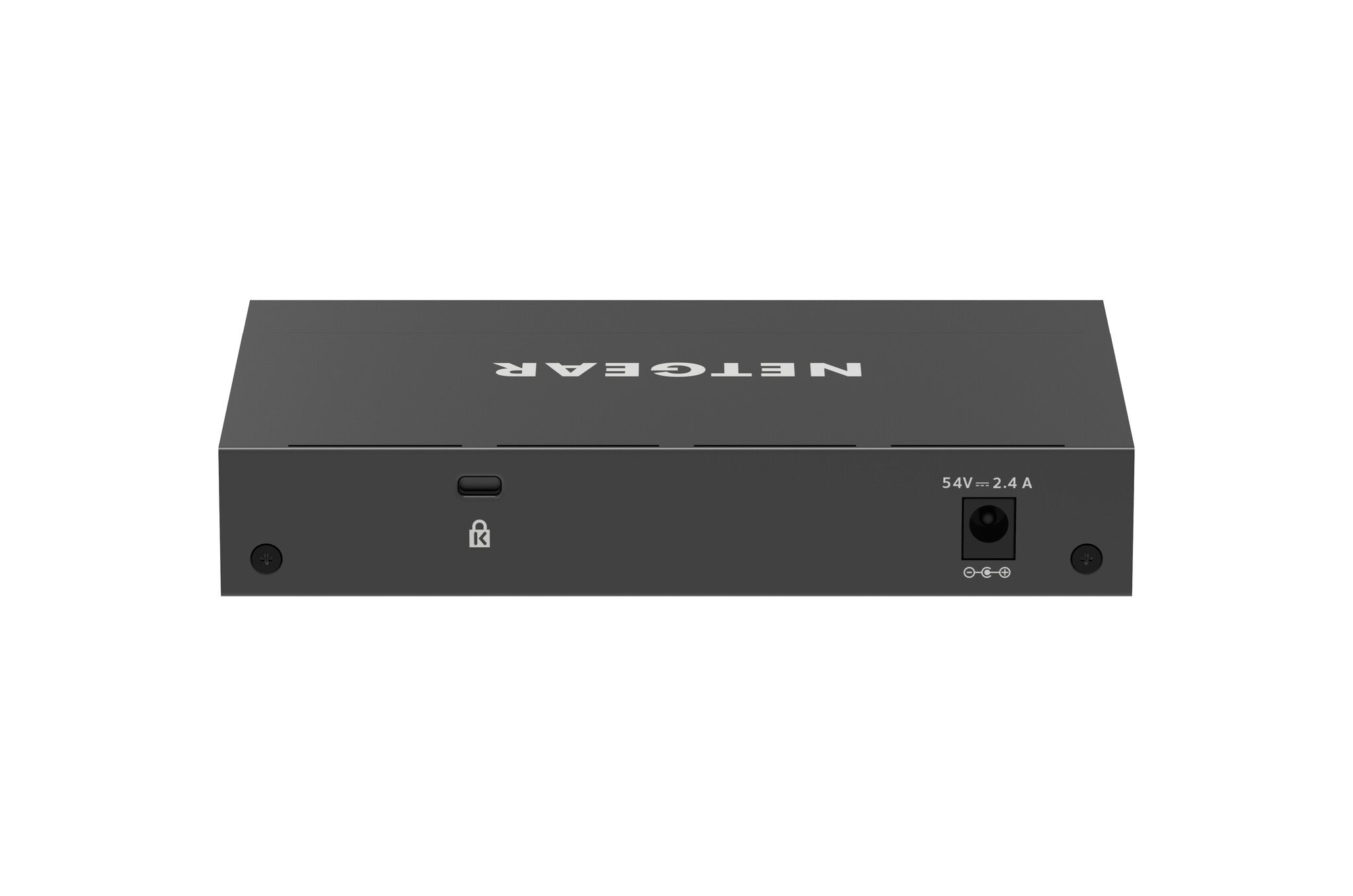

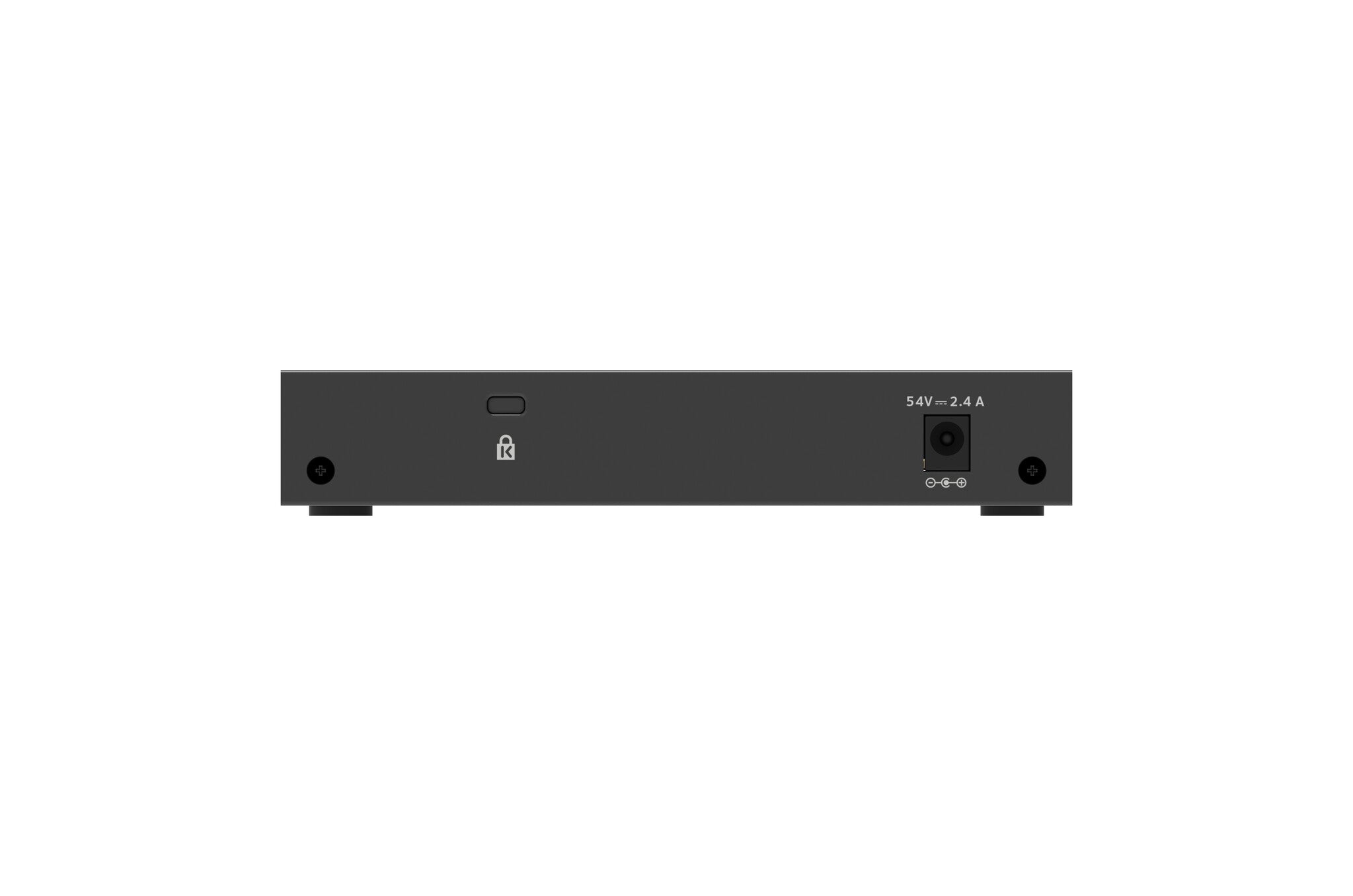

| Input current |
2.4 A |
| DC input voltage |
54 V |
| Power supply included |
Yes |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
490 g |
| Height |
27 mm |
| Depth |
101 mm |
| Width |
158 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Quick start guide |
Yes |
| Cables included |
DC |
| Certificates |
|---|
| Certification |
CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI |
