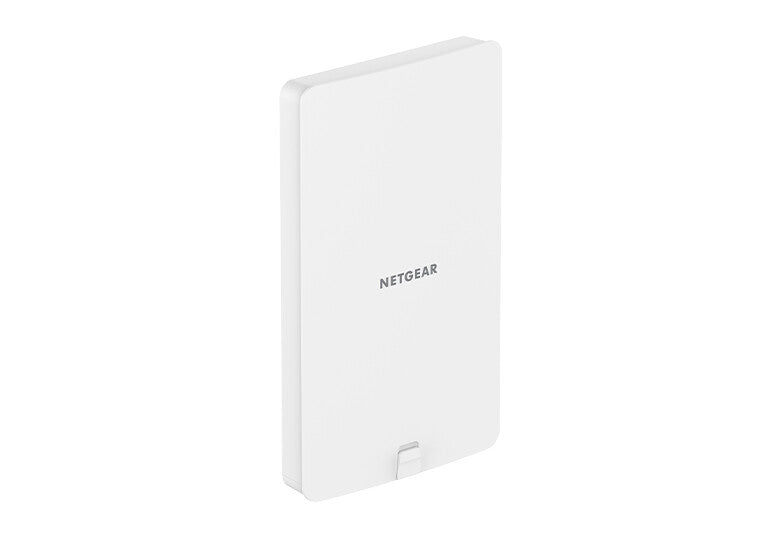

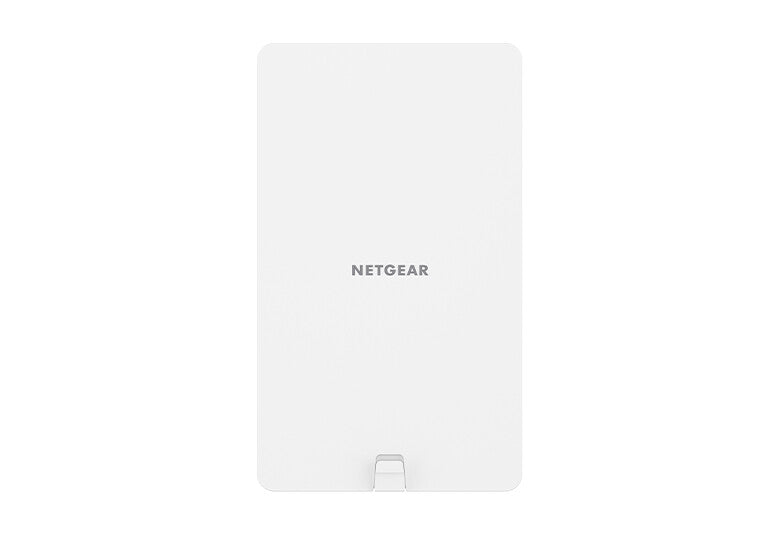

Equipped with the latest and fastest WiFi 6 (802.11 AX) technology, WAX610Y is an outdoor wireless access point built to provide your small and medium business with next-level coverage and connection capacity for a high-performance business-grade WiFi experience, today and tomorrow. WAX610 empowers businesses to provide up to 40% higher throughput, larger device connection capacity, more network reliability and resiliency, and greatly enhanced security features, with a SMB IT budget and ease-of-use requirements. WAX610Y is compatible with all existing WiFi 6 devices, together with current WiFi 5 and below Access Points and end-users devices, making it the best investment today for years to come. WAX610Y is designed to withstand harsh environment conditions including prolonged exposure to sunlight, cold, frost, snow, rainfall, hail and humidity. It is rated IP55 and supports temperatures from -20C to 60C.
The WAX610Y is managed by NETGEAR Insight, for a fully centralized Cloud real-time remote monitoring, with no need for extra management hardware. WAX610Y also comes with an intuitive local management GUI as one of the choices. The WAX610Y features 2x2 Multi-user MIMO (MU-MIMO) to achieve aggregate speeds up to 1.8 Gbps, superior WiFi roaming, automatic channel and power management, airtime fairness, beamforming, OFDMA, 1024-QAM, and comes with one Power-over-Ethernet (PoE) 2.5Gb / 1Gb /100Mb LAN port.
Package Contents
- WAX610Y Insight Managed Outdoor Wireless Access Point

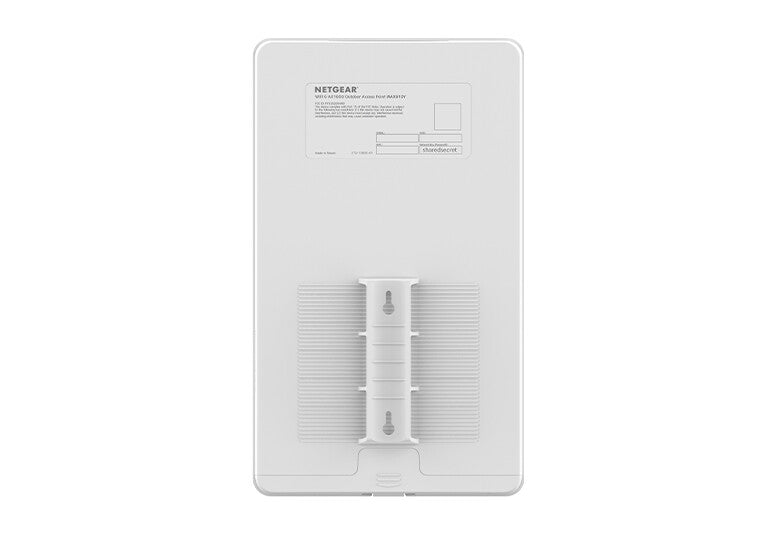

- Wall/ceiling mount kit
- Pole mount kit
- Installation guide
| Features |
|---|
| Adaptive bandwidth management |
Yes |
| VLAN support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Spread spectrum method |
OFDM, OFDMA |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.11ax, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
600 Mbit/s |
| Maximum data transfer rate |
1800 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
|---|
| Auto Wireless Distribution System (WDS) |
Yes |
| MAC address filtering |
Yes |
| Security algorithms |
EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSID, TTLS, WPA, WPA2, WPA3 |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (typical) |
16.1 W |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| LED indicators |
LAN, Power, WLAN |
| International Protection (IP) code |
IP55 |
| Product colour |
White |
| Placement |
Ceiling, Pole, Wall |
| Antenna |
|---|
| Antenna type |
Internal |
| Weight & dimensions |
|---|
| Weight |
940 g |
| Height |
34 mm |
| Depth |
305 mm |
| Width |
181 mm |
| Packaging data |
|---|
| Package weight |
11.7 kg |
| Package height |
350 mm |
| Package depth |
430 mm |
| Package width |
390 mm |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
