Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for the smaller business.
High-Performance Business WiFi
Faster and more reliable dual band WiFi 6 with 8 streams and up to 2.4Gbps in 5GHz band and 1.2Gbps in 2.4GHz band
Ideal for High Density Environments
Ultimate WiFi performance for schools, hotels, restaurants, and conference centers.
Greater Network Capacity
Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.
Seamless Wireless Mesh
Wire-free installation with other WAX620, WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.
Multi-Gigabit Speed
Includes a 2.5 Gbps Ethernet port with PoE for high speed wired network connectivity and easy wiring
Easy Setup
Set up, configure, and manage with NETGEAR Insight

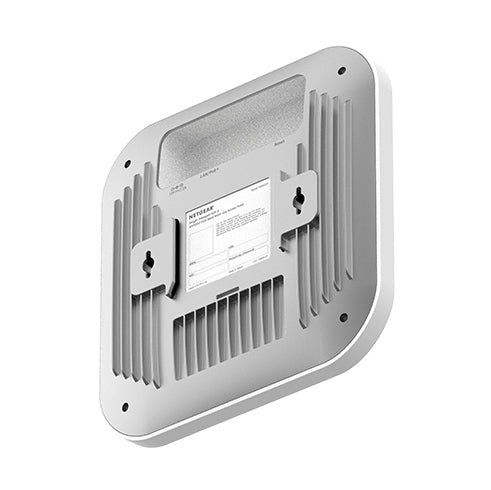

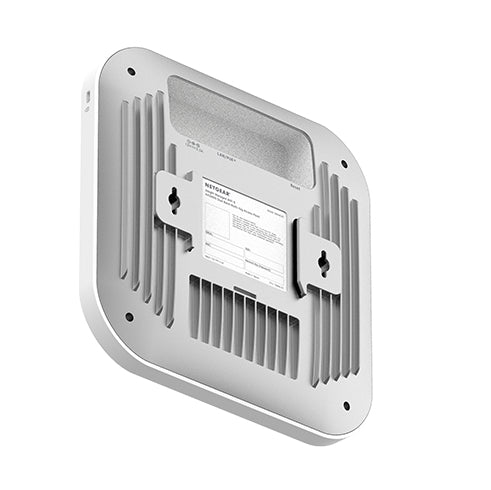

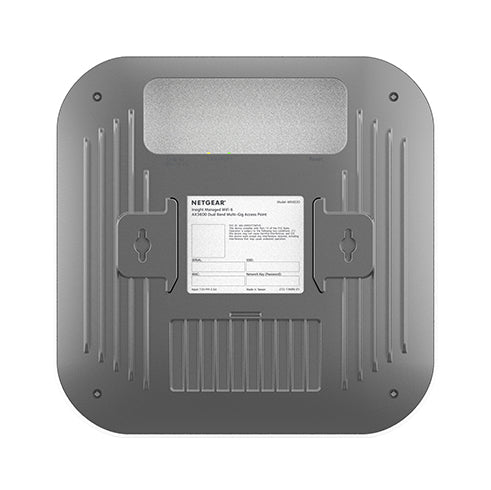

Flexible Mounting
Easy to securely install on the wall of a suspended ceiling with the hardware included
Business-Level Security
WPA3 for the highest level of WiFi connection security
8 Wireless Networks (SSIDs)
Separate and secure networks for admin, guests, employees and IoT devices like cameras, locks and more
Separate VLANs
Keep admin, employee, visitor, HR, Finance department networks safely separated from each other
| Features |
|---|
| VLAN support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Modulation |
OFDM |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2400 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
1200 Mbit/s |
| Maximum data transfer rate |
3600 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
|---|
| Auto Wireless Distribution System (WDS) |
Yes |
| MAC address filtering |
Yes |
| Security algorithms |
EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3 |
| Management features |
|---|
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Output current |
2.5 A |
| Output voltage |
12 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| LED indicators |
LAN, Power, WLAN |
| Product colour |
White |
| Placement |
Ceiling, Wall |
| Antenna |
|---|
| Antenna gain level (max) |
4.3 dBi |
| Antenna type |
Internal |
| Weight & dimensions |
|---|
| Weight |
783 g |
| Height |
34.3 mm |
| Depth |
205.7 mm |
| Width |
205.7 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
