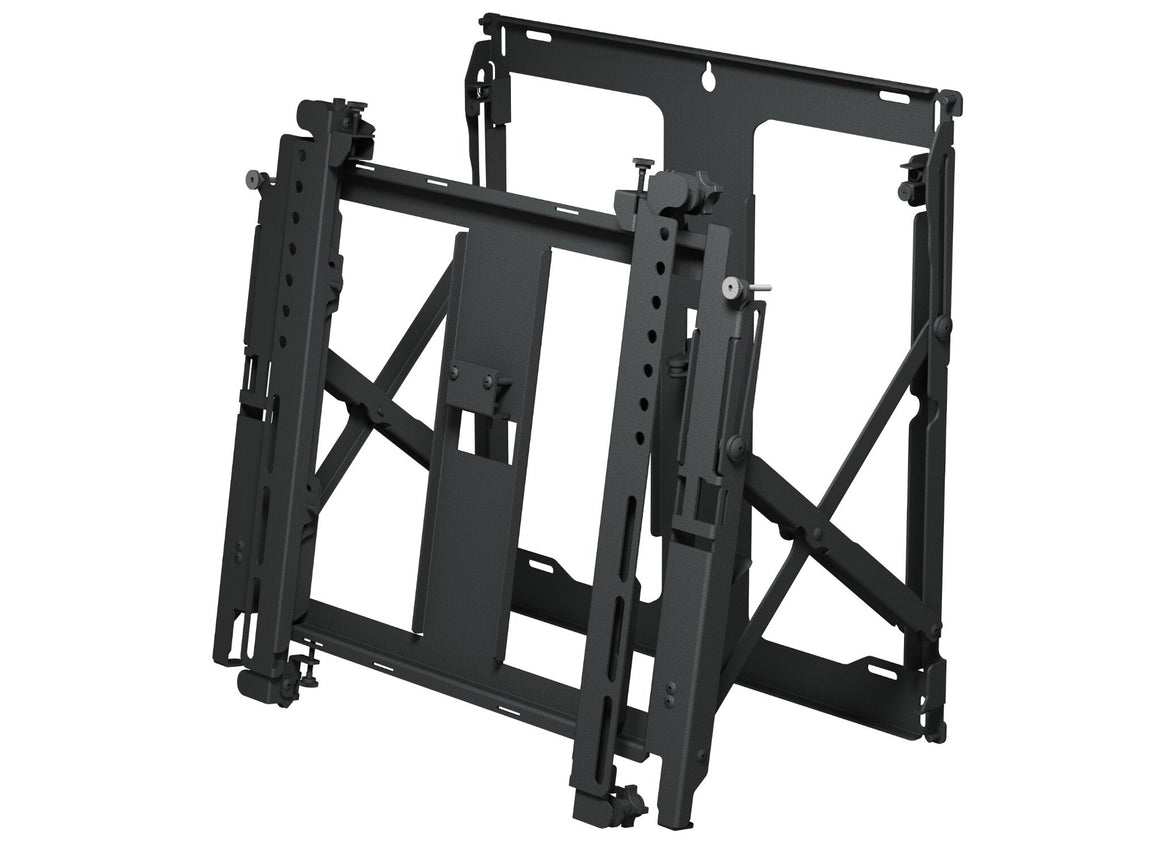

The DS-VW755S Slim Full Service Video Wall Mount with quick release offers an easy to install solution for landscape and portrait applications. When overall video wall depth is a concern, the DS-VW755S provides ADA compliance when mounting displays measuring 2" deep or less. Designed for quick service access in recessed video wall applications, the DS-VW755S provides versatility demanded by today’s integrator. Tool-less micro adjustment at eight points allows the mount to overcome uneven walls, creating a seamless video wall display. Easy display access and quick serviceability make this mount the ultimate video wall mounting solution.
| Mounting |
|---|
| Number of displays supported |
1 |
| Maximum VESA mount |
400 x 400 mm |
| Minimum VESA mount |
200 x 200 mm |
| Mounting type |
Wall |
| Maximum screen size |
165.1 cm (65") |
| Minimum screen size |
116.8 cm (46") |
| Maximum weight capacity |
36.4 kg |
| Ergonomics |
|---|
| Distance to the wall (max) |
32.8 cm |
| Distance to the wall (min) |
4.8 cm |
| Design |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Weight |
9.5 kg |
| Height |
521 mm |
| Depth |
67 mm |
| Width |
545 mm |
| Packaging data |
|---|
| Package weight |
11.5 kg |
| Package height |
546 mm |
| Package depth |
63 mm |
| Package width |
762 mm |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
